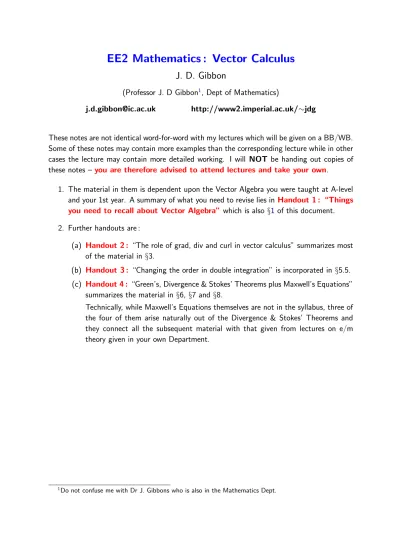

EE2 Mathematics : Vector Calculus

J. D. Gibbon

(Professor J. D Gibbon1_{, Dept of Mathematics)}

j.d.gibbon@ic.ac.uk _{http://www2.imperial.ac.uk/∼jdg}

These notes are not identical word-for-word with my lectures which will be given on a BB/WB. Some of these notes may contain more examples than the corresponding lecture while in other cases the lecture may contain more detailed working. I will NOT be handing out copies of these notes – you are therefore advised to attend lectures and take your own.

1. The material in them is dependent upon the Vector Algebra you were taught at A-level and your 1st year. A summary of what you need to revise lies in Handout 1 : “Things you need to recall about Vector Algebra” which is also §1 of this document. 2. Further handouts are :

(a) Handout 2 : “The role of grad, div and curl in vector calculus” summarizes most of the material in_§3.

(b) Handout 3 : “Changing the order in double integration” is incorporated in§5.5. (c) Handout 4 : “Green’s, Divergence & Stokes’ Theorems plus Maxwell’s Equations”

summarizes the material in §6, §7 and §8.

Technically, while Maxwell’s Equations themselves are not in the syllabus, three of the four of them arise naturally out of the Divergence & Stokes’ Theorems and they connect all the subsequent material with that given from lectures on e/m theory given in your own Department.

Contents

1

Revision : Things you need to recall about Vector Algebra

2

2

Scalar and Vector Fields

3

3

The vector operators : grad, div and curl

3

3.1

Definition of the gradient operator

∇

. . . 3

3.2

Definition of the divergence of a vector field div B

. . . 4

3.3

Definition of the curl of a vector field curl B

. . . 5

3.4

Five vector identities

. . . 6

3.5

Irrotational and solenoidal vector fields

. . . 6

4

Line (path) integration

8 4.1

Line integrals of Type 1 :

R

_C

ψ(x, y, z) ds

. . . 10

4.2

Line integrals of Type 2 :

R

_C

F (x, y, z)

∙ dr

. . . 11

4.3

Independence of path in line integrals of Type 2

. . . 13

5

Double and multiple integration

15 5.1

How to evaluate a double integral

. . . 16

5.2

Applications

. . . 16

5.3

Examples of multiple integration

. . . 17

5.4

Change of variable and the Jacobian

. . . 18

5.5

Changing the order in double integration

. . . 20

6

Green’s Theorem in a plane

22

7

2D Divergence and Stokes’ Theorems

25

1

Revision : Things you need to recall about Vector Algebra

Notation: a = a1ˆi + a2_{j + a3}ˆ _kˆ _{≡ (a1, a2, a3).} 1. The magnitude or length of a vector a is

|a| = a = a2

1+ a22+ a23
1/2

. (1.1)

2. The scalar (dot) product of two vectors a = (a1, a2, a3) & b = (b1, b2, b3) is given by

a_{∙ b = a1}b1+ a2b2+ a3b3. (1.2)

Since a∙ b = ab cos θ, where θ is the angle between a and b, then a and b are perpendicular if a∙ b = 0, assuming neither a nor b are null.

3. The vector (cross) product2 _{between two vectors a and b is}

a_{× b =}        ˆi ˆ_{j k}ˆ a1 a2 a3 b1 b2 b3        . (1.3)

Recall that a× b can also be expressed as

a_{× b = (ab sin θ) ˆ}n (1.4)

where ˆnis a unit vector perpendicular to both a and b in a direction determined by the right hand rule. If a× b = 0 then a and b are parallel if neither vector is null.

4. The scalar triple product between three vectors a, b and c is a_{∙(b×c) =}       a1 a2 a3 b1 b2 b3 c1 c2 c3       a % & c _←− b Cyclic Rule: clockwise +ve (1.5) According to the cyclic rule

a_{∙ (b × c) = b ∙ (c × a) = c ∙ (a × b)} (1.6)

One consequence is that if any two of the three vectors are equal (or parallel) then their scalar product is zero: e.g. a_{∙ (b × a) = b ∙ (a × a) = 0. If a ∙ (b × c) = 0} and no pair of a, b and c are parallel then the three vectors must be coplanar.

5. The vector triple product between three vectors is

a_{× (b × c) = b(a ∙ c) − c(a ∙ b) .} (1.7)

The placement of the brackets on the LHS is important: the RHS is a vector that lies in the same plane as b and c whereas (a_{× b) × c = b(c ∙ a) − a(c ∙ b) lies in the plane} of a and b. Thus, a_{× b × c without brackets is a meaningless statement!}

2

Scalar and Vector Fields

(L1)

Our first aim is to step up from single variable calculus – that is, dealing with functions of one variable – to functions of two, three or even four variables. The physics of electro-magnetic (e/m) fields requires us to deal with the three co-ordinates of space (x, y, z) and also time t. There are two different types of functions of the four variables :

1. A scalar field3 _{is written as}

ψ = ψ(x, y, z, t) . (2.1)

Note that one cannot plot ψ as a graph in the conventional sense as ψ takes values at every point in space and time. A good example of a scalar field is the temperature of the air in a room. If the box-shape of a room is thought of as a co-ordinate system with the origin in one corner, then every point in that room can be labelled by a co-ordinate (x, y, z). If the room is poorly air-conditioned the temperature in different parts may vary widely : moving a thermometer around will measure the variation in temperature from point to point (spatially) and also in time (temporally). Another example of a scalar field is the concentration of salt or a dye dissolved in a fluid.

2. A vector field B(x, y, z, t) must have components (B1, B2, B3) in terms of the three unit vectors (ˆi, ˆj, ˆk)

B = ˆiB1(x, y, z, t) + ˆjB2(x, y, z, t) + ˆkB3(x, y, z, t) . (2.2) These components can each be functions of (x, y, z, t). Three physical examples of vector fields are :

(a) An electric field :

E(x, y, z, t) = ˆiE1(x, y, z, t) + ˆjE2(x, y, z, t) + ˆkE3(x, y, z, t) , (2.3) (b) A magnetic field :

H(x, y, z, t) = ˆiH1(x, y, z, t) + ˆjH2(x, y, z, t) + ˆkH3(x, y, z, t) , (2.4) (c) The velocity field u(x, y, z, t) in a fluid.

A classic illustration of a three-dimensional vector field in action is the e/m signal received by a mobile phone which can be received anywhere in space.

3

The vector operators : grad, div and curl

3.1

Definition of the gradient operator

∇

The gradient operator (grad) is denoted by the symbol _{∇ and is defined as} ∇ = ˆi_∂x∂ + ˆj∂

∂y + ˆk ∂

∂z . (3.1)

As such it is a vector form of partial differentiation because it has spatial partial derivatives in each of the three directions. On its right, _{∇ can operate on a scalar field ψ(x, y, z)}

∇ψ = ˆi∂ψ_∂x + ˆj∂ψ ∂y + ˆk

∂ψ

∂z . (3.2)

Note that while ψ is a scalar field, ∇ψ itself is a vector.

• Example 1) : With ψ = 1 3 x

3_{+ y}3_{+ z}3

∇ψ = ˆix2_{+ ˆjy}2_{+ ˆkz}2_{. (3.3)}

As explained above, the RHS is a vector whereas ψ is a scalar. • Example 2) : With ψ = xyz the vector ∇ψ is

∇ψ = ˆiyz + ˆjxz + ˆkxy . (3.4)

End of L1

3.2

Definition of the divergence of a vector field div B

L2 Because vector algebra allows two forms of multiplication (the scalar and vector products) there are two ways of operating _{∇ on a vector}

B = ˆiB1(x, y, z, t) + ˆjB2(x, y, z, t) + ˆkB3(x, y, z, t) . (3.5) The first is through the scalar or dot product

div B = ∇ ∙ B =  ˆi∂ ∂x + ˆj ∂ ∂y + ˆk ∂ ∂z  ∙ ˆiB1+ ˆjB2+ ˆkB3
. (3.6)

Recalling that ˆi_{∙ ˆi = ˆj ∙ ˆj = ˆk ∙ ˆk = 1 but ˆi ∙ ˆj = ˆi ∙ ˆk = ˆk ∙ ˆj = 0, the result is} div B =_{∇ ∙ B =} ∂B1 ∂x + ∂B2 ∂y + ∂B3 ∂z . (3.7)

Note that div B is a scalar because div is formed through the dot product. The best physical explanation that can be given is that div B is a measure of the compression or expansion of a vector field through the 3 faces of a cube.

• If div B = 0 the the vector field B is incompressible ; • If div B > 0 the the vector field B is expanding ; • If div B < 0 the the vector field B is compressing .

Example 1 : Let r be the straight line vector r = ˆix + ˆjy + ˆkz then

div r = 1 + 1 + 1 = 3 (3.8)

Example 2 : Let B = ˆix2_{+ ˆjy}2 _{+ ˆkz}2 _then

div B = 2x + 2y + 2z (3.9)

Note : the usual rule in vector algebra that a ∙ b = b ∙ a (that is, a and b commute) doesn’t hold when one of them is an operator. Thus

B_{∙ ∇ = B}1 ∂ ∂x + B2 ∂ ∂y + B3 ∂ ∂z 6= ∇ ∙ B (3.10)

3.3

Definition of the curl of a vector field curl B

The alternative in vector multiplication is to use _{∇ in a cross product with a vector B :}

curl B =_{∇ × B =}        ˆi _jˆ _kˆ ∂x ∂y ∂z B1 B2 B3        . (3.11)

The best physical explanation that can be given is to visualize in colour the intensity of B then curl B is a measure of the curvature in the field lines of B.

Example 1) : Take the vector denoting a straight line from the origin to a point (x, y, z) denoted by r = ˆix + ˆjy + ˆkz. Then

curl r =_{∇ × r =}        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z x y z        = 0 . (3.12) Example 2) : Choose B = 1 2 ˆix 2_{+ ˆjy}2_{+ ˆkz}2
_then curl B =∇ × B =        ˆi _jˆ _kˆ ∂_x ∂_y ∂_z 1 2x 2 1 2y 2 1 2z 2        = 0 . (3.13)

Example 3) : Take the vector denoted by B = ˆiy2_z2_{+ ˆjx}2_z2_{+ ˆkx}2_y2_{. Then}

curl B =∇×B =        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z y2_z2 _x2_z2 _x2_y2       

Example 4) : For the curl of a two-dimensional vector B = ˆiB1(x, y) + ˆjB2(x, y) we have curl B =_{∇ × B =}        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z B1(x, y) B2(x, y) 0        = ˆk _∂B 2 ∂x − ∂B1 ∂y  , (3.15)

which points in the vertical direction only because there are no ˆi and ˆj components. End of L2

3.4

Five vector identities

L3 There are 5 useful vector identities (see hand out No 2). The proofs of 1), 4) and 5) are obvious : for No 1) use the product rule. 2) and 3) can be proved with a little effort.

1. The gradient of the product of two scalars ψ and φ

∇(φψ) = ψ∇φ + φ∇ψ . (3.16)

2. The divergence of the product of a scalar ψ with a vector b

div (ψB) = ψ div B + (_{∇ψ) ∙ B .} (3.17)

3. The curl of the product of a scalar ψ with a vector B

curl (ψB) = ψ curl B + (_{∇ψ) × B .} (3.18)

4. The curl of the gradient of any scalar ψ

curl (∇ψ) = ∇ × ∇ψ = 0 , (3.19)

because the cross product∇ × ∇ is zero. 5. The divergence of the curl of any vector B

div (curl B) =∇ ∙ (∇ × B) = 0 . (3.20)

The cyclic rule for the scalar triple product in (3.20) shows that this is zero for all vectors B because two vectors (∇) in the triple are the same.

3.5

Irrotational and solenoidal vector fields

Consider identities 4) & 5) above (see also Handout 2 “The role of grad, div & curl ...”)

curl (_{∇φ) = ∇ × ∇φ = 0 ,} (3.21)

div (curl B) = 0 . (3.22)

(3.21) says that if any vector B(x, y, z) can be written as the gradient of a scalar φ(x, y, z) (which can’t always be done)

then automatically curl B = 0. Such vector fields are called irrotational vector fields.

It is equally true that for a given field B, then if it is found that curl B = 0, then we can write4

B =±∇φ (3.24)

φ is called the “scalar potential”. Note that not every vector field has a corresponding scalar potential, but only those that are curl-free.

Likewise we now turn to (3.22) : vector fields B for which div B = 0 are called solenoidal, in which case B can be written as

B = curl A (3.25)

where the vector A is called a “vector potential”. Note that only vectors those that are div-free have a corresponding vector potential5_.

Example : The Newtonian gravitational force between masses m and M (with gravitational constant G) is

F =−GmM_rr₃ , (3.26)

where r = ˆix + ˆjy + ˆkz and r2 _{= x}2_{+ y}2_{+ z}2_. 1. Let us first calculate curl F

curl F =_{−GmM curl (ψr) ,} where ψ = r−3. (3.27)

The 3rd in the list of vector identities gives

curl (ψr) = ψ curl r + (_{∇ψ) × r} (3.28)

and we already know that curl r = 0. It remains to calculate _{∇ψ :} ∇ψ = ∇n x2+ y2+ z2
−3/2o=₋3(ˆix + ˆjy + ˆkz) (x2_{+ y}2_{+ z}2₎5/2 =− 3r r5 . (3.29) Thus, from (3.26), curl F =_−GmM  0₋ 3r 2r5 × r  = 0 . (3.30)

Thus the Newton gravitational force field is curl-free, which is why a gravita-tional potential exists. We can write6

F =_{−∇φ .} (3.31)

One can find φ by inspection : it turns out that φ =_{−GmM 1/r.}

4_{Whether we use + or}

− in (3.24) depends on convention : in e/m theory normally uses a minus sign whereas fluid dynamics uses a plus sign.

5_{The last lecture on Maxwell’s Equations stresses that all magnetic fields in the universe are div-free as no} magnetic monopoles have yet been found : thus all magnetic fields are solendoidal vector fields.

2. Now let us calculate div F

div F =_{−GmM div (ψr)} where ψ = r−3. (3.32)

The 2nd in the list of vector identities gives

div (ψr) = ψ div r + (_{∇ψ) ∙ r} (3.33)

and we already know that div r = 3 and we have already calculated _{∇ψ in (}3.29).

div F =_−GmM  3 r3 − 3r r5 ∙ r  = 0 . (3.34)

Thus the Newton gravitational force field is also div-free, which is why a gravitational vector potential A also exists.

As a final remark it is noted that with F satisfying both F =−∇φ and div F = 0, then

div (_{∇φ) = ∇}2_{φ = 0 , (3.35)}

which is known as Laplace’s equation. End of L3.

4

Line (path) integration

(L4)

In single variable calculus the idea of the integral Z b a f (x) dx = N X i=1 f (xi)δxi (4.1)

is a way of expressing the sum of values of the function f (xi) at points xi multiplied by the area of small strips δxi: correctly it is often expressed as the area under the curve f (x). Pictorially the concept of an area sits very well in the plane with y = f (x) plotted against x.

However, the idea of area under a curve has to be dropped when line integration is considered because we now wish to place our curve C in 3-space where a scalar field ψ(x, y, z) or a vector field F (x, y, z) take values at every point in this space. Instead, we consider a specified continuous curve C in 3-space – known as the path7 _{of integration –}

and then work out methods for summing the values that either ψ or F take on that curve.

It is essential to realize that the curve C sitting in 3-space and the scalar/vector fields ψ or F that take values at every point in this space are wholly independent quantities and must not be conflated.

z x y _A B C • •

Figure 3.1 : The curve C in 3-space starts at the point A and ends at B.

A B O δr δs r r + δr

Figure 3.2 : On a curve C, small elements of arc length δs and the chord δr, where O is the origin.

δx δy

δs

Figure 3.3 : In 2-space we can use Pythagoras’ Theorem to express δs in terms of δx and δy. Pythagoras’ Theorem in 3-space (see Fig 3.3 for a 2-space version) express δs in terms of δx, δy and δz : (δs)2 _{= (δx)}2_{+ (δy)}2_{+ (δz)}2_{. There are two types of line integral :}

Type 1 : The first concerns the integration of a scalar field ψ along a path C Z

C

Type 2 : The second concerns the integration of a vector field F along a path C Z

C

F (x, y, z)∙ dr (4.3)

Remark : In either case, if the curve C is closed then we use the designations I C ψ(x, y, z) ds and I C F (x, y, z)∙ dr (4.4)

4.1

Line integrals of Type 1 :

R

_C

ψ(x, y, z) ds

How to evaluate these integrals is best shown by a series of examples keeping in mind that, where possible, one should always draw a picture of the curve C :

Example 1) : Show that R_Cx2_{y ds = 1/3 where C is the circular arc in the first quadrant of} the unit circle.

y x (0, 0) (1, 0) (0, 1) δs δθ θ (x, y)

C is the arc of the unit circle x2 _{+ y}2 _{= 1} represented in polars by x = cos θ and y = sin θ for 0 _{≤ θ ≤ π/2. Thus the small element of} arc length is δs = 1.δθ. Z C x2_{y ds =} Z π/2 0 cos2_{θ sin θ(dθ)} = 1/3 . (4.5)

Example 2) : Show thatR_Cxy3_{ds = 54}√_{10/5 where C is the line y = 3x from x =−1 → 1.} y

x y = 3x

C is an element on the line y = 3x. Thus δy = 3δx so (δs)2 = (δx)2+ 9(δx)2 = 10(δx)2 Z C xy3ds = 27√10 Z 1 −1 x4dx = 54√10/5 .

y x C1 (1, 0) (0, 1) C3 C2 On C1: y = 0 so ds = dx and R_C1 = 0 (because y = 0). On C2: y = 1− x so dy = −dx and so (ds)2 = 2(ds)2. On C3: x = 0 so ds = dy and R C3 = 0 (because x = 0). Therefore I C = Z C1 + Z C2 + Z C3 = 0 + Z 0 1 x2(1_{− x)}√2 dx + 0 =₋√2/12 . (4.6) Note that we take the positive root of (ds)2 _{= 2(dx)}2 _{but use the fact that following the} arrows on C2 the variable x goes from 1_{→ 0.}

Example 4) : (see Sheet 2). Find R_C(x2_{+ y}2_{+ z}2_{) ds where C is the helix}

r = ˆi cos θ + ˆj sin θ + ˆkθ , (4.7)

with one turn : that is θ running from 0_{→ 2π .}

From (4.7) we note that x = cos θ, y = sin θ and z = θ. Therefore dx = − sin θdθ, dy = cos θdθ and dz = dθ. Thus

(ds)2 = sin2θ + cos2θ + 1
(dθ)2 = 2(dθ)2. (4.8) Therefore we can write the integral as

Z C (x2 + y2+ z2) ds =√2 Z 2π 0 1 + θ2
dθ = 2π√2 1 + 4π2/3
. (4.9) End of L4

4.2

Line integrals of Type 2 :

R

_C

F (x, y, z)

∙ dr

A B O δr δs r r + δr F

Figure 3.4 : A vectorF and a curve C with the chord δr : O is the origin.

1. Think of F as a force on a particle being drawn through the path of the curve C. Then the work done δW in pulling the particle along the curve with arc length δs and chord δr is δW = F ∙ δr. Thus the full work W is

W = Z

C

F _{∙ dr .} (4.10)

2. The second example revolves around taking F as an electric field E(x, y, z). Then the mathematical expression of Faraday’s Law says that the electro-motive force on a particle of charge e travelling along C is precisely eR_CE(x, y, z)∙ dr .

Example 1 : Evaluate R_CF _{∙ dr given that F = ˆix}2_{y + ˆj(x− z) + ˆkxyz and the path C is} the parabola y = x2 _{in the plane z = 2 from (0, 0, 2)→ (1, 1, 2).}

y x % C1 % C2 (1, 1)

C₁ is along the curve y = x2 _{in the plane z = 2 in which} case dz = 0 and dy = 2x dx. C2 is along the straight line y = x in which case dy = dx.

Z C1 F _{∙ dr =} Z C1 (F1dx + F2dy + F3dz) = Z C1 x2y dx + (x_{− z) dy + xyz dz}
= Z C1 x2y dx + (x− 2) dy
(4.11)

Using the fact that dy = 2x dx we have I = Z 1 0 x4dx + (x− 2)2x dx
= Z 1 0 x4+ 2x2_{− 4x}
dx =_{−17/15 .} (4.12)

Finally, with the same integrand but along C2 we have Z C2 F _{∙ dr =} Z 1 0 x3dx + (x− 2) dx
= 1/4 + 1/2_{− 2 = −5/4 .} (4.13)

This example illustrates the point that with the same integrand and start/end points the value of an integral can differ when the route between these points is varied.

Example 2 : Evaluate I = R_C(y2_{dx− 2x}2_{dy) given that F = (y}2_,−2x2_{) with the path C} taken as y = x2 _{in the z = 0 plane from (0, 0, 0)→ (2, 4, 0).}

y

x C

(2, 4)

C is the curve y = x2 _{in the plane z = 0, in which} case dz = 0 and dy = 2x dx. The starting point has co-ordinates (0, 0, 0) and the end point (2, 4, 0).

I = Z C (y2_{dx− 2x}2_dy) = Z 2 0 x4_{− 4x}3
dx =−48/5 . (4.14)

Example 3 : Given that F = ˆix − ˆjz + 2ˆky, where C is the curve z = y4 _{in the x = 1 plane,} show that from (1, 0, 0)_{→ (1, 1, 1) the value of the line integral is 7/5.}

On C we have dz = 4y3_{dy and in the plane x = 1 we also have dx = 0. Therefore} Z C F _{∙ dr =} Z C (x dx_{− z dy + 2y dz)} = Z 1 0 −y 4_{+ 8y}4
_{dy = 7/5 . (4.15)} End of L5

4.3

Independence of path in line integrals of Type 2

(L6) Are there circumstances in which a line integral R_CF _{∙ dr, for a given F , takes values} which are independent of the path C?

To explore this question let us consider the case where F ∙ dr is an exact differential : that is F _{∙ dr = −dφ for some scalar}8 _{φ. For starting and end co-ordinates A and B of C we have}

Z C F _{∙ dr = −} Z C dφ = φ[A]− φ[B] . (4.16)

This result is independent of the route or path taken between A and B. Thus we need to know what F ∙ dr = −dφ means. Firstly, from the chain rule

dφ = ∂φ ∂xdx + ∂φ ∂ydy + ∂φ ∂zdz =∇φ ∙ dr . (4.17)

Hence, if F _{∙ dr = −dφ we have F = −∇φ,} which means that F must be a curl-free vector field

curl F = 0 , (4.18)

where φ is the scalar potential. A curl-free F is also known as a conservative vector field.

Result : The integral R_CF _{∙ dr is independent of path only if curl F = 0. Moreover, when C} is closed then _I

C

F _{∙ dr = 0 .} (4.19)

Example 1 : Is the line integral R_C(2xy2_{dx + 2x}2_{y dy) independent of path?} We can see that F is expressed as F = 2xy2ˆi + 2x2_{yˆj + 0ˆk. Then}

curl F =        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z 2xy2 _2x2_{y 0}        = (4xy− 4xy)ˆk = 0 . (4.20)

Thus the integral is independent of path and we should be able to calculate φ from F =_−∇φ. − ∂φ_∂x = 2xy2, ₋∂φ

∂y = 2x 2_{y ,}

−∂φ_∂z = 0 . (4.21) Partial integration of the 1st equation gives φ = _−x2_y2 _{+ A(y) where A(y) is an arbitrary} function of y only, whereas from the second φ = _−x2_y2 _{+ B(x). Thus A(y) = B(x) =} const = C. Hence

φ =_−x2y2+ C . (4.22)

Example 2 : Find the work done R_CF _{∙ dr by the force F = (yz, xz, xy) moving from} (1, 1, 1)_{→ (3, 3, 2).}

Is this line integral independent of path? We check to see if curl F = 0.

curl F =        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z yz xz xy        = 0 . (4.23)

Thus the integral is independent of path and φ must exist. In fact −φx = yz, − φy = xz and _−φz = xy. Integrating the first gives φ = −xyz + A(y, z), the second gives φ = −xyz + B(x, z) and the third φ = −xyz + C(x, y). Thus A = B = C = const and

φ =_{−xyz + const .} (4.24)

W =−

Z (3,3,2) (1,1,1)

Example 3 : Find R_CF _{∙ dr on every path between (0, 0, 1) and (1, π/4, 2) where}

F = 2xyz2, (x2z2 + z cos yz), (2x2yz + y cos yz)
. (4.26) We check to see if curl F = 0.

curl F =        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z

2xyz2 _(x2_z2_{+ z cos yz) (2x}2_{yz + y cos yz)}        = 0 . (4.27)

Thus the integral is independent of path and φ must exist. Then φx = _−2xyz2_{, φy =} −(x2_z2_{+ z cos yz) and φz =−(2x}2_{yz + y cos yz). Integration of the first gives}

φ =−x2_yz2_{+ A(y, z) , (4.28)}

of the second

φ =_−(x2yz2+ sin yz) + B(x, z) , (4.29)

and the third

φ =−(x2_yz2_{+ sin yz) + C(x, y) . (4.30)}

The only way these are compatible is if A(y, z) = sin yz + c and B = C = c = const. and so φ =_−(x2_yz2_{+ sin yz) + c. In consequence}

Z C

F _{∙ dr = −}φ(1,π/4, 2)_(0,0,1) = π + 1 . End of L6 (4.31)

5

Double and multiple integration

(L7)

Now we move on to yet another different concept of integration : that is, summation over an area instead of along a curve.

Consider the value of a scalar function ψ(xi, yi) at the co-ordinate point (xi, yi) at the lower left hand corner of the square of area δAi = δxiδyi. Then

N X i=1 M X j=1 ψ(xi, yi) δAi _→ Z Z R ψ(x, y) dxdy | {z } double integral as δx_{→ 0, δy → 0 .} (5.1)

We say that the RHS is the “double integral of ψ over the region R”. Note : do not confuse this with the area of R itself, which is

Area of R = Z Z

R

5.1

How to evaluate a double integral

y x y = h(x) R y = g(x) a b

Figure 4.2 : The region R is bounded between the upper curvey = h(x), the lower curvey = g(x) and the vertical lines x = a and x = b.

Z Z R ψ(x, y) dxdy = Z b a (Z y=h(x) y=g(x) ψ(x, y) dy ) dx (5.3)

The inner integral is a partial integral over y holding x constant. Thus the inner integral is a

function of x _Z y=h(x) y=g(x) ψ(x, y) dy = P (x) (5.4) and so _{Z Z} R ψ(x, y) dxdy = Z b a P (x) dx . (5.5)

Moreover the area of R itself is Area of R = Z b a (Z y=h(x) y=g(x) dy ) dx = Z b a {h(x) − g(x)} dx (5.6)

5.2

Applications

1. Area under a curve˙: For a function of a single variable y = f (x) between limits x = a and x = b Area = Z b a (Z f (x) 0 dy ) dx = Z b a f (x) dx . (5.7)

2. Volume under a surface : A surface is 3-space may be expressed as z = f (x, y) Volume = Z Z Z V dxdydz = Z R (Z f (x,y) 0 dz ) dxdy = Z Z R f (x, y) dxdy (5.8)

By this process, a 3-integral has been reduced to a double integral. A specific example would be the volume of an upper unit hemisphere z = +p1_{− (x}2_{+ y}2_{) ≡ f(x, y)} centred at the origin.

3. Mass of a solid body : Let ρ(x, y, z) be the variable density of the material in a solid body. Then the mass δM of a small volume δV = δxδyδz is δM = ρ δV , End of L7

Mass of body =

Z Z Z V

ρ(x, y, z) dV . (5.9)

5.3

Examples of multiple integration

L8 Example 1 : Consider the first quadrant of a circle of radius a. Show that : y x (0, 0) (a, 0) (0, a) (x, y) C R

(i) Area of R = πa2/4 (ii) Z Z R xy dxdy = a4/8 (iii) Z Z R x2y2dxdy = πa6/96

i) : The area of R is given by A = Z a 0 (Z √ a2_−x2 0 dy ) dx = Z a 0 √ a2_{− x}2_{dx . (5.10)}

Let x = a cos θ and y = a sin θ then A = 1 2a 2Rπ/2 0 (1− cos 2θ) dθ = πa 2_/4. ii) : Z Z R xy dxdy = Z a 0 x Z √ a2_−x2 0 y dy ! dx = 1 2 Z a 0 x(a2_{− x}2) dx = 1 2 ₁ 2x 2_a2₋ 1 4x 4a 0 = a 4_{/8 . (5.11)} iii) : Z Z R x2y2dxdy = Z a 0 x2 Z √ a2_−x2 0 y2dy ! dx = 1 3 Z a 0 x2(a2_{− x}2)3/2dx = 1 3a 6 Z π/2 0 cos2θ sin4θ dθ = 1 3a 6 _I 2− I3
. (5.12)

where In =R₀π/2sin2nθ dθ. Using a Reduction Formula method we find that In=  2n− 1 2n  I_n−1, I0 = π/2 . (5.13)

Thus I2 = 3π/16 and I2 = 15π/96 and so from (5.12) the answer is πa6/96.

5.4

Change of variable and the Jacobian

In the last example it might have been easier to have invoked the natural circular symmetry in the problem. Hence we must ask how δA = δxδy would be expressed in polar co-ordinates. This suggests considering a more general co-ordinate change. In the two figures below we see a region R in the x_{− y plane that is distorted into R}∗ _{in the plane of the new co-ordinates} u = u(x, y) and v = v(x, y) y x R v u R∗

The transformation relating the two small areas δxδy and δuδv is given here by (the modulus sign is a necessity) :

Result 1 :

dxdy =|Ju,v(x, y)| dudv , (5.14)

where the Jacobian Ju,v(x, y) is defined by Ju,v(x, y) =     ∂x ∂u ∂x ∂v ∂y ∂u ∂y ∂v     (5.15) Note that ∂x ∂u 6=  ∂u ∂x −1 (5.16) because ux is computed at y = const whereas xu is computed at v = const. However, luckily there is an inverse relationship between the two Jacobians

Jx,y(u, v) = [Ju,v(x, y)]−1 (5.17)

dudv =|Jx,y(u, v)| dxdy (5.18)

Proof : (not examinable). Consider two sets of orthogonal unit vectors ; (ˆi , ˆj) in the x − y-plane, and ( ˆu ,v) in the uˆ _{− v-plane. Keeping in mind that the component of δx along ˆ}u is (δx/δu)δu (v is constant along ˆu), in vectorial notation we can write

δx = ˆuδx δuδu + ˆv δx δvδv (5.19) δy = ˆuδy δuδu + ˆv δy δvδv (5.20)

and so the cross-product is

δx_{× δy =}  ˆ uδx δuδu + ˆv δx δvδv  ×  ˆ uδy δuδu + ˆv δy δvδv  , (5.21) Therefore dx dy = |δx × δy| =    det  ∂x ∂u ∂x ∂v ∂y ∂u ∂y ∂v   | ˆu× ˆv| dudv = |Ju,v(x, y)| dudv . (5.22)

The inverse relationship (5.18) can be proved in a similar manner  Result 2 : Z Z R f (x, y) dxdy = Z Z R∗

f (x(u, v), y(u, v))|Ju,v(x, y)| dudv . (5.23) Example 1 : For polar co-ordinates x = r cos θ and y = r sin θ we take u = r and v = θ

Jr,θ(x, y) =     ∂x ∂r ∂x ∂θ ∂y ∂r ∂y ∂θ     =   

 cos θ_{sin θ} −r sin θ_{r cos θ}   

 = r (5.24)

Thus dxdy = r drdθ .

Example 2 : To calculate the volume of a sphere of radius a we note that z = ±pa2_{− x}2_{− y}2_. Doubling up the two hemispheres we obtain

Volume = 2 Z Z

R p

a2_{− x}2_{− y}2_{dxdy (5.25)}

where R is the circle x2_{+ y}2 _{= a}2 _{in the z = 0 plane. Using a change of variable} Volume = 2 Z Z R p a2_{− x}2_{− y}2_dxdy = 2 Z Z R √ a2_{− r}2_rdrdθ = 2 Z a 0 √ a2_{− r}2_rdr Z 2π 0 dθ = 4πa3/3 . (5.26)

Example 3 : From the example in §5.3 over the quarter circle in the first quadrant it would be easier to compute in polars. Thus

Area of R = Z Z R dxdy = Z Z R rdrdθ = Z a 0 rdr Z π/2 0 dθ = πa2/4 (5.27) Z Z R xy dxdy = Z Z R r3cos θ sin θdrdθ = Z a 0 r3dr Z π/2 0 cos θ sin θdθ = 1 4a 4 Z π/2 0 1 2sin 2θdθ = (a4/16)[_{− cos 2θ]}π/2₀ = a4/8 . (5.28) Likewise one may show that

Z Z R x2y2dxdy = Z Z R r5cos2θ sin2θ drdθ = Z a 0 r5dr Z π/2 0

cos2θ sin2θdθ = πa6/96 . (5.29) Example 4 : Show that R R_R(x2_{+ y}2_{) dxdy = 8/3 using u = x + y and v = x− y. where R} has corners at (0, 0), (1, 1), (2, 0) and (1,_{−1) and rotates to a square with corners at (0, 0),} (2, 0), (2, 2) and (0, 2). From x = 1 2(u + v) and y = 1 2(u− v) it is found that Ju,v(x, y) = ₋1 2 (5.30) I = 1 4 Z Z R∗ 2(u2+ v2)|−1 2| dudv = 1 4 n₁ 3u 32 0[v] 2 0+ ₁ 3v 32 0[u] 2 0 o = 8/3 . (5.31) End of L8

5.5

Changing the order in double integration

In a handout, not in lectures. An example is used to illustrate this : consider I = Z a 0 Z a y x2_dx x2_{+ y}2  dy . (5.32)

Performing the integration in this order is hard as it involves a term in tan−1a y



. To make evaluation easier we change the order of the x-integration and the y-integration; first, however, we must deduce what the area of integration is from the internal limits in (5.32). The internal

integral is of the type _Z

x=a x=y

f (x, y) dx. (5.33)

Being an integration over x means that we are summing horizontally so we have left and right hand limits. The left limit is x = y and the right limit is x = a. This is shown in the drawing of the graph where the region of integration is labelled as R:

y x a x = a y = 0 x = y R

Now we want to perform the integration over R but in reverse order to that above: we integrate vertically first by reading off the lower limit as y = 0 and the upper limit as y = x. After integrating horizontally with limits x = 0 to x = a, this reads as

I = Z a 0 Z y=x y=0 x2_dy x2_{+ y}2  dx. (5.34)

The inside integral can be done with ease. x is treated as a constant because the integration is over y. Therefore define y = xθ where θ is the new variable. We find that

Z x 0 x2_dy x2_{+ y}2 = x Z 1 0 dθ 1 + θ2 = xπ 4 . (5.35) Hence I = π 4 Z a 0 x dx = πa 2 8 . (5.36)

6

Green’s Theorem in a plane

L9 Green’s Theorem in a plane – which will be quoted at the bottom of an exam question where necessary – tells us how behaviour on the boundary of a close curve C through a closed line integral in two dimensions is related to the double integral over the region inside R.

Theorem 1 Let R be a closed bounded region in the x − y plane with a piecewise smooth boundary C. Let P (x, y) and Q(x, y) be arbitrary, continuous functions within R having continuous partial derivatives Qx and Py. Then

I C (P dx + Qdy) = Z Z R (Qx_{− P}y) dxdy . (6.1) y x C1 y = g(x) C2 y = h(x) R a b

Figure : In the x− y plane the boundary curve C is made up from two counter-clockwise curves C1 and C2: R denotes the region inside.

Proof : R is represented by the upper and lower boundaries (as in the Figure above)

g(x)≤ y ≤h(x) (6.2) and so Z Z R ∂P ∂y dxdy = Z b a (Z y=h(x) y=g(x) ∂P ∂y dy ) dx = Z b a  P x, h(x)
− P x,g(x)
dx = − Z b a P x, g(x)
dx₋ Z a b P x, h(x)
dx | {z }

switched limits & sign

= − Z C1 P x, y
dx₋ Z C2 P x, y
dx = ₋ I C P x, y
dx . (6.3)

The same method can be used the other way round to prove that (note the +ve sign) Z Z R ∂Q ∂x dxdy = I C Q x, y
dy (6.4)

Both these results are true separately but can be pieced together to form the final result.  Example 1 : Use Green’s Theorem to evaluate the line integral

I

(x− y) dx − x2_{dy , (6.5)}

where R and C are given by y x ← C1 → 2 2 ↑ C2 C3 C4 ↓ R (2, 2)

Using G.T. with P = x _{− y and Q = −x}2 _{over the} box-like region R we obtain

I  (x_{− y) dx − x}2dy = Z Z R (1_{− 2x) dxdy} = Z 2 0 dy Z 2 0 (1− 2x) dx = _{−4 .} (6.6)

Direct valuation gives H_C = R_C1+R_C2+R_C3+R_C4 where C1 is y = 0 ; C2 is x = 2 ; C3 is y = 2 and C4 is x = 0. Thus I C = Z 2 0 x dx_{− 4} Z 2 0 dy + Z 0 2 (x− 2) dx + 0 = 2 − 8 + 2 = −4 . (6.7) Example 2 : Using Green’s Theorem over R in the diagram, show that

I  y3dx + (x3+ 3xy2) dy = 3/20 (6.8) y x C1 y = x2 C2 y = x R (1, 1)

Using Green’s Theorem I  y3dx + (x3 + 3xy2) dy = 3 Z Z R x2dxdy = 3 Z 1 0 x2 Z y=x y=x2 dy  dx = 3 Z 1 0 x3 _{− x}4
dx = 3/20 . End of L9 (6.9)

L10 Example 3 : (Part of 2005 exam) : With a suitable choice of P and Q and R as in the figure, show that

1 2 I C (x dy− y dx) = Z Z R dxdy = 1/3 . (6.10) y x % ↓ y = 1 2x 2 . y = x R (2, 2) 1 2 Z Z R dxdy = Z 2 1 Z x 1 2x2 dy ! dx = Z 2 1 x₋ 1 2x 2
_{dx = 1/3 . (6.11)}

Around the line integral we have I = 1 2 Z 2 1 x2₋ 1 2x 2
_{dx +}1 2 Z 2 1 (xdx_{− xdx) +} 1 2 Z 1/2 1 dy = 7/12_{− 1/4 = 1/3 .} (6.12)

Example 4 : (Part of 2004 exam) : If Q = x2 _{and P =−y}2 _{and R is as in the figure below,}

show that _I C (x2dy_{− y}2dx) = 2 Z Z R (x + y) dxdy = 24/5 . (6.13)

y x % y = 1 2x 2 . y2 _{= 2x} R (2, 2) 2

The RHS is obvious in the sense that Qx− Py = 2x + 2y and so 2 Z Z R (x + y) dxdy = 2 Z 2 0 x Z √ 2x 1 2x2 dy ! dx + 2 Z 2 0 Z √ 2x 1 2x2 y dy ! dx = 2 Z 2 0 h x √2x₋ 1 2x 2
₊1 2 2x− 1 4x 4
i _dx = 2 Z 2 0 h√ 2x3/2− 1 2x 3_{+ x−}1 8x 4i _{dx = 24/5 . (6.14)}

The sum of the three line integrals can be done to get the same answer.

7

2D Divergence and Stokes’ Theorems

A B O δr δs r r + δr

Figure 6.1 : On a curve C, with starting and ending points A and B, small elements of arc length δsand the chord δr, where O is the origin.

The chord δr and the arc δs in the figure show us how to define a unit tangent vector ˆT ˆ T = lim δr→0 δr δs = dr ds = ˆidx ds + ˆj dy ds. (7.1)

The unit normal ˆnmust be perpendicular to this : that is ˆn_{∙ ˆ}T = 0, giving ˆ n = _±  ˆidy ds − ˆj dx ds  , (7.2)

where ± refer to inner and outer normals.

A) The Divergence Theorem : Define a 2D vector u = ˆiQ − ˆjP . Then u_{∙ ˆ}n = Pdx

ds + Q dy

ds div u = Qx− Py (7.3)

Thus Green’s Theorem turns into a 2D version of Divergence Theorem Z Z R div u dxdy = I C u_{∙ ˆ}n ds (7.4)

This line integral simply expresses the sum of the normal component of u around the boundary. If u is a solenoidal vector (div u = 0) then automatically H_Cu_{∙ ˆ}n ds = 0. The 3D version9 _{uses an arbitrary 3D vector field u(x, y, z) that lives in some finite,}

simply connected volume V whose surface is S: dA is some small element of area on the

curved surface S _{Z Z Z} V div u dV = Z Z S u_{∙ ˆ}n dA (7.5) End of L10

B) Stokes’ Theorem : L11 Now define a 2D vector v = ˆiP + ˆjQ. Then

v_{∙ dr = (v ∙ ˆ}T ) ds = P dx + Q dy . (7.6) Moreover curl v =        ˆi ˆ_{j k}ˆ ∂x ∂y ∂z P Q 0        = ˆk (Qx− Py) (7.7)

Thus Green’s Theorem turns into a 2D version of Stokes’ Theorem Z Z R ˆ k_{∙ curl v}
dxdy = I C v_{∙ dr} (7.8)

The line integral on the RHS is called the circulation. Note that if v is an irrotational vector then H_Cv_{∙ dr = 0 which means there is no circulation.}

The 3D-version of Stokes’ Theorem for an arbitrary 3D vector field v(x, y, z) in a volume

V is given by _I C v_{∙ dr =} Z Z S ˆ n_{∙ curl v dA .} (7.9) ˆ

n is the unit normal vector to the surface S of V . C is a closed circuit circumscribed on the surface of the volume and S is the surface of the ‘cap’ above C.

Example 1 : (part of 2002 exam) If v = ˆiy2 _{+ ˆjx}2 _{and R is as in the figure below, by} evaluating the line integral, show that

I C v_{∙ dr = 5/48 .} (7.10) y x 1 1 2 y = 1/(4x) y = x y = x R C1 & ↑ C2 . C3 Firstly _I v_{∙ dr =} I C y2dx + x2dy
. (7.11)

(i) On C1 we have y = 1/(4x) and so dy =−dx/(4x2). Therefore Z C1 v_{∙ dr =} Z 1 1 2  1 16x2 − 1 4  dx =− 1 16. (7.12)

(ii) On C2 we have x = 1 and so dx = 0. Therefore Z C2 v_{∙ dr =} Z 1 1 4 dy = 3 4. (7.13)

(iii) On C3 we have y = x and so dy = dx. Therefore Z C3 v_{∙ dr = 2} Z 1 2 1 x2dx =₋ 7 12. (7.14)

Summing these three results gives ₋1 16 + 3 4 − 7 12 = 5 48. Example 2 : (part of 2003 exam) If

u = ˆi x 2_y 1 + y2 + ˆj



x ln(1 + y2) (7.15)

and R is as in the figure below, show that Z Z R div u dxdy = 2 ln 2− 1 . (7.16) y x 1 C1 → y = x R ↑ C2 C3 .

Firstly we calculate div u

div u = 4xy 1 + y2 (7.17) and so Z Z R div u dxdy = 4 Z Z R xy 1 + y2 dxdy = 4 Z 1 0 x Z y=x y=0 Z _{y dy} 1 + y2  dx = 4 Z 1 0 x1 2ln(1 + y 2₎x 0 dx = 2 Z 1 0 x ln(1 + x2) dx = 2 ln 2− 1 (7.18) End of L11

8

Maxwell’s Equations

L12 Maxwell’s equations are technically not in my syllabus but I give this lecture to tie every-thing together in a physical context.

Consider a 3D volume with a closed circuit C drawn on its surface. Let’s use the 3D versions of the Divergence (7.5) and Stokes’ Theorems (7.9) to derive some relationships between various electro-magnetic variables.

1. Using the charge density ρ, the total charge within the volume V must be equal to surface area integral of the electric flux density D through the surface S (recall that D = E where E is the electric field).

Z Z Z V ρ dV = Z Z SD ∙ ˆn dA . (8.1) Using a 3D version of the Divergence Theorem (7.5) above on the RHS of (8.1)

Z Z Z V ρ dV = Z Z Z V div_{D dV .} (8.2)

Hence we have the first of Maxwell’s equations

div_{D = ρ} (8.3)

This is also known as Gauss’s Law.

2. Following the above in the same manner for the magnetic flux density B (recall that B = μH where H is the magnetic field) but noting that there are no magnetic sources (so ρmag = 0), we have the 2nd of Maxwell’s equations

div B = 0 (8.4)

3. Faraday’s Law says that the rate of change of magnetic flux linking a circuit C is proportional to the electromotive force (in the negative sense). Mathematically this is expressed as d dt Z Z S B_{∙ ˆ}n dA =− I C E_{∙ dr} (8.5)

Using a 3D version of Stokes’ Theorem (7.9) on the RHS of (8.4), and taking the time derivative through the surface integral (thereby making it a partial derivative) we have the 3rd of Maxwell’s equations

curl E + ∂B

4. Amp`ere’s (Biot-Savart) Law expressed mathematically (the line integral of the magnetic field around a circuit C is equal to the current enclosed) is

Z Z S J _{∙ ˆ}n dA = I C H_{∙ dr ,} (8.7)

where J is the current density and H is the magnetic field. Using 3D-Stokes’ Theorem (7.9) on the RHS we find that we have curl H = J and therefore div J = 0, which is inconsistent with the first three of Maxwell’s equations. Why? The continuity equation for the total charge is

d dt Z Z Z V ρ dV =₋ Z Z S J _{∙ ˆ}n dA . (8.8)

Using the Divergence Theorem on the LHS we obtain div J + ∂ρ

∂t = 0 . (8.9)

If div J = 0 then ρ would have to be independent of t. To get round this problem we use Gauss’s Law ρ = div_{D expressed above to get}

div  J + ∂D ∂t  = 0 (8.10)

and so this motivates us to replace J in curl H = J by J + ∂_{D/∂t giving the 4th of} Maxwell’s equations

curl H = J + ∂D

∂t (8.11)

5. We finally note that because div B = 0 then B is a solenoidal vector field: there must exist a vector potential A such that B = curl A. Using this in the 3rd of Maxwell’s equations, we have curl  E + ∂A ∂t  = 0 . (8.12)

This means that there must also exist a scalar potential φ that satisfies

E =−∂A_∂t − ∇φ . (8.13)
