DATA LEVEL FUSION FOR MULTI BIOMETRIC SYSTEM USING FACE AND FINGER



Abstract— In this work, most commonly used and accepted

biometrics face and finger are used for data level fusion. Multi biometric systems are expected to improve population coverage, reduce spoofing and be resilient to fault tolerance of different mono modal biometric systems. This system is designed for access control system requires more security such as allow to access important data, it is the false acceptance rate that is major concern in such applications. We do not want to access the data even the risk of manually examining a large number of potential matches identified by the biometric system.

Index Terms—Multi modal biometrics, Failure-to-enroll, Fusion

I. INTRODUCTION

Multimodal biometric systems are those which utilize, or have capability of utilizing, more than one physiological or behavioral characteristic for enrollment, verification, or identification. The reason for combining different sensor modalities is to improve the recognition accuracy [1]. Unimodal biometric systems have to contend with a variety of problems such as noisy data, intra-class variations, restricted degrees of freedom, non-universality, spoof attacks, and unacceptable error rates. Some of these limitations can be addressed by deploying multimodal biometric systems that integrate the evidence presented by multiple sources of information [2].

For IDs application, multimodality may be an effective tool to reduce the Failure to Enroll (FTE) rate. The sequential use of multiple modalities guarantees that the non-enrollable population is reduced drastically. Furthermore, sequential use of modalities permits fair treatment of persons that do not possess a certain biometric trait [3]. Here two inexpensive and widely accepted biometric traits namely face and fingerprint is used. Human face recognition has a tremendous potential in a wide variety of commercial and law enforcement applications. Considerable research efforts have been devoted to the face recognition problem over the past decade. Although there are a number of face recognition algorithms which work well in constrained environments, face recognition is still an open and very challenging problem in real applications [4]. Biometrics has long been known as a robust approach for person authentication. However, most mono modal biometrics are proven to exhibit one or more weaknesses. Multi biometric systems combine the information presented

Manuscript received April 07, 2012.

Shubhangi Sapkal, Computer Science and Engineering Department,Government College of Engineering, Aurangabad., India.

by multiple biometric sensors, algorithms, samples, units, or traits. In addition to improving recognition accuracy, these systems are expected to improve population coverage, reduce spoofing and be resilient to fault tolerance of different mono modal biometric systems [5]. Face recognition is a nonintrusive method, and facial images are probably the most common biometric characteristic used by humans to make personal recognition. It is questionable whether the face itself, without any contextual information, is a sufficient basis for recognizing a person from a large number of identities with an extremely high level of confidence. Humans have used fingerprints for personal identification from many decades. But, fingerprints of a small fraction of the population may be unsuitable for the automatic identification because of genetic factors, aging, environmental, or occupational reasons (e.g., manual workers may have a large number of cuts and bruises on their fingerprints that keep changing) [6] . The initial idea and early work of this research have been published in part as conference papers in [7], [8], [9].

The outline of the work is as follows. Section 2 discusses approaches presented in the literature. Section 3 deals with image fusion. Section 4 extends to modes of operations. Section 5 discusses on Wavelet Transform and Decomposition. Section 6 contains similarity Measures. Experimental results are given in section 7. Finally conclusions are drawn in section 8.

II. RELATED RESEARCH ON MULTIMODAL BIOMETRICS

In [10], the data level fusion is used and the DWT coefficients are selected as features and the image is reconstructed with those features. Miguel Carrasco in [11] proposed a bimodal identification system that combines face and voice information. A probabilistic fusion scheme at the matching score level is used, which linearly weights the classification probabilities of each person-class from both face and voice classifiers.

In [12], histogram equalization of biometric score distribution is successfully applied in a multimodal person verification system composed by prosodic, speech spectrum and face information. Furthermore, a new bi-Gaussian equalization (BGEQ) is introduced. Stephen J. Elliott in [13], outlines the perceptions of 391 individuals on issues relating to biometric technology. Results demonstrated overwhelming support for biometrics applications involving law enforcement and obtaining passports, while applications involving time and attendance tracking and access to public schools ranked lowest on the list.

A bimodal biometric verification system based on k-Nearest Neighbourhood (k-NN) classifiers in the decision fusion module for the face and speech experts is discussed in [14]. In [15], a method of speaker recognition is introduced based

DATA LEVEL FUSION FOR MULTI BIOMETRIC SYSTEM USING FACE

AND FINGER

Shubhangi Sapkal

International Journal of Advanced Research in Computer Science and Electronics Engineering Volume 1, Issue 2, April 2012

on multimodal biometrics by using the kernel fisher discriminant analysis. Michał Chora [16] proposed a system on the basis of ear, palm and lips images for human identification. The combination of iris and fingerprint biometrics is used in [17]. Jian Yang [18] proposed an unsupervised discriminant projection (UDP) technique for dimensionality reduction of high dimensional data in small sample size cases. UDP can be seen as a linear approximation of a multimanifolds-based learning framework which takes into account both the local and nonlocal quantities. The method is applied to face and palm biometrics and is examined using the Yale, FERET, and AR face image databases.

M. K. Shahin, A. M. Badawi Proposed in [19] three biometric modalities for validating and implementing multimodal biometric system, that are hand vein, hand geometry and fingerprint.

III. IMAGE FUSION

The three possible levels of fusion are: fusion at the feature extraction or data level [20], fusion at the matching score level [21] , [22], [23] [24], [25] and fusion at the decision level [26], [27], [28].

(a) Fusion at the data or feature level: Either the data itself or the feature sets originating from multiple sensors/sources are fused [2]. The data obtained from each sensor is used to compute a feature vector. As the features extracted from one biometric trait are independent of those extracted from the other, it is reasonable to concatenate the two vectors into a single new vector. The new feature vector now has a higher dimensionality and represents a person‘s identity in a different hyperspace. Feature reduction techniques may be employed to extract useful features from the larger set of features.

(b) Fusion at the matching score level: Each system provides a matching score indicating the proximity of the feature vector with the template vector. These scores can be combined to assert the veracity of the claimed identity. (3) Fusion at the decision level: Each sensor can capture multiple biometric data and the resulting feature vectors individually classified into the two classes––accept or reject. A majority vote scheme can be used to make the final decision [22].

IV. MODES OF OPERATION

A multi biometric system can operate in one of three different modes: serial mode, parallel mode, or hierarchical mode[6]. In the serial mode of operation, the output of one biometric trait is typically used to narrow down the number of possible identities before the next trait is used. This serves as an indexing scheme in an identification system. For example, a multi biometric system using face and fingerprints could first employ face information to retrieve the top few matches, and then use fingerprint information to converge onto a single identity. This is in contrast to a parallel mode of operation where information from multiple traits is used simultaneously to perform recognition. This difference is crucial. In the cascade operational mode, the various

biometric characteristics do not have to be acquired simultaneously. Further, a decision could be arrived at without acquiring all of the traits. This reduces the overall recognition time. In the hierarchical scheme, individual classifiers are combined in a treelike structure. This work used parallel mode for fusion of face and finger.

V. WAVELET TRANSFORM

The biometrics image fusion extracts information

from each source image and obtains the effective

representation in the final fused image

. The

aim of image fusion technique is to process the

fusing detailed information which obtains from

both the source images. The multi-resolution

image used to represent

the signals where

decomposition is performed for obtaining

finer

detail. Multi-resolution image decomposition gives

an

approximation image and three other images

viz., horizontal,

vertical and diagonal images of

coarse detail. The

face and

images are

obtained from different

sources.

, the

images

are fused by using wavelet transform and

decomposition. Finally, we obtain a completely

new fused

image, where both the attributes of face

and

images

are focused and reflected.

The

proposed image fusion rule selects the larger

absolute values

of the two wavelet coefficients at

each point. Therefore, a

fused image is produced

by performing an inverse wavelet

transform based

on integration of wavelet coefficients

correspond

to the decomposed face and

images.

More

formally, wavelet transform decomposes an image

recursively into several frequency levels and each

level

contains transform values.

Finally,

inverse

wavelet

transformation

is

performed to restore the fused image. The

fused

image possesses good quality of relevant

information

for face and

images.

In this work daubechies2 (Fig. 2) wavelet family

for decomposition (Fig. 1) is used.

Fig 2: A daubechies 2 wavelet

VI. EXPERIMENTAL EVALUATION

A typical biometric

system commits two

types of errors:

false acceptance

and

false

rejection; a distinction has to be made between

positive and negative recognition; in positive

recognition systems (e.g., an access control

system) a false match determines the false

acceptance of an impostor, whereas a false

non-match causes the false rejection of a genuine

user. On the other hand, in a negative recognition

application (e.g., preventing users from obtaining

welfare benefits under false identities), a false

match results in rejecting a genuine request,

whereas a false non-match results in falsely

accepting an impostor attempt. The notation ―false

match/false non-match‖ is not application

dependent and therefore, in principle, is preferable

to ―false acceptance/false rejection.‖ However, the

use of false acceptance rate (FAR) and false

rejection rate (FRR) is more popular and largely

used in the commercial environment

Positive

recognition system is considered in this work and

correlation is used as similarity measure.

FRR is False Rejection Ratio, which means the

fault when someone which registered in the system

was refused by system

. Table I presents the

FRR values of genuine person faces.

FAR is False Acceptance Rate, which is the fault

where someone of user which does not enlist will

be held true by the system. FAR values for

impostor persons are presented in Table II.

Finally, Table III presents the FAR and FRR

values for all persons with different threshold

values. The FRR and FAR for number of

participants (N) are calculated as specified in Eq.

(

) and in equation Eq. (

):



N

n

n FRR N

FRR

1

) ( 1

…(

)



N

n

n FAR N

FAR 1

) ( 1

…(

)

Threshold FRR FAR 0.6 0.14 0

0.65 0.32 0

0.7 0.44 0

0.75 0.56 0

0.8 0.75 0

0.85 0.87 0

Table 1: Recognition performance for different threshold values using ‗MEAN‘ fusion technique

Threshold FRR FAR 0.6 0.34 0.21

0.65 0.4 0.19

0.7 0.43 0.07

0.75 0.61 0

0.8 0.79 0

0.85 0.88 0

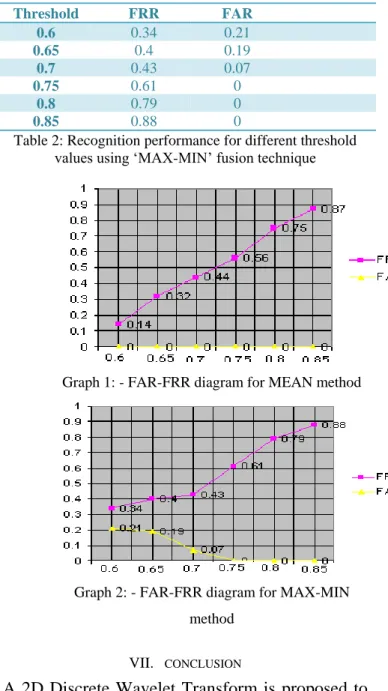

Table 2: Recognition performance for different threshold values using ‗MAX-MIN‘ fusion technique

Graph 1: - FAR-FRR diagram for MEAN method

Graph 2: - FAR-FRR diagram for MAX-MIN

method

VII. CONCLUSION

International Journal of Advanced Research in Computer Science and Electronics Engineering Volume 1, Issue 2, April 2012

and FRR values. In some access control system

with more security such as allow to access some

important data, it is the false acceptance rate that is

major concern that is, we do not want to access the

data even the risk of manually examining a large

number of potential matches identified by the

biometric system. Result shows that FAR is 0,

which can be applied in such applications. This

work can be extended to feature level fusion to

improve accuracy and robustness.

References

[1] Satyanadh Gundimada and Vijayan K. Asari, “Facial Recognition Using Multisensor Images Based on Localized Kernel Eigen Spaces‖, IEEE Transactions on Image Processing, Vol. 18, No. 6, PP. 1314-1325, June 2009 [2] Arun Ross and Anil K. Jain, “Multimodal Biometrics: An Overview‖, Proc. of 12th European Signal Processing Conference (EUSIPCO), pp. 1221-1224, September 2004. [3] Damien Dessimoz, Jonas Richiardi, Christophe Champod, Andrzej Drygajlo, ―Multimodal biometrics for identity documents―, Forensic Science International 167, pp. 154–159, 2007.

[4] Xiaoguang Lu, Yunhong Wangy, Anil K. Jain, “Combining Classifiers For Face Recognition‖

[5]Mohamed Deriche, ―Trends and Challenges in Mono and Multi Biometrics‖, Image Processing Theory, Tools & Applications, 2008 IEEE.

[6] Anil K. Jain, Arun Ross, and Sharath Pankanti, “Biometrics: A Tool for Information Security‖, IEEE Transactions on Information Forensics And Security, Vol. 1, No. 2, pp. 125-143, June 2006.

[7] S.D. Sapkal, S.N. Kakarwal, P.S. Revankar, ―Image classification using neural network‖, Proc. Of International conf. ICSCI, pp. 259-263, 2007.

[8] S.D. Sapkal, S.N. Kakarwal, M.D. Malkauthekar, ―Classification of facial images using FFNN‖, Proc. Of International conf. ICACT, pp.435-438, 2008.

[9]S.D. Sapkal, S.N. Kakarwal, ―Image enhancement and Feature Extraction for Fingerprint Images: A Review‖, National conf. MIT Aurangabad, pp. 04.

[10] Satyanadh Gundimada and Vijayan K. Asari, “Facial Recognition Using Multisensor Images Based on Localized Kernel Eigen Spaces‖, IEEE Transactions on Image Processing, Vol. 18, No. 6, pp. 1314-1325, June 2009. [11] Miguel Carrasco, Luis Pizarro and Domingo Mery, ―Bimodal Biometric Person Identification System Under Perturbations‖, Springer, pp. 114–127, 2007.

[12] P. Ejarque J. Hernando, ―Score bi-Gaussian equalisation for multimodal person verification‖, IET Signal Process., Vol. 3, Iss. 4, pp. 322–332, 2009.

[13] Stephen J. Elliott, Sarah A. Massie, Mathias J. Sutton, ―The Perception of Biometric Technology: A Survey‖, pp. 259-264, 2007 IEEE.

[14] Andrew Teoh, S. A. Samad and A. Hussain, ―Nearest Neighbourhood Classifiers in a Bimodal Biometric Verification System Fusion Decision Scheme‖, Journal of Research and Practice in Information Technology, Vol. 36, No. 1, pp. 47-62 February 2004.

[15] Masatsugu Ichino, Hitoshi Sakano and Naohisa Komatsu , ―Multimodal Biometrics of Lip Movements and Voice using Kernel Fisher Discriminant Analysis ―,ICARCV 2006 IEEE

[16] Michał Chora, ―Emerging Methods of Biometrics Human Identification‖, 2007 IEEE.

[17] Stelvio Cimato, Marco Gamassi, Vincenzo Piuri, Roberto Sassi and Fabio Scotti, ―Privacy-aware Biometrics: Design and Implementation of a Multimodal Verification System‖, 2008 Annual Computer Security Applications Conference, 2008 IEEE pp. 130-139.

[18] Jian Yang, David Zhang, Jing-yu Yang, and Ben Niu, ―Globally Maximizing, Locally Minimizing: Unsupervised Discriminant Projection with Applications to Face and Palm Biometrics‖, IEEE Transactions on Pattern Analysis And Machine Intelligence, pp.650-664, 2007.

[19] M. K. Shahin, A. M. Badawi, M. E. Rasmy, ―A Multimodal Hand Vein, Hand Geometry, And Fingerprint Prototype Design For High Security Biometrics‖, CIBEC'08, 2008 IEEE.

[20] A. Rattani, D. R. Kisku, M. Bicego, and M. Tistarelli, ―Feature Level Fusion of Face and Fingerprint Biometrics‖, 2007 IEEE.

[21] Norman Poh, Thirimachos Bourlai and Josef Kittler, ―BioSecure DS2: A Score-level Quality-dependent and Cost-sensitive Multimodal Biometric Test Bed‖

[22] Arun Ross, Anil Jain, ―Information fusion in biometrics‖, Pattern Recognition Letters 24, pp. 2115–2125, 2003.

[23] F. Wang and J. Han, ―Multimodal biometric authentication based on score level fusion using support vector machine‖, Opto−Electronics Review 17(1), pp. 59–64 [24] Ajay Kumar, Vivek Kanhangad, David Zhang, ―Multimodal Biometrics Management Using Adaptive Score-Level Combination‖, 2008 IEEE.

[25] Robert Snelick, Umut Uludag, Alan Mink, Michael Indovina, and Anil Jain, ―Large-Scale Evaluation of Multimodal Biometric Authentication Using State-of-the-Art Systems‖, IEEE Transactions on Pattern Analysis And Machine Intelligence, Vol. 27, pp. 450-455, March 2005. [26] Kar-Ann Toh, Xudong Jiang, and Wei-Yun Yau, ―Exploiting Global and Local Decisions for Multimodal Biometrics Verification‖, IEEE Transactions On Signal Processing, Vol. 52, No. 10, pp. 3059-3072, October 2004. [27] Kar-Ann Toh,er, and Wei-Yun Yau, ―Combination of Hyperbolic Functions for Multimodal Biometrics Data Fusion‖, IEEE Transactions on Systems, Man, And Cybernetics—Part B: Cybernetics, Vol. 34, pp. 1196-1209, April 2004.

[28] Kalyan Veeramachaneni, Lisa Ann Osadciw, and Pramod K. Varshney, ―An Adaptive Multimodal Biometric Management Algorithm‖, IEEE Transactions on Systems, Man, And Cybernetics—Part C: Applications And Reviews, Vol. 35, No. 3, pp. 344-356, August 2005.

[29] Dakshina Ranjan Kisku, Ajita Rattani, Phalguni Gupta, Jamuna Kanta Sing, ―Biometric Sensor Image Fusion for Identity Verification: A Case Study with Wavelet-based Fusion Rules and Graph Matching‖, 2009 IEEE, pp. 436-439.

Issue-I, pp. 62-65, 2010.

[31] Davide Maltoni, Dario Maio, Anil K. Jain, Salil

Prabhakar, Handbook of Fingerprint

Recognition(Springer), pp 3.

[32] Neil Yager and Ted Dunstone, ―The Biometric Menagerie‖, IEEE Transactions On Pattern Analysis And Machine Intelligence, VOL. 32, NO. 2, FEBRUARY 2010, 220-230.
