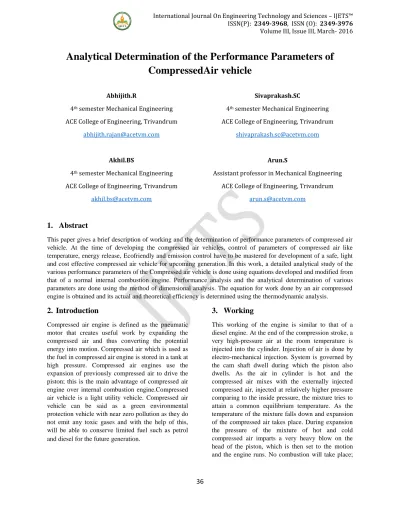

Analytical Determination of the Performance Parameters of
CompressedAir vehicle
Abhijith.R
4th semester Mechanical Engineering ACE College of Engineering, Trivandrum
Sivaprakash.SC
4th semester Mechanical Engineering ACE College of Engineering, Trivandrum
Akhil.BS
4th semester Mechanical Engineering ACE College of Engineering, Trivandrum
Arun.S
Assistant professor in Mechanical Engineering ACE College of Engineering, Trivandrum
1.
Abstract
This paper gives a brief description of working and the determination of performance parameters of compressed air vehicle. At the time of developing the compressed air vehicles, control of parameters of compressed air like temperature, energy release, Ecofriendly and emission control have to be mastered for development of a safe, light and cost effective compressed air vehicle for upcoming generation. In this work, a detailed analytical study of the various performance parameters of the Compressed air vehicle is done using equations developed and modified from that of a normal internal combustion engine. Performance analysis and the analytical determination of various parameters are done using the method of dimensional analysis. The equation for work done by an air compressed engine is obtained and its actual and theoretical efficiency is determined using the thermodynamic analysis.
2.
Introduction
Compressed air engine is defined as the pneumatic motor that creates useful work by expanding the compressed air and thus converting the potential energy into motion. Compressed air which is used as the fuel in compressed air engine is stored in a tank at high pressure. Compressed air engines use the expansion of previously compressed air to drive the piston; this is the main advantage of compressed air engine over internal combustion engine.Compressed air vehicle is a light utility vehicle. Compressed air vehicle can be said as a green environmental protection vehicle with near zero pollution as they do not emit any toxic gases and with the help of this, will be able to conserve limited fuel such as petrol and diesel for the future generation
.
3.
Working
37
as it is the expansive forces, which make the engine run.Compressed air technology makes the engine both non-polluting and economical. Unlike electric or hydrogen powered vehicles, compressed air vehicles are inexpensive and do not have a limited driving range. Compressed air vehicles are affordable economically and have a performance rate such that stands up to current standard limits. Compressed air technology reduces the cost of vehicle production by about 20%, due to the absence of cooling system, lubrication system, fuel tanks ignition system or silencers. Engine size and weight is also considerable reduced due to minimum number of components in a CAV. The price of filling compressed air in the air tanks is very economic compared to the use of petrol or diesel engines. By using rechargeable batteries, the electrical energy required for compressing the air can be minimized considerably. To sum up, they are non-expensive vehicles that do not pollute the environment and are easy to get around in cities as well as in towns and villages. The main emission benefits of introducing the zero emission technology are obvious and at the same time efficiency of these vehicles need to be improved and this type of engine can be used in future generation and thus be able to reduce pollution rates and control the usage of limited fuels like petrol and diesel.
4.
Symbols and Notations Used
Wout: Work output from CAE Win: Work input to compressor Pa: initial pressure
Pb: pressure after compression (=P3) Pd: final pressure after expansion Va: initial volume or stoke volume (Vs)Vb: volume after compression Vc: volume after heat input
Ta: initial temperature of air before compression Tb: temperature after compression
Tc: temperature after heat addition Cp: specific heat at constant pressure Cv: specific heat at constant volume γ: adiabatic index
r; compression ratio ηCAE; efficiency of CAE
Q1; energy of compressed air from compressor Q2; energy released from CAE
h1= initial enthalpy of compressed air
h2 = final enthalpy of compressed air (after expansion)
5.
Block diagram for air compressed
engine.
C: compressor E: engine E1,E2:Energy
6. Efficiency of compressed air engine
38
6.2. T-S Diagram of CAE
There are mainly four strokes in the CAE, namely: i. Suction stroke
ii. Compression stroke iii. Expansion or power stroke iv. Exhaust stroke
Corresponding to each stroke there are four processes in the pv diagram of CAE
i. Adiabatic compression
ii. Constant pressure energy addition iii. Adiabatic expansion
iv. Constant volume energy rejection
Due to the insulation of the cylinder wall the process such as compression and expansion are assumed to be adiabatic. Hence there is no heat flow through the cylinder wall during the process.
The energy input to the engine, E1 E1= (h2-h1) =CP (T2-T1)
h1= initial enthalpy of compressed air
h2 = final enthalpy of compressed air (after expansion)
T1 = initial temperature of compressed air
T2 = final temperature of compressed air (after expansion)
Energy output from the engine, E2 E2 = h4-h1 = CP (T4-T1)
Work output from the CAE =E1-E2 The efficiency of CAE , ηCAE ηCAE = Wout/E1
= 1- (E2/E1) ηCAE = 1-[(T4-T1)/ (T3-T2)]
Let the compression ratio be r r = v1 / v2
Assuming both the compression and expansion ratios are equal.
From P-V diagram
Consider the process 1-2 (Adiabatic process)
PVγ=constant P1V1=P2V2 (V1/V2)
γ =P2/P1 rγ= P2/P1 r= (P1/P2) γ TVγ-1=constant T2=T1(r) γ-1
Consider the process 2-3 Pressure=Constant P2=P3
(V2/ T2)= (V3/T3) T2=T3 (V2/V3)
Consider the process 3-4 TV γ-1=constant
39
T
3=T
4(r)
γ-1
Consider the process 4-1
Volume=Constant (P1/T1)= (P4/T4) T4= (T1P4)/P1
Work done
W=E1-E2
W= CP [(T4-T1)-(T2-T1)]
Theoretical Efficiency
ηCAE= Wout/E1 ηCAE = 1- (E2/E1) ηCAE= 1-[(T4-T1)/ (T3-T2)]
ηCAE =
1-by substituting values of γ
ηCAE = 1
-ηCAE =
1-Actual Efficiency
The actual power output from CAE, Power output= (mep *LAN)/60
mep=(P2+P4)/2 ; mep =mean effective pressure LA=Vs, stroke volume
Power output= [(P2+P4)Vs. N]/120
The actual input power to the compressor, but if we are using an electric motor to drive the compressor, then the input power will be
Power input= voltage *current (using a DC motor)
The actual efficiency of the system will be, ηact=Power output/power input
ηact=[(P2+P4)VsN]/120VI
7. Applications
1. Mopeds
Jem Stansfield, an English inventor had converted a regular scooter to the compressed air moped. This has been done by including the scooter with a compressed air engine and air tank.
2. Buses and Locomotives
MDI makes Multi CATs vehicle that can be used as buses or trucks. RATP has also already expressed an in-terest in the compressed-air pollution-free bus.
Advantages of CAE:
1.Major advantage of using compressed engine is that the pure compressed air vehicle produces no pollution at the tailpipe end.
2. Use of renewable fuel.
3. Compressed-air technology reduces the cost of vehicle production by almost 20%, because there is no need to build a cooling system, fuel tank and the Ignition systems or silencers.
4. Air is non-flammable.
5. The engine can be massively reduced in size and shape.
6. Manufacturing and maintenance costs is very less. 7. The air tank may be refilled more often and in less time than batteries can be recharged, with re- filling rates when comparing to liquid fuels.
8. Lighter vehicles cause less damage to roads, resulting in lower maintenance cost.
9.The price of filling air powered vehicles is significantly cheaper than petrol, diesel or biofuel used in engines. If electricity is cheap, then the compressing air will also be relatively cheap.
8. Conclusion
40
electrical power to the electric motor which is used as themover in running the compressor which is
providing the compressed air to the engine.
The equations of CAV are found to be similar to that of a diesel engine, since the only change from diesel engine is that instead of supplying fuel by means of a fuel injector in a diesel engine, the CAV is supplying compressed air at the end of the compression stroke.
