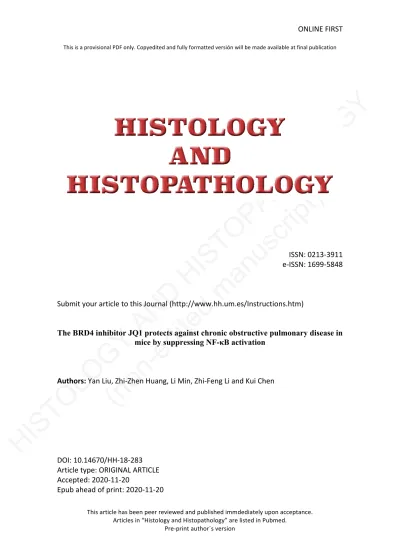

HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
ONLINE FIRST This is a provisional PDF only. Copyedited and fully formatted versión will be made available at final publication
This article has been peer reviewed and published immdediately upon acceptance. Articles in “Histology and Histopathology” are listed in Pubmed.
Pre-print author´s version
ISSN: 0213-3911 e-ISSN: 1699-5848
Submit your article to this Journal (http://www.hh.um.es/Instructions.htm)
The BRD4 inhibitor JQ1 protects against chronic obstructive pulmonary disease in mice by suppressing NF-κB activation
Authors: Yan Liu, Zhi-Zhen Huang, Li Min, Zhi-Feng Li and Kui Chen
DOI: 10.14670/HH-18-283 Article type: ORIGINAL ARTICLE Accepted: 2020-11-20
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
1
The BRD4 inhibitor JQ1
protects against chronic obstructive
1
pulmonary disease in mice by suppressing NF-
κ
B activation
2
Running title: The therapeutic efficacy of JQ1 against COPD
3 4
Yan Liu 1, Zhi-Zhen Huang 2, Li Min 3, Zhi-Feng Li 4, Kui Chen 5, *
5
1 Department of Respiratory and Critical Care Medicine, Taihe Hospital, Hubei University of
6
Medicine, Shiyan 442000, Hubei, China 7
2 Department of Stomatology, Taihe Hospital, Hubei University of Medicine, Shiyan 442000, Hubei,
8
China 9
3 Department of Critical Care Medicine, Taihe Hospital, Hubei University of Medicine, Shiyan
10
442000, Hubei, China 11
4 Department of Orthopedics, Taihe Hospital, Hubei University of Medicine, Shiyan 442000, Hubei,
12
China 13
5 Department of Emergency Medicine, Affiliated Dongfeng Hospital, Hubei University of Medicine,
14
Shiyan 442000, Hubei, China 15
16
* Correspondence to: Kui Chen, Department of Emergency Medicine, Affiliated Dongfeng
17
Hospital, Hubei University of Medicine, No. 10, Daling Road, Zhangwan District, Shiyan 442000,
18
Hubei, China
19
E-mail: ckck_kui5@126.com
20
Tel: +86-15971875798
21 22 23
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
2
Abstract
24
Objective: To examine the effect of the BRD4 inhibitor JQ1 on mice with chronic obstructive
25
pulmonary disease (COPD) via NF-κB.
26
Methods: COPD models constructed by exposure to cigarette smoke and intratracheal instillation
27
of lipopolysaccharides (LPS) in mice were treated with JQ1 (15, 25 or 50 mg/kg). HE staining was
28
performed to observe histopathological changes in the lung tissues. Enzyme-linked immunosorbent
29
assays (ELISAs) were used to measure the levels of IL-10, IFN-γ, IL-17, IL-1β, IL-6, TNF-𝛼,
30
MMP-2, MMP-9, MDA, SOD, T-AOC and HO-1, and gelatin zymography assays were used to
31
examine MMP-2 and MMP-9 activity. A TransAMTM NF-κB p65 detection kit was used to test
32
NF-κB p65/DNA binding activity. Western blotting was conducted to analyze NF-κB p65 in the
33
nucleus and its acetylation.
34
Results: JQ1 dose-dependently improved the histopathological changes in the lung tissues and
35
decreased the mean linear intercept (MLI), destructive index and inflammatory score of the mice
36
with COPD. The mice with COPD showed increased levels of MMP-2, MMP-9, IFN-γ, 17,
IL-37
1β, IL-6 and TNF-𝛼 with decreased IL-10 level; these changes were reversed by JQ1 in a
dose-38
dependent manner. In addition, JQ1 reduced the MDA level and increased the SOD, HO-1 and
T-39
AOC levels in mice with COPD, with suppression of NF-κB p65 expression in the nucleus,
NF-40
κB/p65 (Lys310) acetylation and NF-κB p65/DNA binding activity in the lung tissues.
41
Conclusion: The BRD4 inhibitor JQ1 can downregulate MMP-2 and MMP-9 expression, reduce
42
inflammatory responses, and alleviate oxidative stress in mice with COPD, and this mechanism
43
might be related to the inhibition of NF-κB.
44 45
Keywords: Chronic obstructive pulmonary disease; BRD4; JQ1; NF-κB
46 47
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
3
Introduction
48
Chronic obstructive pulmonary disease (COPD) is a complicated long-term inflammatory lung
49
disease characterized by irreversible and progressive airflow obstruction and alveolar destruction,
50
and the abnormal inflammatory response of the lungs to noxious gases and particles has been
51
regarded as a crucial cause of COPD (Ge et al., 2019). The main pathological features of lung
52
tissues in patients with COPD include chronic airway inflammation, accompanied by infiltration of
53
various inflammatory cells and airway remodeling, severely affecting human health, and this
54
disease will become the third leading cause of death worldwide by 2030 (Ding et al., 2018; Tang
55
and Ling, 2019). With the increase in the aging population, the morbidity and mortality of COPD
56
continue to increase year by year (Fang et al., 2018). Currently, long-acting muscarinic antagonists,
57
inhaled corticosteroids, or long-acting β2-agonists have been recommended as first-line drugs for
58
symptomatic therapy of COPD (Rodrigo and Neffen, 2017). However, only 40% of COPD patients
59
were relatively satisfied with these drugs (Sakai et al., 2017), indicating the urgent need for
60
alternative treatments for COPD.
61
Bromodomain-containing protein 4 (BRD4) belongs to the bromodomain and extraterminal
62
(BET) family of proteins, which contains two bromodomains and one extraterminal domain
63
(Sakaguchi et al., 2018). As a transcription coactivator and epigenetic regulator, BRD4 plays a
64
critical role in inflammation-related diseases (Park et al., 2018). Notably, the level of BRD4 was
65
significantly upregulated in patients with COPD or cigarette smoke extract (CSE)-treated human
66
bronchial epithelial (Beas-2B) cells in vitro, as reported by previous studies (Kun et al., 2019; Song
67
et al., 2020). JQ1 was shown to act specifically against the BET protein, particularly BRD4, which
68
is an active isomer that selectively interacts with the BD1 and BD2 domains of BRD4 and disrupts
69
the binding of BRD4 to acetylated lysines (Lv et al., 2018; Qu et al., 2018; Sakaguchi et al., 2018).
70
Evidence has also demonstrated the therapeutic role of Brd4 inhibition with JQ1 in several
71
disorders, including cancers (da Motta et al., 2017; Leal et al., 2017), Huntington’s disease (HD)
72
(Kedaigle et al., 2019), liver fibrosis (Hassan et al., 2019), cisplatin-induced nephrotoxicity (Sun et 73
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
4
al., 2018), and mechanical injury-induced corneal scarring (Qu et al., 2018), as well as its potential
74
in inhibiting the development and progression of inflammation-related diseases, such as
75
inflammation and cardiovascular diseases, in animal models. For example, Wang H et al. revealed
76
that JQ1 could significantly downregulate lipopolysaccharides (LPS)-induced transcription of
77
inflammatory cytokines both in vitro and in vivo (Wang et al., 2018). Leal AS et al. demonstrated
78
that JQ1 suppressed the production of various inflammatory cytokines, including IL-6, CcL2, and
79
GM-CSF, in both immune and pancreatic cancer cells (Leal et al., 2017). In addition, JQ1 inhibited
80
the profibrotic transcriptional networks in heart failure (HF) and constitutes a potential option for
81
clinical HF treatment (Duan et al., 2017). Since COPD and HF share similar pathological gene
82
regulatory programs, such as innate inflammatory and profibrotic transcriptional networks (Xiao et 83
al., 2018), we naturally hypothesized that JQ1 might be a promising drug for COPD treatment.
84
Furthermore, BRD4 dysfunction can result in an interaction with nuclear factor kappa-B (NF-κB),
85
thereby mediating the development of autoimmune diseases and inflammation (Mumby et al.,
86
2017). NF-κB, as a powerful protein complex controlling the transcription of DNA, plays an
87
important role in early inflammation, and its activation can lead to the release of inflammatory
88
mediators, as well as the proliferation and activation of airway smooth muscle cells and fibroblasts;
89
these changes can cause the hypertrophy and hyperplasia of airway smooth muscles and the
90
accumulation of fibroblasts, eventually promoting the development and progression of COPD
91
(Mercken et al., 2011; Yuan et al., 2018). To determine whether JQ1 plays a role in COPD by
92
regulating NF-κB, the present study established COPD models in mice by using cigarette smoke
93
exposure and intratracheal instillation of LPS. Then, different dosages of the BRD4 inhibitor JQ1
94
(including 15 mg/kg, 25 mg/kg and 50 mg/kg) were used for COPD treatment, and mice were
95
observed for histopathological conditions, oxidative stress and inflammation, as well as the
96
expression level of NF-κB in lung tissues.
97 98 99
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
5
Materials and methods
100
Ethical statement
101
All animal experiments in this study were performed in accordance with local regulations on the
102
management and use of experimental animals, complying with the requirements of animal ethics,
103
and abiding by the Guide for the Care and Use of Laboratory Animals issued by the US National
104
Institutes of Health (NIH) (Mason and Matthews, 2012).
105 106
Animal grouping
107
The experimental animals used in this study were 60 SPF-grade male BALB/c mice (aged 6-7
108
weeks old and weighing 20.0 ± 2.0 g), which were purchased from the Institute of Laboratory
109
Animal Science, Chinese Academy of Medical Sciences (CAMS) & Peking Union Medical College
110
(PUMC). The mice were randomized to six groups: the normal group, 50 mg/kg JQ1 group, COPD
111
group, 15 mg/kg JQ1 + COPD group, 25 mg/kg JQ1 + COPD group, and 50 mg/kg JQ1 + COPD
112
group, with 10 mice in each group.
113 114
Establishment of COPD models
115
All mice except for those in the normal group were passively exposed to cigarette smoke and
116
treated intratracheally with LPS to establish COPD models according to previous studies (Zhang,
117
Feng, et al., 2012; Wang et al., 2014; Wang et al., 2017). In brief, mice were intraperitoneally
118
injected with 10% chloral hydrate (300 mg/kg) for anesthesia, fixed on the anatomical plate, and
119
instilled intratracheally with LPS (200 µg/200 µL) on day 1 and day 14. After LPS instillation, the
120
mice were spanned for 10-20 s in an upright position to evenly distribute LPS in the lung. On days
121
2~13 and 15~28, the mice were exposed to cigarette smoke (30 min/time, 10 cigarettes/day,
122
Hongjinlong, Hubei China Tobacco Industry Co., Ltd., Wuhan, China) in a closed organic glass box
123
(80 cm × 60 cm × 50 cm). Each cigarette contains 9 mg tar, 0.7 mg nicotine and 12 mg carbon
124
monoxide. From day 29 on, mice in the JQ1 treatment groups were intraperitoneally injected with
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
6
JQ1 (15 mg/kg, 25 mg/kg, 50 mg/kg) for 20 consecutive days. Mice in the normal group and COPD
126
group were injected with an equal volume of normal saline. A flow chart of the animal experiments
127
is shown in Figure 1.
128 129
Lung function test
130
The lung function of the mice (n = 10 in each group) was assessed using a small animal spirometer
131
(Buxco Electronics, Inc., Wilmington, NC, USA) according to the manufacturer’s protocol. The
132
efficacy of JQ1 in mice with COPD was determined via airway resistance (Raw), lung dynamic
133
compliance (Cdyn), peak expiratory flow (PEF) and inspiratory time/expiratory time (Ti/Te).
134 135
Sample collection
136
Mice were intraperitoneally injected with 1% pentobarbital sodium (40 mg/kg) for anesthesia, and
137
abdominal aortic blood (8-10 ml) was collected after execution. The trachea and lung were exposed
138
by a mid-neck incision, a transverse incision was made in the lower trachea, and a 12-gauge needle
139
(with polished tip) was inserted from the trachea incision to ligate the right main bronchus. Sterile
140
normal saline precooled to 4°C was taken and slowly instilled into the left lung for lavage. After
141
each instillation, the lavage was collected with a recovery rate of approximately 80%~90%. The
142
recovered BALF was centrifuged, and the supernatant fraction was stored at -80°C for further
143
cytokine analysis. A hematocytometer (Neubauer chamber) was used for counting total cells. The
144
differential cell analyses were performed using a cytocentrifuge (Cytospin) preparation and stained
145
with the May-Grünwald-Giemsa method. Right lung tissues were taken for fixation in
146
formaldehyde, routine embedding with paraffin, slicing of 4 µm serial sections, baking and HE
147
staining, and finally observation of histopathology under a light microscope. The remaining lung
148
tissues, BALF, and serum were preserved at -80°C for subsequent quantification of inflammatory
149
cytokines (IL-10, IFN-γ, IL-17, IL-1β, IL-6, TNF-𝛼), the measurement of serum levels of MMP-2
150
and MMP-9, and the determination of activities of MDA, SOD, T-AOC, and HO-1, following the
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
7
manufacturer’s protocol (R&D Systems, Minneapolis, MN, USA). Nuclear proteins were extracted
152
prior to testing NF-κB binding activity using a TransAM NF-κB p65 activity assay kit (Active
153
motif, Belgium).
154 155
Hematoxylin and eosin (H&E) staining
156
Paraffin-embedded sections (n = 10 in each group) were routinely deparaffinized in water, stained
157
with hematoxylin for 10 min at room temperature, and rapidly rinsed with tap water for 30-60 s.
158
After differentiation with 1% hydrochloric ethanol for 1 min and rinsing with tap water again for 1
159
min, the tissues were stained with eosin for 5-10 min at room temperature, dehydrated with gradient
160
ethanol (1 min/time), hyalinized with xylene twice (1 min/time) and mounted with neutral gum
161
prior to observation and photographing under a light microscope. The mean linear intercept (MLI)
162
refers to the value of the total length of lines drawn across lung sections divided by the number of
163
alveoli intercepts at the intersection point of two horizontal and vertical lines. The destructive index
164
(DI) was defined as the percentage of destroyed alveoli in all the alveoli counted per section.
165
Inflammatory infiltration was graded as follows: score 0 (absent); score 1 (minimal), with a single
166
layer clustering of inflammatory cells; score 2 (moderate), with localized clustering of
167
inflammatory cells; and score 3 (abundant), with large clusters of inflammatory cells.
168 169
Gelatin zymography assay
170
Proteins were loaded for electrophoresis (20 mA/gel), and electrophoresis ended when
171
bromophenol blue ran out of the gel front. The gel was washed with buffer and soaked in 10 ml of
172
incubation buffer for 1-5 h of incubation at room temperature or at 37°C. Then, incubation buffer
173
was removed from the gel, and the gel was stained in Coomassie Brilliant Blue solution. The
174
location and scope of transparent areas indicate the location and activity of MMP-2 and MMP-9 (n
175
= 10 in each group).
176 177
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
8
Western blotting
178
Total nuclear proteins were extracted with extraction reagent, quantified for total protein
179
concentration by using the BCA method, and separated by electrophoresis with 10%
180
polyacrylamide gel. Protein extracts were transferred onto polyvinylidene difluoride membranes
181
(PVDF) through a semidry transfer system (Bio-Rad, USA). Membranes were blocked with skim
182
milk at room temperature, rinsed with PBST buffer, and incubated with NF-κB p65 antibody
183
(ab207297, 1:30, Abcam, USA), acetyl-NF-κB p65 antibody (ab19870, 1/500, Abcam, USA) and
184
TATA binding protein TBP antibody-nuclear loading control (ab63766, 1 µg/ml, Abcam, USA) for 1
185
h at room temperature. After washing with PBST (5 min × 3 times), the membranes were incubated
186
with secondary antibodies for 1 h at room temperature. After necessary washes with PBST buffer (5
187
min × 3 times), horseradish peroxidase (HRP) substrate (Bio-Rad) was used for reactive band
188
visualization of target proteins. The relative target protein content of samples is shown as the gray
189
value ratio of target protein to TATA-binding protein (TBP) (n = 10 in each group).
190 191
Statistical analysis
192
All data were analyzed by using the statistical software SPSS 21.0 (SPSS, Inc., Chicago, IL, USA).
193
Multiple-group comparisons of measurement data were performed by using one-way ANOVA
194
followed by post hoc Tukey’s test. Statistical significance was indicated by P < 0.05.
195 196
Results
197
JQ1 improves the lung function of mice with COPD
198
No mice died during the course of this experiment. In addition, JQ1 dose-dependently increased the
199
Cdyn, PEF and Ti/Te of the mice with COPD with increased Raw (all P < 0.05). However, no
200
significant difference was found in Raw, Cdyn, PEF and Ti/Te between the normal group and the JQ1
201
group (all P > 0.05, Figure 2).
202 203
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
9
JQ1 improves histopathological changes in the lung tissues of the mice with COPD
204
As shown by the results of HE staining (Figure 3A), the mice in the normal group had no obvious
205
degenerative necrosis of bronchial epithelial cells and no inflammatory cells, while the mice in the
206
COPD group had emphysema and enlarged alveoli. In contrast, the COPD-related emphysema and
207
alveolar enlargement of the mice in the JQ treatment groups were alleviated. According to the
208
results of the quantification test (Figure 3B-D), compared with the normal group, the COPD group
209
had an increased mean linear intercept (MLI), destructive index and inflammatory score; however,
210
decreases in the above three indexes were found in the mice from the JQ1 groups with different
211
treatment concentrations compared with the mice in the COPD group, and these parameters
212
decreased more significantly with the increase in JQ1 (all P < 0.05).
213 214
Effects of JQ1 on MMP-2 and MMP-9 activities in the mice with COPD
215
A gelatin zymography assay was used to quantify the activities of MMP-2 and MMP-9 (Figure
4A-216
B). Compared with the mice in the normal group, those in the COPD group had significantly
217
increased MMP-2 and MMP-9 activities in lung tissues (all P < 0.05). Compared with the COPD
218
group, the JQ1 treatment groups showed apparent reductions in the MMP-2 and MMP-9 activities
219
in lung tissues (all P < 0.05). No obvious difference was observed between the 50 mg/kg JQ1 +
220
COPD group and the normal group in MMP-2 and MMP-9 activities (all P > 0.05). Moreover, we
221
found significant upregulation of the MMP-2 and MMP-9 levels in the serum of the mice with
222
COPD, which can be inhibited by JQ1 treatment in a dose-dependent manner (all P < 0.05, Figure
223
4C).
224 225
JQ1 reducesleukocytes and inflammatory cytokines in the BALF of the mice with COPD
226
The data obtained showed that the mice in the COPD group presented a significant increase in total
227
leukocyte influx in BALF with an enhanced number of macrophages, neutrophils, and lymphocytes
228
compared with the mice in the normal group, and these parameters were reduced dose-dependently
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
10
after treatment with JQ1 (Figure 5A-D). As illustrated by ELISAs (Figure 5E-J), the inflammatory
230
cytokines IFN-γ, IL-17, IL-1β, IL-6 and TNF-𝛼 were upregulated in the BALF of the mice with
231
COPD, while the anti-inflammatory factor IL-10 was downregulated dramatically (all P < 0.05).
232
However, with JQ1 treatment, the IFN-γ, IL-17, IL-1β, IL-6 and TNF-𝛼 levels decreased, while the
233
IL-10 levels increased significantly in a dose-dependent manner (all P < 0.05).
234 235
JQ1 reduces oxidative stress in the mice with COPD
236
We detected the serum levels of oxidative stress indicators (MDA, SOD, HO-1 and T-AOC) of the
237
mice in each group (Figure 6) and found a significant upregulation of MDA and obvious
238
downregulation of SOD, HO-1 and T-AOC in the COPD model mice (all P < 0.05). In addition,
239
JQ1 effectively alleviated the oxidative stress of the mice with COPD, and the difference among the
240
JQ1 treatment groups was statistically significant (all P < 0.05). Moreover, the MDA, HO-1 and
T-241
AOC levels in the normal group and the 50 mg/kg JQ1 + COPD group did not significantly differ
242
from each other, but the mice in the 50 mg/kg JQ1 + COPD group had lower SOD levels in the
243
serum than those in the normal group (all P < 0.05).
244 245
JQ1 interrupts the NF-κB signaling pathway in the lung tissues of the mice with COPD
246
Western blotting showed that JQ1 dose-dependently suppressed the expression of nuclear NF-κB
247
p65 and the acetylation of NF-κB/p65 (Lys310) in the lung tissues of the mice with COPD (all P <
248
0.05, Figure 7A-B). Compared with the normal group, the COPD group presented apparently
249
increased NF-κB p65/DNA binding activity in lung tissues, which can be effectively inhibited by
250
JQ1, and the difference in NF-κB p65/DNA binding activity among the JQ1 treatment groups was
251
significant (all P < 0.05, Figure 7C).
252 253 254 255
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
11
Discussion
256
Animal models have been a key factor in forming objective views regarding the pathogenesis
257
of COPD (Wang et al., 2018). To date, researchers have developed a COPD model in vivo via
258
cigarette or waterpipe smoke exposure (Alzoubi et al., 2018; Tang and Ling, 2019), cigarette smoke
259
with porcine pancreatic elastase injection (Lu et al., 2017), or a combination of cigarette smoke and
260
LPS with/without choline challenges (Grumelli, 2016; Wang et al., 2017; Ding et al., 2018).
261
Smoking has been proven to be the most important risk factor and cause of COPD, and LPS plays a
262
critical role in the acute exacerbation and progression of COPD, which replicates major aspects of
263
P. aeruginosa infections in patients with severe COPD (Grumelli, 2016; Ding et al., 2018).
264
Additionally, experiments with animal models confirmed that both cigarette smoke and LPS can
265
promote the release of various inflammatory cytokines and the accumulation of inflammatory cells
266
in lung tissues, giving rise to inflammation, injury and remodeling of airway and pulmonary vessels
267
or even a decrease in lung function (Kobayashi et al., 2013; Wang et al., 2017). In the present study,
268
we used cigarette smoke and LPS instillation to successfully establish COPD models in mice, as
269
evidenced by the histopathological changes and measurement of quantitative parameters.
270
There is evidence that smoking can enhance oxidative stress by disrupting the
271
oxidation/antioxidation balance to directly damage lung tissues and induce autoimmune responses,
272
thus leading to the blockage of airflow. Therefore, a new strategy for prevention and treatment of
273
COPD is to counter oxidative stress and improve the antioxidative ability of hosts (Takimoto et al.,
274
2012; Reynolds et al., 2016). Importantly, JQ1 treatment can reduce oxidative stress in the
275
hippocampus of rats, accompanied by upregulation of HO-1, to attenuate diabetes-associated
276
cognitive dysfunction (Liang et al., 2018). Younis M. Khan et al. also reported that JQ1 alleviates
277
inflammation induced by oxidative stress in human bronchial epithelial cells (Khan et al., 2014). A
278
recent publication showed that JQ1 could stimulate mammalian nuclear factor-erythroid 2
p45-279
related factor 2 (Nrf2) (Chatterjee et al., 2016), which is a central transcription factor that regulates
280
antioxidant enzymes (including SOD, HO-1 and T-AOC) (Di Stefano et al., 2020) and MDA
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
12
production (Jian et al., 2020) and acts as a modifier of several lung diseases (Barnes, 2020). The
282
decline in Nrf2 has been linked to an increase in oxidative stress and pathogenesis in the lungs of
283
patients with COPD (Malhotra et al., 2008; Suzuki et al., 2008). In this study, we found that JQ1
284
can effectively reduce MDA activity and increase SOD, HO-1 and T-AOC levels, suggesting the
285
ability of JQ1 to alleviate oxidative stress in COPD, possibly by increasing Nrf2. To our
286
knowledge, COPD is a very complicated chronic airway inflammation characterized by infiltration
287
of various inflammatory cells and release of cytokines (Geraghty et al., 2017). As reported, JQ1
288
downregulated the expression of inflammatory cytokines, such as IL-6, IL-1β, TNF-α, and IFN-γ,
289
thus prolonging cardiac transplant survival (Chen et al., 2020), which also downregulated the
290
release of LPS-induced inflammatory cytokines (Das et al., 2015; Jung et al., 2015). Furthermore,
291
JQ1 effectively inhibited the serum concentrations of Th17-associated factor (IL-17),
Th1-292
associated factors (INF-γ and TNF-α) and Th2-associated factor (IL-6) with augmented T
293
regulatory cell (Treg)-associated cytokines (IL-10), supporting the therapeutic value of JQ1 in lupus
294
(Wei et al., 2015). TNF-α, mainly secreted by macrophages/monocytes, is one of the most powerful
295
cytokines that can enhance the killing ability of neutrophils, increase the infiltration and
296
proliferation of lymphocytes in the inflammatory site, and cause the release of other
pro-297
inflammatory factors, including IL-6 (Samir et al., 2017). Furthermore, IL-10 released by Tregs is
298
widely recognized, and the decreased production of IL-10 plays a pivotal role in the inflammatory
299
exacerbation of the COPD model using cigarette smoke exposure and LPS challenge (Cervilha et 300
al., 2019). In addition, CXCR3 knockout mice showed an inability to mount a full immune
301
response with decreased IL-10 relative to that of WT mice after 4 weeks of smoke exposure,
302
indicating the role of IL-10 as an anti-inflammatory and immunosuppressive cytokine in COPD
303
(Bodger et al., 1997; Grumelli et al., 2011). In addition, Eskandarpour M et al. found that in
304
response to JQ1, Th17-enriched cultures developed a regulatory phenotype and upregulated IL-10
305
secretion, suggesting that BET targeting of Th17 cells is a potential therapeutic opportunity for
306
inflammatory and autoimmune diseases (Eskandarpour et al., 2017). In addition, increased IL-17
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
13
levels were found in the bronchoalveolar lavage fluid (BALF) of patients with COPD, followed by
308
neutrophil recruitment during acute exacerbations induced by a Haemophilus influenzae infection
309
(Roos et al., 2015). Similarly, in our study, JQ1 decreased total cells, macrophages, neutrophils, and
310
lymphocytes in BALF with lower levels of IFN-γ, IL-17, IL-1β, IL-6 and TNF-𝛼 and higher IL-10
311
levels in BALF of the mice with COPD in a dose-dependent manner, suggesting that JQ1 may
312
alleviate the inflammation of the mice with COPD by regulating the Th1/Th2 and Th17/Treg
313
imbalance.
314
Excessive accumulation of extracellular matrix (ECM), smooth muscle hyperplasia, lumen
315
stenosis and fibrosis constitute an important pathological basis of the irreversible airflow limitation
316
of COPD (Annoni et al., 2012). MMPs are important zinc-dependent endopeptidases that can
317
degrade components of the ECM and are closely related to inflammation, repair and remodeling of
318
the airway (Montano et al., 2004). By activating MMP-2 and MMP-9, BRD4 can induce the
319
migration and invasion of HepG2 cells (Wang et al., 2015). A previous study also reported that JQ1
320
can inhibit the gene expression and enzyme activity of MMP in angiotensin II-induced abdominal
321
aneurysms (Duan et al., 2016). As a member of the MMP family, MMP-2 is mainly expressed in
322
alveolar macrophages, lymphocytes and bronchial epithelial cells, and it has been found to be
323
highly expressed in COPD patients (Montano et al., 2004). In the pathogenesis of COPD, MMP-9
324
can destroy the components of the alveolar matrix, mediate the aggregation of inflammatory cells,
325
and destroy the epithelial/endothelial structure to participate in the inflammatory response and
326
tissue remodeling (Simpson et al., 2013). Furthermore, Grumelli S et al. revealed that macrophages
327
downregulated MMP-9 in the lung compared to blood macrophages, indicating that MMP-9 is
328
required for translocation to the tissue from the blood (Grumelli et al., 2019). In this study, we
329
found that JQ1 can significantly reduce MMP-2 and MMP-9 activities in lung tissues and
330
downregulate MMP-2 and MMP-9 levels in the serum, showing that JQ1 may regulate the
331
expression of MMP-2 and MMP-9 to affect the degradation and synthesis of ECM, thereby playing
332
a critical role in airway remodeling of COPD patients.
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
14
Furthermore, activation of the NF-κB pathway has been demonstrated to be closely related to
334
the development and progression of COPD; therefore, NF-κB suppression could be a new strategy
335
for COPD treatment (Yuan et al., 2018). Notably, Brd4 can interact with NF-κB p65 to affect gene
336
transcription and regulation. For example, suppression of Brd4 leads to the downregulation of
NF-337
κB transcriptional activity in Th2 cells (Zhang, Liu, et al., 2012). Moreover, JQ1 suppressed the
338
nuclear translocation of NF-κB p65 in fibroblast-like synoviocytes (FLSs) isolated from the
339
synovial tissues of RA patients in Xiao Y et al. (Xiao et al., 2016). Brd4 has two isomers, the short
340
and long forms, and the carboxyl extraterminal domain (CTD) of Brd4 is identical to that of RNA
341
polymerase II (RNA pol II), so it can interact with positive transcription elongation factor b
(p-342
TEFb) (Itzen et al., 2014). p-TEFb is required by NF-κB during the transcriptional elongation of
343
RNA pol II on the IL-8 gene (Barboric et al., 2001). Acetylation of lysine 310 is required for full
344
transcriptional activity of p65 and activation of NF-κB (Chen et al., 2002). Actually, p65 acetylation
345
on K310 can be identified by Brd4, which provides a docking site for Brd4 (Huang et al., 2009). In
346
our study, JQ1 was discovered to dose-dependently inhibit nuclear NF-κB p65 expression and
NF-347
κB/p65 (Lys310) acetylation in lung tissues of the mice with COPD, and it also reduced NF-κB p65
348
DNA binding activity, demonstrating a therapeutic role of JQ1 in COPD by regulating the NF-κB
349
p65 pathway.
350
In summary, the BRD4 inhibitor JQ1 not only improves the pathological changes of lung
351
tissues in mice with COPD, accompanied by reductions in the mean linear intercept (MLI),
352
destructive index and inflammatory score, but also decreases MMP-2 and MMP-9 expression and
353
alleviates oxidative stress. As such, our study supports the hypothesis that JQ1 plays a regulatory
354
role in COPD through inhibition of the NF-κB pathway. However, there were several limitations in
355
our experiment: (1) Although JQ1 is highly specific for BET family proteins, particularly BRD4
356
(Sakaguchi et al., 2018), its exact effect on BRD4 in COPD should be further investigated in the
357
future; (2) the method of COPD construction may be excessively harsh to mice and exacerbate the
358
stress response, which should be modified in future experiments.
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
15
360
Acknowledgements
361
The authors would like to thank all the reviewers in this paper.
362
Competing financial interests
363
The authors declare no competing financial interests.
364
Author Contributions
365
Conceived and designed the experiments: Yan Liu and Zhi-Feng Li. Performed the experiments:
366
Zhi-Zhen Huang. Analyzed the data: Li Min. Wrote the manuscript: Kui Chen.
367 368 369
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
16 References 370Alzoubi A., Ghazwi R., Alzoubi K., Alqudah M., Kheirallah K., Khabour O. and Allouh M. (2018). Vascular endothelial
371
growth factor receptor inhibition enhances chronic obstructive pulmonary disease picture in mice exposed to
372
waterpipe smoke. Folia Morphol. (Warsz). 77, 447-455.
373
Annoni R., Lancas T., Yukimatsu Tanigawa R., de Medeiros Matsushita M., de Morais Fernezlian S., Bruno A., Fernando
374
Ferraz da Silva L., Roughley P.J., Battaglia S., Dolhnikoff M., Hiemstra P.S., Sterk P.J., Rabe K.F. and Mauad T.
375
(2012). Extracellular matrix composition in copd. Eur. Respir. J. 40, 1362-1373.
376
Barboric M., Nissen R.M., Kanazawa S., Jabrane-Ferrat N. and Peterlin B.M. (2001). Nf-kappab binds p-tefb to stimulate
377
transcriptional elongation by rna polymerase ii. Mol. Cell. 8, 327-337.
378
Barnes P.J. (2020). Oxidative stress-based therapeutics in copd. Redox Biol. 33, 101544.
379
Bodger K., Wyatt J.I. and Heatley R.V. (1997). Gastric mucosal secretion of interleukin-10: Relations to histopathology,
380
helicobacter pylori status, and tumour necrosis factor-alpha secretion. Gut. 40, 739-744.
381
Cervilha D.A.B., Ito J.T., Lourenço J.D., Olivo C.R., Saraiva-Romanholo B.M., Volpini R.A., Oliveira-Junior M.C., Mauad T.,
382
Martins M.A. and Tibério I.F.L.C. (2019). The th17/treg cytokine imbalance in chronic obstructive pulmonary
383
disease exacerbation in an animal model of cigarette smoke exposure and lipopolysaccharide challenge
384
association. Sci. Rep. 9.
385
Chatterjee N., Tian M., Spirohn K., Boutros M. and Bohmann D. (2016). Keap1-independent regulation of nrf2 activity
386
by protein acetylation and a bet bromodomain protein. PLoS Genet. 12, e1006072.
387
Chen J., Miao X., Liu C., Liu B., Wu X., Kong D., Sun Q. and Gong W. (2020). Bet protein inhibition prolongs cardiac
388
transplant survival via enhanced myocardial autophagy. Transplantation.
389
Chen L.F., Mu Y. and Greene W.C. (2002). Acetylation of rela at discrete sites regulates distinct nuclear functions of
nf-390
kappab. EMBO J. 21, 6539-6548.
391
da Motta L.L., Ledaki I., Purshouse K., Haider S., De Bastiani M.A., Baban D., Morotti M., Steers G., Wigfield S., Bridges
392
E., Li J.L., Knapp S., Ebner D., Klamt F., Harris A.L. and McIntyre A. (2017). The bet inhibitor jq1 selectively
393
impairs tumour response to hypoxia and downregulates ca9 and angiogenesis in triple negative breast cancer.
394
Oncogene. 36, 122-132.
395
Das A., Chai J.C., Yang C.S., Lee Y.S., Das N.D., Jung K.H. and Chai Y.G. (2015). Dual transcriptome sequencing reveals
396
resistance of tlr4 ligand-activated bone marrow-derived macrophages to inflammation mediated by the bet
397
inhibitor jq1. Sci. Rep. 5, 16932.
398
Di Stefano A., Maniscalco M., Balbi B. and Ricciardolo F.L.M. (2020). Oxidative and nitrosative stress involvement in the
399
pathogenesis of obstructive lung diseases of increasing severity. Curr. Med. Chem.
400
Ding H.B., Liu K.X., Huang J.F., Wu D.W., Chen J.Y. and Chen Q.S. (2018). Protective effect of exogenous hydrogen sulfide
401
on pulmonary artery endothelial cells by suppressing endoplasmic reticulum stress in a rat model of chronic
402
obstructive pulmonary disease. Biomed. Pharmacother. 105, 734-741.
403
Duan Q., Mao X., Liao C., Zhou H., Sun Z., Deng X., Hu Q., Qi J., Zhang G., Huang H., Plutzky J. and Yang T. (2016).
404
Inhibition of bet bromodomain attenuates angiotensin ii induced abdominal aortic aneurysm in apoe(-/-)
405
mice. Int. J. Cardiol. 223, 428-432.
406
Duan Q., McMahon S., Anand P., Shah H., Thomas S., Salunga H.T., Huang Y., Zhang R., Sahadevan A., Lemieux M.E.,
407
Brown J.D., Srivastava D., Bradner J.E., McKinsey T.A. and Haldar S.M. (2017). Bet bromodomain inhibition
408
suppresses innate inflammatory and profibrotic transcriptional networks in heart failure. Sci. Transl. Med. 9.
409
Eskandarpour M., Alexander R., Adamson P. and Calder V.L. (2017). Pharmacological inhibition of bromodomain
410
proteins suppresses retinal inflammatory disease and downregulates retinal th17 cells. J. Immunol. 198,
1093-411
1103.
412
Fang L.W., Bao H.L., Wang B.H., Feng Y.J., Cong S., Wang N., Fan J. and Wang L.H. (2018). [a summary of item and
413
method of national chronic obstructive pulmonary disease surveillance in china]. Zhonghua Liu Xing Bing Xue
414
Za Zhi. 39, 546-550.
415
Ge Z., Yang Y., Zhou X., Zhang J., Li B., Wang X. and Luo X. (2019). Overexpression of the hyperplasia suppressor gene
416
inactivates airway fibroblasts obtained from a rat model of chronic obstructive pulmonary disease by
417
inhibiting the wnt signaling pathway. Mol. Med. Rep. 20, 2754-2762.
418
Geraghty P., Hadas E., Kim B.H., Dabo A.J., Volsky D.J. and Foronjy R. (2017). Hiv infection model of chronic obstructive
419
pulmonary disease in mice. Am. J. Physiol. Lung Cell Mol. Physiol. 312, L500-L509.
420
Grumelli S. (2016). Choline triggers exacerbations of chronic obstructive pulmonary disease in patients infected with
421
pseudomonas aeruginosa. Curr. Respir. Med. Rev. 12, 167-174.
422
Grumelli S., Pinto-Plata V. and Celli B. (2019). Genetic switches between cancer and emphysema resolution of
423
cigarette-smoke induced inflammation EC PULMONOLOGY AND RESPIRATORY MEDICINE. 8, 01-14.
424
Grumelli S., Lu B., Peterson L., Maeno T. and Gerard C. (2011). Cd46 protects against chronic obstructive pulmonary
425
disease. PLoS One. 6, e18785.
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
17Hassan R., Tammam S.N., Safy S.E., Abdel-Halim M., Asimakopoulou A., Weiskirchen R. and Mansour S. (2019).
427
Prevention of hepatic stellate cell activation using jq1- and atorvastatin-loaded chitosan nanoparticles as a
428
promising approach in therapy of liver fibrosis. Eur. J. Pharm. Biopharm. 134, 96-106.
429
Huang B., Yang X.D., Zhou M.M., Ozato K. and Chen L.F. (2009). Brd4 coactivates transcriptional activation of nf-kappab
430
via specific binding to acetylated rela. Mol. Cell Biol. 29, 1375-1387.
431
Itzen F., Greifenberg A.K., Bosken C.A. and Geyer M. (2014). Brd4 activates p-tefb for rna polymerase ii ctd
432
phosphorylation. Nucleic Acids Res. 42, 7577-7590.
433
Jian T., Ding X., Li J., Wu Y., Ren B., Li J., Lv H., Chen J. and Li W. (2020). Triterpene acids of loquat leaf improve
434
inflammation in cigarette smoking induced copd by regulating ampk/nrf2 and nfkappab pathways. Nutrients.
435
12.
436
Jung K.H., Das A., Chai J.C., Kim S.H., Morya N., Park K.S., Lee Y.S. and Chai Y.G. (2015). Rna sequencing reveals distinct
437
mechanisms underlying bet inhibitor jq1-mediated modulation of the lps-induced activation of bv-2 microglial
438
cells. J. Neuroinflammation. 12, 36.
439
Kedaigle A.J., Reidling J.C., Lim R.G., Adam M., Wu J., Wassie B., Stocksdale J.T., Casale M.S., Fraenkel E. and Thompson
440
L.M. (2019). Treatment with jq1, a bet bromodomain inhibitor, is selectively detrimental to r6/2 huntington's
441
disease mice. Hum. Mol. Genet.
442
Khan Y.M., Kirkham P., Barnes P.J. and Adcock I.M. (2014). Brd4 is essential for il-1beta-induced inflammation in human
443
airway epithelial cells. PLoS One. 9, e95051.
444
Kobayashi S., Fujinawa R., Ota F., Kobayashi S., Angata T., Ueno M., Maeno T., Kitazume S., Yoshida K., Ishii T., Gao C.,
445
Ohtsubo K., Yamaguchi Y., Betsuyaku T., Kida K. and Taniguchi N. (2013). A single dose of lipopolysaccharide
446
into mice with emphysema mimics human chronic obstructive pulmonary disease exacerbation as assessed
447
by micro-computed tomography. Am. J. Respir. Cell Mol. Biol. 49, 971-977.
448
Kun, Tang, Jianping, Zhao, Jungang, Xie, Jianmiao and Wang. (2019). Decreased mir-29b expression is associated with
449
airway inflammation in chronic obstructive pulmonary disease. Am. J. Physiol. Lung Cell. Mol. Physiol.
450
Leal A.S., Williams C.R., Royce D.B., Pioli P.A., Sporn M.B. and Liby K.T. (2017). Bromodomain inhibitors, jq1 and i-bet
451
762, as potential therapies for pancreatic cancer. Cancer Lett. 394, 76-87.
452
Liang E., Ma M., Wang L., Liu X., Xu J., Zhang M., Yang R. and Zhao Y. (2018). The bet/brd inhibitor jq1 attenuates
453
diabetes-induced cognitive impairment in rats by targeting nox4-nrf2 redox imbalance. Biochem Biophys. Res.
454
Commun. 495, 204-211.
455
Lu J.J., Wang Q., Xie L.H., Zhang Q. and Sun S.H. (2017). Tumor necrosis factor-like weak inducer of apoptosis regulates
456
quadriceps muscle atrophy and fiber-type alteration in a rat model of chronic obstructive pulmonary disease.
457
Tob Induc. Dis. 15, 43.
458
Lv B., Li J., Li M., Zhuo Y., Ren K., Li E. and Yang G. (2018). Enhancement of adenovirus infection and adenoviral
vector-459
mediated gene delivery by bromodomain inhibitor jq1. Sci. Rep. 8, 11554.
460
Malhotra D., Thimmulappa R., Navas-Acien A., Sandford A., Elliott M., Singh A., Chen L., Zhuang X., Hogg J., Pare P.,
461
Tuder R.M. and Biswal S. (2008). Decline in nrf2-regulated antioxidants in chronic obstructive pulmonary
462
disease lungs due to loss of its positive regulator, dj-1. Am. J. Respir. Crit. Care Med. 178, 592-604.
463
Mason T.J. and Matthews M. (2012). Aquatic environment, housing, and management in the eighth edition of the
464
guide for the care and use of laboratory animals: Additional considerations and recommendations. J. Am.
465
Assoc. Lab. Anim. Sci. 51, 329-332.
466
Mercken E.M., Hageman G.J., Langen R.C., Wouters E.F. and Schols A.M. (2011). Decreased exercise-induced
467
expression of nuclear factor-kappab-regulated genes in muscle of patients with copd. Chest. 139, 337-346.
468
Montano M., Beccerril C., Ruiz V., Ramos C., Sansores R.H. and Gonzalez-Avila G. (2004). Matrix metalloproteinases
469
activity in copd associated with wood smoke. Chest. 125, 466-472.
470
Mumby S., Gambaryan N., Meng C., Perros F., Humbert M., Wort S.J. and Adcock I.M. (2017). Bromodomain and
extra-471
terminal protein mimic jq1 decreases inflammation in human vascular endothelial cells: Implications for
472
pulmonary arterial hypertension. Respirology. 22, 157-164.
473
Park S., Willingham M.C., Qi J. and Cheng S.Y. (2018). Metformin and jq1 synergistically inhibit obesity-activated thyroid
474
cancer. Endocr. Relat Cancer. 25, 865-877.
475
Qu M., Zhang X., Hu X., Dong M., Pan X., Bian J. and Zhou Q. (2018). Brd4 inhibitor jq1 inhibits and reverses mechanical
476
injury-induced corneal scarring. Cell Death Discov. 4, 5.
477
Reynolds C.L., Zhang S., Shrestha A.K., Barrios R. and Shivanna B. (2016). Phenotypic assessment of pulmonary
478
hypertension using high-resolution echocardiography is feasible in neonatal mice with experimental
479
bronchopulmonary dysplasia and pulmonary hypertension: A step toward preventing chronic obstructive
480
pulmonary disease. Int. J. Chron. Obstruct. Pulmon Dis. 11, 1597-1605.
481
Rodrigo G.J. and Neffen H. (2017). A systematic review with meta-analysis of fluticasone furoate/vilanterol
482
combination for the treatment of stable copd. Pulm. Pharmacol. Ther. 42, 1-6.
483
Roos A.B., Sethi S., Nikota J., Wrona C.T., Dorrington M.G., Sanden C., Bauer C.M., Shen P., Bowdish D., Stevenson C.S.,
484
Erjefalt J.S. and Stampfli M.R. (2015). Il-17a and the promotion of neutrophilia in acute exacerbation of
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
18chronic obstructive pulmonary disease. Am. J. Respir. Crit. Care Med. 192, 428-437.
486
Sakaguchi T., Yoshino H., Sugita S., Miyamoto K., Yonemori M., Osako Y., Meguro-Horike M., Horike S.I., Nakagawa M.
487
and Enokida H. (2018). Bromodomain protein brd4 inhibitor jq1 regulates potential prognostic molecules in
488
advanced renal cell carcinoma. Oncotarget. 9, 23003-23017.
489
Sakai H., Horiguchi M., Akita T., Ozawa C., Hirokawa M., Oiso Y., Kumagai H., Takeda Y., Tachibana I., Maeda N. and
490
Yamashita C. (2017). Effect of 4-[(5,6,7,8-tetrahydro-5,5,8,8-tetramethyl-2-naphthalenyl)carbamoyl]benzoic
491
acid (am80) on alveolar regeneration in adiponectin deficient-mice showing a chronic obstructive pulmonary
492
disease-like pathophysiology. J. Pharmacol. Exp. Ther. 361, 501-505.
493
Samir M., Glister C., Mattar D., Laird M. and Knight P.G. (2017). Follicular expression of pro-inflammatory cytokines
494
tumour necrosis factor-alpha (tnfalpha), interleukin 6 (il6) and their receptors in cattle: Tnfalpha, il6 and
495
macrophages suppress thecal androgen production in vitro. Reproduction. 154, 35-49.
496
Simpson J.L., McDonald V.M., Baines K.J., Oreo K.M., Wang F., Hansbro P.M. and Gibson P.G. (2013). Influence of age,
497
past smoking, and disease severity on tlr2, neutrophilic inflammation, and mmp-9 levels in copd. Mediators
498
Inflamm. 2013, 462934.
499
Song B., Wu S., Ye L., Jing Z. and Cao J. (2020). Lncrna tug1 knockdown mitigates inflammatory injury induced by
500
cigarette smoke extract in chronic obstructive pulmonary disease via mir-34c/brd4 axis. Biosci. Rep.
501
Sun L., Liu J., Yuan Y., Zhang X. and Dong Z. (2018). Protective effect of the bet protein inhibitor jq1 in cisplatin-induced
502
nephrotoxicity. Am. J. Physiol. Renal. Physiol. 315, F469-F478.
503
Suzuki M., Betsuyaku T., Ito Y., Nagai K., Nasuhara Y., Kaga K., Kondo S. and Nishimura M. (2008). Down-regulated
nf-504
e2-related factor 2 in pulmonary macrophages of aged smokers and patients with chronic obstructive
505
pulmonary disease. Am. J. Respir. Cell Mol. Biol. 39, 673-682.
506
Takimoto T., Yoshida M., Hirata H., Kashiwa Y., Takeda Y., Goya S., Kijima T., Kumagai T., Tachibana I. and Kawase I.
507
(2012). 4-hydroxy-2-nonenal induces chronic obstructive pulmonary disease-like histopathologic changes in
508
mice. Biochem. Biophys Res. Commun. 420, 84-90.
509
Tang F. and Ling C. (2019). Curcumin ameliorates chronic obstructive pulmonary disease by modulating autophagy and
510
endoplasmic reticulum stress through regulation of sirt1 in a rat model. J. Int. Med. Res. 47, 4764-4774.
511
Wang G., Mohammadtursun N., Sun J., Lv Y., Jin H., Lin J., Kong L., Zhao Z., Zhang H. and Dong J. (2018). Establishment
512
and evaluation of a rat model of sidestream cigarette smoke-induced chronic obstructive pulmonary disease.
513
Front Physiol. 9, 58.
514
Wang X.L., Li T., Li J.H., Miao S.Y. and Xiao X.Z. (2017). The effects of resveratrol on inflammation and oxidative stress in
515
a rat model of chronic obstructive pulmonary disease. Molecules. 22.
516
Wang Y., Xue C., Dong F., Peng Y., Zhang Y., Jin M., Zang B. and Tan L. (2014). Hydroxysafflor yellow a attenuates small
517
airway remodeling in a rat model of chronic obstructive pulmonary disease. Biol. Pharm. Bull. 37, 1591-1598.
518
Wang Y.H., Sui X.M., Sui Y.N., Zhu Q.W., Yan K., Wang L.S., Wang F. and Zhou J.H. (2015). Brd4 induces cell migration and
519
invasion in hcc cells through mmp-2 and mmp-9 activation mediated by the sonic hedgehog signaling
520
pathway. Oncol. Lett. 10, 2227-2232.
521
Wei S., Sun Y. and Sha H. (2015). Therapeutic targeting of bet protein brd4 delays murine lupus. Int Immunopharmacol.
522
29, 314-319.
523
Xiao Y., Liang L., Huang M., Qiu Q., Zeng S., Shi M., Zou Y., Ye Y., Yang X. and Xu H. (2016). Bromodomain and
extra-524
terminal domain bromodomain inhibition prevents synovial inflammation via blocking ikappab
kinase-525
dependent nf-kappab activation in rheumatoid fibroblast-like synoviocytes. Rheumatology (Oxford). 55,
173-526
184.
527
Xiao Z., Shu J., Zhou F. and Han Y. (2018). Jq1 is a potential therapeutic option for copd patients with agrin
528
overexpression. Am. J. Physiol. Lung Cell Mol. Physiol. 314, L690-L694.
529
Yuan J., Liu R., Ma Y., Zhang Z. and Xie Z. (2018). Curcumin attenuates airway inflammation and airway remolding by
530
inhibiting nf-kappab signaling and cox-2 in cigarette smoke-induced copd mice. Inflammation. 41, 1804-1814.
531
Zhang C., Feng L., Li M., Dong C. and Zhang W. (2012). Effects of xiaoqinglong decoction on gene expression profiles in
532
a rat chronic obstructive pulmonary disease model. Biosci. Trends. 6, 262-269.
533
Zhang G., Liu R., Zhong Y., Plotnikov A.N., Zhang W., Zeng L., Rusinova E., Gerona-Nevarro G., Moshkina N., Joshua J.,
534
Chuang P.Y., Ohlmeyer M., He J.C. and Zhou M.M. (2012). Down-regulation of nf-kappab transcriptional
535
activity in hiv-associated kidney disease by brd4 inhibition. J. Biol. Chem. 287, 28840-28851.
536
537 538
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
19
Figure Legends
539
Figure 1 Flow chart of animal experiments.
540 541
Figure 2 JQ1 improves the lung function of COPD mice
542
Notes: A, Raw (airway resistance); B, Cdyn (lung dynamic compliance); C, PEF (peak expiratory
543
flow; D, Ti/Te (inspiratory time/expiratory time); * P < 0.05 compared with the normal group and
544
the 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD group; & P < 0.05 compared with
545
the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the 25 mg/kg JQ1 + COPD group.
546 547
Figure 3 JQ1 improves histopathological changes in lung tissues in COPD mice
548
Notes: A, Data are representative images of histological changes in lung tissues (magnification ×
549
400) using HE staining; arrow indicates alveolar enlargement; B-D, comparison of inflammatory
550
score (B), destructive index (C) and mean linear intercept (MLI, D) among the groups; * P < 0.05
551
compared with the normal group and 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD
552
group; & P < 0.05 compared with the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the
553
25 mg/kg JQ1 + COPD group.
554 555
Figure 4 Effects of JQ1 on MMP-2 and MMP-9 activities in mice with COPD.
556
Notes: A-B, MMP-2 and MMP-9 activities of mouse lung tissues measured by gelatin zymography;
557
C, Serum levels of MMP-2 and MMP-9 in the mice tested by ELISAs; * P < 0.05 compared with
558
the normal group and the 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD group; & P <
559
0.05 compared with the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the 25 mg/kg
560
JQ1 + COPD group.
561 562
Figure 5 JQ1 reducesleukocytes and inflammatory cytokines in the BALF of mice with COPD
563
Notes: A-D: Quantification of total cells (A), macrophages (B), neutrophils (C), and lymphocytes
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
20
(D) in BALF; E-J: Comparison of IFN-γ (E), IL-17 (F), IL-1β (G), IL-6 (H), TNF-𝛼 (I) and IL-10
565
(J) levels in BALF of mice measured by ELISAs; * P < 0.05 compared with the normal group and
566
the 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD group; & P < 0.05 compared with
567
the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the 25 mg/kg JQ1 + COPD group.
568 569
Figure 6 Levels of oxidative stress indicators in the serum of mice in each group
570
Notes: Serum levels of MDA (A), SOD (B), HO-1 (C) and T-AOC (D); * P < 0.05 compared with
571
the normal group and the 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD group; & P <
572
0.05 compared with the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the 25 mg/kg
573
JQ1 + COPD group.
574 575
Figure 7 JQ1 interrupts the NF-κB signaling pathway in the lung tissues of mice with COPD.
576
Notes: A-B, Expression of nuclear NF-κB p65 and acetylation of NF-κB/p65 (Lys310) in lung
577
tissues of mice analyzed after western blotting; C, NF-κB p65/DNA binding activity of lung tissues
578
detected by the TransAMTMNF-κB p65 detection kit; * P < 0.05 compared with the normal group
579
and the 50 mg/kg JQ1 group; # P < 0.05 compared with the COPD group; & P < 0.05 compared
580
with the 15 mg/kg JQ1 + COPD group; @ P < 0.05 compared with the 25 mg/kg JQ1 + COPD
581
group.
582 583
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
Smoke ex pose
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
A 0.8
-
E0.6
:::i E
o
~ 0.4
E
~
;¡: 0.2
"'
e:::
o.o
e
5 4U)
:::i 3
§. tfj 2
a..
o
*
B 2.5
o
2.0N
:e
5
1.5:::i
§. 1.0
e
>.
e] 0.5
D 1.5 - 1.0
~
o
-
Gl t:HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
A
e
E
100.§.
c.
80Q)
~ 60
-
e:....
cv
Q)
e: e: cv
Q) ::!!:
40 20
·~so µm
~
*
COPQ, A.
...
D
50
~ ~ 40
><
Q) "C
e: 30
Q)
> ~ 20
:::l
....
-
g¡
1o
e
B
2.5
~ 2.0
*
o
u !/) ~ 1.5
o
-
cvE 1.0
E
cv ;;;::
0.5
.E
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
A
B 1200
~ ~
900 .?' ·:;
:.¡:::;
o 600
C'CI
Q)
E >- 300
N e:
w o
e
500 E 0,400
.s
~ 300
:::!!!:
~ 200 o
1/)
~ 100
Q)
....1
o
MMP-9
MMP-9
15 mg/kg
JQ1
MMP-2
MMP-2
COPO 25 mg/kg
JQ1
50 mg/kg
JQ1
•Normal
MMP-9
MMP-2
• 50 mg/kg JQ1
- COPO
- 15 mg/kg JQ1 + COPO
- 25 mg/kg JQ1 + COPO
- 50 mg/kg JQ1 + COPO
•Normal
• 50 mg/kg JQ1
- COPO
- 15 mg/kg JQ1 +COPO
- 25 mg/kg JQ1 + COPO
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
A B
15 20
f
~ X 15~ 10 .,
.!!l "
o; g> 10
u .e
o; Q.
e
15 u
1-
..
:!!
E F
80 60
-60
:g
40~ e,
.e: 40 s
~ ,._
z J 20
!!: 20
H
200 300
_ 150 ::¡
...J E 200
.§ e,
~100 s
.,, 'i'
::! ~ 100
50
1-e
1.5 ~
E. 1.0 .!!l
:e Q.
e 0.5
:;
"
z
G 800
- 600
'E
e,
S400
""
_:.
- 200
J 150
:g
100e,
s
o
J 50
D
0.8
~ E. 0.6
., "
~ 0.4 .e Q.
E 0.2
"'
HISTOLOGY
AND
HISTOPATHOLOGY
(non-edited
manuscript)
A B
300 6000
*
-:€
200o
E
.s
'3
100~
-e
4000Ci
s
e
~ 2000
~&@
o
e
D120 600 #&@
#&@
-
90 e;.E
400 Cla.
-ECi
a. 60
-
uo
200~
1-....
ó
:::e 30 o
HISTOLOGY AND
HISTOPATHOLOGY
(non-edited
manuscript) A
Nuclear p65
Acetylation of p65 (Lys310)
B
e
·~ 6
e
c.
:¡ 4
.~
1ª 2 il!
•Normal
• 50 mg/kg JQ1 - COPO
- 15 mg/kg JQ1 +COPO
- 25 mg/kg JQ1 + COPO
- 50 mg/kg JQ1 + COPO
Nuclear Ac-310 p65
e ;::. 10
·;;:
~
"'
::i
Q.
aJ
""
u. 4
