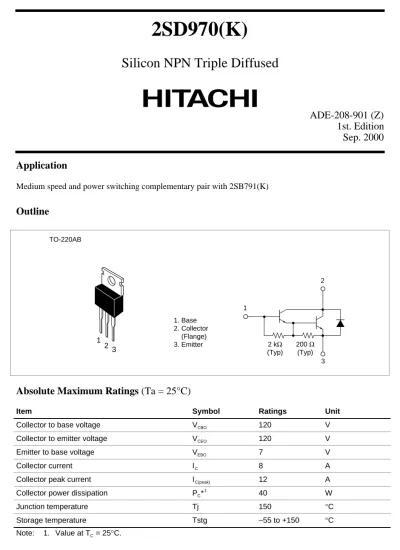

2SD970(K) Silicon NPN Triple Diffused. Medium speed and power switching complementary pair with 2SB791(K)

(1)

Silicon NPN Triple Diffused

ADE-208-901 (Z)

1st. Edition

Sep. 2000

Application

Medium speed and power switching complementary pair with 2SB791(K)

Outline

TO-220AB 2 kΩ (Typ) 200 Ω (Typ) 1 2 3 1. Base 2. Collector (Flange) 3. Emitter 1 2 3

Absolute Maximum Ratings (Ta = 25°C)

Item Symbol Ratings Unit

Collector to base voltage V_CBO 120 V

Collector to emitter voltage V_CEO 120 V

(2)

2

Electrical Characteristics (Ta = 25°C)

Item Symbol Min Typ Max Unit Test conditions

Collector to emitter breakdown voltage

V_(BR)CEO 120 — — V I_C = 25 mA, R_BE = ∞

Emitter to base breakdown voltage

V(BR)EBO 7 — — V IE = 50 mA, IC = 0

Collector cutoff current I_CBO — — 100 µA V_CB = 120 V, I_E = 0

I_CEO — — 10 µA V_CE = 100 V, R_BE = ∞

DC current transfer ratio h_FE 1000 — 20000 V_CE = 3 V, I_C = 4 A*1

Collector to emitter saturation V_CE(sat)1 — — 1.5 V I_C = 4 A, I_B = 8 mA*1

voltage V_CE(sat)2 — — 3.0 V I_C = 8 A, I_B = 80 mA*1

Base to emitter saturation V_BE(sat)1 — — 2.0 V I_C = 4 A, I_B = 8 mA*1

voltage V_BE(sat)2 — — 3.5 V I_C = 8 A, I_B = 80 mA*1

Turn on time t_on — 0.4 — µs I_C = 4 A, I_B1 = –I_B2 = 8 mA

Storage time t_stg — 5.4 — µs

Fall time t_f — 1.1 — µs

Note: 1. Pulse test.

0 50 100 150

Case temperature TC (°C)

Collector power dissipation Pc (W)

Maximum Collector Dissipation Curve

20 40 60 0.03 0.1 0.3 1.0 3 10 30

Collector to emitter voltage VCE (V)

Collector current I

C

(A)

1 3 10 30 100 300 1,000

Area of Safe Operation 1 µs 100 µ_s 1 ms PW = 10 ms DC Operation (T C_{= 25} °C) iC(peak) I_C_max (Continuous) Ta = 25°C 1 shot pulse

(3)

Collector to emitter voltage VCE (V)

Collector current I

C

(A)

0

Typical Output Characteristics

1 2 3 4 5 2 4 6 8 10 TC = 25°C IB = 0 0.6 mA 2.0 P C_{= 25 W} 1.8 1.6 1.4 1.2 1.0 0.8 100 300 1,000 3,000 10,000

Collector current IC (A)

DC current transfer ratio h

FE

0.1 0.3 1.0 3 10

DC Current Transfer Ratio vs. Collector Current TC = 75 °C 25° C –25 °C VCE = 3 V 0.1 0.2 0.5 1.0 2 5 10

Collector current IC (A)

0.1 0.2 0.5 1.0 2 5 10

Collector to emitter saturation voltage V

CE

(sat)

(V)

Base to emitter saturation voltage V

BE

(sat)

(V)

Saturation Voltage vs. Collector Current

VBE(sat) VCE(sat) lC/lB = 200 lC/lB = 500 500 200 TC = 25°C 0.01 0.03 0.1 0.3 1.0 3 10

Collector current I_C (A)

Switching time t (

µ

s)

0.1 0.3 1.0 3 10

Switching Time vs. Collector Current

Ta = 25°C VCC = 30 V I_C = 500 I_B1 = –500 I_B2 tf ton tstg

(4)

4 0.01 0.03 0.1 0.3 1.0 3 10 Thermal resistance θj-c ( ° C/W) 1 10 100 1,000 (s) 1 10 100 1,000 (ms) Time t

Transient Thermal Resistance

1 to 1,000 ms 1 to 1,000 s

(5)

Package Dimensions

0.5 ± 0.1 2.54 ± 0.5 0.76 ± 0.1 _14.0 ± 0.5 15.0 ± 0.3 2.79 ± 0.2 18.5 ± 0.5 7.8 ± 0.5 10.16 ± 0.2 2.54 ± 0.5 1.26 ± 0.15 4.44 ± 0.2 2.7 MAX 1.5 MAX 11.5 MAX 9.5 8.0 1.27 6.4 +0.2 –0.1 φ 3.6 +0.1 -0.08 Hitachi Code JEDEC EIAJ

Mass (reference value)

TO-220AB Conforms Conforms 1.8 g

(6)

6
