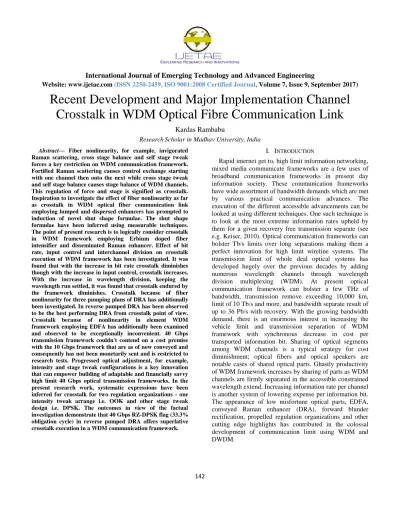

Recent Development and Major Implementation Channel

Crosstalk in WDM Optical Fibre Communication Link

Kardas Rambabu

ResearchScholar in Madhav University, India

Abstract— Fiber nonlinearity, for example, invigorated

Raman scattering, cross stage balance and self stage tweak forces a key restriction on WDM communication framework. Fortified Raman scattering causes control exchange starting with one channel then onto the next while cross stage tweak and self stage balance causes stage balance of WDM channels. This regulation of force and stage is signified as crosstalk. Inspiration to investigate the effect of fiber nonlinearity as far as crosstalk in WDM optical fiber communication link employing lumped and dispersed enhancers has prompted to induction of novel shut shape formulae. The shut shape formulae have been inferred using measurable techniques. The point of present research is to logically consider crosstalk in WDM framework employing Erbium doped fiber intensifier and disseminated Raman enhancer. Effect of bit rate, input control and interchannel division on crosstalk execution of WDM framework has been investigated. It was found that with the increase in bit rate crosstalk diminishes though with the increase in input control, crosstalk increases. With the increase in wavelength division, keeping the wavelength run settled, it was found that crosstalk endured by the framework diminishes. Crosstalk because of fiber nonlinearity for three pumping plans of DRA has additionally been investigated. In reverse pumped DRA has been observed to be the best performing DRA from crosstalk point of view. Crosstalk because of nonlinearity in element WDM framework employing EDFA has additionally been examined and observed to be exceptionally inconvenient. 40 Gbps transmission framework couldn't contend on a cost premise with the 10 Gbps framework that are as of now conveyed and consequently has not been monetarily sent and is restricted to research tests. Progressed optical adjustment, for example, intensity and stage tweak configurations is a key innovation that can empower building of adaptable and financially savvy high limit 40 Gbps optical transmission frameworks. In the present research work, systematic expressions have been inferred for crosstalk for two regulation organizations - one intensity tweak arrange i.e. OOK and other stage tweak design i.e. DPSK. The outcomes in view of the factual investigation demonstrate that 40 Gbps RZ-DPSK flag (33.3% obligation cycle) in reverse pumped DRA offers superlative crosstalk execution in a WDM communication framework.

I. INTRODUCTION

(2)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 7, Issue 9, September 2017)

143 Optical fibers have a remarkable component of low limit for nonlinear impacts. Nonlinear impacts can be fundamentally classified into three sorts: nonresonant process, full process and nonlinear interaction amongst flag and clamor (Toulouse, 2005). Cross stage regulation (XPM) and self stage balance (SPM) are cases of nonresonant process while animated Raman scattering (SRS) is a case of full process. The wonder of nonlinearity emerges from the third request helplessness of the material of optical fiber i.e. silica (glass). The genuine piece of powerlessness is related with refractive index and offers ascend to cross stage tweak and self stage adjustment. The imaginary piece of vulnerability is related with stage delay in material reaction and offers ascend to empowered Raman scattering. Optical fibers have lessening co-proficient of 0.2 dB/km at 1550 nm which is otherwise

called the low misfortune window of optical

communication. To conquer the issue of weakening, optical enhancer, for example, Erbium doped fiber intensifier and dispersed Raman speakers are utilized. In Raman speaker, the transmission fiber itself goes about as optical intensifiers, with high power pump co-and counter propagating with the flag in this way continuously amplifying it. EDFAs are built by doping a SMF with Erbium particles and pumping the fiber with outside pump source. Common length of EDFA in which optical enhancement happens is around 10 m consequently making it lumped in setup. At the point when expansive number of signs at the same time engenders in optical fiber, because of high power confinement, nonlinear impacts come into picture. In nearness of optical speakers, these nonlinearities are enormously upgraded. The nonlinear impacts SRS causes control exchange starting with one channel then onto the next while XPM and SPM cause stage adjustment of WDM channels. The adjustment of force and stage in one channel because of nonlinear impacts in nearby channels is considered as crosstalk in the present research work.

Stage adjustment of signs in WDM framework because of SPM and XPM gets changed over to intensity tweak through scattering and hence brings about waveform contortions. Depending on fiber chromatic scattering and its administration, XPM induced nonlinear stage move may turn out to be extremely inconvenient for WDM signals (Ho, 2005; Ho and Wang, 2006). In WDM transmission frameworks, XPM induces a broadening of the flag range and so more extensive optical channel bandwidth is required at the collector. This corrupts the framework execution, since more unconstrained discharge commotion enters the recipient.

Electronic predistortion (EPD) of chromatic

dispersionusing advanced flag processing is a practical

contrasting option to ordinary optical scattering

remuneration (ODC). Inquire about trials (Klekamp et. al., 2006; Essiambre and Winzer, 2005) and reproductions (Chandrashekhar et. al., 2006) have shown that EPD frameworks are emphatically debased by SPM and XPM contrasted with ODC frameworks. In one of the reviews, soliton engendering in optical fiber communication frameworks was viewed as taking into record the impacts of deferred Raman reaction and the random character of heartbeat successions (Peleg, 2007). It was presumed that in such frameworks the Raman-induced vitality trade because of impacts prompts to lognormal insights for the beat amplitudes. The PDF of SRS crosstalk has been approximated by lognormal circulation (Peleg, 2004; Chung and Peleg, 2005; Ho, 2000). In Ref (Ho 2000), it is demonstrated that with a specific end goal to utilize PDF for framework execution assessment, techniques to assess standard deviation is fundamental. In the ebb and flow inquire about work, standard deviation of crosstalk because of SRS, XPM and SPM in DRA is figured which will be strong for characterizing the PDF of crosstalk.

II. REVIEW OF LITERATURE

The expression for difference of crosstalk that has been inferred for bi-directional pumped DRA can be utilized to investigate crosstalk in forward pumped DRA by making in reverse pump PPL quality equivalent to zero. So also to study crosstalk in reverse pumped DRA, the quality of forward pumps PP0 is made equivalent to zero. Fig. 3.3 shows variety of SRS crosstalk standard deviation with flag wavelength for all the three pumping arrangement. It can be seen from the assume that in all the three pumping designs minima happen around 1545 nm i.e. the focal channel of the WDM framework. The purpose behind focal channel suffering minimum crosstalk is that it gains control from lower wavelength channel and loses energy to higher wavelength channel.

(3)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 7, Issue 9, September 2017)

144 Actually, in reverse pumped DRA, flag quality is low toward the begin of transmission and begins getting pumped in the wake of traveling through a certain separation in the fiber. Also beat stroll off is more dominant in forward and bidirectional pumped DRA in which flag and pump co-engender in the same course contrasted with in reverse pumped DRA in which flag and pump counterpropagate. Along these lines, in reverse pumped DRA endures minimum crosstalk. Fig. 3.4 shows variety of combined XPM and SPM induced crosstalk standard deviation with flag wavelength for all the three pumping setups. In all the three pumping setup maxima happens around 1545 nm i.e. the focal channel of the WDM framework. The purpose behind focal channel suffering greatest crosstalk is that in XPM close-by channels i.e. channels with littler interchannel detachment cause more prominent stage deviation. Thus net stage deviation because of XPM is substantial in focal channel as both lower and higher wavelength channels in the WDM framework influence it. It can likewise be seen from the assume that like SRS, in reverse pumped DRA encounters minimum crosstalk among the three pumping setup. The reason can be ascribed to an indistinguishable variable from SRS.

III. RESEARCH METHODOLOGY

Updated Wavelength division multiplexing (WDM) plan is utilized to multiplex diverse information carrying wavelength channels on a single fiber (Agrawal, 2001). WDM conspire has many focal points regarding successful cost and effective execution. Be that as it may, it is constrained by different components, for example, constriction, scattering and nonlinear impacts. Fortified Raman scattering is one such nonlinear impact which incredibly constrains the framework execution (Toulose, 2005; Wu and Way, 2004; Wang et. al., 1998; Ding et. al., 2002; Chraplyvy, 1983; Chraplyvy, 1984; Zhang et. al., 1994; Wang et. al., 1998; Cotter and Hill, 1984; Norimatsu and Yamamoto, 2001). Animated Raman scattering (SRS) is an inelastic impact that causes moves in vitality states because of interactions of photons with atoms. In WDM framework SRS causes control exchange from a lower wavelength to a higher wavelength resulting in crosstalk. Cross Phase Modulation (XPM) and Self Phase Modulation (SPM) are two other nonlinear impacts otherwise called optical Kerr impact. The adjustment in period of channel is relative to its own particular intensity in SPM and to the intensity of different channels in XPM.

The power exchange because of SRS and stage deviation because of XPM and SPM has been meant as crosstalk.

Crosstalk in WDM framework with lumped enhancer has been concentrated both hypothetically and tentatively in past works (Forghieri et. al., 1995; Christodoulides and Jander, 1996; Mazurczyk et. al., 2000). In one of such reviews, soliton spread in optical fiber communication frameworks was viewed as taking into account the impacts of deferred Raman reaction and the random character of heartbeat successions (Peleg, 2007). It was inferred that in such frameworks the Raman-induced vitality trade because of crashes prompts to lognormal insights for the beat amplitudes.

The PDF of SRS crosstalk has been approximated by lognormal dissemination (Forghieri et. al., 1995; Peleg, 2004; Chung and Peleg, 2005; Ho 2000). In Ref. (Ho, 2000), it is demonstrated that keeping in mind the end goal to utilize PDF for framework execution assessment, strategies to assess standard deviation is basic. In the present work, standard deviation of crosstalk due to SRS, XPM and SPM in DRA is ascertained which will be strong for characterizing the PDF of crosstalk.

(4)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 7, Issue 9, September 2017)

145 The main inspiration of the present research work was to investigate by explanatory strategy the crosstalk execution stemming from nonlinear impacts, for example, invigorated Raman scattering, cross stage regulation and self stage balance in a WDM optical fiber link employing lumped and appropriated intensifier. Yamamoto and Norimatsu (2003) have created shut shape formulae for crosstalk in scattering

oversaw framework employing lumped intensifier.

Inspiration to investigate the effect of fiber nonlinearity regarding crosstalk in WDM optical fiber communication link employing circulated enhancers has prompted to determination of novel shut shape formulae. The formulae give a decent gauge of individual crosstalk standard deviation of each nonlinear impact and subsequently assume a decent part in fast–evolving territories of cutting edge communication framework. In element WDM framework, channels include/drop brings about variety in input energy to the EDFA causing power homeless people in surviving channel because of cross gain immersion. Propositions control drifters are of extensive size and can bring about blunder because of nonlinear impacts. To investigate the effect of nonlinearity on element WDM framework employing EDFA was another inspiration of the exploration work.

The existing formulae created by Yamamoto and Norimatsu (2003) for investigation of SRS crosstalk in scattering oversaw fiber link has been portrayed completely and utilized for analyzing the execution of scattering remunerated fiber link. It has been demonstrated that littlest wavelength of WDM framework is the most exceedingly terrible performing channel from SRS point of view while center wavelength of WDM framework is the most noticeably bad performing channel from XPM and SPM point of view. Facilitate, it has been demonstrated that the

SRS crosstalk endured by a channel changes

straightforwardly with its wavelength partition as for different channels of WDM framework though XPM crosstalk fluctuates inversely with its wavelength division concerning other channel of WDM framework. Effect of nonlinearity on element WDM framework has been investigated and observed to be exceptionally unfavorable.

Next the factual investigation of crosstalk because of SRS, XPM and SPM has been connected surprisingly to WDM framework employing DRA. In DRA, high power pump co-and counter spreads with the WDM signals providing a continuous gain to adjust for the constriction of signs. Using measurable strategies, shut shape formulae have been determined to study crosstalk in single fragment of fiber link employing DRA.

Since the gain is continuously increasing along the transmission line, crosstalk standard deviation has been ascertained for variable gain along the whole length of single mode fiber. The legitimacy of the conditions is checked by reducing the gain to zero in this way reducing the formulae to crosstalk for single traverse of single mode fibers. The outcomes substantiate with those obtained by the formulae created by Yamamoto and Norimatsu (2003) showing the legitimacy of our conditions. The interaction among pumps is disregarded in our investigation. Our work concentrates on crosstalk between signs as they are continuously pumped while propagating in the fiber. Pumps interact among themselves in a comparative manner as signs propagating in a fiber i.e. pumps at lower wavelengths lose energy to higher wavelengths. It has been found in research (Bromage, 2004) that when numerous pumps at various wavelength are propelled into the fiber, the gain at shorter wavelength diminishes though at longer wavelength increases. In present investigation this distinction in gain is streamlined by assuming equivalent gain for all pumps.

The systematic condition has been connected to WDM

pumped Raman intensifiers in various pumping

arrangement to obtain its crosstalk execution. These outcomes are then used to determine framework headed for an average WDM framework using DRA as intensifier. The scientific outcomes introduced for examination of crosstalk demonstrate that retrogressive pumped DRA endures minimum crosstalk contrasted with forward pumped DRA and bidirectional pumped DRA. It was further found that for every one of the three pumping arrangements, the cutoff points of normal input control increases with increase in the bit rate of the framework. Framework headed for in reverse pumped DRA is higher contrasted with forward and bidirectional pumped DRA by just about 10 dB.

The salient features of the present research work:

To study the existing closed formed formulae to analyze

the crosstalk performance of dynamic WDM system employing EDFA.

To derive closed form formulae using statistical method

for crosstalk due to SRS, XPM and SPM in WDM system employing DRA.

(5)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 7, Issue 9, September 2017)

146

To estimate the crosstalk for different modulation

formats and pulse shapes prevalent in optical communication system.

Significant Contributions:

To the best of author’s knowledge, for the first time, closed form formulae have been derived to study the crosstalk due to nonlinearities in WDM system employing DRA.

Another major contribution in this research work is a detailed analysis of crosstalk performance for different parameters like input signal power, wavelength separation and bit rate of the system. Based on the analysis, system bounds for a typical WDM system have been evaluated theoretically.

As per our knowledge, analytical study of crosstalk due to SRS, XPM and SPM for different modulation formats and pulse shape prevalent in optical communication system for WDM system employing distributed amplifier has been done for the first time in this research work. These results will play a good role in fast–evolving areas of advanced communication system and design of efficient WDM system.

IV. CONCLUSION

Portable remote, coaxial links, satellite, remote LAN, optical communications are some communication advances that cost-adequately meet the differed bandwidth demand of broadband communication frameworks, for example, internet, portable voice and information administrations. Optical communication frameworks are a perfect innovation as it can bolster Tb/s limits over long separations. WDM frameworks have contributed colossally in increasing the transmission limit of optical systems by multiplexing different wavelengths on a single fiber. With the always growing bandwidth demand, a great deal of research is undergoing to increase the vehicle limit and

transmission separation of optical communication

frameworks at an alluring expense for each moved information bit. Sharing of optical parts, EDFA, DRA, propelled tweak groups and other such strategies have contributed in the incredible development of the limit of WDM frameworks.

Optical fibers have lessening coefficient of 0.2 dB/km at 1550 nm which is otherwise called the low misfortune window of optical communication. To overcome the issue of lessening, optical enhancer, for example, Erbium doped fiber intensifier and circulated Raman enhancers are utilized.

In Raman enhancer, the transmission fiber itself goes about as optical intensifiers, with high power pump co and counter propagating with the flag along these lines continuously amplifying it. EDFAs are developed by doping a SMF with Erbium particles and pumping the fiber with outside pump source. Run of the mill length of EDFA in which optical enhancement happens is around 10 m along these lines making it lumped in arrangement. Optical fibers have a special normal for low limit for nonlinear impacts. Nonlinear impacts can be essentially classified into three sorts: non full process, thunderous process and nonlinear interaction amongst flag and clamor.

Title and Author Details

Mr. K. Rambabu has completed B.Tech (ECE) from Sri Kottam Tulsi Reddy Memorial College of Engineering, Maha-boobnagar Dist., JNTUH University, M.Tech (Image Processing) from

Aurora College of Engineering, JNTUH University, Hyderabad. Ph.D pursuing in Madhav university, Rajasthan. 6-years ofexperiance in teaching field. Currently, He is working as an Associate professer and HOD of ECE Department in Kasireddy narayanreddy college of engg & research, Hyderabad.

REFERENCES

[1] Agrawal, G. P., (2007) Nonlinear Fiber Optics, 4 th ed. New York: Academic Press. [2] Agrawal, G. P., (2002) Fiber-Optic Communication Systems, 3rd ed. John Wiley & Sons.

[2] Ahmed, F. and Kishi, N., (2003) “All-fiber ultra-fast switching using stimulated Raman scattering,” Opt. Rev., Vol. 10, No. 3, pp. 146– 149.

[3] Asif, R.,Lin, C.-Y., Holtmannspoetter, M., Schmauss, B., (2010) “Optimized digital backward propagation for phase modulated signals in mixed-optical fiber transmission link,” Optics Express, Vol. 18, No. 22, pp 22796-22807.

[4] Asif, R.,Lin, C.-Y., Holtmannspoetter, M., Schmauss, B., (2011) “Logarithmic step-size based digital backward propagation in N-channel 112 Gbit/s/ch DPQPSK transmission,” 13th International Conference on Transparent Optical Networks (ICTON), 2011, Paper Tu.P.6, Stockholm, Sweden.

[5] Asif, R.,Lin, C.-Y., Holtmannspoetter, M., Usman, M., Schmauss, B., (2011) “Electronic mitigation of fiber transmission impairments in 100 Gbit/s WDM phase encoded transmission with optical add-drop multiplexers,” Photonics North Conference, 2011, SPIE Proceedings, Ottawa, Canada.

[6] Asif, R.,Lin, C.-Y., Schmauss, B., (2011) “Impact of channel baud-rate on logarithmic digital backward propagation in DP-QPSK system with uncompensated transmission links,” Optics Communication, Vol. 284, pp. 5673- 5677.

(6)

International Journal of Emerging Technology and Advanced Engineering

Website: www.ijetae.com (ISSN 2250-2459, ISO 9001:2008 Certified Journal, Volume 7, Issue 9, September 2017)

147 [8] Bellotti, G., Francia, C. and Bononi, A., (1997) “Spectral broadening

due to cross phase modulation (XPM) in WDM OOK transmission system,” Proc. Of Laser and Electro Optic Society Annual Meeting (LEOS) '97, paper WAA3, 226-227.
