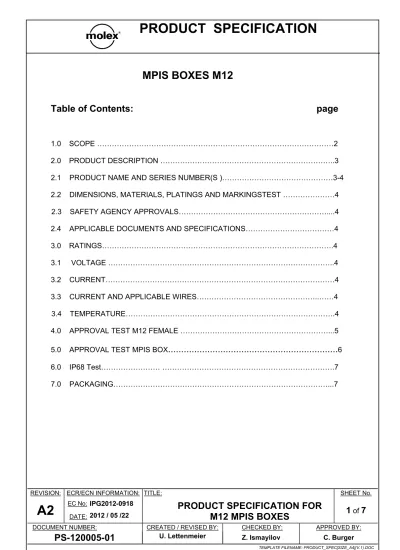

MPIS BOXES M12
Table of Contents: page
1.0 SCOPE 2
2.0 PRODUCT DESCRIPTION ..3
2.1 PRODUCT NAME AND SERIES NUMBER(S )3-4
2.2 DIMENSIONS, MATERIALS, PLATINGS AND MARKINGSTEST 4
2.3 SAFETY AGENCY APPROVALS....4
2.4 APPLICABLE DOCUMENTS AND SPECIFICATIONS4
3.0 RATINGS.4
3.1 VOLTAGE ..4
3.2 CURRENT4
3.3 CURRENT AND APPLICABLE WIRES..4
3.4 TEMPERATURE.4
4.0 APPROVAL TEST M12 FEMALE ...5
5.0 APPROVAL TEST MPIS BOX...6
6.0 IP68 Test .7
7.0 PACKAGING...7
1.0 SCOPE
This Product Specification covers the M12 MPIS (Distribution) Boxes series with homerun cable
MPIS M12 XXX 4P 8PT AC FE STR XXX XX MPIS M12 XXX 4P 6PT AC FE STR XXX XX MPIS M12 XXX 4P 4PT AC FE STR XXX XX BTY800X-FBX-XX BTY600X-FBX-XX BTY400X-FBX-XX
MPIS M12 MC XXX 4P 8PT 12P AC FE STR XXX MA XM MPIS M12 M23 XXX 4P 8PT 12P AC FE STR XXX MA XM BTY806X-FBX BTY817X-FBX
MPIS M12 MC XXX 4P 4PT 12P AC FE STR XXX MA XM MPIS M12 M23 XXX 4P 4PT 12P AC FE STR XXX MA XM BTY406X-FBX BTY417X-FBX
2.0 PRODUCT DESCRIPTION
MPIS (Multiport Interconnect System) series simplifies wiring installation, molded home run
Cable with 4, 6 and 8 port configurations
PNP and NPN version for use in a variety of DC sens
2.1 PRODUCT NAME AND SERIES NUMBER(S)
MOLEX PN Woodhaed PN DESCRIPTION
1200051015 BTY800N-FBN-02 MPIS M12 NPN 4P 8PT AC FE STR PVC 2M 1200051016 BTY800N-FBN-05 MPIS M12 NPN 4P 8PT AC FE STR PVC 5M 1200051017 BTY800N-FBN-10 MPIS M12 NPN 4P 8PT AC FE STR PVC 10M 1200051018 BTY800N-FBN-15 MPIS M12 NPN 4P 8PT AC FE STR PVC 15M 1200050032 BTY800N-FBP-02 MPIS M12 NPN 4P 8PT AC FE STR PUR 2M 1201148020 BTY800N-FBP-05 MPIS M12 NPN 4P 8PT AC FE STR PUR 5M 1201140197 BTY800N-FBP-10 MPIS M12 NPN 4P 8PT AC FE STR PUR 10M 1201148021 BTY800N-FBP-15 MPIS M12 NPN 4P 8PT AC FE STR PUR 15M 1200051006 BTY800P-FBN-05 MPIS M12 PNP 4P 8PT AC FE STR PVC 5M 1200051007 BTY800P-FBN-10 MPIS M12 PNP 4P 8PT AC FE STR PVC 10M 1200051008 BTY800P-FBN-15 MPIS M12 PNP 4P 8PT AC FE STR PVC 15M 1201148022 BTY800P-FBP-05 MPIS M12 PNP 4P 8PT AC FE STR PUR 5M 1201148023 BTY800P-FBP-10 MPIS M12 PNP 4P 8PT AC FE STR PUR 10M 1201148024 BTY800P-FBP-15 MPIS M12 PNP 4P 8PT AC FE STR PUR 15M 1201148025 BTY800P-FBP-20 MPIS M12 PNP 4P 8PT AC FE STR PUR 20M 1200051012 BTY600N-FBN-05 MPIS M12 NPN 4P 6PT AC FE STR PVC 5M 1200051013 BTY600N-FBN-10 MPIS M12 NPN 4P 6PT AC FE STR PVC 10M 1200051014 BTY600N-FBN-15 MPIS M12 NPN 4P 6PT AC FE STR PVC 15M 1201148014 BTY600N-FBP-05 MPIS M12 NPN 4P 6PT AC FE STR PUR 5M 1201148015 BTY600N-FBP-10 MPIS M12 NPN 4P 6PT AC FE STR PUR 10M 1201148016 BTY600N-FBP-15 MPIS M12 NPN 4P 6PT AC FE STR PUR 15M 1200051003 BTY600P-FBN-05 MPIS M12 PNP 4P 6PT AC FE STR PVC 5M 1200051004 BTY600P-FBN-10 MPIS M12 PNP 4P 6PT AC FE STR PVC 10M 1200051005 BTY600P-FBN-15 MPIS M12 PNP 4P 6PT AC FE STR PVC 15M 1201148017 BTY600P-FBP-05 MPIS M12 PNP 4P 6PT AC FE STR PUR 5M 1201148018 BTY600P-FBP-10 MPIS M12 PNP 4P 6PT AC FE STR PUR 10M 1201140054 BTY600P-FBP-15 MPIS M12 PNP 4P 6PT AC FE STR PUR 15M 1201148019 BTY600P-FBP-20 MPIS M12 PNP 4P 6PT AC FE STR PUR 20M 1200051009 BTY400N-FBN-05 MPIS M12 NPN 4P 4PT AC FE STR PVC 5M 1200051010 BTY400N-FBN-10 MPIS M12 NPN 4P 4PT AC FE STR PVC 10M 1200051011 BTY400N-FBN-15 MPIS M12 NPN 4P 4PT AC FE STR PVC 15M 1200051000 BTY400P-FBN-05 MPIS M12 NPN 4P 4PT AC FE STR PVC 5M 1200051001 BTY400P-FBN-10 MPIS M12 NPN 4P 4PT AC FE STR PVC 10M 1200051002 BTY400P-FBN-15 MPIS M12 NPN 4P 4PT AC FE STR PVC 15M 1201148008 BTY400N-FBP-05 MPIS M12 NPN 4P 4PT AC FE STR PUR 5M 1201148009 BTY400N-FBP-10 MPIS M12 NPN 4P 4PT AC FE STR PUR 10M 1201148010 BTY400N-FBP-15 MPIS M12 NPN 4P 4PT AC FE STR PUR 15M 1201148011 BTY400P-FBP-05 MPIS M12 PNP 4P 4PT AC FE STR PUR 5M 1201148012 BTY400P-FBP-10 MPIS M12 PNP 4P 4PT AC FE STR PUR 10M 1201140182 BTY400P-FBP-15 MPIS M12 PNP 4P 4PT AC FE STR PUR 15M 1201148013 BTY400P-FBP-20 MPIS M12 PNP 4P 4PT AC FE STR PUR 20M
MOLEX PN Woodhaed PN DESCRIPTION
1200051035 BTY806N-FBP MPIS M12 MC NPN 4P 8PT 12P AC FE STR PUR MA STR 0,3M 1200051036 BTY806P-FBP MPIS M12 MC PNP 4P 8PT 12P AC FE STR PUR MA STR 0,3M 1200580073 BTY817N-FBP-003 MPIS M12 M23 NPN 4P 8PT 12P AC FE STR PUR MA STR 0,3M 1200051029 BTY817P-FBP-003 MPIS M12 M23 PNP 4P 8PT 12P AC FE STR PUR MA STR 0,3M 1200051033 BTY406N-FBP MPIS M12 MC NPN 4P 4PT 12P AC FE STR PUR MA STR 0,3M 1200051034 BTY406P-FBP MPIS M12 MC PNP 4P 4PT 12P AC FE STR PUR MA STR 0,3M 1200580072 BTY417N-FBP-003 MPIS M12 M23 NPN 4P 4PT 12P AC FE STR PUR MA STR 0,3M 1200051025 BTY417P-FBP-003 MPIS M12 M23 PNP 4P 4PT 12P AC FE STR PUR MA STR 0,3M
2.2 DIMENSIONS, MATERIALS, PLATINGS AND MARKINGS
For dimensions materials plating and markings see the SD drawing!
2.3 SAFETY AGENCY APPROVALS
None
2.4 APPLICABLE DOCUMENTS AND SPECIFICATIONS
SD Drawing
IEC 61076-2-101
3.0 RATINGS
3.1 VOLTAGE
10-30 DC
32 EFF.
3.2 CURRENT
4A PER PORT / 12 A MAX: TOTAL
3.3 CURRENT AND APPLICABLE WIRES
SEE SD DRAWING
4.0 APPROVAL TEST M12 FEMALE
Device under test:
according TS-120005-020
Task:
Qualification acc. to IEC 61076-2-101
Test Specification:
IEC 61076-2-101, IEC 60512, IEC 60529
Test sequence:
Preliminary tests
Dynamic / climatic tests
Mechanical endurance
Electrical load
5.0 APPROVAL TEST MPIS BOX
Device under test:
according TS-120005-011
Test sequence:
CP1
Torque test
( Coupling nut )
Temperature shock
IP 67 test
Retention force
( Coupling nut )
Visual examination
Electronic test
Connecting test
Insulation test
Voltage proof
LED test visual
Visual examination
Electronic test
Connecting test
Insulation test
Voltage proof
LED test visual
Electronic test
Connecting test
Insulation test
Voltage proof
LED test visual
6.0 IP68 Test (1M water dept / 32 days)
Device under test:
according TS-1202005-016
7.0 PACKAGING
Parts shall be packaged to protect against damage during handling, transit and storage.
CABLE LENGTH OVER 5M: BAG; STRINGED; 450X500
P/N: 908487016
