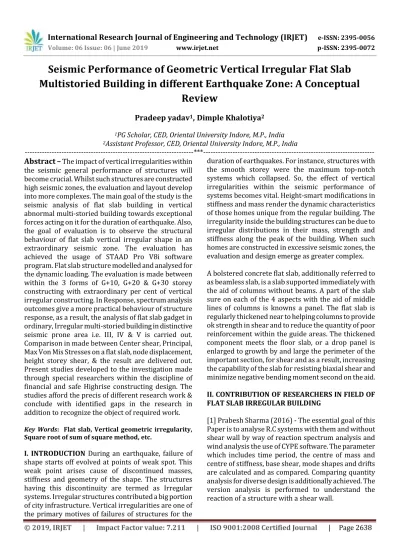

Seismic Performance of Geometric Vertical Irregular Flat Slab Multistoried Building in Different Earthquake Zone: A Conceptual Review

(1)

1_{PG Scholar, CED, Oriental University Indore, M.P., India}

2_{Assistant Professor, CED, Oriental University Indore, M.P., India}

---*---Abstract –**

The impact of vertical irregularities within the seismic general performance of structures will become crucial. Whilst such structures are constructed high seismic zones, the evaluation and layout develop into more complexes. The main goal of the study is the seismic analysis of flat slab building in vertical abnormal multi-storied building towards exceptional forces acting on it for the duration of earthquake. Also, the goal of evaluation is to observe the structural behaviour of flat slab vertical irregular shape in an extraordinary seismic zone. The evaluation has achieved the usage of STAAD Pro V8i software program. Flat slab structure modelled and analysed for the dynamic loading. The evaluation is made between within the 3 forms of G+10, G+20 & G+30 storey constructing with extraordinary per cent of vertical irregular constructing. In Response, spectrum analysis outcomes give a more practical behaviour of structure response, as a result, the analysis of flat slab gadget in ordinary, Irregular multi-storied building in distinctive seismic prone area i.e. III, IV & V is carried out. Comparison in made between Center shear, Principal, Max Von Mis Stresses on a flat slab, node displacement, height storey shear, & the result are delivered out. Present studies developed to the investigation made through special researchers within the discipline of financial and safe Highrise constructing design. The studies afford the precis of different research work & conclude with identified gaps in the research in addition to recognize the object of required work.

Key Words: Flat slab, Vertical geometric irregularity, Square root of sum of square method, etc.

I. INTRODUCTION During an earthquake, failure of shape starts off evolved at points of weak spot. This weak point arises cause of discontinued masses, stiffness and geometry of the shape. The structures having this discontinuity are termed as Irregular systems. Irregular structures contributed a big portion of city infrastructure. Vertical irregularities are one of the primary motives of failures of structures for the

duration of earthquakes. For instance, structures with the smooth storey were the maximum top-notch systems which collapsed. So, the effect of vertical irregularities within the seismic performance of systems becomes vital. Height-smart modifications in stiffness and mass render the dynamic characteristics of those homes unique from the regular building. The irregularity inside the building structures can be due to irregular distributions in their mass, strength and stiffness along the peak of the building. When such homes are constructed in excessive seismic zones, the evaluation and design emerge as greater complex.

A bolstered concrete flat slab, additionally referred to as beamless slab, is a slab supported immediately with the aid of columns without beams. A part of the slab sure on each of the 4 aspects with the aid of middle lines of columns is knowns a panel. The flat slab is regularly thickened near to helping columns to provide ok strength in shear and to reduce the quantity of poor reinforcement within the guide areas. The thickened component meets the floor slab, or a drop panel is enlarged to growth by and large the perimeter of the important section, for shear and as a result, increasing the capability of the slab for resisting biaxial shear and minimize negative bending moment second on the aid.

II. CONTRIBUTION OF RESEARCHERS IN FIELD OF FLAT SLAB IRREGULAR BUILDING

(2)

paper discusses the lateral behaviour of the multi-storey building designed in step with the 456 and IS-1893 component-I is evaluated the usage of dynamic evaluation of framed structures using Response Spectrum Method. The inadequacies of multi-storied frame shear wall constructing are discussed evaluating the lateral behaviour, building waft, axial pressure, and seismic base shear. Two crucial parameters of region element and Soil-structure interplay (SSI), which have an impact on the lateral behaviour of the building is likewise considered in this examine. Software STAAD-ProV8i is used for this reason. In this examine kind of tales, area thing and soil situation are varying parameter

[3] Navjot Kaur Bhatia. Et. Al (2016) in this research paper studied about comparative analysis of Flat slab and grid slab with conventional slab. Using Staad pro. Software. The analysis and design of different slabs are using Indian standard code. From the Obtained results we know about the advantages of flat slab over grid slab and regular slab.

[4] Tarun Shrivastava (2015) in mentioned paper studied about shear wall which is use as a Lateral load resisting element in multi-storey building subjected to wind load. The unique instances are organized with an exceptional configuration of the shear wall. Comparative graphical illustration absolutely specific of various models (instances) supported one of a kind parameter like lateral deformation, level waft index, maximum bending second and shear forces are cited.

[5] Akshay Mahale, K. K. Tolani (2015) A structural vertical member which can resist shear, axial load and moment caused through lateral load and gravity load switch to the wall from beams and columns. Design by way of coinciding centroid and mass centre of the constructing is crucial for a Structure. Shear partitions also stiffen the building. To growth the stress for lateral load resistance shear partitions of varying cross-sections inclusive of the channel, T, L, field and so forth. May be used. These walls help to divide closed spaces consisting of lifts. In this topic, the behaviour of shear wall in buildings having equal geometry and shear partitions located at unique places is taken into consideration. The bending parameters and horizontal displacements would be computed, and the area of the shear wall would be installed based upon the above computations.

(3)

analyse the multistoried building using SAP 2000 software. The response spectrum analysis of building Done by using SAP software also the time history analysis method used in analysis records of El Centro earthquake 1940 consider for analysis. G+10 story building considers for analysis. Result obtained is terms of Base shear and node displacement.

[8] Mr.K. Lova Rajuet.Al (2015) in this paper studied that the building subjected to nonlinear dynamic analysis. For this purpose, pushover analysis applied on the structure using ETABs software. For resisting the earthquake forces vary the position of shear wall with building axis. Different pushover curve drawn which show the best location of the shear wall.

inner edges (like container shape). So, it is extraordinarily important to are seeking out the low-priced and best region of shear partitions in symmetrical homes to reduce the torsion impact. In this work, an excessive upward push building with distinctive locations of shear walls is taken into consideration for analysis. The multi-storey building with 14 tales is analysed for its displacement, electricity and stability using ETABS-2013 software program. For the analysis of the constructing for seismic loading with two specific Zones (Zone-II & Zone-V) is considered with soil I & soil III kinds. The analysis of the constructing is accomplished by the use of an equivalent static approach and a dynamic approach. The consequences from the evaluation acquired from each the methods are supplied in tabular shape and the results are compared the usage of graphical form.

[10] Ali Koçaket.Al (2015) this paper gives an idea about ferro concrete structure. For seismic analysis both static and dynamic nonlinear methods that is time history and pushover method consider shear wall also consider for analysis.

[11] Anuja Walvekar (2015) this paper deal with the flat slab-shear wall interaction. Author using ETAB software for analysis in which design G+15 storey Highrise building with and without shear wall and response spectrum method use for seismic analysis. The result obtained in terms of Base shear, storey displacement, storey drift etc.

(4)

[13] Ravindra. Et. Al (2015)– In this paper studied as in keeping with IS code 1893:2002 evaluation achieved by using thinking about ordinary and irregular buildings with brick infill and changed building with sturdy column and the shear wall on the corner of the gentle storey. For linear and nonlinear evaluation 5, 10, and 15 storey homes modelled using ETABS software considering Response reduction element, Importance thing, Zone thing, damping ratio, masses as in step with code Lateral displacement, base shear and hinge reactions were obtained according to code provision.

[14] Ravi Kanth Chittiprolu, et. Al (2014) this paper deals with high rise structure with vertical irregularity in terms of geometry, irregular masses with and without shear wall. Result show the suitability of irregular Highrise structure with shear wall.

[15] Navyashree K, (2014) in this paper we studied about the comparative study of flat slab structure with conventional slab building using Etab software. For the analysis consider 6 models in which 3 model of G+3, G+8 and G+12 storey with conventional slab and other same three with flat slab in seismic zone IV. Result compare in term of base shear, node displacement and storey drift.

[16] Sumit Pawah. Et. Al (2014) in this paper author also consider flat slab building with conventional slab the structures is irregular in plan and seismic zone III, IV and V consider for analysis total 36 model prepared and analysis in Staad pro. Software. [17] Amit A. Sathawane (2014) in this paper author work for the cheapest form of slab for this purpose three form of slab consider for analysis i.e flat slab without drop panel, flat slab with drop panel and grid slab are chosen. The analysis done manually and with using Staad pro software as per IS456-200. [18] Sejal Bhagat (2014) a study has been accomplished to decide the optimal Structural configuration of a multi-storey constructing by means of converting the shear wall locations appreciably. different shear wall locations consider for G+10 multistore building.

[19] Satpute SG (2013)- In this Paper studied the seismic responses of the 10 storey RC shear wall building with and without starting. Developed mathematical modelling and analysed the concrete shear wall building by way of exploitation specific nonlinear techniques (time records and pushover approach). All techniques comprise performance-primarily based thoughts paying extra attention to break management. The analysis is administered with the aid of exploitation commonplace bundle SAP2000. The assessment of these design for numerous parameters like displacement, tale go with the flow and base shear has been given by using RC shear wall constructing with and without opening.

(5)

 The dynamic analysis of various structures has been assessed but as far as the RC flat slab with irregular structure are concerned no work has been reported.

 There are very few researches works available for varying vertical geometric irregularities with different seismic zone.

Based on above-mentioned gaps following the objectives of the research are being investigated:

 To study the stresses like principal stresses, von Mis stresses in Flat slab for zone III, IV & V for medium soil, by changing the position of vertical geometric irregular structure with the help of dynamic analysis.

 Also study the Storey shear and storey drift in structure for different zone for medium soil, by changing the position of vertical geometric of RC structure with the help of dynamic analysis.

IV. CONCLUSIONS

1. From the research, we understand

approximately the contribution of different researches inside the area of the flat slab vertical irregular shape system, a gap in the research and objective of the studies to be carried out.

2. These contributions help to visualize the hassle faced by way of RC flat sab from a new perspective.

3. By evaluating the overall performance of flat slab irregular constructing with exclusive seismic area its enhanced financial element may be completed.

4. Which shall result in the path of the layout of secure stronger and greater comparatively cheap shape.

in Computing and Communication, 4(3), 353 – 359.

[2] Maikesh Chouhan., Ravi Kumar Makode (2016). “Dynamic Analysis of Multi-Storeyed Frame-Shear Wall Building Considering SSI.” Int. Journal of Engineering Research and Application, 6(8) part-I, 31-35.

[3] Navjot Kaur Bhatia., Tushar Golait,(2016). “Studying the Response of Flat Slabs & Grid Slabs Systems in Conventional RCC Buildings.” International Journal of Trend in Research and Development,3(3), 334-337.

[4] Mohd Atif., Prof. Laxmikant Vairagade., Vikrant Nair., (2015). “COMPARATIVE STUDY ON SEISMIC ANALYSIS OF MULTISTOREY BUILDING STIFFENED WITH BRACING AND SHEAR WALL.” International Research Journal of Engineering and Technology (IRJET), 2(5), 1158-1170.

[5] Akil Ahmed (2015). “Dynamic Analysis of Multi-storey RCC Building Frames.” International Conference on Inter Disciplinary Research in Engineering and Technology, 89-94.

[6] Mr.K.LovaRaju., Dr.K.V.G.D.Balaji., (2015). “Effective location of shear wall on performance of building frame subjected to earthquake load.” International Advanced Research Journal in Science, Engineering and Technology. 2(1), 33-36

[7] N. Janardhana Reddy., D. Gose Peera., T. Anil Kumar Reddy (2015) “Seismic Analysis of Multi-Storied Building with Shear Walls Using ETABS-2013” International Journal of Science and Research (IJSR) ,4(11), 1030-1040.

[8] Ali Koçak, Başak Zengin, Fethi Kadioğlu (2014) “PERFORMANCE ASSESSMENT OF IRREGULAR RC

BUILDINGS WITH SHEAR WALLS AFTER

EARTHQUAKE”

http://dx.doi.org/10.1016/j.engfailanal.2015.05.016

(6)

International Journal of Research in Engineering and Technology. 4(4),601-607.

[10] K. G. Patwari, L. G. Kalurkar (2016) “Comparative study of RC Flat Slab & Shear wall with Conventional Framed Structure in High Rise Building” International Journal of Engineering Research., 5(3), 612-616

[11] RAVINDRA B N, MALLIKARJUN S. BHANDIWAD (2015) “DYNAMIC ANALYSIS OF SOFT STOREY BUILDING WITH FLAT SLAB” International Research Journal of Engineering and Technology (IRJET), 2(4), 1644-1648.

[12] Vishal A. Itware., Dr. Uttam B. Kalwane (2015) “Effects of Openings in Shear Wall on Seismic Response of Structure” Int. Journal of Engineering Research and Applications 5(7) 41-45.

[13] 1Ravikanth Chittiprolu, 2Ramancharla Pradeep Kumar “Significance of Shear Wall in High-rise Irregular Buildings” International Journal of Education and applied research 4(2) 35-37.

[14] Navyashree K, Sahana T.S (2014). “USE OF FLAT SLABS IN MULTI-STOREY COMMERCIAL BUILDING SITUATED IN HIGH SEISMIC ZONE” International Journal of Research in Engineering and Technology. 3(8) 439-451.

[16] Sumit Pawah., Vivek Tiwari., Madhavi Prajapati. (2014) “Analytical approach to study effect of shear wall on flat slab & two-way slab” International Journal

of Emerging Technology and Advanced

Engineering.,4(7) 244-252.

[17] Amit A. Sathawane., R.S. Deotale., (2014) “Analysis and Design of Flat Slab And Grid Slab And Their Cost Comparison.” International Journal of Engineering Research and Applications, 1(3) 837-848.

[18] Sejal Bhagat (2014). “OPTIMIZATION OF A MULTISTOREY-BUILDING BY OPTIMUM POSITIONING OF SHEAR WALL” International Journal of Research in Engineering and Technology, 3(1), 56-74

[19] Satpute S G., and D B Kulkarni (2013). “COMPARATIVE STUDY OF REINFORCED CONCRETE SHEAR WALL ANALYSIS IN MULTISTOREYED BUILDING WITH OPENINGS BY NONLINEAR

METHODS.” Int. J. Struct. & Civil Engg. Res. 2013 2(3) 183-189.
