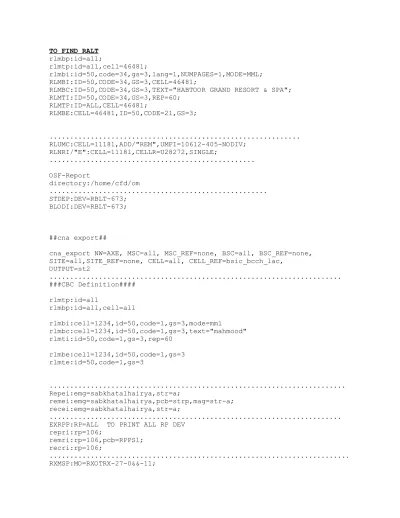

TO FIND RALT rlmbp:id=all;
rlmtp:id=all,cell=46481;
rlmbi:id=50,code=34,gs=3,lang=1,NUMPAGES=1,MODE=MML; RLMBI:ID=50,CODE=34,GS=3,CELL=46481;
RLMBC:ID=50,CODE=34,GS=3,TEXT="HABTOOR GRAND RESORT & SPA"; RLMTI:ID=50,CODE=34,GS=3,REP=60; RLMTP:ID=ALL,CELL=46481; RLMBE:CELL=46481,ID=50,CODE=21,GS=3; ... RLUMC:CELL=11181,ADD/"REM",UMFI=10612-405-NODIV; RLNRI/"E":CELL=11181,CELLR=U28272,SINGLE; ... OSF-Report directory:/home/cfd/om ... STDEP:DEV=RBLT-673; BLODI:DEV=RBLT-673; ##cna export##
cna_export NW=AXE, MSC=all, MSC_REF=none, BSC=all, BSC_REF=none, SITE=all,SITE_REF=none, CELL=all, CELL_REF=bsic_bcch_lac,
OUTPUT=st2 ... ###CBC Definition#### rlmtp:id=all rlmbp:id=all,cell=all rlmbi:cell=1234,id=50,code=1,gs=3,mode=mml rlmbc:cell=1234,id=50,code=1,gs=3,text="mahmood" rlmti:id=50,code=1,gs=3,rep=60 rlmbe:cell=1234,id=50,code=1,gs=3 rlmte:id=50,code=1,gs=3 ... Repei:emg=sabkhatalhairya,str=a; remei:emg=sabkhatalhairya,pcb=strp,mag=str-a; recei:emg=sabkhatalhairya,str=a; ... EXRPP:RP=ALL TO PRINT ALL RP DEV
repri:rp=106;
remri:rp=106,pcb=RPPS1; recri:rp=106;
... RXMSP:MO=RXOTRX-27-0&&-11;
RXMFP:MO=RXOCF-21; RXELP:MO=RXOTG-27; ... . RLSTP:CELL=ALL,STATE=HALTED; ... .. IMLIT:SPG=0 SDTDP:RPTID=132,INT=15,OBJTYPE=CLSDCCH,OBJ=CELL ID SDTDP:RPTID=130,INT=15,OBJTYPE=CELTCHF,OBJ=CELL ID END ... . RXMSP:MO=RXOTRX-12-0&&-11; ... .
TO CHECK ALL STATE SD TCH SUC IMLIT:SPG=0 SDTDP:INT=15,RPTID=230; END ... TCH 130 ... SDDCH 132 ...
HOW TO CHECK TCH SET+HO% AND THE CONG
IMLIT:SPG=0;
SDTDP:RPTID=130,INT=15,OBJTYPE=CELTCHF,OBJ=45022; END;
... FOR FORLOOP RELES
rxmop:mo=rxotg-; syfri:fid=h'000-h'890,filenum=1,block=rxotgd,ind=tg#; ... NTCOP:SNT=ETRALT STDEP:DEV=233&&3234; ... ...
HOW TO RESET THE LINK IN CASE OF NETWORK SYNCHRONIZATION FAULT? EXSCP:NAME=ALL; ... RP SUPRATION: ... RXMDP:MO=RXOTRX-TG-0&&-11; RADRP:DEV=RHDEV-#;
FCRWS:RP=23,WS=SEP; SELECT RP ONE BY ONE IF MORE THAN ONE RP BLRPE:RP=23; TO DEBLOCK THE RB AND TRX WILL USE DIFFRENT DEV ... TO CHECK UP LINK QUALITY
IMLIT:SPG=0;
SDTDP:RPTID=126,INT=1,PER=PREV; END;
... ...
TO CONNECT THE TG TO THE CELL
RXTCI:MO=RXOTG-#,CELL=43214,chgr=0;
RXTCE:MO=RXOTG-#,CELL=4342; TO DISSCONNECT THE TG FROM CELL
... GSSTP; TO CHECK THE TSM
... RRGBP; TO CHECK ALL GB LINK
RLGRP; TO CHECK GB LINK IN THE CELL
... RXPLI:MO=RXOTG-#,UC; TO RELOAD THE SOFT WARE
TO LOAD THE NEW SOFT WARE...RXMSC:MO=RXOTG-71,SWVER=B1922R002H; AFTER CHANGE WE SHOUD DO ....RXPLI:MO=RXOTG-#,UC;
... ..
DTSTP:DIP=ALL; TO CHECK ALL DEVICE BLODI: TO BLOCK THE DEVICE
... ...
rxapp:mo=rxotg-; to check rblt dev which cell using rxape:mo=rxotg-,dcp=; to delet the rblt dev
rxapi:mo=rxotg-,dcp=; to add the dev;
IN CASE OF COSENTRATION EVRY 3 TRU USE ONE DCP FOR SYNGRONYSATION AND 2D DCP FOR SPEECH ...WITH OUT COSENTRATION EACH TRU USE 3 DCP.EACH RBLT HAVE 28 DCP ... ... rxmoi:mo=rxotg-; to define rxmoe:mo=rxotg-; to un define ... ...
HOW TO TAKE BACKUP SYBUE;
SYBUP:FILE; SETUP 1 AT WILL TAKE AROUND 20 MIN AND WE WILL GET ON CHA BACKUP INFORMATION OUT PUT EXECUTED
; SYTUC;
SYBUI:DISC SETUP 2 AT WILL TAKE 30 SECOND
... ...
rxmsc:mo=rxotg-#,swver=b1921r0086; to change software version in case if site on service after that we will do rxpli.
rxpli:mo=rxotg-#,uc; to load the software
...
rxmoc:mo=rxotg-#,swver=b1921r0086; we used in case if the site out of service and no need to load the soft ware it will load when we deblock. rxmoc:mo=rxocf-#,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-1-#,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-2,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-3,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-4,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-5,swver=b1921r0086 or default ; ....in service ....deblock ... ...
rllhp:cell=33454; to check layerthreshod .layerhyst.psstemp.ptimtemp.layer
rllhc:cell=4562,layerthrshod=45; this coomand to change all this parametars
... rlcpp:cell=; to print BSPWRB BSPWT MSTXPWR.
RLCPC:CELL=, BSPWT=12...TO CHANGE THE PRAMETER
... RLSSP:CELL= 21312; TO PRINT CCHPWR CRH DTXU
RLSSC:CELL= TO CHANGE THIS PARAMETER
... RLMFP:CELL=32; TO CHECK THE ACTIVE AND IDEL LIST.
RLCFP:CELL= TO SEE THE FREQUNCY THAT CONNECTED TO THE CELL rlccc:cell=4256,sdcch=2or3or4,chgr=0 or 1;
... ...
rlcfi:cell=4646,dchno=17; to add freqency
rlcfe:cell=4324,dchno=45; to delet frequency if more than on chanell group we have to
to writ channel group no after frequency .
... GSSTP:TSM=12-B TO SEE THE STATE OF TSM
GSBLI:TSM= TO BLOCK THE TSM GSTEI:TSM= TO TEST THE TSM GSBLE:TSM= TO DEBLOCK THE TSM
... to check the pannel with nark
to start allti:ali=0; for end allte:ali=0;
... ntbli: to block the snt
ntble:to dblock the snt
stdep:dev=; to check the device ntcop:snt= to print the dev;
rrtbi:dev=,force; to block the device rrtbe:dev= to d block the dev
... EXRPP:RP=98 TO CHECK THE STATE OF RP BLRPI:RP=; BLOCK THE RP
BLRPE:RP=; DBLOCK
... RXESE: TO PUT OUT OF SERVICE
RXESI: TO PUT IN SERVICE
... ALLIP:ALCAT=PROC; TO CHECK RP FAULT
RXMOP:MO=RXOTG-; TO SEE THE SOFT WARE NAME
... C7LTP:LS=ALL; TO CHECK ALL C7 LINK.
EXSCP:NAME=ALL TO CHECK SLC UNDER WHICH RALT C7SUE:LS=2-563; TO BLOCK C7 LINK
C7SUC:LS=2-456,DMI=0,ACL=A1,LVA=2; TO CHANGE THE ALARM LEVEL C7SUI:LS=2-876; TO D BLOCK THE C7LINK
... OUT STANDING FAULT
OPS...FILE OPEN...HOME...CFD...DIALY FAULTS...RUN FILE FROM TOP. OPEN FROM EXEL...SELECT 10.16.40.129...HOME ..CFD...OM...04021006 YEAR MONTH DATE TIME....COPY PAST TO OUT STANDING.
... DIALY FAULT SUMMARY
1-first we run file from alb and saved in the path or folder name /home/cfd/dfs
THE FILE IS ON /HOME/CFD/DFS >PWD
>CD space .. >CD cd/dfs >CD DFS >DFS
ENTER INPUTFILE NAME MO_DATE MO-091204 in input file we will save the which we putit on alb
ENTER OUT FILE NAME DFS_DATE we will put the name which we will open it from exel-home-cfd-dfs
FROM EXCEL HOME..CFD...DFS and writ file name after that copy this file to daily fault summrey master
then past that on input after that writ mouse and refrish
the dialy fault summery will be on shared folder -omcdxb&aan-report-dialey fault summery
... ...
FORMELA FOR SERVICE INTRUPTION (=G+H-E-F) ENDDATE+ENDTIME-STARTDATE-STARTTIME. ... ... IN CASE OF CP FAULT 1-REPCI 2-REMCI: PCB=POWC,MAG=CPU-B; 3-RECCI ... NTSTP:SNT=ALL... TO PRINT ALL SNT
... .... ... TCH AND SDH LIMIT VALUE
1-IF NUMBER OF DCH FREQUENCY 1 OR 2 HE SDCCH WILL BE 1 IF 3 OR -4-5-6 THE SDCCH WILL BE 2 IF 7 OR 8-9-10-11-12- THE SDCCH WILL 3.
2-SDCCH LIMIT VALUE= NUMBER OF SDCCH X 8.
3-TCHFR LIMIT VALUE=NUMBER OF DCH X 8 - SDCCH -1. 4-TCHEFR=TCHFR VALUE/2 -4.
... IMLCT:SPG=0;
MCSAP:FILE=TRLOG1FILE,COMMAND="fcrws",SDATE=20040410,STIME=0000,EDATE=200 40410,IO1=ALL; ... to cheack the command in the bsc.
END;
... ...
RX DIVERSITY LOST:
WE HAVE TWO RX IN EACH CELL THEIS TWO RX TRY TO GET BEST DIVERSITY FOR CALL IF THIS RX DIDNT RECIVE GOOD SIGNAL THAT MEAN WE HAVE PROBLEM ON RX.
RF LOOP TEST:
NORMALY DXU CHECK DO RF TEST TO TRX AND ALL HARDWARE UNDER DXU IF ONE IF THIS HARDWARE HAVE PROBLEM IT WILL GIVE AS RF LOOP TEST FAULT.
NON-VOLATILE MEMORY CORRUPTED:
IN THE DXU WE HAVE MEMORY CALLED VOLATILE IN THIS INFORMATION CORUPT WE WILL GET THIS ALARM SO AFTER DXU RESET IT WILL CLEAR.
VSWR:
IT'S LIKE RATIO THE SIGNAL WILL GO FROM BTS TO ANTENA ON 1 DB AND IT WILL REFLACT BACK TO BTS THE RATIO , IT'S SHOUD NOT BE BIG DIFFRENT BETWEEN SENDING AND RECIVING
IF THERE WAS BIG DIFFRENT WE WILL GET THIS ALARM.
... ...
HOW TO CHECK IF LINK IS CASSCATED OR NOT?? GCELL RBLT NUMBER SPACE | SPACE GREP SPACE BSC5
... ...
HOW TO REMOVE THE TG AND CELL?? RXMOE:MO=RXOtG-220&-221; RXMOE:MO=RXOtS-220-11-0&&-7; RXMOE:MO=RXOtS-220-10-0&&-7; RXMOE:MO=RXOtS-220-9-0&&-7; RXMOE:MO=RXOtS-220-8-0&&-7; RXMOE:MO=RXOtS-220-7-0&&-7; RXMOE:MO=RXOtS-220-6-0&&-7; RXMOE:MO=RXOtS-220-5-0&&-7; RXMOE:MO=RXOtS-220-4-0&&-7; RXMOE:MO=RXOtS-220-3-0&&-7; RXMOE:MO=RXOtS-220-2-0&&-7; RXMOE:MO=RXOtS-220-1-0&&-7; RXMOE:MO=RXOtS-220-0-0&&-7; RXMOE:MO=RXOTX-220-0&&-11; RXMOE:MO=RXORX-220-0&&-11; RXMOE:MO=RXOTRX-220-0&&-11; RXMOE:MO=RXOTF-220; RXMOE:MO=RXOIS-220; RXMOE:MO=RXOCON-220; RXMOE:MO=RXOCF-220; RXAPE:MO=RXOTG-220,DCP=ALL; RXTCE:MO=RXOTG-220,CELL=,CHGR=; RXMOE:MO=RXOTG-220
... ... RXMOI:MO=RXOTG-152,COMB=HYB,RSITE=PALMSTRPSHPCPLX,SWVER=B0531R0808,TRACO=POOL; RXMOC:MO=RXOTG-152,FHOP=BB; RXMOI:MO=RXOCF-152,TEI=62; RXMOI:MO=RXOIS-152; RXMOI:MO=RXOTF-152,TFMODE=SA; RXMOI:MO=RXOTRX-152-0,TEI=0,DCP1=128,DCP2=129&130; RXMOI:MO=RXOTRX-152-1,TEI=1,DCP1=131,DCP2=132&133; RXMOI:MO=RXOTRX-152-2,TEI=2,DCP1=134,DCP2=135&136; RXMOI:MO=RXOTRX-152-3,TEI=3,DCP1=137,DCP2=138&139; RXMOI:MO=RXOTRX-152-4,TEI=4,DCP1=140,DCP2=141&142; RXMOI:MO=RXOTRX-152-5,TEI=5,DCP1=143,DCP2=144&145; RXMOI:MO=RXOTX-152-0&&-5,BAND=GSM900,MPWR=33; RXMOI:MO=RXORX-152-0&&-5,BAND=GSM900,RXD=AB; RXMOI:MO=RXOTS-152-0-0&&-7; RXMOI:MO=RXOTS-152-1-0&&-7; RXMOI:MO=RXOTS-152-2-0&&-7; RXMOI:MO=RXOTS-152-3-0&&-7; RXMOI:MO=RXOTS-152-4-0&&-7; RXMOI:MO=RXOTS-152-5-0&&-7; RXAPI:MO=RXOTG-152,DCP=1&&18,DEV=RBLT-4865&&-4882; !RXTCI:MO=RXOTG-152,CELL=47432,CHGR=0; ... ...
how to check the palm start test:-ALLTI:ALI=0; END TEST ALLTE:ALI=0; ... ...
radep:dev=rtth1d-965; to check the dev under wiche snt FIRST STEP-1
ntcop:snt=rtth1s-30; to print the dev under this snt SECOND STEP-2 rrtbi:dev=rtth1d-962&&-991,FORCE; to block the dev THIRD STEP -3 ntbli:snt=rtth1s-30; to block the snt FORTH STEP-4
ntTEi:snt=rtth1s-30; to block the snt TO TEST SNT FIFTH-5 ntble:snt=rtth1s-30; to dblock the snt SIX STEP-6
rrtbe:dev=rtth1d-962&&-991;to dblock the dev SEVNTH STEP -7
... ...
HOW TO GET THE PERSENTAGE% WHIL CHECKING THE SDCCH SUC
WE WILL TAKE THE SUC ATTEMT% BY ALL ATEMTS THEN * 100= WE WILL GET THE PERSENTAGE.
FOR EXAMPLE :
CELL SDCCH SDTCONG SDDROP ERLANG CCALLS CMSESTB CNDROP SDAVAIL 41962 0 0.3 2.1 1630 1044 3 100 CNRLCNG
0
1044 /1630 * 100 =74% THIS WILL BE SDCCH SUC RATE.
... ...
HOW TO CHECK IF THE LINK USED OR NOT NTCOP:SNT=ETRBLT-6;
STDEP:DEV=RBLT-6523&&-6985;
IF WE GET CONFIG NP THAT MEAN LINK NOT USED AND IF WE GET P THAT MEAN LINK USED.
... ...
HOW TO TAKE BACKUP: 1-FORMAT THE OD. INMCT:SPG=0;
INVOL:NODE=A,IO=OD-1,VOL=B34041131; END;
2-MOUNT THE OD. INMCT:SPG=0;
INVOL:NODE=A,IO=OD-1; END;
3-TRANSFER THE FILE. INMCT:SPG=0;
SYMTP:FILE1=RELFSW2,NODE=A,IO2=OD-1,DIR=OUT,SPG=0; ;
... ...
HOW TO CHECK NEIGHBOUR RELATION. RLNRP:CELL=24711,CELLR=ALL;
... FOR UMTS SITE HOW TO ACTIVED AND HALTED
1-ACT CELL AFTER THAT PRESS ENTER THEN PUT CELL ID AND F9 TO EXCUTE THE COMMAND.
2-DEA TO HALT THE CELL.
3- F7 TO SEE LAST COMMAND YOU DID.
... HOW TO CONNECT TO THE IOG WHILE BSC NOT CONECTING
IN THE TOP WE WILL WRITE ((NE=BSC2,NODE=A))
APLOC: YOU WILL DEAL WITH THE BSC LIKE DOS PROGRAM HOSTNAM ...IT WILL TELL YOU IN WHICH NODE Y R WORKING
PRCSTATE...IT WILL TELL YOU WHICH NODE ACTIVE
FCCRESTART OTHER...THIS COMMENT WILL RESTART OTHER NODE . LIKE IF NODE B NOT WORKING YOU CAN CONNECT TO NODE A AND RESTART NODE B.
... ...
HOW TO TEST ALARM IN ALV AND GENERAT ALARM test system;
end test;
... ...
IN CASE OF THE RBLT IS ETM....WE CAN NOT DEBLOCKED BY DTBLE WE CAN DO -TPCOP:SDIP=ALL;...WE CAN CHECK THIS RBLT UNDER WHICH ETM.
SDIP SNT MS CLREF HP LP K L M DIP 5ETM2 ETM2-4 MS-0 VC4-0 VC12-0 1 1 1 RBLT126 MS-1 VC12-1 2 1 1 RBLT127 VC12-2 3 1 1 RBLT128 VC12-3 1 2 1 RBLT129 VC12-4 2 2 1 RBLT130 VC12-5 3 2 1 RBLT131 VC12-6 1 3 1 RBLT132 VC12-7 2 3 1 RBLT133 VC12-8 3 3 1 RBLT134 VC12-9 1 4 1 RBLT135 VC12-10 2 4 1 RBLT136 VC12-11 3 4 1 RBLT137 VC12-12 1 5 1 RBLT138 VC12-13 2 5 1 RBLT139 VC12-14 3 5 1 RBLT140 VC12-15 1 6 1 RBLT141 VC12-16 2 6 1 RBLT142 VC12-17 3 6 1 RBLT143 VC12-18 1 7 1 RBLT144 VC12-19 2 7 1 RBLT145 VC12-20 3 7 1 RBLT146 VC12-21 1 1 2 RBLT147 VC12-22 2 1 2 RBLT148 VC12-23 3 1 2 RBLT149 VC12-24 1 2 2 RBLT150 VC12-25 2 2 2 RBLT151
FOR EXAMPLE THE RBLT FROM 126 UNTEL151 ALL THIS UNDER SDIP 5ETM2.
2-TPBLE:SDIP=5ETM2,LP=(WE CAN WRIT ANY RBLT LP FOR EXAMPLE FOR RBLT126 THE LP WILL BE VC12-0;
... ...
RLSBP:CELL=ALL>>>>>>>>>> TO CHECK THE CELLS IS BARING OR NOT..
RLSBC:CELL=ALL,ALL,ACC=CLEAR,MAXRET=4>>>>>>>>TO CLEAR ALL BARING CELL. ... ...
HOW TO NO THE TYPE OF CABNET BY RXOCF ...
IF YOU ARE GETTING SHALF 1 THAT MEAN 2101...IF YOU ARE GETING SHALF 7 THAT MEAN 2202...IF YOU ARE GETTING-3229-TAHT MEAN 2301
IF YOU ARE GETTING 3696 OR 3678 THAT MEAN 2302...
... ...
RLSLC:CELL=31640,CHTYPE=TCH,LVA=27; TO CHANGE THE ALARM LEVEL.
... HOW TO RESET THE PORT WHEN THERE IS NO CONNECTION TO THE BSC IMLIT:SPG=0;
ILNPP:PORT=ALL;...TO CHECK ALL THE PORT ILBLI:NP=1-1-2-4; TO BLOCK THE PORT
ILBLE:NP=1-1-2-4; TO DBLOCK THE PORT END;
THE RATE WILL START WITH 64000;
... ...
RLCFI:CELL=45023,DCHNO=979,CHGR=1; HOW TO ADD ONE FREQ
... ...
C7LAE:LS=2-540,SLC=11; TO BLOCK THE SLC IN C7LINK
... ...
HOW TO KNOW THE TYPE OF CDU RXMFP:MO=RXOCF-11;
IF THE REVISION 135/1 THE CDU C+E...123/1 THE CDU C+...113/1 THE CDU C
... ...
HOW TO CHECK THE ALARM FROM PC IN CASE OF APG BSC DOWN.. 1-FIRST OPEN COMMAND PROMPT FROM ACCESSORIES
2-THEN TYPE TELNET AND CLUSTOR NUMBER OF BSC ( TELNET 10.50.2.18) 3- USER NAME:BSSOSS
PASSWORD: INIT THEN BSC NUMBER LIKE (INIT23)
4- TYPE MML
5- THEN DO ALLIP OR ANY COMMAND YOU WANT
... ...
THE CLUSTER OF BSC 10.50.2.18 FOR BSC21 10.154.35.47 FOR BSC22 10.50.2.25 FOR BSC23 10.55.102.23 FOR BSC24 10.154.35.54 FOR BSC 25 10.153.14.17 FOR BSC37 ... ...
WHEN BSC FULL WE WILL GET ALARM EPORTED TO CHECK THE VALUE OF THE CP SAAEP:SAE=500,BLOCK=ALL;
SAAII:SAE=500,BLOCK=RXOLE,NI=10000; SAAII:SAE=500,BLOCK=RXO3EP,NI=10000; SAAII:SAE=500,BLOCK=RXO3OM,NI=10000; SAAII:SAE=500,BLOCK=RXOABH,NI=10000; SAAII:SAE=500,BLOCK=RXOFH,NI=10000; SAAII:SAE=500,BLOCK=RXOIFH,NI=10000; SAAII:SAE=500,BLOCK=RXOPL,NI=10000; SAAII:SAE=500,BLOCK=RXOADE,NI=10000;
THIS COMMAND TO INCREAS THE VALUE OF THE CP;
... ...
HOW TO CHECK THE ACTIVE AND IDEL LIST RLMFP:CELL=24512:
HOW TO ADD THE FREQ TO THE CELL RLMFC:CELL=40862,MBCCHNO=538,MRNIC;
... HOW TO RESET THE LINK IN CASE OF NETWORK SYNCHRONIZATION FAULT?? FIRST WE HAVE TO PRINT
NSSTP; NSBLI:RCM=RCM-0; NSTEI:RCM=RCM-0; NSBLE:RCM=RCM-0; NSSTP; NSBLI:SDIP=2ETM1,MS=MS-0; NSTEI:RCM=RCM-0; NSBLE:SDIP=2ETM1,MS=MS-0; ... ...
HOW TO CHECK THE SLC UNDER WHICH RALT(CCITT7 SIGNALLING LINK FAILURE) -REPORT TO TEMC
C7LTP:LS=ALL; C7LDP:LS=ALL;
IF THE SLC NUMBER 5 YOU WILL GET X05-5 IF 6 YOU WILL GET XO5-6 RADEP:DEV=RALT2-513 ;
NTCOP:SNT=ETM2-0; EXSCP:NAME=ALL;
... ...
... HOW TO CHECK THE STATE IF THE NODE A AND B IS WO OR SB??
IMMCT:SPG=0; IMCSP;
END;
... ...
TO CLEAR THE NODE RESTART ALARM IMMCT:SPG=0;
IMRDP:NODE=A,FORM=SMALL; END;
... ...
HOW TO DELET AND REDEFINE THE NSVCI THE GPRS... NSVCI=41501
---rrvbi:nsvci=41501; !BLOCK NSVCI! RRNSE:nsvci=41501; !DELETE NSVCI!
RRNSI:NSVCI=41501,DLCI=130,DEV=RTGLT-1,NUMDEV=6; !DEFINE NSVCI! rrvbe:nsvci=41501; !DEBLOCK NSVCI!
NSVCI=41502
---rrvbi:nsvci=41502; !BLOCK NSVCI! RRNSE:nsvci=41502; !DELETE NSVCI!
RRNSI:NSVCI=41502,DLCI=131,DEV=RTGLT-33,NUMDEV=6; !DEFINE NSVCI! rrvbe:nsvci=41502; !DEBLOCK NSVCI!
... ...
GSSTP; TO PRINT ALL GROUP SWITCH STATE CLM,SPM,TSM EXRPP:RP=ALL; TO PRINT ALL RPS
BLRPI:RP=296,FORCED; TO BLOCK THE RP GSBLE:TSM=TSM-A-41; TO DEBLOCK THE TSM GSBLI:TSM=TSM-A-41; TO BLOCK THE TSM GSTEI:TSM=TSM-A-41; TO TEST THE TSM
NTCOP:SNTP=TSM-13-1; TO CHECK THE TSM TO WHICH SNT CONNECTED
NTBLI:SNT=ETRALT-40; TO BLOCK THE RALT BEFOR BLOOKING WE HAVE TO BLOCK THE DEV BY BLODI:DEV=1425&&542;
... ...
HOW TO KNOW IF THE LINK NOT USED???
BY USING STDEP:DEV= RBLT-1953&&-1983; IF WE GET CONFIG STATE NP THAT MEAN LINK NOT USED.
... ...
TO CLEAR THE COMMAND LOG BLOCKED FAULT IN APG BSC SYCLI;
... HOW TO GIVE APG RESTART?
FIRST WE HAVE TO CHECK WHICH NODE ACTIVE.. 1-NE=BSC24,NODE=A
2-PRCSTATE TO CHECK ACTIVE NODE A OR B 3- PRCBOOT TO GIVE RESTART.
... ...
HOW TO CLEAR HEARTBEAT FAILURE
CLUSTER RES MCS-ADH-ADM /OFF LINE/ WAIT CLUSTER RES MCS-ADH-ADM /ON LINE/ WAIT
... ...
-CHECK WHICH NODE - ALIST
- ACEASE 6012:0 THIS NUMBER WILL BE ALARM IDENTIFIER
... ...
IN CASE IF NO CONNECTION TO THE APG BSC WE CAN LOG ON IN WINFIOL USERNAME:ADMINISTRATOR
PASS:BSC(NUMBER)ADMIN
... ...
HOW TO SWITCH FROM 1 ETM TO OTHER IN CASE OF SLC FAILURE PWNSP:SDIP=1ETM1;
PWMSI:SDIP=1ETM1,MS=MS-1;
... ...
TO ADD FREQ ON BA LIST RLMFP:CELL=31751; RLMFC:CELL=31753,MBCCHNO=77,MRNIC; ... ... IN CASE OF IO FAULT IOBLI:IO=AT-5; IOBLE:IO=AT-5; ... ...
DPWSP;...TO CHECK THE CP STATE SHOUD BE...IN CASE OF CP FAULT OR SYSTEM RESTART WE HAVE TO CHECK THIS COMMAND
MAU SB SBSTATE NRM B WO
... ...
SYRIP:SURVEY;...TO CHECK THE BSC RESTART TIME AND TYPE SMALL OR LARGE.
... ...
impact ...we are using this word in alex to cheak all new figiher ... ...
I ZONE SITE
for the router the password will be (etpwlanpublic) for the access point the password will be (etpwlanprivate)
ROUTER=R ACCESS POINT=AP
... ...
TO CHECK IF THE HARDWARE SUPORT GSM BAND OR NOT RXCAP:MO=RXOTX-87-0&&-1;
... ...
RLBCP:CELL=25941; TO PRINT POWER CONTROL RLBCE:CELL=25941; TO DACTIVE POWER CONTROL RLBCI:CELL=25941: TO ACTIVE POWER CONTROL
... RAEPP:ID=ALL; TO PRINT BSC LEVEL PRAMETERS
RAEPC:PROP=MCCSUPPORT-2; TO DO THE CHANGE ... TO MAKE PROYERTY FOR OL SUB CELL.
RLLLP:CELL=3293;
... .. RLSLC:CELL=32102,SCTYPE=OL; RLLLC:CELL=32102,SCLDSC=UL; RLSBP:CELL=Y51118; RLSBC:CELL=Y51118,CRO=5; RXBLI:MO=RXOTRX-365-7,SUBORD,FORCE; RXESE:MO=RXOTRX-365-7,SUBORD; RXMOE:MO=RXOTS-364-7-0&&-7; RXMSP:MO=RXOTRX-364-0&&-11; RLCPP:CELL=Z51280; RLCPC:CELL=Z51280,BSPWRB=41, BSPWRT=41; SAAEP:SAE=1153; RLDEP:CELL=Z51270; RXTCP:MO=RXOTG-256; RXMOP:MO=RXOTX-341-0; DTSTP:DIP=RBLT364; SAAEP:SAE=1153; RXTCP:MO=RXOTG-341; RXMSP:MOTY=RXOTX; RXBLE:MO=RXOTRX-185-0&&-11; RXMSP:MO=RXOTRX-341-0&&-11; RXBLI:MO=RXOTRX-341-11,SUBORD,FORCE; RXESE:MO=RXOTRX-341-11,SUBORD; RXMOE:MO=RXOTS-341-11-0&&-7; RXMOI:MO=RXOTRX-365-4,TEI=4,DCP1=214,DCP2=215&&222,SIG=CONC; RXMOI:MO=RXOTRX-365-5,TEI=5,DCP1=223,DCP2=224&&231,SIG=CONC; RXMOI:MO=RXOTRX-365-6,TEI=6,DCP1=232,DCP2=233&&240,SIG=CONC; RXMOI:MO=RXOTRX-365-7,TEI=7,DCP1=241,DCP2=242&&249,SIG=CONC; RXMOI:MO=RXOTX-365-4&&-7,BAND=GSM900,MPWR=47; RXMOI:MO=RXORX-365-4&&-7,BAND=GSM900,RXD=AB; RXMOI:MO=RXOTS-365-7-0&&-7; RXESI:MO=RXOTG-365,SUBORD;
RXBLE:MO=RXOTG-365,SUBORD; RXMSP:MO=RXOTRX-365-1,SUBORD; RXBLE:MO=RXOTX-365-0; RLSTC:CELL=Z51270,STATE=ACTIVE; RLSLP:CELL=Z51270; RXCDP:MO=RXOTG-365; RXMFP:MO=RXOCF-365,SUBORD,FAULTY; RLCFP:CELL=Z51270; RXMSP:MO=RXOTRX-365-0&&-11;
******************* NETWORK SYCHRONIZATION FAULT************************* NSBLI:SDIP=4ETM2,MS=MS-0; NSTEI:SDIP=4ETM2,MS=MS-0; NSBLE:SDIP=4ETM2,MS=MS-0; ********************* GB LINK **************************** RRGBP; DTSTP:DIP=RTGLT0&RTGLT1; ******************** RP FAULT****************************** ALLIP; REPRI:RP=135; REMRI:RP=135,PCB=RPG2; ( OR REMRI:RP=986,PCB="GARP2-GPH B"; ) RECRI:RP=13; ************************************************************************* ********************************************************* HAMMADS COMMANDS ---cfind BSCN7 -date 2008-10 | grep 4999
more h_a_13oct_2008.txt
******HEART BEAT FAILURE*********** HOW TO KNOW IP ADDRESS OF BSC
1ST METHOD. IN GCELL WRITE
eac_esi_config -ne BSCN6
IT WILL GIVE U PRINT OUT OF 3 IP ADDRESS FIRST IS IP, 2 & 3 IS SIDE A & B
OPEN OSSNETWORK EXPLORER IN RIGHT CLICK THEN
ONRM_ROOTMO THEN
SELCT BSCN6(ANY BSC) RIGHT CLICK MODIFY YES THEN
NEXT NEXT TILL U GOT IP ADDRESS ***************************
12tru * 8 ts =96 , minus 3 for sdcch & 1 for bcch BSC PROCESSOR LOAD - IN CENTRAL DIRECTORY FILE NAME plldp.cfd.bak.bak ( run in ops)
barring files (central directory barring- BSC6(FIRTS APPLY 20%) 1765 copier password
CLEARING BARRING
SERVER IP 10.48.155.34 checking stats
http://10.66.105.50/Servint/hourly_stats.asp (checking stats in windows browser) IZONE http://10.99.91.152/CSCOnm/servlet/login/login.jsp(IZONE CHECKING dxb_hamad,Hammad22) SERVICEI INTRUPTION http://dxb00020124/serviceinterruption/ MNO FOLDER \\oasisj\MNO\VIP-FTR SMS SENDING https://smsb.etisalat.corp.ae:1117/Login.jsp? Myjsessionid=B9D35B52FA7D12A566E07C7B44E822EC.worker2 *********HOW TO CHECK IF LINK IS CASSCATED OR NOT??**** GCELL RBLT NUMBER SPACE | SPACE GREP SPACE BSC5
GCELL RBLT15 | grep BSC33GCELL RBLT15 | grep BSC33
C7LDP:LS=ALL;
(SHOWS LINK SET DATA) RADEP:DEV=RALT-1281; (SHOW DEVICE DATA IN BSC)
ETRALT=40 REPORT LIKE THIS 3001+40 30041
IF ERROR ON LINK REPORT TO TRANIMISSION SYSTEM NO 3001 + 80 = 3081
BSC6 - X29 THIS FORMAT TO BE REPORTED. ******************************
WO = WORKING ,
ABL = AUTOMATIC BLOCK, MBL= MANUALLY BLOCK
AIS= ALARM INDICATION SIGNAL (ALL 1'S) ACWL= AIRCRAFT WARNING ALARM
CBI = CLEARED BYITSELF
MCB = MAIN CIRCUIT BREAKER (ELCB) RDI = REMOTE DEVICE INDICATION RBO = RESET BY OMCR
LOS = LOSS OF SIGNAL 1A 1 ON CF POWER failure
1A 1 on trx "Reset, Power On" 1A 2 on cf & TRX "Reset, Switch" 1A 4 ON CF = DXU SOFTWARE FAULT 1A 5 ON TRX = "Reset, RAM Fault" 1A 5 ON CF = RAM FAULT ON CF 1a 7 on cf = bts in NOOP STATE 1A 8 on cf Timing Unit VCO Fault
1A 8 fault on trx Timing Reception Fault 1A 9 FAULT on cf = TIME DISTRIBUTION FAULT 1A 9 fault on trx = Signal Processing Fault 1A 10 FAULT ON CF = INDOOR TEMP OUT OF RANGE 1A 10 ON TRX = toora dona communication fault 1A 11 ON TRX FAULT = DSP CPU COMMUNICATION FAULT 1A 12 fault on cf DC Voltage Out Of Range
1A 13 FAULT ON TRX = RX LOOP TEST FAULT 1A 14 fault on cf Bus Fault
1A 14 fault on trx RU DATABASE CORRUPTED 1A 17 fault on cf HW And IDB Inconsistent 1A 17 fault on trx = X-Interface Fault 1A 18 ON TRX = DSP Fault
1A 19 on trx "Reset, DXU Link Lost" 1a 21 FAULT = ON CF HW FAULT
1A 21 fault on trx Internal Configuration Failed 1A 22 ON TRX =Voltage Supply Fau
1A 25 ON TRX FD=TX/RX Communication Fault 1A 30 ON TRX FD=DSP RAM Soft Error
1B 1 ON RXOTF DXU-Opt EEPROM Checksum Fault 1B 1 ON TRX INDOOR TEMP OUT OF SAFE RANGE
1B 0 FAULT = CDU NOT USABLE (ON TX) 1B 0 ON TRX = CDU COMBINER NOT USABLE
1B 2 fault on tx CDU Output Power Limits Exceeded 1B 3 fault on trx DC Voltage Out Of Range
1B 4 fault ON TRX LOCAL MODE /Indoor Temp Above Safe Range 1B 4 fault on tx TX Antenna VSWR Limits Exceeded
EXTERNAL1B 4 ON CF FD=L/R SWI '('BTS In Local Mode')' EXTERNAL1B ON CF 4 FD=L/R SWI '('TRU In Local Mode')' 1B 5 external on cf L/R TI (Local to Remote while Link Lost) 1B 5 ON RXORX RX Synthesizer A/B Unlocked
1B 7 fault on RX Communication Fault
1B 13 FAULT = TX Output Power Limits Exceeded 1B 8 FAULT = TX SYNTHESIZER A/B UNBLOCKED 1B 9 ON TRX FD=Y Link Communication Lost 1B 9 ON RX = RX CABLE DISCONNECTED
1B 27 ON TX = TX MAX POWER RESTRICTED
1B 10 fault on tx TX Communication Fault 1B 10 fault on RX RX Initiation Fault 1B 10 ON TRX TIMING RECEPTION FAULT 1B 14 ON TX= TX Saturation
2B 10 FAULT = REPORTED TO POWER 2B 9 FAULT = DOOR ALARM
external 2b 4 CXU TRU RXB CABLE fcode external 1B 4
2A 0 ON TRX=RX CABLE DISCONNETED 2A 1 FAULT ON CF = RESET POWER ON 2A 1& 2 ON TRX FAULT = RX Path Loss
2A 3 on trx RX Synthesizer Unlocked 2A 4 ON TRX RX Internal Voltage Fault 2A 5 ON TRX RX Communication Fault
2A 6 on cf "Reset, Internal Function Change" 2A 6 TX COMMUNICATION FAULT
2A 8 FAULT = ON CF/VSWR Limits Exceeded 2A 9 on cf Power Limits Exceeded
2A 12 on cf TX Output Power Limits Exceeded 2A 12 ON TRX TX Output Power Limits Exceeded 2A 13 ON TRX TX Saturation
2A 14 on cf Supervision/Communication Lost 2A 14 ON TRX Voltage Supply Fault
2A 15 VSWR/Output Power Supervision Lost
2a 16 faukt ON CF = indoor temp out of SAFE RANGE 2A 16 ON TRX = NON VOLITILE MEMORY CORRUPTED
2A 16 on cf Indoor Temp Out Of Normal Conditional Range 2A 17 on trx Loadfile Missing in TRU
2A 19 on cf Power and Climate System in Standalone Mode 2A 12 FAULT = RX Maxgain/Mingain Violated
2A 23 FAULT = ON CF CLIMATE CAPICITY REDUCED 2A 23 ON TRX Default Values Used
2a 22 fault on trx voltage supply fault
2A 22 fault on cf Battery Backup Capacity Reduced 2A 21 FAULT = INTERNAL POWER CAPACITY REDUCED 2A 25 FAULT ON TRX, TX Max Power Restricted 2A 26 FAULT ON CF Climate Sensor Fault 2A 26 Fault ON RXOTRX DB parameter fault
2A 25 fault on cf Loadfile Missing in DXU or ECU 2A 28 fault on cf A/D Converter Fault
2A 29 FAULT on cf = VARISTOR FAULT (CABINET) 2A 30 fault = on CF Bus Fault
2A 31 FAULT ON CF High Frequency Software Fault 2A 32 fault oncf Non-Volatile Memory Corrupted 2A 33 FAULT = RX DIVERSITY LOST
2A 36 fault= on cf RU Data Base Corrupted
2A 37 fault on cf Circuit Breaker Tripped or Fuse Blown 2A 38 fault on cf Default Values Used
2A 39 FAULT = on trx RF Loop Test Fault, Degraded RX" 2A 39 FAULT ON CF RX CABLE DISCONNECTED
2A 46 FAULT = ON CF/DB PARAMETER FAULT / INSTALL IDB 2A 41 FAULT = ON CF/LOST COMM TO TRU
2A 40 FAULT = DXU LINK LOST
2A 40 FAULT ON TRX MEMORY FAULT.
2A 42 fault on cf Lost communication to ECU 2A 43 on cf Internal Configuration Failed 2A 45 ON CF HIGH TEMP
2A 46 on cf DB parameter fault 2A 53 ON CF H/W & IDB INCONSISTENT 2A 54 ON CF TIMING BUS FAULT
DFNF PROBLEM
(DISK FILE NOT FOUND)
OPERATIONAL SOFTWARE NOT PRESENT IN APG OR IOG OR NOT PROPERLY INSTALLED IDB TO BE INSTALLED AGAIN
************ CHEKING GPRS******** RRGRP; GSSTP; RLGSP:CELL=44711; RLGRP:CELL=44711; RLBDP:CELL=44711; RLPDP:CELL=44711; raepp:id=all; raepc:prop=CHCODING-1;
rlgsc:cell=44711,FPDCH=8; rlcfp:cell=44711;
rlstc:cell=44711,state=ACTIVE; RLCRP:CELL=44711;
RRGBP; CHECKING GRPS LINKS .
RLGSP:CELL=13611; IF FPDCH=1 THEN GRPS IS THERE IF =0 THEN NO GPRS RLGRP:CELL=13591;
RLGSC:CELL=21332,FPDCH=1; ( TO CHANGE FPDCH VALES BUT BEFORE MAKE GPRS OFF)
RLGSE:CELL=13611; BLOCK RLGSI:CELL=13611; DEBLOCK
GPRS ANY SITE NOT CARRYING TARFFICE & RP RESET. RLGRP:CELL=41591;
TAKE RP AND RESET
*******************DYNAMIC BTS POWER CONTROL CELL DATA***************** RLACP:CELL=40092; (STATE ON OR OFF SDCCH MORE OR LESS ACCORDING TO TRAFIC)
RLBCP:CELL=14161; (Radio Control Cell, Dynamic BTS Power Control, End) RLBCE:CELL=14161; (INACTIVE OR OFF)
RLBCP:CELL=14161; (ACTIVE OR ON) RLBCI:CELL=
rlssp:cell=32021; ( to check nccperm ) RLDGP:CELL=31021;(GROUP)
RLDEP:CELL=31021;(DESCRIPTION DATA) RLLHP:CELL=31021;(LAYERS)
RLLHC:cell=4562,layerthrshod=45; this coomand to change all this parametars
RLCFP:CELL=31021; FREQUENCIES (CONFIGRATION FREQUENCY DATA)
RLCFI:CELL=31021,DCHNO=17; (TO ADD FREQUENCY) RLCFE:CELL=31021,SDCCH=2OR 3 OR 4 ,CHGR=0,1; (TO DELETE FREQUENCY) RLCPP:CELL=31021; (POWER DATA)
RLCPC:CELL=, BSPWRT=12, BSPWRT= & BSPWRB ...TO CHANGE THE PRAMETER RLSSP:CELL= 21312; TO PRINT ACCMIN
CCHPWR,CRH,DTXU,RLINKT,NECI,MBCR,NCCPERM RLSSC:CELL= TO CHANGE THIS PARAMETER
RRGBP; (TO CHECK ALL GB LINK)
RLGRP:CELL=ALL; ( TELLS IN CELLS GPRS POSITION) BACKB
RLMFP:CELL=26261; (TELLS BCCHNO OF NEIGHBOUR)
***************** HOW TO DEFINE NEIGHBOURING REALTIONS******* RLNRP:CELL=24711,CELLR=ALL
RLNRE:CELL=31721,CELLR=3622; ! DELETING RLNRI:CELL=31721,CELLR=3622; ! DEFINING
*************** NETWORK SYSNCHORONIZATION FAULT ****************** NSBLI:SDIP=2ETM1,MS=MS-0; NSTEI:SDIP=2ETM1,MS=MS-0; NSBLE:SDIP=2ETM1,MS=MS-0; NSSTP; NSBLI:DIP=RALT64; NSTEI:DIP=RALT16; NSBLE:DIP=RALT16; ********** GPRS/EGPRS ******************
RBS2101,2308,2302 NOT SUPPORT EGPRS ONLY SUPPORT GPRS CODING SCHEME 1 & 2 ONLY
RBS2202 SUPORT GRPS&EGPRS FOR EGPRS IT REQUIRE STRU RBS2206 SUPORT GRPS&EGPRS FOR EGPRS IT REQUIR EDTRU BOTH 2202 & 2206 REQUIR CODING SCHEME 0 TO 4
*********************** TO CHANGE LVA VALUE IN RLSLP **************** eaw BSC15 ( WE CAN CHECK ALL STATUS IN GCELL SCRIPT INSTEAD OF COMMAND HANDLER)
RLSLP:CELL=4722;
RLSLC:CELL=4722,CHTYPE=TCH,LVA=83; ( 82 OR 83 ANY VALUES TO BE CHANGED)
***************** TO CHECK THE LOOP **************************** RXLTI:MO=RXOTS-28-10-0&&-11;
********** FOR LOOP RELEASE ********************************** RXMOP:MO=RXOTG-226; (CHECK THE TGFID NUMBER DOWN)
SYFRI:FID=H'0000-H'996F,BLOCK=RXOTG,IND=226,FILENUM=1; (FOR LOOP RELEASE) (A command is used for ordering a manual Forlopp release.
As parameters the Forlopp ID and the reference to a connected individual must be given.
If a number of Forlopp releases are pending, the manual initiated Forlopp release will be the first to be executed.
If too many Forlopp releases are pending the command will be rejected. ) RXPLI:MO=RXOTG-226,UC; (FORCE LOADING THE SOFTWARE)
***************HOW TO KNOW BTS TYPE WITHOUT GCELL *************** RLLHP:CELL=42421;
IF LAYER =2 MICRO IF LAYER = 3 MACRO
BOE 602 14/1 2206 CABINET RXMFP:MO=RXOCF-336;
IF DXU ON SHELF 7 = RBS 2202 (CHECK ON DXU) SHELF 8 & 6 = RBS 2206
SHELF 1 = RBS 2101
SH:--& REVISION 3678 === 2302
SHU:-- & REV 32XX & ROA 32XX === 2301 SHU:3 === 2106
e.g IXU >>>>>>>>>> 2308
1-- RUPOSITION RULOGICAL DX DXU_21 ==== 2ID C:0 R:C SH: 8 SL: 48 DX DXU_21 ==== 2206
2-- RU RUREVISION RUSERIALNO
0 ROA 117 3678/1 R3A A532320165 ===== 2301/2302 NOT EDGE
RLBDP:CELL=42591; (IF EDGE ENABLED THEN ENTRIES SHOULD BE THERE) 1- ROA 117 3229/1 ==== NOT EDGE
2- ROA 117 3229/2 1002/2 ==== EDGE
DCP1 IF DCP VALUES ARE 2 THEN EDGE DEFINED HOW TO DEFINE EDGE
DCP1 232
rlstc:cell=4692,state=halted; rxbli:mo=rxotg-133,force,subord; rxese:mo=rxotg-133,subord; RXMOE:MO=RXOTRX-133-0; RXMOI:MO=RXOTRX-133-0,TEI=0,DCP1=178,DCP2=179&&186; RXMOC:MO=RXOTRX-133-0,CELL=4692,CHGR=2; RXMOC:MO=RXOTX-133-0,CELL=4692,CHGR=2; rxmoc:mo=rxotrx-133-0,sig=conc; RXAPP:MO=RXOTG-133; RXAPI:MO=RXOTG-133,DEV=RBLT2-4285&&-4287,DCP=29&&31,RES64K; RXMsP:MO=RXOTG-133,SUBORD; rlstc:cell=4692,state=active; rlslp:cell=4693; rlgrp:cell=4693; rlgsi:cell=4692;
***************HOW TO KNOW RBLT WITHOUT GCELL *************** RXTCP:MO=RXOTG,CELL=4671;
RXTCP:MOTY=RXOTG,CELL=4671; RXAPP:MO=RXOTG-1;
************* TO SEE THE TG ****************** RXTCP:MOTY=RXOTG,CELL=41653;
*******************MASTER & SLAVE **************
RXMOP:MO=RXOCF-203; (IF TEI=61, THEN SLAVE IF TEI=62=MASTER) ALL BELOW 62 ARE SLAVE
************************ BLOCKING AND DE BLOCKING ************
(RADIO X-CEIVER ADMINISTRATION MANUAL BLOCKING OF MANAGED OBJECT, END)
BLOCK INITIATED
RXBLI:MO=RXOTRX-120-0&&-3!,FORCE; BLOCK END
RXBLE:MO=RXOTRX-120-0&&-3!, (&& MEANS 3 TRU'S BLOCK)
THEN CHECK TO SEE STATUS TO CHECK ON BOARD WHICH TG IS FAULTY*********** RXMFP:=MO=RXOTG-30, SUBORD,FAULTY; (MANAGED OBJECT FAULT INFORMATION) RXOTX & RXOCF
RXMSP:MO=RXOTX-137-0&&-11; ( SHOWS BLOCK/OPERATIONAL ) RXELP:MO=RXOTX-137-0&&-11; (SHOWS FAULT HISTORY)
*****************TO CHECK STATUS OF BLOCK/WORKING (ETC CARD) *****************
TO CHECK THE LINK CONNETED IN THE ETC CARD IN THE BSC'S NTSTP:SNT=ETRBLT-34; (SWITCHING NETWORK TERMINAL STATE, PRINT) RESULT WILL BE
<NTSTP:SNT=ETRBLT-34;
SWITCHING NETWORK TERMINAL STATE
SNT STATE BLS LST FCODE ETRBLT-34 BLOC ABL
END 4022
*********TO CHECK FREQUENCIES (WHICH TRU BELONG TO WHICH FREQUENCY)**************
RXCDP:MO=RXOTG-125; (RADIO X-CEIVER ADMINISTRATION MANAGED OBJECT CONFIGURATION DATA, PRINT)
***************** TO CHECK ALL TRU IN THE SITE (TG MASTER /SLAVE)***************** RXMOP:MO=RXOTX-21-0&&-11; ***************** HOPING ON/OFF ******************** RLCHP:CELL=39464; RLCHC:CELL=39464,HOP=OFF; RLCHC:CELL=39464,HOP=ON; THEN
RLSLP:CELL=38864; (CHECK ALL TRU WORKING) THEN ALSO
RXMFP:MO=RXOTRX-85-3; (CHECK ALL BLOCK STATUS WORKING???) THEN
AND IN LAST
RXCDP:MO=RXOTG-85; (ALL PROCEDURE FIRST BLOCKING/DEBLOCKING HOOPING ON/OFF IS CALLED REST MY OMCR)
*******FOR CHECKING THE 15/30 MINUTES CHECK ************ FIRST RUN THIS COMMAND
IMLIT:SPG=0;
THEN THIS COMMAND BY CHAGING THE OBJ (CELL ID) IMPORTANT SDTDP:RPTID=132,OBJTYPE=CLSDCCH, OBJ=25521,INT=15; SDTDP:RPTID=130,OBJTYPE=CELTCHF, OBJ=46371,INT=15; SDTDP:RPTID=151,OBJTYPE=CELTCHH, OBJ=46371,INT=15; SDTDP:RPTID=331,OBJTYPE=CLTCH, OBJ=40852,INT=15; SDRRP:RPTID=ALL; END;
************************TO SHOW ERROR LOG ********************** AND FAULT MANAGMENT(CONDITION OF DXU )
RXELP:MO=RXOCF-35; (RADIO X-CEIVER ADMINISTRATION ERROR LOG, PRINT-35 IS THE PRODUCT GROUP)
RXMFP:MO=RXOCF-35; (RADIO X-CEIVER ADMINISTRATION MANAGED OBJECT FAULT INFORMATION,PRINT)
RXMSP:MO=RXOCF-35; (RADIO X-CEIVER ADMINISTRATION MANAGED OBJECT STATUS, PRINT)
************************* TO CHECK ON BOARD WHICH TG IS FAULTY*********** RXMFP:MO=RXOTG-30,SUBORD,FAULTY; (MANAGED OBJECT FAULT INFORMATION)
********** SITE WORKING OR NOT BY CHECKING FREQENCY******* RLSLP:CELL=47761
(RADIO CONTROL CELL SUPERVISION OF LOGICAL CHANNELS AVAILABILITY DATA, PRINT)
*********** TO SEE THE ERROR LOG FOR THE PARTICULAR BSC **********
RXELP:MO=RXOTG-37; (RADIO X-CEIVER ADMINISTRATION ERROR LOG, PRINT) RESULT WILL BE
MO BTSSWVER DATE TIME BTS RXOTRX-37-11 ERA-G04-R07V01* 05-06-09 17-26-17 RES REPLMAP 1AMAP
000000000000 000000000000 000000000000 000000000000 1BMAP 2AMAP
000000000000 000000000000 000000000000 000000000000
********************TO CHECK STATUS OF WORKING LOOP************* AND AVAILABLE RBLT (FREE OR NOT )
DTSTP:DIP=RBLT61; (Digital Path Transmission Functions,State,Print) DTQUP :DIP=RBLT126;
RESULT WILL BE DIGITAL PATH STATE
DIP TYPE STATE LOOP TSLOTL DIPEND FAULT SECTION
RBLT61 IEX WO OR ABL END
********************CORRESPONDING SDIP LAYER MANUALLY BLOCKED******** IF NEW LINK AND DEBLOCK
DTBLE:DIP=RBLT61; ( SDIP MANULYA NEED TO DEBLCOK) TPCOP:SDIP=ALL; ( FIND WHICH SDIP BELONGS TO RBLT)
VC12-41 3 7 2 RBLT104 3ETM2 (TAKE THIS INFORMATION) TPBLE:SDIP=3ETM2,LP=VC12-41; ( DEBLOCK)
DTSTP:DIP=RBLT104;
**************** TO SHOW ALARAM STATUS ************************* ALLIP:ACL=A1; (SHOWS ALL ALARMS )
ALLIP:ALCAT=BTS; (SHOW ONLY BTS ALARM OF IOG GROUP) (FIRE ALARM AND OTHER ALARMS)
******************TO HALT AND ACTIVATE************************ RLSTP:CELL=45351 (TO CHECK FIRST THAT CEL HALTED/ACTIVE) RLSTC:CELL=47281,STATE=HALTED; (RADIO CONTROL CELL STATE, CHANGE) RLSTC:CELL=47281,STATE=ACTIVE;
RLSLP:CELL=47281;
********************* TO CHECK ALL SITES HALTED/ACTIVATED *********** RLSTP:CELL=ALL;STATE HALT; (RADIO CONTROL CELL STATE, PRINT)
*************TO CHECK DIGITAL PATH QUALITY(RESET LINK) ********
DTQUP:DIP=RBLT37;
THE RESULT WILL BE DIGITAL PATH QUALITY
INCOMING AND OUTGOING DIRECTION
DIP T1 T2 SLIP SLIP2 UAS UASR UAV1 UASB1 UAV2 UASB2 RBLT37 10 8 0 0 0 0 0 0 0 0 SECTION ESV SESV DMV ESVR SESVR DMVR SFV SFTI 0 0 0 0 0 24 SECTION ES2V SES2V DM2V ES2VR SES2VR DM2VR SMI 0 0 0 0 0
DTQSR:DIP=RBLT37,ES2,SES2,SF;
******************** TO SEIZE THE ALARM********************* RLSLI:CELL=3212; (NEVER GIVE THIS COMMAND)
******************* CHECKING E-GSM & P-GSM *********************** RLCFP:CELL=41595;
RESULT WILL BE <RLCFP:CELL=41592;
CELL CONFIGURATION FREQUENCY DATA CELL
41592
0 UL 6 0 2 NO 3 ON 28 52 72 79 81 90 1 OL 0 0 2 NO 3 ON 991 995 1004 1016 END
************************ CELL RESOURCES PRINT *************** CELL RECOURCES RLCRP:CELL=49602; RESULT WILL BE CELL RESOURCES CELL BCCH CBCH SDCCH NOOFTCH 49602 1 0 8 6
BPC CHANNEL CHRATE SPV STATE ICMBAND CHBAND 64K 7558 TCH-20154 FR 1,2 IDLE 1 P900 NONE 7559 TCH-20155 FR 1,2 IDLE 1 P900 NONE 7560 TCH-20156 FR 1,2 IDLE 1 P900 NONE 7561 TCH-20157 FR 1,2 IDLE 1 P900 NONE 7562 TCH-20158 FR 1,2 BUSY 1 P900 NONE 7563 TCH-20159 FR 1,2 IDLE 1 P900 NONE 7564 SDCCH-20167 IDLE 1 P900 SDCCH-20166 IDLE 1 P900 SDCCH-20165 IDLE 1 P900 SDCCH-20164 IDLE 1 P900 SDCCH-20163 IDLE 1 P900 SDCCH-20162 IDLE 1 P900 SDCCH-20161 IDLE 1 P900 SDCCH-20160 IDLE 1 P900 7565 BCCH-20170 BUSY P900 END
******************** TO SHOW ALARAM STATSUS IN RBS 200******************
EXEDP:EMG=MURGHAMOILFIELD,EM=ALL; (Exchange Data, EMGCP EM Equipment, Print)
ALRDP:DEV=EXAL0-0&&-31; (ALARM FUNCTIONS, ALARM RECEIVER DATA, PRINT )
*************************** EXCHNAGE INDENTITY DATA****************** IOEXP; (IO Subsystem Functions, Exchange Identity, Print) RESULT WILL BE
EXCHANGE IDENTITY DATA IDENTITY
B07R10/5/0000/0418/0003 END
********************** TO CHECK ALL THE RXOTG IN ONE BSC'S*********** RXTCP:MOTY=RXOTG;
********************** TO CHECK SDIP IN APG (BLOCK/END)************ (SYNCHRONUS DIGITAL PATH DATA)
TPCOP:SDIP=ALL; (IT SHOWS ALL THE SDIP'S IN APG )
TPBLE:SDIP=4ETM2,LP=VC12-27; (BLOCK THEN CHECK THE LINK)(LP=LOWER ORDER PATH)
DTBLE:DIP=RBLT41;
DTSTP:DIP=RBLT90; (CHECKS ABL/MBL/WO)
********************** TO SEE UL & OL/CHGROUP/PGSM/EGSM************** RLDGP:CELL=41951;
RESULT
CELL CHGR SCTYPE BAND 41951 0 UL GSM900 1 UL GSM900 2 OL GSM1800 3 UL GSM900
******************* CELL CONFIGRATION & POWER DATA ************* SEE BSPWRB BSPWRT MSTXPWR SCTYPE
RESULT
CELL TYPE BSPWRB BSPWRT MSTXPWR SCTYPE 41951 INT 45
45 33 UL 45 30 OL END
*********************CELL DESCRIPTION DATA********** RLDEP:CELL41951;
***** CHANGING BCCH NO FROM OLD TO NEW BCCH ****** RLDEC:CELL=42391,BCCHNO=63;
*********CELL LOCATING LAYER DATA **************** RLLHP:CELL=41951;
RESULT
CELL TYPE LAYER LAYERTHR LAYERHYST PSSTEMP PTIMTEMP FASTMSREG 41951 INT 3 95 2 0 0 OFF
END
*****************CELL CONFIGRATION FREQUENCY DATA************* RLCFP:CELL=31021;
CELL 31021
CHGR SCTYPE SDCCH SDCCHAC TN CBCH HSN HOP DCHNO 0 4 0 2 NO 45 ON 56 68 89 91 ************** TO BRINING OUT OF SERVICE & IN SERVICE *********** RXESE:MO=RXOTRX-16-5,SUBORD; (MO IN SERVICE END -BRINGING OUT OF SERVICE)
RXESI:MO=RXOTRX-16-5,SUBORD; (MO IN SERVICE INITIATE-BRINGING IN TO SERVICE)
RXMOC:MO=RXOTRX-16-4,CELL=41951; (MO DATA CHANGE) *************CONNECTING TG TO CELL************
RXTCI:MO=RXOTG-90,CELL=37120,CHGR=0 (TG TO CHANNEL GROUP INNITIATE) *********** TO DISSCONNECT THE TG FROM CELL
RXTCE:MO=RXOTG-#,CELL=4342; (TG TO CHANNEL GROUP END)
********* DEFIING THE TRU************
RXMOI:MO=RXOTG-152,TEL=0 PCP1=128,DCP=129 && 130,SIG=CONC ********DELETING THE TRU***********
RXMOE:MO=RXOTG-107-6-088-7; (MO END) *******FOR CHANGING THE SDCCH******** RLSLP:CELL=46211;
RLCLC:CELL=40221,SDCCH=7; OR
RLCLC:CELL=40221,SDCCH=4,SCTYPE=UL,CHRG=0
RLSLC:CELL=40221,LVA=56,CHTYPE=SDCCH; (LVA=LIMIT VALUE)
RLSLC:CELL=40221,LVA=56,CHTYPE=SDCCH; SPV=1; (SPV=SPEECH VERSION) *************** HOW TO TAKE BACK UP ****************************** ---WEEKLY BACK
UP---SYBUE; SYBUP:FILE; ; SYTUC; SYBUI:DISC; ---MONTHLY BACK UP
BSC----SYBUE;
SYBUP:FILE; (BEFORE GOING TO BSC) ;
1) FORMAT OD INMCT:SPG=0;
INMEI:NODE=A,IO=OD-1,VOL=B36171006; (TAKE CURRENT DATE) END;
2) MOUNT OD DRIVE INMCT:SPG=0;
INVOL:NODE=A,IO=OD-1; END;
3) COPY BACK UP FILE TO OD
SYMTP:SPG=0,NODE=A,FILE1=RELFSW2,IO2=OD-1,DIR=OUT; 4) TO CHECK THE FILES IN OD
INMCT:SPG=0; INFIP:FILE=OD0A1; END;
5) TO UNLAOD THE OD DRIVE INMCT:SPG=0;
INVOE:NODE=A,IO=OD-1; END;
AFTER BACK UP FINISH
SYTUC;
SYBUI:DISC;
************************ SYSTEM BACK-UP FILES DETAILS ************ BEOFRE RUNNING THIS COMMAND WE HAVE TO RUN THE END COMMMAND
END;
SYBFP:FILE; (SYSTEM FUNCTIONS, BACKUP FILES PRINT) RESULT WILL BE
ORDERED
FILE IO EXCHANGE
RELFSW0 - B07R10/5/0000/0418/0003 SUBFILE TYPE OUTPUTTIME CURRENT COMMANDLOG R1 DSSMALL 050717 0217 YES
R2 DSSMALL 050716 0217 NO
-R3 DSLARGE 050716 0217 YES 0002515 R4 DSLARGE 050717 0217 NO 0002516 R5 PS,RS 050714 2126 YES
-****************** FOR EMG FAULT (RESET THE EMG)-********************* Extension Module Group (EMG)There are two types of EMGs, as follows: Type 1 (EMRPB=Extension Module Regional Processor-BUS)
EMG with EMRPB-S, RPBC, or STR-E and EMRP types, belonging to families EMRP-N and EMRP-D
Type 2
EMG with EMRPB-T, STR-T, and EMRP types, belonging to family EMRP-T
ONLY WHEN LINK IS UP
REPEI:EMG=(SITE NAME),STR=A; OR EMRP=0-A REMEI:EMG=(SITE NAME),PCB=STRP,MAG=STR-A;
RECEI:EMG=(SITE NAME),STR=A; (IF NOT WORKING THEN DOWN) ORR
RECEI:EMG=(SITE NAME),EMRP=0-A
*****************TO RESET THE CP FAULTY UNIT ******** (RESETING THE FAULTY BOARD ON BSC)
REPCI; (REPAIR FUNCTIONS, PROCEDURE FOR CP REPAIR, INITIATE)
REMCI:PCB=STUD-A,MAG=CPU;( GIVE FIRST PCB ) (REPAIR FUNCTIONS,MANUAL INTERVENTION IN CP,INITIATE)
RECCI; (REPAIR FUNCTIONS,CHECK AFTER REPAIR OF CP, INITIATE )
****************** TO RESET RP FAULT ********** EXEMP:RP=86,EM=ALL; ( SHOW DEVICE DETAILS)
REPRI:RP=199; (Repair Functions, Procedure for RP Repair, Initiate)
REMRI:RP=199,PCB=STCP; (Repair Functions,Manual Intervention in RP,Initiate)
RECRI:RP=199; (Repair Check in RP, Initiate)
*********** TO BLOCK & DEBLOCK SNT ************
NTCOP:SNT=RTTF2S-51; (SWITCHING NETWORK TERMINAL CONNECTION DATA PRINT)
RRTBI:DEV=RTTF2FD-1634&&-1663!,FORCE; RRTBE:DEV=RTTF2FD-1634&&-1663;
******************SWITCHING NETWORK TERMINAL FAULT**************** BLOCK DEVICES FIRST & SNT BLOCK ,TEST & DEBLOCK,DEBLOCK DEVICES) NTCOP:SNT=ALL;
NTSTP:SNT=RHSNT-1;
BLODI:DEV= RHDEV-32&&-63; DEVICES
BLODE:DEV= RHDEV-32&&-63; DEBLOCK AFTER SNT TESTING RRTBI:DEV=RHDEV-32&&-63,FORCE;
RRTBE:DEV=RTTF2FD-1634&&-1663; RADEP:DEV=RTTF2D-1169;
STDEP:DEV=RTTF2D-1169&&-1179;
>>>>>>> WHEN ONLY SNT DOWN >>>SWITCHING NETWORK TERMINAL FAULT NTBLI:SNT=RHSNT-1;
NTTEI:SNT=RHSNT-1; NTBLE:SNT=RHSNT-1; NSSTP; (FOR CHECKING) C7LTP:LS=ALL; ( CHECKING)
1- NTSTP:SNT=ETRBLT-3; (CHECK ABL OR WO) IF ABL THEN 2- NTBLI:snt=etrblt-3;
3- NTTEI:snt=etrblt-3;
4- NTBLE:snt=etrblt-3;
*************** CHECK WITHOUT G-CELL RBLT OF ONE CELL*********** RXTCP:MOTY=RXOTG,CELL=26591; (CHECK FIRST TG)
RXAPP:MO=RXOTG-37; FOR TG (GET DEVICE POSITION)Radio X-ceiver Administration Abis Path Status, Print.
RADEP:DEV=RBLT-1185; (PUT DEVICE HERE ) DEVICE DATA PRINT RXMDP:MO=RXOTRX-337-0; (IF IT COMMES STM2 )
RADEP:DEV=RBLT2-10800; NTCOP:SNT=ETM2-9;
RADEP:DETY=ALL; (SHOWS ALL DEVICES IN BSC)
*************** TO CHECK RBLT IS CONNECTED OR NOT WITHOUT G CELL **********
NTCOP:SNT=ETRBLT-100;
STDEP:DEV=RBLT-3201&&-3231; ( ALL DEVICES SHOULD BE NP I.E NOT CONNECTED)
********************* CHECK RXOTG GROUP WITHOUT GCELL ************** RXTCP:MO=RXOTG-92; (RADIO X-CEIVER ADMINISTRATION TG TO CHANNEL GROUP, PRINT)
RXTCP:MOTY=RXOTG,CELL=47281; RESULT WILL BE
<RXTCP:MOTY=RXOTG,CELL=47281; RADIO X-CEIVER ADMINISTRATION
TG TO CHANNEL GROUP CONNECTION DATA
MO CELL CHGR RXOTG-37 47281 0 47281 1 END
************ HOW TO KNOW RBLT DEVICES WITHOUT G-CELL **********
RXMDP:MO=RXOTRX-72-0&&-11; (GIVES DEVT COPY THAT IN NEXT COMMAND) RADEP:DEV=RBLT-2317; (GIVES THE RBLT NUMBER)
THEN
NTCOP:SNT=ALL; (TAKE Vales from radep & see which link e.g RBLT2-10969)
2ND METHOD
RXMDP:MO=RXOTRX-72-0&&-11; (TAKES NUMBER OF RBLT RANGE e.g 2317 TO 2322) THEN
NTCOP:SNT=ALL; (CHECKS HERE WHICH RANGE IT IS HERE THATS REQUIRED RBLT)
RXAPI ( FOR CONNECTING TG WITH THE RBLT ) RXAPP:MO=RXOTG-111;
DEV DCP APUSAGE APSTATE 64K TEI RBLT-3553 1 UNDEF IDLE NO
RBLT-3554 2 UNDEF IDLE NO
*********HOW TO CONNECT NEW RBLT TO CELL**************** SITE HATED
RXBLI:MO=RXOTG-88,SUBORD,FORCE;(BLOCK ALL) RXESE:MO=RXOTG-226,SUBORD; ( OUT OF SERVICE) RXAPP:MO=RXOTG-226;
RXAPE:MO=RXOTG-226,DCP:ALL; (DISCONNECT DEVICES FROM OLD RBLT) DTBLE:DIP=RBLT81; (NEW RBLT)
NTCOP:SNT=ETRBLT-81; (CHECKING NEW DEVICES) BLODE:DEV=RALT-7&RBLT-2;(DEBLOCK DEVICES) OR
BLODE:DEV=RALT-15&&-24;
RXAPI:MO=RXOTG-226,DEV=RBLT-1121&&-1134,DCP=1&&14; (CONNECT DEVICES) IF IF IF EDGE TRU THEN ADD 3 DIGITS
rxapp:mo=rxotg-20; AFTER PRINT OUT (ADD THREE E.G DCP 29,30& 31 & dev=rblt-1758,59,60)
rxapi:mo=rxotg-20,DCP=29,30,31,dev=rblt-1758,1759,1760,res64k;
RXESI:MO=RXOTG-226,SUBORD; (BRING IN TO SERVICE)
************ DAILY COMMANDS ****************** RXELP:MO=RXOTG-; RXBLE:MO=RXOTX-70-0&-11; RXBLI:MO=RXOTRX-70,FORCE; RXBLI:MO=RXOCF-88,FORCE; RXBLE:MO=RXOCF-88;
RXMSP:MO=RXOTRX-70-0&&-11; RXMSP:MO=RXOCF-70; RXMFP:MO=RXOCF-70,SUBORD,FAULTY; RXMFP:MO=RXOCF-70; RXCDP:MO=RXOTG-70; RLSTP:CELL=38960; RLSTC:CELL=38960,STATE=HALTED; RLSTC:CELL=38960,STATE=ACTIVE; RLSLP:CELL=38960; DTSTP:DIP=RBLT14; ALLIP:ACL=A1; ALLIP:ALCAT=BTS; ALLIP; RLCHP:CELL=25101; RLCHC:CELL=40842,HOP=ON,CHGR=0; RLCHC:CELL=39464,HOP=ON; RXTCP:MO=RXOTG-71; RXTCP:MOTY=RXOTG,CELL=38960; DTSTP:DIP=RBLT14; DTBLE:DIP=RBLT2; RXAPP:MO=RXOTG-37; RXMDP:MO=RXOTRX-219-0 RADEP:DEV=RBLT-1185; TPBLE:SDIP=3ETM2,LP=VC12-44; DTQUP:DIP=RBLT32; DTQSR:DIP=RBLT32,ES2,SES2,SF; DTQSR:DIP=RBLT32,ES,SES,SF; tpcop:sdip=all;T NTCOP:SNT=ALL; TPCOP:ETRBLT-100; STDEP:DEV=RTGPHDV-288&&-319; EMGEMGRLNRP:CELL=ALL,CELL=42191; DTSTP:DIP=ALL,STATE=MBL OR WO; RXMDP:MO=RXOTRX-72-0&&-11; RADEP:DEV=RBLT-2322; NTCOP:SNT=ALL; ALLTe:ALI=0; SYBUE; SYBUP:FILE;
; SYTUC; SYBUI:DISC; RXMOP:MO=RXOTG-226; SYFRI:FID=H'0000-H'996F,BLOCK=RXOTGD,IND=226,FILENUM=1; TPQSR:SDIP=2ETM2,LP=VC12-20,ES2,SES2,ES; DTQSR:DIP=ALL,ES2,SES2,SF; VC12-41 3 7 2 RBLT41 VC12-43 2 1 3 RBLT106
**** SEMI CONNECTION PERMINENT DATA***** EXSCP:NAME=ALL;
RADEP:DEV=RALT2-2049; NTCOP:SNT=ETM2-2;
********************** COMMAND LOG BLOCKED ***************** IF WE GOT ALARM LIKE THIS COMMAND LOG NOT ACTIVATED
*********** FORCE LOADING THE CF ************************ RXPLI:MO=RXOTG-226,UC;
SYCLI;
*********HOW TO CHECK IF LINK IS CASSCATED OR NOT??**** GCELL RBLT NUMBER SPACE | SPACE GREP SPACE BSC5
GCELL RBLT15 | grep BSC33GCELL RBLT15 | grep BSC33
***************HOW TO CHECK IF THE LINK USED OR NOT ******* NTCOP:SNT=ETRBLT-6;
STDEP:DEV=RBLT-6523&&-6985;
IF WE GET CONFIG NP THAT MEAN LINK NOT USED AND IF WE GET P THAT MEAN LINK USED.
********************** TO CHANGE THE SOFTWARE VERSION -SITE IS ON SERVICE****
rxmsc:mo=rxotg-#,swver=b1921r0086;
To change software version in case if site on service after that we will do rxpli.
rxpli:mo=rxotg-#,uc; to load the software rxpli:mo=rxotg-#,uc; to load the software
******site out of service and no need to load the soft ware it will load when we deblock. rxmoc:mo=rxotg-#,swver=b1921r0086; rxmoc:mo=rxocf-#,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-1-#,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-2,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-3,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-4,swver=b1921r0086 or default ; rxmoc:mo=rxotrx-30-5,swver=b1921r0086 or default ; ....in service ....deblock
***********to add freqency****************** rlcfi:cell=4646,dchno=17; to add freqency
rlcfe:cell=4324,dchno=45; to delet frequency if more than on chanell group we have to
to writ channel group no after frequency.
************** TO CHECK NEW FILE IN FOR BSC UPGRADE****** INMCT:SPG=0;
INFIP:FILE=B4403R013J; END;
******** TO CHANGE CHAP & SCLD ON/0FF ******* RLACP:CELL=40612; ( TO CHECK SCLD OFF OR WORKING) RLACP:CEL=40612: ( IT MAKES ON )
RLHPC:CELL=41412,CHAP=1 RLLCP:CELL=41412;
RLLLC:CELL=41412,SCLD=OFF;
*********** CHANGING PRIORITY FROM UL TO OL OR VISE VERSA ********* RLLLC:CELL=3972,SCLDSC=OL;
******************* TO CHECK THE BOARD FAULTS IN BSC (RP/SNT)******* FOR RP:
REPRI:RP=77; (TAKES POSITION FROM THIS PUT IN 2ND COMMAND) REMRI:RP=77,PCB=RPG3;
RECRI:RP=77; FOR RP:
EXPOP:RP=193; (TELLS THE RP POSITION)
BLRPI;RP=193;(CHECKS OK NOT WORKING/IF NOT WORKING DEBLOCK AGAIN N NEED TO REPLACE)
BLRPE:RP=193; OR
EXRPP:RP=98 TO CHECK THE STATE OF RP BLRPI:RP=; BLOCK THE RP
BLRPE:RP=; DBLOCK FOR SNT: NTBLI:SNT; BLEMI:EM=(EM=),RP= , RPT= ; NTBLME; NTBLE;
ntbli: to block the snt ntble:to dblock the snt
stdep:dev=; to check the device ntcop:snt= to print the dev;
rrtbi:dev=,force; to block the device rrtbe:dev= to d block the dev
CP FAULT IN CASE OF CP FAULT 1-REPCI 2-REMCI: PCB=POWC,MAG=CPU-B; 3-RECCI EM FAULT
1 REPRI:RP=38,EM/RP=4; (RP DIAGNOSIS /TEST RESULT)
2 remri:rp=38,pcb=EMBINTERFACE,EM=4; (RP MANUAL INTERVENTION ) 3 recri:rp=38,EM=4; ( RP PAIR /TEST RESULT)
OR EM FAULT
REPRI:RP=37,EM=7;
remri:rp=37,pcb=EMBINTERFACE,EM=7; recri:rp=37,EM=7;
THEN CHECK
EXEMP:RP=37,EM=ALL; (ALL SHOULD BE WORKING) THEN TO CHECK ABL OR WORKING (GPRS)
GSSTP; GDSTP;
GSSTP:TSM=TSM-B-7;
****IF EM/RP FAILED THEN ******************** EXEMP:RP=160,EM=2;
BLEMI:RP=160,RPT=161,EM=2; (BLOCK ) BLEME ( DEBLOCK)
********** RP SEPERATION*************************** STEP1:
RXMDP:MO=RXOTRX-61-0&&-11; (CHECK ALL DEVICED )
RADRP:DEV=RHDEV-801&-1249&-1029&-673&-486&-802; (RELEASE ALL DEV AND GET NEW ONE)
STEP2:
FCRWS:RP=279,WS=SEP; (BLOCK ONE BY ONE ) EXECUTED THEN
STEP3:
BLRPE:RP=279; (DEBLOCKING ONE BY ONE) ORDERED < DEBLOCKING OF RP RP RESULT 279 DEBLOCKING PERFORMED STEP4: IN LAST RAHII;
plldp;
(TO CHECK PROCESSOR LOAD)
FORLOOP RELEASE.(NOT NECESSARILY REQUIRED)
********************* CHECKING CCITT7 LINK DISTURBANCE***************** DEBLOCKING SLC
C7LAE:LS=2-541,SLC=06; C7LDP:LS=ALL;
CCITT7 LINK SET DATA
LS SPID ASP SPID 2-855 X29
SLC ACL PARMG ST SDL SLI 0 A2 0 C7ST2C-0 C7ST2C-0/RALT-97
10 A2 0 C7ST2C-20 C7ST2C-20/RALT-2561 RADEP:DEV=RALT-2561;
DTQUP:DIP=RALT80;
IF ERROR ON LINK REPORT TO TRANIMISSION SYSTEM NO 3001 + 80 = 3081
BSC6 - X29 THIS FORMAT TO BE REPORTED.
***********************NODE B CHECKING************************* NE=BSC28,NODE=A aploc; raidutil -L logical raidutil -L physical prcboot prcstate m: cd images cd nodea dir
ipconfig(to check ip network of node a&b) cluster res
cluster res |findstr -vie online ********HOW TO TAKE BACK UP OF BSC aploc;
burvackup -o y
********************************* HOW TO TAKE APG BACK UP **********************
prcboot (to reboot NODES)
THERE ARE 2 NODS ON BSC A & B, ONE IS ACTIVE AND ONE IS PASSIVEN,WHICH IS NOT USED.
WE START BACK UP FROM NODE A AND COPY IT TO B BY THE FOLLOWING PROCESS. APG Backup ..(copied to the zip file)
Backup should be done from only passive node prcstate ..(status,ACTIVE/PASSIVE) hostname
cluster node ..(node status) cluster res | findstr -ive Online cluster res
cluster /ver ..(get the version) STEP1;
burbackup_SAVEDATADISKINFO C:\BUR\BSC21_NODB_20060129.DDI STEP2:
HOSTNAME (CHECK HOST PUT DOWN) DIR\\AP0403121000B\C$\BUR
COPY
C:\BUR\BSC21_NOD_B-20060129.DDI\\AP0403121000A\C$\BUR\BSC21_NODE_B_20060129.DDI (IT WILL COPY FILE FROM ACTIVE TO PASSIVE)
Y
NOW IN PASSIVE CONNECT NE=BSC21,NODE=A prcstate
burbackup (GIVE IMAGE NAME) BSC21_BKUP_NODEA_20060129 burbackup -src D:\ -imgdest\\AP0403121000A\images\nodeA\BSC21_Node_A_20060802.zip y burverify -i \\AP0501252830C\images\nodeb\BSC25_Node_B_20050802.zip .. (to verify)
k:
cd k:\images\nodea dir ..(to verify)
After backup taken from the passive node,
do prcboot in the active node and take backup (while it is passive). prcboot ********************* BACK UP ALL BSC******************** @ FOR I= 1 TO 20 @CONNECT ("BSC{I}") sytuc; @NEXT I @ FOR J= 31 TO 36 @CONNECT ("BSC{j}") sytuc; @NEXT J
************************ CCITT7 LINK SIGNALLING ******* EXSCP:NAME=ALL;
C7LTP:LS=ALL; ( IT WILL SHOW ALL ACTIVE LINK SET STATE) C7LDP:LS=ALL; (SHOWS LINK SET DATA)
RADEP:DEV=RALT-1281; (SHOW DEVICE DATA IN BSC) if u r not getting ralt number then type
NTCOP:SNT=ALL; FROM THESE WE CAN GET THE RALT
DTQUP:DIP=RALT40; ( CHECK QUALITY IF PROBLEM SAME THEN REPORT) RALT=40 REPORT LIKE THIS 3001+40
30041
c7lae:ls=2-828,slc=2 ( blocking the device in sig link failure) c7lai:ls=2-828,slc=2 (deblocking)
NWNE
**********************SEIZURE SUPERVISION OF DEVICE IN BSC********* RASAP; (CHECKS ALL WORKING IDLE)
RASAR:DETY=RALT2;
******************** TRANSMISSION FUNCTION SYNCHOR DIGITAL PATH QUALITY SUPER RESET***
TPQSR:SDIP=2ETM2 OR 10ETM2 ,LP=VC12-20,BBE,ES2,SES2,ES; TPQSR:SDIP=2ETM2,LP=VC12-12,SES,BBE,ES2,SES2,ES;
OR
TPQSR:SDIP=10ETM2,ES OR SES,ES2;
******************GROUP SWITCH FAULT **************** GSSTP:TSM=TSM-A-36; (CHECK STATE ABL OR WO)
GSBLI:TSM=TSM-A-36; (BLOCK THE UNIT e.g TSM-A-36) GSTEI:TSM=TSM-A-36; (TEST IF NOT FAULTS FOUND) GSBLE:TSM=TSM-A-36; (DEBLOCK) GSBLI:SPM=SPM-A-0-1; GSTEI:SPM=SPM-A-0-1; GSBLE:SPM=SPM-A-0-1; ANOTHER METHOD GDSTP:UNIT=ALL; GDBLI:XM-B-0-3; GDTEI:XM-B-0-3; GDBLE:XM-B-0-3; ******************* XM BOARD REPLACMENT IN BSC TO GET THE POSITION IN BSC
EXRPP:RP=258;
EXEMP:RP=258,EM=ALL; DBTSP:TAB=RPSRPBSPOS;
************* CLEARING FAULTS in APG BSC 21 ON WARD**** APLOC;
ALIST
ACEASE 8788:0 ALLIP;
****************NO CONNECTION /RESETING FROM AT TERMINAL) RESETTIMG THE PORT
CONNECT TO PARTICAULR BSC THEN
IMLCT:SPG=O; ILNTP:PORT=ALL;
ILBLI:PORT=XXXXXX; (PORT OR NP) ILBLE:PORT=XXXXX;
THE PORT WHICH WAS ABL BEFORE SHOULD BE WO AFTER RESTING ***********************
RADIO TRANSMISSION TRANSCODER AND RATE ADAPTOR FAULT
(BLOCK DECVICES OF SNT BY NTCOP PRINT OUT & THEN BLOCK TESET SNT IN LATS DEBLOCK DEVICE
ALL SHOULD BE BIZEE IN LAST 1ST METHOD
NTCOP:SNT=RTTF2S-9;
PRINT OUT SWITCHING NETWORK TERMINAL CONNECTION DATA SNT SNTV SNTP DIP DEV
RTTF2S-9 1 TSM-7-14 RTTF2D-290&&-319
2ND STEP
RRTBI:DEV=RTTF2D-290&&-319,FORCE; (BLOCK DEVICE FROM NTCOP PRINT OUT ONCE EXCUTED THEN) 3RD STEP NTBLI:SNT=RTTF2S-9; NTTEI:SNT=RTTF2S-9; NTBLE:SNT=RTTF2S-9; 4TH STEP RRTBE:DEV=RTTF2D-290&&-319;
STDEP:DEV=RTTF2D-290&&-319 ( ALL STATE SHOULD BE BIZEE) ANOTHER METHOD)
RADEP:DEV=RTTF2D-2287; (CHECK DEVICE ABL OR WO) STDEP:DEV=RTTF2D-2274&&-2303;
RRTBI:DEV=RTTF2D-2274&&-2303,FORCE; ( FROM STDEP TAKE DEV & BLOCK ) NTBLI:SNT=RTTF2S-71; ( THEN BLOCK SNT)
NTTEI:SNT=RTTF2S-71; (TEST)
NTBLE:SNT=RTTF2S-71;(DEBLOCK SNT)
RRTBE:DEV=RTTF2D-2274&&-2303; (IN LAST DEBLOCK DEVICE )
STDEP:DEV=RTTF2D-2274&&-2303; (IN LAST CHECK ALL SHOULD BE BUSSY) ************ ANOTHER METHOD**********
NTCOP:SNT=RTTF2S-28; (CHECK THE DEVICE)
RRTEI:DEV=RTTF2D-898&&-927; RRTBLE:DEV=RTTF2D-898&&-927;
IF NOT BLOCKED THEN
STDEP:DEV=RTTGD-1024&&-1040 ( THEN BLOCKED H'' ONE) THEN BLOCKED DEBLOCK
RRTPP:TRAPOOL=ALL;
RAHII; IT DIVDED THE POOLS DEVICES.
***********************GROUP SWITCH CLM CONTROL GSBLI:CLM=CLM-1;
GSTEI:CLM=CLM-1; GSBLE:CLM=CLM-1;
****************Radio Control Cell, Dynamic BTS Power Control, End RLBCI:CELL=;
RLBCE:CELL=LIN1; RLBCP:CELL=;
*************ACTIVATION OF TEST SYSTEM IN APG BSC'S******************* 1 - APLOC;
2- ALDLS (DISPLAY SOURCE ) 3- ALDBLK ALD-1
4- ALDTEST -B ALD-1 (TEST INITIATE) 5- ALDTEST -E ALD-1 ( TEST END)
**********TEST ALARM IN IOG BSC'S****************** ALLTI:ALI=0;(INITIATE)
ALLTE:ALI=0; (END)
************* CELL CONNECTING TO MSC**************
MGOCI:CELL=12345,CGI=424-4023(LAC)-61701,MSC=X23; (FOR OUTER CELL) MGCEI:CELL=12345,CGI=424-4023(LAC)-61701,MSC=X23; (FOR INNER CELL) ****************** checking BSC CALL LOAD*****
******************* IO BLOCKED*****************
ALLIP:ACL:A2; CHECK WHICH IO BLCOKED THEN BLOCK & DEBLOCK IOBLI:IO=AT-5;
IOBLE:IO=AT-5;
************************* HOW TO CHECK UMTS SITE ***************** RNC=41 TOTAL WORKING SITES =32
TOTAL WORKING CELLS=94
TOTAL AVAILABLE CELLS=136 -- 36 SITES NOT WORKING RNC=42 TOTAL WORKING SITES =31
TOTAL WORKING CELLS=83
TOTAL AVAILABLE CELLS=89 -- 6 SITES NOT WORKING ACT CELLHSDPA ( TO ACTIVATE HSDPA)
DEA CELL (HALTED SITE DEACTIVATED) ACT CELL (ACTIVE CELL)
RST DSP( RESET DSP) IN ONE WFMR WE HAVE 16 DSP ,REV1&2 DSP BRP(CHECK BOARD)
DSP CELL (DISPLAY CELL) DSP IMALNK(DISPLAY IMLINK) TO CHECK LINK DSP E1T1 RNC-41 USER NAME=ALI P= ALI123
RNC-42 USER NAME = ADMIN PASS = ETSUMTSRNC42 LOOP BREAK:
CONNECT TO RNC & THEN
1-LST NODEB (GET SITE DETAIL e.g U4060 & THEIR SERIAL #, SUBORD& SLOT) 2- LST NODEB AGAIN (BY NODEID & PUT SER #, & VERTICAL,& GET IMA LINK NUMBER)
2- DSP E1T1 (PUT SUBRACK NO ,SLOT, & IMA LINK NUMBER E.G 31,32,33) ---HOW TO KNOW RNC 19 ADDRESS FOR IP BASED INTERMITTENT
FAILURE---CONNECT TO RNC THROUGH MML
LST NODEB (BY NAME CHECK SUBRACK & SUBSYSTEM)
LST ETHIP (CHECK WITH PORT 0&1 SUBSYSTEM 0 PORT 0 & SUBSYSTEM 1 PORT 1) GIVE THAT IP ADDRESS I.E LOCAL IP ADDRESS IS ADDRESS OF CURRENT RNC IP OF SITE
************************ TRANSMISSION STM OUTAGE **********
FIRST OF ALL TAKE ALLIP; FOR BSC WHICH IS STM CHNAGE OVER THEN AFTER FINISH ALLIP
AGAIN TO CHECK ANY ABNORMAL ALARM THEN CHECK STM IN BSC
PWNSP:SDIP=ALL; (SHOWS STATUS WHICH ONE STANDBY OR ACTIVE ) PWMSI:SDIP=2ETM2,MS=MS-1; ( TO MAKE STM -MS-O OR 1 ACTIVE)
THEN IN LAST DO TPQSR FOR PARTICAULAR STM WHICH HAS CHNAGED OR SOME OUTAGE
*** CLEARING SOFWARE ERROR *** allip:acl=a2;
syrae:rectype=softerr;
********************** HOW TO KNOW DEVICES CONNECTED TO SITES RXMDP:MOTY=RXOTRX;
RXMDP:MOTY-RXOCF; RXMDP:MOTY-RXOTS;
IF RANGE NOT IN CF OR TRX THEN FIND IN TS RADRP:DEV=RHDEV-1254;
FCRWS:RP=XX,WS=SEP; BLPRE:RP=125;
******************* CHANGING DIVERSITY**********************
CHANGING DIVERSITY IF WE HAVE 1 ANTEENA AND DIVERSITY IS DEFINED AB e.g RXD=AB TO CHANGE TO RXD=A
HALT SITE FIRST
rxesi:mo=rxotrx-3-0,subord; (BRING OUT OF SERVICE ) RXMop:MO=RXORX-3-0&&-11; (CHECK RXD=AB OR A )
RXMoc:MO=RXORX-3-1,rxd=a; (CHANGE RXD=A OR AB) THEN DEBLOCK , BRING INTO SERVICE & ACTIVATE AGAIN
RXMop:MO=RXORX-3-0&&-11; ( NEW RXD WILL BE CHANGED) ********************* CHANGING CONFACT********
FIRST HALT SITE,BLOCK TG WIL SUBORD,BRING OUT OF SERVICE, THEN CHNAGE CONFACT
RXBLI:MO=RXOtg-70,subord,FORCE; rxesE:mo=rxotg-70,subord;
rxmop:mo=rxotg-70; (WHICH CONFACT CHECK VALUE ) rxmoc:mo=rxotg-70,confact=3; (CHNAGE VALUE) ; rxesi:mo=rxotg-70,subord; RXBLE:MO=RXOtg-70,subord; ACTIVATE SITE ************* HANGED ALARM IN BSC********* CHECK IOSTP;
IF SOME DEVICES ARE WAITING THEN ALARM IN HANGING INVESTIGATE WHICH AT TERMINAL IS HAVING PROBLEM
THEN EXCUTE COMMAND TO RELEASE ALARM iostp
clear those devices which are seized not of waiting status
IOREI;
IOREI:SIZIND=1,IO=AT-0; IOREI:SIZIND=1,IO=AMTP-12;
if NOT ACCEPTED FAULT CODE 172 INDIVIDUAL NOT OCCUPIED then IOREI:ioIND=H'9002; (take H'9002 ) FROM TOP
***************CDU SWAPPED***********
E-GSM FREQUENCIES NEED CDU WITH ARTICLE CODE BFL-****135, DIGITS 135 IS ESSENTIAL, IF CDU SWAPED AND TRX NOT COMING UP IT MEANZ THAT CDU NOT SUPPORT E-GSM FREQUENCIES, SO REVERT BACK CHNAGES AND BESURE
ARTICEL CODE 135 WITH ATTAHED TO THOSE TRU WHICH IS HAVING E-GSM FREQS ******************* DISTRIBUTED GROUP SWITCH FAULT ************** allip:acl=a2; gdcop:unit=MUX3-A-12; exrpp:rp=206; exemp:rp=206,em=all; gdblI:unit=MUX34-A-3; gdTEI:unit=MUX34-A-3; gdblE:unit=MUX34-A-3; ********************* LVA DIFFERENCE***************** RLSlC:CELL=20973,lva=60,sctype=ul,chtype=tch; (FOR A2)
RLSlC:CELL=20973,lva=26,sctype=ul,spv=2,chtype=tch; (FOR A1,TCH FR =2) ***************** HOW TO CONNECT TG TO CELL******************
RXTCI:MO=RXOTG-38,CELL=40522,CHGR=0; RXTCP:MOTY=RXOTG,CELL=40522;
CONNECTING TG SING VALUE GIVEN BY PROJECT RXMOC:MO=RXOTF-38,TFMODE=S,TFCOMPNEG=4638; DISCONNECT TG
RXTCE:MO=RXOTG-38,CELL=40522,CHGR=0; CONNECT TG TO RBLT
RXAPI=MO=RXOTG-XX,DEV=RBLT-Y&&-K,DCP=1&&((NT+1)*3); CHANGGING BAND 900 TO 1800 OR VISE VERSA
FIRST BLOCK ALL TRX WITH SUORD RXMOC:MO=RXOTRX-13-8,BAND=GSM1800; DO IT ON TX THEN RX
CHANGING ALLOCATION FROM ONE CHGR TO OTRHER RXMSC:MO=RXOTRX-20-4,CELL=4162,CHGR=1; ************* MSC DEFINITION IN BSC DATA rrmbp:msc=all; output MSC DEFINITION IN BSC DATA MSC SP CNID X13 2-548 END
********************** REDUCE SDCCH RLCFP:CELL=4201; (FIND HOW MANY SDCCH) THEN
RLCCC:CELL=4202,SDCCH=8,CHGR=0; IN WHICH CHRR IS THERE
************************ NETWORK SYNCHRONIZATION FAULT PWNSP:SDIP=ALL;
NSBLI:SDIP=4ETM2,MS=MS-0; NSTEI:SDIP=4ETM2,MS=MS-0; NSBLE:SDIP=4ETM2,MS=MS-0;
*******************SITE UP NOT STILL SHOWING IN ALV********** THIS COMMAND WORKS
RLSLE:CELL=41251,SCTYPE=UL; RLSLI:CELL=41251,SCTYPE=UL;
THEN CHEC STATE OF CELL SHOULD BE YES **************** IOG BSC RESTART********* SMALL RESTART IMMCT:SPG=0; IMCSP; END; SYRSI:NODE=B,RANK=SMALL,SPG=0; LARGE RESTART CP OR BSC RESTART-SYREI:RANK=LARGE,EXPL=OTHER-"CPA2_IPA13"; ************** STM DOWN FOR SITE ******** TPCOP:SDIP=ALL;
OR IF STM KNOW THEN TPCOP:SDIP=1ETM2;
CHECK WHICH RBLT 23 WHICH VC VAKLUES THEN TPSTP:SDIP=1ETM2;
************ SW UPGRADE ******************** COMMANDS TO CHECK THE BTS SW IN BSC
INMCT:SPG=0;
INFIP:FILE=B440R014L; END;
COLLECT TG ALL IN BSC &
RXMOP:MO=RXOTG-242; TO CHECK WHICH VERSION RUNNIG RXTCP:MOTY=RXOTG,CELL=38960;
rxmop:moty=rxotg; (TELL ALL TG IN BSC)
rxmsc:mo=rxotg-229,swver=b4404ro14l;
AFTER GETTING DATA FROM CHA OF ALL BSC TG RUN THIS COMMAND IN OPS IN ONE TIME
THEN ONCE ITS OVER RUN RXPLI:MO=RXOTG-1,UC;
THIS RUN IN CHA AND MAXIMUM NUMBER OF TG ARE 16 OTHER INFORMATION IS WRITTNE IN NOTE BOOK
******************** SDCCH ADDITION *********** rlslp:cell=27781; rlcfp:cell=27781; RLCCC:CELL=23541,SDCCH=8,CHGR=0; RLSLC:CELL=23541,CHTYPE=tch,LVA=24,SCTYPE=UL; RLCCC:CELL=51641,TN=2&3,CHGR=0; RLCHC:CELL=27481,CHTYPE=SDCCH, ***********************ADJUSTING CHA RLSLC:CELL=46283,CHTYPE=TCH,LVA=83; ************************* MISMATCH BTSPOWER********** CHECK TX POWER BY RXMOP:MO=RXOTX-203-0&&-11 THEN RLCPP:CELL=42441;
IF TX POWER IS 47 & CELL POWER IS 40 ,CHNAGE CELL POWER TO 47 ONCE CELL UP REVERT BACK
RLCPC:CELL=42441,BSPWRB=40,BSPWRT=40;
************ GB INTERFACE FAULT OR GPRS LINK FAILURE ****** METHOD TO REPORT TO TEMC
check with rtglt down rtglt0 or 1
then take in which stm it is working then booke with TMC AND GIVE KLM VALUE ALSO
FORMAT
IF NSVC-1 = BSCN9-RTGLT1 - UP2-3002 NSVC-0 = BSCN9-RTGLT0 - UP2 - 3001 (10ETM2-KLM 353)
DTDIP:DIP=RTGLT1;
TPCOP:SDIP=ALL;(CHECK WHICH STM CARRYING RTGLT 0 OR 1 ) DTDIP:DIP=RTGLT1;
NTCOP:SNT=ETM2-9;
************ DEBLOCKING THE TRANSCIEVER RHSNT****** NTCOP:SNT=ALL;
NTCOP:SNT=RHSNT-23; (SNT STATUS)
STDEP:DEV= RHDEV-5888&&-5919; (CHECK WO & MBL DEVICE RANGE ) BLODE:DEV=RHDEV-5888&&-5919;
(DEBLOCKING & THEN CHECK STDEP MUST BE IDLE OR BUSY) EXDAI:DEV=dev...;
BRINGING INTO SERVICE
************* PCM LINK BLOCKING RALTS *************
SWITHCING WILL GIVE US ONLY PCM NO SO WE HAVE TO TAKE OUT DEV RANGE OF THAT RALT AND BLOCK.
E.G PCM NO 3006 IT WILL BE -1 RALT 5 3056 RALT WILL BE 55
3055 RALT WILL BE 54
THEN CHECK NTCOP:SNT=ETRALT-5; GET DEVICE RANGE AND BLOCK BLODI:DEV=RALT-161&&-191;
STDEP:DEV=RALT161&&-191;
ALL SHOULD BE MBL -IF NOT MBL AND PROINT OUT IS SHOWING SEBU THEN WE HAVE TO
BLOCK THE SLC OF THAT RALT E.G
C7LDP:LS=ALL;
TAKE RANGE OF THAT RALT BY NTCOP:SNT=ETRALT-64;
TEHN RANGE CHECK IN C7LDP:LS=ALL;
& THEN BLOCK THAT SLC C7LTP:LS=ALL;
BLOCKING SLC IN THIS CASE ITS 8 C7LAE:SLC=8,LS=2-7990;
****************** AP FILE PROCESSING FAULT
FAULT IS WHEN SOURCE FILE IS NOT MOVED TO DESTINATION APLOC; ALIST IOSTP; ACEASE 29090:5 CDHDSLS CDHVER STSFILEQ1BSC40 CDHVER STSDEST AFPLS
AFPFTI -c STSDEST -z STSFILEQ1BSC40 AFPFTI -f STSFILEQ1BSC40
AFPFTI -f
******* SYSTEM RESTART **************** DPWSP: ( AAM MEANZ FAULT & NRM MEANZ OK) SYRIP:SURVEY; C7LTP:LS=ALL; DIRCP; DIRRP:RP=ALL; ALLIP; IMMCT:SP=0; IMCSP;
***************************** Problem during CP update: FCECR failed
Solution: Print FCECP; Print EXDTP;
From the above print out (EXDTP) do EXDTE Example:
<fcecp;
NE: BSC19 ID: 7119314 TIME: 10/14/2008 00:25:09 REGIONAL SOFTWARE UNIT CATALOGUE DATA
BLOCK BN SUNAME SUID SUTYPE CNO STAT RTTAH1S H'524 RTTAH1SD CXCW 201 010 R1B DP 8 NOPL RTTAF1S H'523 RTTAF1SD CXCW 201 011 R1E02 DP 8 NOPL RTTAF1S H'523 RTTAF1SD CXCW 201 011 R1F01 DP 8 NOPL <exdtp:block=rttaf1s;
NE: BSC19 ID: 7119306 TIME: 10/14/2008 00:16:56 ORDERED
NE: BSC19 ID: 7119306 TIME: 10/14/2008 00:16:56 TIED DEVICE SOFTWARE UNITS
BLOCK SUNAME SUID
RTTAF1S RTTAF1SD CXCW 201 011 R1E02 RTTAF1SD CXCW 201 011 R2B01 exdtp:block=rttah1s;
NE: BSC19 ID: 7119305 TIME: 10/14/2008 00:14:08 ORDERED
<
NE: BSC19 ID: 7119305 TIME: 10/14/2008 00:14:08 TIED DEVICE SOFTWARE UNITS
BLOCK SUNAME SUID
RTTAH1S RTTAH1SD CXCW 201 010 R2B01
<exdte:block=RTTAF1S,suid="CXCW 201 011 R1E02";
NE: BSC19 ID: 7119331 TIME: 10/14/2008 00:28:04 EXDTE:BLOCK=RTTAF1S,SUID="CXCW 201 011 R1E02";
ORDERED <
