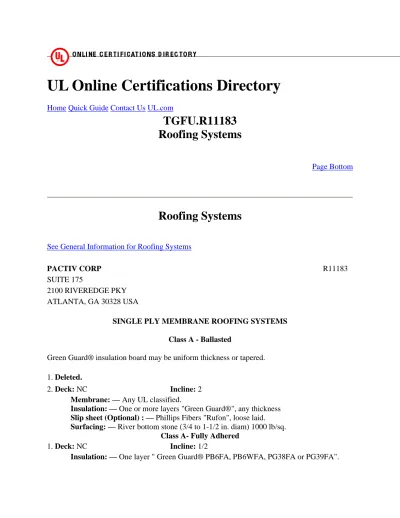

UL Online Certifications Directory

(1)

UL Online Certifications Directory

Home Quick Guide Contact Us UL.com

TGFU.R11183

Roofing Systems

Page Bottom

Roofing Systems

See General Information for Roofing Systems

PACTIV CORP R11183

SUITE 175

2100 RIVEREDGE PKY ATLANTA, GA 30328 USA

SINGLE PLY MEMBRANE ROOFING SYSTEMS Class A - Ballasted

Green Guard® insulation board may be uniform thickness or tapered. 1. Deleted.

2. Deck: NC Incline: 2

Membrane: — Any UL classified.

Insulation: — One or more layers "Green Guard®", any thickness Slip sheet (Optional) : — Phillips Fibers "Rufon", loose laid. Surfacing: — River bottom stone (3/4 to 1-1/2 in. diam) 1000 lb/sq.

Class A- Fully Adhered

1. Deck: NC Incline: 1/2

(2)

Membrane: — Carlisle Syntec "Carlisle FR EPDM" 45 or 60 mil., fully adhered with

"B-500" bonding adhesive, applied at 1 gal/sq.

Class A - Mechanically Fastened

Barrier Board: — 3/4 in. Perlite.

Insulation: — One or more layers "Green Guard®", 3 in. max, laid loosely or

mechanically fastened.

Slip Sheet: — Atlas "FR-10" or "FR-11".

Membrane: — Cooley " C-3 " (CPE), mechanically fastened with large metal fasteners

spaced 18 in. OC and max 2 in. from membrane's edge. Adjacent sheets are lapped 4 in. covering fasteners. Laps are then heat sealed.

Barrier Board: — 3/4 in. Perlite.

Insulation: — One or more layers "Green Guard®", 3 in. max, loose laid or

mechanically fastened.

Slip Sheet: — Atlas "FR-10" or "FR-11".

Membrane: — J. P. Stevens "Hi-Tuff" (CSM) or "Hi-Tuff EP" (TPO), fastened to the

deck with metal screws and discs. The laps are hot air welded.

Insulation: — "Green Guard®", 3 in. max. Barrier Board: — 1/2 in. (min) fiberboard.

Membrane: — Versico "Hysunite" (CSPE) 45 mil.

Insulation: — "Green Guard®", 3 in. max.

Barrier Board: — "Micore", 1/2 in. min, fiberboard 1/2 in. min or gypsum board, 5/8 in

min.

Membrane: — Versico "Versigard" EPDM.

Insulation: — "Green Guard®", 3 in max. Barrier Board: — 1/2 in min fiberboard. Membrane: — Firestone "Ultra Ply" (TPA).

Insulation: — "Green Guard®", 3 in. max. Barrier Board: — 1/2 in. min fiberboard.

Membrane: — Firestone "Standard RubberGard" (EPDM) 45 or 60 mil.

Barrier Board: — Carlisle HP Recovery Board, 1/2 in. min.

Membrane: — Carlisle "FR Reinforced" (EPDM) "Standard Reinforced", 0.045 in.

8. Deck: NC Incline: 1/4.

Insulation: — "Green Guard®", 3 in. max. Barrier Board: — 1 in. (min) perlite.

Membrane: — Duro Last Roofing "Duro-Last" (PVC).

(3)

Barrier Board: — 1 in. (min) fiberboard or 3/4 in (min) perlite. Membrane: — "Bond Cote 30, 35 or 40".

Insulation: — "Green Guard®", 3 in. max. Barrier Board: — 1/2 in. gypsum wallboard. Membrane: — "Genflex ACR" (EPDM), 45 mil.

Insulation: — "Green Guard®", 3 in. max. Slip Sheet: — Atlas "FR-10" or "FR-11".

Membrane: — J.P. Stevens "Hi-Tuff" or "Hi-Tuff 40" (CSM).

Insulation: — "Green Guard® PB6FF" 3/8 in. thick max.

Membrane: — Sarnafill "S327" or Duro-Last Inc. "Duro-Last" (PVC)

Insulation: — "Green Guard® PB6FF" 3/8 in. thick max.

Membrane: — Firestone "Standard Rubbergard", "Standard Reinforced RubberGard",

"Fire Retardant RubberGard", or "LS-FR"(EPDM)

MAINTENANCE AND REPAIR SYSTEMS Class A

Existing Roof System: — Class A, B or C, gravel surfaced, (gravel must be maintained

at 400 lb/sq) covered with:

Slip Sheet: — One layer " Green Guard® PB6, PB6W, PG38 or PG39". Membrane: — Duro-Last Roofing "Duro-Last" (PVC), mechanically fastened.

Existing Roof System: — Class A, B or C covered with:

Slip Sheet: — One layer " Green Guard® PB6, PB6W, PG38 or PG39". Membrane: — Any UL Classified membrane.

Surfacing: — River bottom stone (3/4 to 1-1/2 in. diam), 1000 lbs/sq.

Existing Roof System: — Class A, B or C smooth or gravel surfaced (gravel may be

removed) covered with:

Insulation: — " Green Guard® PB6, PB64, PB6W, PG38 or PG39". Slip Sheet: — Atlas "FR-10" or "FR-11".

Membrane: — "Duro-Last Roofing " Duro-Last" (PVC), mechanically fastened.

Insulation: — " Green Guard® PB6, PB64, PB6W, PG38 or PG39".

Membrane: — J. P. Stevens "Hi-Tuff" (CSM) or Hi-Tuff EP (TPO), mechanically

(4)

5. Deck: NC Incline: 1-1/2

Membrane: — J. P. Stevens "Hi-Tuff" (CSM) or "Hi-Tuff EP" (TPO), mechanically

fastened.

6. Deck: C15/32 Incline: 2

Existing Roof System: — Class A, smooth or gravel surfaced (gravel maintained at 400

lb/sq) covered with:

Insulation: — " Green Guard® PB6, PB64, PB6W, PG38 or PG39". Slip sheet: — Atlas "FR-10" or "FR-11".

Membrane: — "Duro-Last Roofing " Duro-Last" (PVC), mechanically fastened.

7. Deck: C15/32 Incline: 1/4

fastened.

8. Deck: C15/32 Incline: 1-1/2

fastened.

Existing Roof System: — Class A, B or C cap sheet, smooth or gravel surfaced BUR

(gravel must be maintained) covered with:

Insulation: — " Green Guard® PB6, PB6W, PB64, PG38 or PG39". Membrane: — Seaman "Fiber Tite" (EIP).

Existing Roof System: — Class A, B or C cap sheet, smooth or gravel surfaced BUR

(gravel may be removed) covered with:

Insulation: — " Green Guard® PB6-Plus".

Membrane: — Johns Manville "SR-50", "SR-60" or "SR-80", mechanically attached.

11. Deck: C-15/32 Incline: 1/4

lb/sq.) covered with:

Insulation: — " Green Guard® PB6, PB6W, PG38 or PG39". Membrane: — Genflex (TPO), mechanically fastened.

12. Deck: C-15/32 Incline: 1/4

(5)

Insulation: — " Green Guard® PB6, PG38 or PG39".

Membrane: — Carlisle "Sure-Weld" (TPO), "Sure-Weld GSD" (TPO), Versico

"Versiweld Premier" (TPO) or "Versiweld Premier EF" (TPO), mechanically fastened.

13. Deck: NC Incline: 1/4

Existing Roof System: — Class A, B or C built-up system, cap sheet or gravel surfaced

(gravel may be removed).

Insulation: — "AMOCOR-PB6, PB6W, PG38 or PG39", mechanically fastened. Slip Sheet: — Atlas "FR 10", mechanically fastened.

Membrane: — Carlisle "Sure-Weld GSD" (TPO) or Versico "Versiweld Premier EF"

(TPO) membrane, mechanically fastened.

Existing Roof System: — Class A, B or C built-up system, cap sheet or gravel surfaced

(gravel may be removed).

Insulation: — " Green Guard® PB6, PB6W, PG38 or PG39", mechanically fastened. Membrane: — Carlisle "FR Reinforced" EPDM membrane, mechanically fastened.

Existing Roof System : — Class A, B or C cap sheet, smooth or gravel surfaced BUR

(gravel may be removed) covered with:

Insulation : — " Green Guard® PB6W".

Membrane : — Duro-Last Roofing, "Duro-Last" (PVC), mechanically fastened. Class B

Existing Roof System: — Class A, B or C smooth or gravel surfaced, (gravel may be

deck with metal screws and discs. The membrane laps are hot air welded. 2. Deck: C15/32 Incline: 1/2

Existing Roof System: — Class A or B gravel surfaced, (gravel maintained at 400 lb/sq)

covered with:

deck with metal screws and discs. The membrane laps are hot air welded.

Class A, B or C

1. Deck: C-15/32 Incline: 1/4

Existing Roof System: — Class A, B or C smooth or gravel surfaced (gravel maintained

at 400 lb/sq) to maintain existing Classification covered with:

Membrane: — J.P. Stevens "Hi-Tuff" (CSM) or "Hi-Tuff EP" (TPO), mechanically

fastened.

2. Deck: C-15/32 Incline: 1/4

Existing Roof System: — Class A, B or C smooth or gravel surfaced (gravel maintained

at 400 lb/sq) to maintain existing Classification covered with:

(6)

Membrane: — J.P. Stevens "Hi-Tuff" (CSM) or "Hi-Tuff EP" (TPO), mechanically

fastened.

3. Deck: C-15/32 Incline: 1

Existing Roof System: — Class A, B or C gravel surfaced (gravel maintained at 400

lb/sq.) to maintain existing Classification covered with:

Insulation: — " Green Guard® PB6, PB6W, PB64, PG38 or PG39". Membrane: — Seaman "Fiber Tite" (EIP).

4. Deck: C-15/32 Incline: 1/2

Existing roof system: — Class A, B or C cap sheet or gravel surfaced BUR gravel, to be

maintained to retain existing Classification, covered with:

Insulation: — One layer " Green Guard® PB6FA, PB6WFA, PG38FA or PG39FA". Membrane: — Carlisle's "FR EPDM", 45 or 60 mil., fully adhered with "B-500"

bonding adhesive, applied at 1 gal/sq. 5. Deck: C15/32 Incline: 1/4

maintained at 400 lb/sq) covered with:

Insulation: — Green Guard® PB6W.

Membrane: — Duro-Last Roofing, "Duro-Last" (PVC), mechanically fastened.

6. Deck: C15/32 Incline: 1/4

Existing Roof System: — Class A, B, or C smooth, capsheet, gravel-surfaced BUR

(gravel maintained at 400 lbs. / sq.) to maintain existing classification covered with:

Insulation: — GreenGuard PB6, PB6W, PB6 PLUS, PG38, or PG39. Membrane: — Any UL classified CPE, CSPE, CSM, EIP, NBP, PVC, TPO,

mechanically attached.

7. Deck: C15/32 Incline: 1/2

Existing Roof System: — Class A, B, or C gravel-surfaced BUR (gravel maintained at

400 lbs. / sq.) to maintain existing classification covered with:

Insulation: — GreenGuard PB6, PB6W, PB6 PLUS, PG38, or PG39. Membrane: — Sarnafill "S327" (PVC), mechanically attached.

8. Deck: C15/32 Incline: 1/2

Insulation: — GreenGuard PB6, PB6W, PB6 PLUS, PG38, or PG39.

Membrane: — Any UL classified CPE, CSPE, EIP, NBP, PVC, mechanically attached.

9. Deck: C-15/32 Incline: 1

Existing Roof System: — Class A, B, or C smooth, Type G3 mineral-surfaced capsheet

or gravel-surfaced BUR (gravel maintained at 400 lbs. / sq.) to maintain existing classification covered with:

Insulation: — GreenGuard PB6FA.

Membrane: — Firestone "Fire Retardant RubberGard" (EPDM) 0.045 or 0.060 in. or

Carlisle "Sure-Seal FR EPDM"0.045 or 0.060 in. adhered with 3M "Scotch Weld 78HT" bonding adhesive at 0.20 gal/sq.

(7)

Insulation: — GreenGuard PB6FA.

Membrane: — Any UL classified TPO or PVC adhered with 3M "Scotch Weld 78HT"

bonding adhesive at 0.20 gal/sq.
