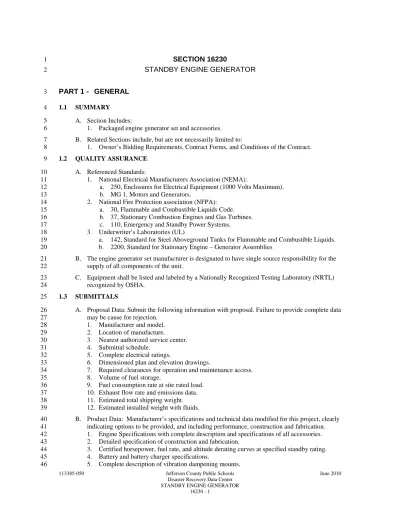

SECTION STANDBY ENGINE GENERATOR

SECTION 16230

STANDBY ENGINE GENERATOR

PART 1 - GENERAL

1. Packaged engine generator set and accessories. 6

B. Related Sections include, but are not necessarily limited to: 7

1. Owner’s Bidding Requirements, Contract Forms, and Conditions of the Contract. 8

1.2 QUALITY ASSURANCE 9

A. Referenced Standards: 10

1. National Electrical Manufacturers Association (NEMA): 11

a. 250, Enclosures for Electrical Equipment (1000 Volts Maximum). 12

b. MG 1, Motors and Generators. 13

2. National Fire Protection association (NFPA): 14

a. 30, Flammable and Combustible Liquids Code. 15

b. 37, Stationary Combustion Engines and Gas Turbines. 16

c. 110, Emergency and Standby Power Systems. 17

3. Underwriter’s Laboratories (UL) 18

a. 142, Standard for Steel Aboveground Tanks for Flammable and Combustible Liquids. 19

b. 2200, Standard for Stationary Engine – Generator Assemblies 20

B. The engine generator set manufacturer is designated to have single source responsibility for the 21

supply of all components of the unit. 22

C. Equipment shall be listed and labeled by a Nationally Recognized Testing Laboratory (NRTL) 23

recognized by OSHA. 24

1.3 SUBMITTALS 25

A. Proposal Data: Submit the following information with proposal. Failure to provide complete data 26

may be cause for rejection. 27

1. Manufacturer and model. 28

2. Location of manufacture. 29

3. Nearest authorized service center. 30

4. Submittal schedule. 31

5. Complete electrical ratings. 32

6. Dimensioned plan and elevation drawings. 33

7. Required clearances for operation and maintenance access. 34

8. Volume of fuel storage. 35

9. Fuel consumption rate at site rated load. 36

10. Exhaust flow rate and emissions data. 37

11. Estimated total shipping weight. 38

12. Estimated installed weight with fluids. 39

B. Product Data: Manufacturer’s specifications and technical data modified for this project, clearly 40

indicating options to be provided, and including performance, construction and fabrication. 41

1. Engine Specifications with complete description and specifications of all accessories. 42

2. Detailed specification of construction and fabrication. 43

3. Certified horsepower, fuel rate, and altitude derating curves at specified standby rating. 44

4. Battery and battery charger specifications. 45

6. Alternator (generator) specifications including voltage regulator and exciter specifications. 1

7. Alternator reactances, time constants, and winding resistances. 2

8. Alternator short circuit current characteristics curves. 3

9. Motor starting performance data: Voltage and frequency dip versus starting kVA. 4

10. Manufacturer's installation instructions. 5

11. Fuel consumption data. 6

12. Lube oil consumption data for full load operation. 7

13. Sound attenuation data for both the machine and exhaust system. 8

C. Certifications 9

1. Certification of compliance with specified emissions limits 10

2. Certified independent test reports of acoustical performance 11

D. Shop Drawings: Factory generated and identified to this project. Dimensioned front and floor 12

plan views, one line and wiring control diagrams, and electrical ratings and data noted, 13

equipment weights, and mounting provisions.Where applicable, the equipment naming 14

convention shown on the drawings will be used on the shop drawings. 15

1. Dimensioned outline drawings, of complete engine generator sets locating all connections 16

and indicating weights. Bus and equipment arrangements complete dimensions, elevations 17

(indicating actual arrangement of devices, equipment, and meters). 18

2. Detailed drawing of terminal compartment and method of connection. Bus and equipment 19

arrangements complete dimensions, elevations (indicating actual arrangement of devices, 20

equipment, and meters). 21

3. Enclosure electrical system drawings including panel schedules, peak load, continuous load, 22

connection location, required feeder capacity, and conduit entry provisions. 23

4. Dimensioned locations and elevations of all personnel access openings requiring external 24

stairs or platforms for access. 25

5. Detailed drawing of control panels identifying all wiring terminations and devices. 26

6. Manufacturers prepared installation instructions. 27

7. List all components which are shipped loose and require installation by Owner’s contractor. 28

Items not on this list shall be factory-installed or field-installed by manufacturer’s service 29

technician. 30

8. List all interconnection piping and wiring runs which must be provided by Owner’s 31

contractor. Runs not on this list shall be furnished and installed by manufacturer. 32

9. Include all Product Data as previously described. 33

E. Provide foundation design recommendations including, but not limited to: 34

1. Total installed weight of engine-generator set with all fluids and accessories. 35

2. Dimensioned locations and magnitudes of static and dynamic foundation loads 36

3. Frequencies of vibration anticipated. 37

4. Required vertical, horizontal and rotational stiffness of foundation. 38

F. Wiring Diagrams. 39

1. Complete schematic diagram of all wiring for all indicators, control, and alarm systems 40

identifying each item by part number and function. Schematic diagrams include both 41

internal wiring diagrams and external wiring diagrams. Where applicable, the equipment 42

naming convention shown on the drawings will be used on the shop drawings. 43

2. Internal wiring diagrams, showing point-to-point connections, within each assembly or line-44

up. Internal wiring is defined as any system wiring that is contained within any separate 45

equipment or component, (factory wired). 46

3. External wiring diagrams, showing point-to-point connections, between assemblies or line-47

ups. External wiring is defined as any connection that requires field wiring by the installing 48

electrician at the project site. 49

4. Schematic wiring diagrams shall indicate the component terminations 50

5. Indicate the terminals identification (terminal block and terminal number) for all 51

6. Document and provide revised wiring diagrams for all field wiring changes made after 1

equipment is delivered to the project site through commissioning 2

7. Indicate field wiring requirements between equipment components specified under this 3

section as dashed lines and identify clearly as field installed wiring. 4

8. For field interconnection terminations that interface to equipment furnished by others, 5

include a description of the device and its required function. This may be done graphically 6

or via text description on the drawing. 7

9. Provide grouped terminations for field interconnect wiring. 8

10. Where wiring separation is to be maintained in the field wiring due to voltage class or noise 9

immunity requirements provide separate terminal blocks and note the field wiring separation 10

requirements for the installing contractor. 11

11. Record versions of drawings shall be provided in AutoCAD-compatible electronic format. 12

G. Operations and Maintenance Manuals: 13

1. See Section 01340. 14

2. All associated software required to provide visibility to fault codes and diagnostic 15

information. 16

H. Certified copies of factory test reports shall be submitted prior to shipment. 17

I. Complete list of all internal alarm and shutdown functions including settings, adjustments 18

ranges, and reporting label. 19

1.4 SITE CONDITIONS 20

A. Ambient air temperature: -20 DegF to 100 DegF. 21

B. Altitude: 5700 FT above sea level. 22

C. Equipment shall fit within the space identified on the drawings without reducing clearances 23

below indicated values, code requirements, or manufacturer’s recommendations. 24

D. Seismic Criteria: 25

1. Equipment shall remain intact and operational during and following a seismic event meeting 26

the following criteria per IBC. 27

a. Ss = Mapped MCE, spectral response acceleration at short periods = 23% 28

b. S1 = Mapped MCE, spectral response acceleration at 1 second periods = 6% 29

c. Site class = D. 30

d. IE = Importance factor = 1.5 31

2. Include anchorage requirements and loadings for all equipment for these conditions with 32

shop drawings. 33

1.5 SYSTEM DESCRIPTION 34

A. The standby generator provides an NFPA 110 compliant standby power source for a data center. 35

B. Engine controls, voltage regulator, and governor furnished with the standby generators must 36

provide the performance and compatibility specified in the generator control system 37

specification. 38

C. Generator shall start, reach rated voltage and frequency and provide power to the standby load 39

within 10 seconds, including all time delays incorporated into transfer control system and 40

transfer switch times. Allow one (1) second time delay at transfer switch to over-ride momentary 41

outages. 42

D. Operating Modes: 43

1. Standby power at not more than 500 kW per engine during interruption of utility service. 44

1.6 WARRANTY 45

A. Provide a two-year complete parts, labor and material warranty covering the engine generator set 46

B. Warranty period shall begin upon satisfactory acceptance testing of installed engine generator 1

set. 2

C. Warranty shall cover all repair costs without exemptions for travel time, parts shipping, 3 supervision, etc. 4 5

PART 2 - PRODUCTS

A. Subject to compliance with the Contract Documents, the following manufacturers are 8

acceptable: 9

1. Engine generator unit: 10 a. Caterpillar. 11 b. Cummins Onan. 12 c. Detriot Diesel. 13 2. Battery charger: 14 a. LaMarche. 15 b. Sens 16 3. Governor: 17 a. Manufacturer’s standard. 18 4. Radiator: 19 a. Smithco. 20 b. IEA. 21 5. Vibration isolators: 22 a. Caldyne. 23 b. Mason Inds. 24 c. Ace. 25 d. Korfund Dynamics. 26

2.2 DESIGN AND PERFORMANCE REQUIREMENTS 27

A. The engine generator shall be capable of supplying a minimum of 500 kW of standby power at 28

site conditions while serving a connected operating load consisting of two 80 kVA UPS units, 29

120 HP of induction motors, 90 kW of heating and humidification, and 10 kW of miscellaneous 30

power and lighting. 31

B. The engine generator shall be capable of starting induction motors with a maximum of 20% 32

voltage dip and 10% frequency dip with the following starting sequence (all served at 480V): 33

1. Preload consisting of: 34

a. Lighting/miscellaneous loads (10 kW). 35

b. Two UPS (80 kVA) with ramp start. 36

2. Step 1: 37

a. Condenser fans – quantity 12, size ¾ HP each. 38

b. CRAC fans – quantity 8, size 3 HP each. 39

c. CRAC re-heat – quantity 60 kW 40

3. Step 2: 41

a. Four CRAC compressors - quantity 8, size 12 HP each, speed 3600 RPM, 460V, Full 42

Voltage Starter. 43

4. Step 3: 44

a. Four CRAC compressors - quantity 8, size 12 HP each, speed 3600 RPM, 460V, Full 45

Voltage Starter. 46

C. The total combined mechanical and exhaust noise of the enclosed engine generator set shall not 47

D. The engine-generator set shall provide guaranteed emissions levels complying with EPA non-1

road Tier 3 limits under all operating conditions. 2

2.3 ENGINE-GENERATOR 3

A. Engine Generator Unit General: 4

1. Diesel engine direct-connected to alternating current generator mounted on suitable rigid 5

steel skid supports. 6

2. Mount unit on skid suitable for installation on concrete foundation. 7

3. Base rating on operation at rated RPM when equipped with all operating accessories. 8

B. Engine: 9

1. Four cycle, full compression ignition, single acting, solid-injection unit, either vertical or V-10

type with trunk-type pistons naturally aspirated or turbo charged with after cooling. 11

2. Make engine perform satisfactorily on both commercial grade low sulfur (.05%) diesel fuel 12

and ultra-low sulfur (.0015%) diesel fuel. 13

3. Removable full wet-type cylinder liners of close grained alloy iron, heat treated for proper 14

hardness to obtain maximum life. 15

4. Capable of operating at idle or light loads for extended periods of time. 16

5. Rating basis: Standby power, as indicated on drawings: 17

a. Per ISO 8528 and ISO 304611. 18

b. Derate engine to site ambient conditions, if necessary. 19

C. Injection Pumps and Valves: 20

1. Type not requiring adjustment in service, which may be individually removed and replaced 21

from parts stock. 22

2. Individual injection pumps and valves for each cylinder. 23

3. Fuel injection pumps: Positive action, constant-stroke, actuated by cam driven by gears 24

from engine crankshaft. 25

4. Fuel lines between injection pumps and valves: Heavy seamless steel tubing, same length 26

for each cylinder. 27

5. Flexible fuel line connectors at engine. 28

D. Lubricating Oil System: 29

1. Gear-type lubricating oil pump to supply oil under pressure to main bearings, crank pin 30

bearings, pistons, timing gears, camshaft bearings and valve rocker mechanism. 31

2. Spray cool and lubricate pistons. 32

3. Oil filters so located that lubricating oil is continuously filtered, except during periods when 33

oil is automatically by-passed to protect vital parts when filters are clogged. 34

4. Filter elements accessible and easily removable. 35

5. Filter elements: Effective full flow, replaceable resin-impregnated cellulose type. 36

6. Equip filter system with spring-loaded by-pass valve. 37

7. Oil cooler: Water-cooled, engine-mounted. 38

E. Fuel System: 39

1. Fuel pump: Built-in gear-type, engine-driven fuel transfer pump. 40

2. Equip fuel system with replaceable fuel filter elements arranged for easy removal without 41

breaking any fuel line connections or disturbing fuel pumps or any other part of engine. 42

3. Locate all fuel filters in one accessible housing, ahead of injection pumps to thoroughly 43

filter fuel before it reaches pumps. 44

4. Use no screens or filters requiring cleaning or replacement of injection pumps or valve 45

assemblies. 46

5. Provide flexible fittings for supply and return connections to engine skid. 47

F. Governor: Fully enclosed electronic type governor with actuator capable of providing accurate 48

speed control within 1 percent of rated speed, complete with panel-mounted electronic assembly 49

with ramp generator and speed-sensing modules. 50

H. Electric Starting System: 1

1. Dual electric starting motors and dual starting batteries. 2

2. Sufficient capacity to crank at speed which will start engine within specified time under 3

normal operating conditions. 4

3. Sized for a minimum of three 10-second cranking periods with 15 seconds between periods. 5

4. Prevent excessive cranking which could damage cranking motor. 6

5. Automatic stop controls. 7

6. Starter motors with positive-engagement feature. 8

7. Battery charger 9

a. Mounting from generator skid or free-standing support, not subject to vibration. 10

b. Provide interconnection cables from charger to battery. 11

I. Cooling System: 12

1. Capacity for cooling engine at the specified operating conditions. 13

2. Engine driven, centrifugal type water circulating pump and thermostatic valve to maintain 14

the engine at recommended temperature level. 15

a. Sized for pressure drop in remote radiator and external coolant piping. 16

3. Unit mounted radiator. 17

a. Single or dual circuit to match engine requirements. 18

b. Vertical core with horizontal air-flow. 19

c. Engine driven fan. 20

4. Provide fan guards. 21

5. Integral expansion tanks: 22

a. Sized for capacity of engine, radiator and piping. 23

b. Provided with low-level alarm switch 24

J. Heater: 25

1. Thermostatically controlled jacket water heaters to maintain cooling water and lubricating 26

oil at the manufacturer's recommended temperature for a 10 second start time in 50 DegF 27

ambient. 28

2. Arranged for replacement without draining coolant. 29

3. Arranged for a single external power supply connection: 208 V, single phase. 30

4. Provide all required control and protection components for heaters. 31

K. Engine Instruments and Controls: 32

1. Integral readout in control panel. 33

a. Fuel pressure gauge. 34

b. Oil pressure gauge. 35

c. Oil temperature gauge. 36

d. Water temperature gauge. 37

2. Automatic cycle cranking and over-crank protection. 38

3. Safety controls: Equip engine with automatic safety controls to shut down engine in event 39

of low lubricating oil pressure, high jacket water temperature, overspeed or overcrank. 40

4. Auxiliary control devices: Either integral with specified engine instruments, control, and 41

safety devices or as separate devices as required to operate various signal circuits specified 42

for remote annunciator panel. 43

5. Three NO auxiliary contacts for interface with louvers, fans or other miscellaneous 44

equipment. Contacts shall close when generator is started. 45

L. Batteries: 46

1. Dry-charged, lead-acid type. 47

2. Furnish electrolyte separately for use when installation is complete and unit is ready for 48

testing. 49

3. Insulated, corrosion-resistant, floor mounted battery racks. 50

M. Battery Charger: 51

1. Output current rating of at least 1/20th of ampere hour capacity of battery and capable of 52

2. Solid state rectifiers, DC voltmeter and ammeter, fuse input and output, and 115 VAC input. 1

3. Malfunction alarm contacts for loss of AC power voltage, low and high battery voltage, loss 2

of charge and loss of high rate charge. 3

4. Provide common alarm contact wired to generator control panel for local and remote 4

indication. 5

5. Suitable for operation with batteries disconnected; shall not produce overvoltage or AC 6

voltage components that are damaging to connected equipment. 7

6. LaMarche Model E12 or equal. 8

N. Generator: 9

1. Brushless, 4 pole drip-proof revolving field type with permanent magnet generator (PMG) 10

excitation, 2/3 pitch stator, direct-coupled rotor, Class H insulation. 11

2. Ratings: As indicated on the Drawings, substantiated by manufacturer's standard published 12

curves and conform to NEMA MG 1 specification. 13

a. Rating basis: Standby. 14

b. Temperature rise: 150 degC. 15

c. At site ambient conditions. 16

3. Rated to serve up to 50 percent non-linear load without exceeding standard NEMA 17

temperature rise. 18

4. Minimum efficiency: 92 percent at 50 to 110 percent of nominal standby rating, less than 19

30 percent instantaneous voltage dip at full load and rated power factor and suitable for 20

simultaneous operation with other future units connected in parallel. 21

5. Stator and rotor: Insulated with 100 percent epoxy impregnation and overcoat of resilient 22

insulating material to reduce possible fungus and/or abrasive deterioration. 23

6. Directly connect stator to engine flywheel housing. 24

7. Drive rotor through semiflexible driving flange to ensure permanent alignment. 25

8. Self ventilating with suitable blower, air inlet and outlet openings. 26

9. Provide terminal box of adequate size for entrance of flexible conduit for generator leads 27

out bottom from either side. 28

10. Generator drive free from critical torsional vibration within operating range. 29

O. Voltage Regulator: 30

1. SCR type, to maintain 2 percent voltage regulation from 0 to full load with steady state 31

modulation not exceeding plus 1/2 percent including cross-current compensation to provide 32

maximum of 5 percent unbalance in kVA load sharing between units. 33

2. Provide minimum 300 percent rated current for 10 seconds into 3-phase bolted short circuit. 34

3. Permit unit to operate at no load below rated frequency for engine start up and shut down 35

procedures. 36

4. Provide voltage level and gain controls for normal operating adjustments. 37

5. Provide voltage level control with minimum range of plus or minus 5 percent from rated 38

voltage. 39

6. Mount regulator, in generator housing on suitable vibration isolators. 40

7. Voltage/frequency characteristic as required to provide specified block loading and motor 41

starting performance. 42

P. Engine Control Panel (ECP): 43

1. NEMA 1 type, illuminated vibration isolated instrument and control panel(s). 44

2. AC voltmeter phase-to-phase and phase-to-neutral. 45

3. AC ammeter three phase. 46

4. Frequency meter. 47

5. Kilowatt load meter. 48

6. Run-off-auto engine, control switch. 49

7. Emergency stop. 50

8. Run time meter. 51

9. Voltage level adjustment rheostat. 52

10. Cool down time delay 0-15 min. adjustable. 53

12. Minimum red shut down indicating lights as follows: 1 a. Overcrank. 2 b. Overspeed. 3

c. High high coolant temperature. 4

d. Low low oil pressure. 5

e. Low low fuel level. 6

f. Overload/short circuit. 7

13. Minimum amber alarm indicator lights as follows: 8

a. Control switch not in auto position. 9

b. Low engine water temperature (less than 70 DegF). 10

c. Low fuel in day tank. 11

d. High fuel in day tank. 12

e. Day tank leak. 13

f. Battery charger malfunctioning. 14

g. Low coolant level. 15

14. Minimum amber prealarm indicator lights as follows: 16

a. High engine water temperature. 17

b. Low lubricating oil pressure. 18

15. Common dry contact and audible alarm to indicate when one or more alarm or shutdown 19

conditions exist. 20

16. Load monitoring to provide a generator overload signal above rated load and below trip 21

level to plant control system. 22

17. Provide all interconnecting cables required between ECP and engine-generator. 23

Q. Provide an Ethernet communications port with SNMP protocol to make all engine generator 24

status and alarm information available over the Owner’s network. 25

R. Generator I/O Requirement for Building Automation System interface. Provide isolated dry 26

contacts rated 5A, 125 VAC for input to BAS. All contacts shall be factory-wired to a terminal 27

board designated for owner’s field wiring connections and shall be clearly shown on the 28 submittal drawings. 29 1. Charger Alarm 30 2. Battery 31

3. Low Coolant Level 32

4. Low Fuel Level 33

5. Engine Not in Auto 34

6. GenSet Shutdown Alarm Status 35

7. GenSet Warning Alarm Status 36

8. GenSet Running 37

9. Generator Overload 38

10. Fuel Leak Detection 39

S. Vibration Isolators: Vibration system shall consist of engine and generator mount isolators with 40

or without additional mechanical spring isolators rubber pads to control both high and low 41

frequency vibrations between major components, sub-base and structural foundation and to 42

provide required vibration isolation for the seismic zone of the Project. 43

T. Output Circuit Breakers 44

1. Two required. 45

2. 400 A., 100 percent rated. 46

3. Electronic trip unit. 47

4. Provide with adjustable tripping characteristic to coordinate with downstream feeder 48

protective devices and fall below the generator decrement characteristic and thermal damage 49

2.4 FUEL TANK 1

A. Provide a UL-listed, double wall, closed-top diked sub-base fuel tank with level monitoring and 2

leak detection. 3

B. Capacity: 24 hours of operation at rated load. 4

C. Mechanical level indicator, located for easy observation during filling. 5

D. Level switches to provide alarm at engine control panel on high and low fuel level and automatic 6

engine shutdown on low-low fuel level. 7

2.5 ENCLOSURE 8

A. Provide the engine generator set with an outdoor, weatherproof, enclosure designed to protect 9

the equipment from the environment, attenuate mechanical noise, and provide ready access for 10

maintenance and operation of the equipment. Enclosure shall be integral with the construction of 11

the engine-generator unit, skid base and fuel tank to provide a complete factory assembly and 12

allow for transporting, lifting and setting the unit as a single piece. 13

B. Internal electrical wiring and equipment shall comply with NFPA 70 – 2008 National Electrical 14

Code (NEC). 15

C. Construction Features: 16

1. Metal panel walls and roof with non-hygroscopic thermal and acoustical insulation. 17

2. Hinged personnel access doors with padlockable latches and wind braces. 18

3. Ventilation openings sized to provide adequate airflow for combustion and cooling at site 19

conditions, with screens and louvers to prevent the entry of rain, snow and animals, and 20

with motor-operated dampers as required to maintain internal temperature when unit is not 21

operating. 22

a. All dampers shall fail-safe to the open position to prevent motor-operator failure from 23

preventing generator operation. 24

4. Sloped roof to prevent water accumulation. 25

5. Internal switched lighting and GFCI receptacles adequate for all recommended maintenance 26

activities. 27

6. Minimum one external weatherproof GFCI receptacle. 28

7. Electric heater(s) sized to maintain a minimum internal temperature of 40 degF. 29

8. Fuel fill port with padlockable cover extended to outside the enclosure. 30

9. Coolant and lubricant drain lines extended outside the enclosure with shut-off valves located 31

inside the enclosure. 32

10. Pipe all crankcase breathers to removable drip pans or to outside vents to prevent oil 33

accumulation inside enclosure. 34

11. All electrical supply requirements shall be 208V 1-Phase or 3-Phase or 120V 1-Phase. 35

12. Complete factory-installed electrical system serving all enclosure and engine-generator 36

loads. 37

13. Provisions for connection to buried ground grid, two places, diagonally opposite on base, 38

consisting of stainless steel pads with drilled and tapped holes in NEMA standard 2-hole 39

pattern. 40

D. Exterior of enclosure, sub-base and fuel tank shall be primed and painted with a baked epoxy 41

enamel or electro-deposition process providing a finish meeting ASTM salt spray, humidity, and 42

adhesion standards and guaranteed not to blister, peel, or rust through for a period of five years 43

in normal use. 44

1. Finish color shall match the exterior of the existing building; submit color samples with 45

shop drawings for selection of final color by Owner. 46

E. Arrange enclosure for horizontal cooling air inlet and vertical cooling air discharge. Locate 47

2.6 SOURCE QUALITY CONTROL 1

A. Individually test each engine-generator at manufacturer’s facility prior to shipment. Apply 2

derating factors for the proposed site to test data. Continuously test for a period no less than 2 3

HRS. Test procedure shall be as follows: 4

1. Start engine and upon reaching rated RPM, pick up 100 percent of nameplate KW rating at 5

rated power factor in one step. 6

2. Observe and record the cranking time(s) required to start and run for each prime mover. 7

3. Observe and record the time required to come up to operating speed for each prime mover. 8

4. Record voltage and frequency transient using oscillographic recording for each test. 9

5. Record voltage, frequency and amperes. 10

6. Record oil pressure, water temperature where applicable and battery charge rate at first load 11

acceptance and at 15 minute intervals thereafter for each prime mover. 12

7. At completion of load test disconnect rated load, 100 percent of nameplate kW at rated 13

power factor in one step. 14

8. Record voltage and frequency transient during block loading and unloading using 15

oscillographic chart. 16

B. Engineer and Owners representative shall have the option to witness testing . 17

1. Schedule testing with Owner a minimum of two weeks in advance. 18

2.7 MAINTENANCE MATERIALS 19

A. Spare Parts: 20

1. Provide replacement and renewal parts adequate for two years of scheduled maintenance per 21

manufacturer's recommendations. 22

2. Provide one quart of touch-up paint for enclosure. 23

3. Provide three (3) of each size and type of fuse and indicator light used. 24

PART 3 - EXECUTION

3.1 FIELD SERVICES 26

A. Employ and pay for services of equipment manufacturer's field service representative(s) to: 27

1. Inspect equipment covered by this Section. 28

2. Supervise pre-startup adjustments and installation checks. 29

3. Conduct initial startup of equipment and perform operational checks. 30

4. Provide Owner written statement that manufacturer's equipment has been installed properly, 31

started up, and is ready for operation by Owner's personnel. 32

5. Provide 4 HRS of the manufacturer's technical representative's time for on-site training of 33

Owner's personnel. 34

B. Provide initial fill of all fluids required for operation including but not limited to: 35

1. Lubricants. 36

2. Coolant, including volume of radiators, surge tanks and interconnecting piping. 37

3. Battery electrolyte. 38

4. Fuel. 39

C. Provide on-site load test and functional test. Engineer and Owner shall be notified 7 days prior to 40

testing. 41

1. Test number one: 42

a. With portable load bank connected to output breaker, operate engine generator at site 43

rated kW for a period of four hours. 44

b. Record time, load, oil pressure and temperature, water temperature, and enclosure 45

internal temperature at 15 minute intervals during test. 46

c. Test duration: 4 hours. 47

a. With prime mover(s) in a "cold start" condition and emergency load at normal 1

operating level, initiate a normal power failure by opening main breakers supplying 2

normal power to switchgear. 3

b. Observe and record the time delay on engine start. 4

c. Observe and record the cranking time(s) required to start and run for each prime mover. 5

d. Observe and record the time required to come up to operating speed for each prime 6

mover. 7

e. Record voltage and frequency overshoot. 8

f. Observe and record time required to achieve steady-state condition with all switches 9

transferred to emergency position. 10

g. Record voltage, frequency and amperes. 11

h. Start plant motor loads in sequence specified in Part 2. Record voltage and frequency 12

dip and load kW for each step. 13

i. Record oil pressure, water temperature where applicable and battery charge rate at 5-14

minute intervals for the first 15 minutes and at 15 minute intervals thereafter. 15

j. Return normal power to facility , record time delay on retransfer to normal for each 16

switch and cooldown time delay for each prime mover. 17

3. Cycle crank test: 18

a. Utilize any method recommended by manufacturer to prevent engine from running. Put 19

control switch into "run" position to cause prime mover to crank. 20

b. A complete cranking cycle shall consist of an automatic crank period of approximately 21

15 seconds duration followed by a rest period of approximately 15 seconds duration. 22

Upon starting and running of the prime mover, further cranking shall cease. Two 23

means of cranking termination shall be utilized so that one will act as a backup to the 24

other to prevent inadvertent starter engagement. Cranking limiter time shall be 75 25

seconds for cycle crank. 26

4. Record engine fuel consumption by means of test equipment. 27

5. Test all safeties specified for generator instruments and controls as recommended by 28

manufacturer and as required to verify proper operation. 29

D. Provide field service support for system commissioning, minimum 8 hours on site, in addition to 30

other field service requirements. 31

1. Coordinate with Owner’s contractor and Commissioning authority, 32

E. Replace all fluids consumed during startup and testing, including fuel. 33
