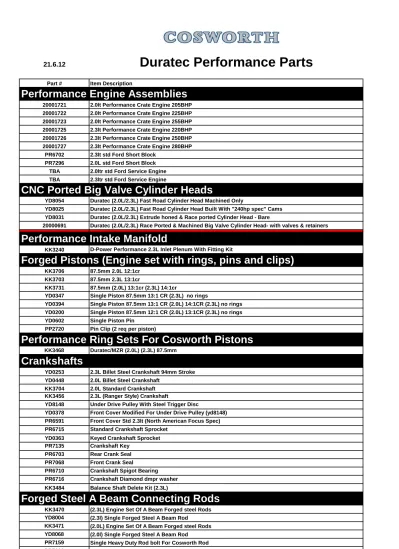

Part # Item Description
20001721 2.0lt Performance Crate Engine 205BHP 20001722 2.0lt Performance Crate Engine 225BHP 20001723 2.0lt Performance Crate Engine 255BHP 20001725 2.3lt Performance Crate Engine 220BHP 20001726 2.3lt Performance Crate Engine 250BHP 20001727 2.3lt Performance Crate Engine 280BHP
PR6702 2.3lt std Ford Short Block PR7296 2.0L std Ford Short Block
TBA 2.0ltr std Ford Service Engine TBA 2.3ltr std Ford Service Engine
YD8054 Duratec (2.0L/2.3L) Fast Road Cylinder Head Machined Only
YD8025 Duratec (2.0L/2.3L) Fast Road Cylinder Head Built With "240hp spec" Cams YD8031 Duratec (2.0L/2.3L) Extrude honed & Race ported Cylinder Head - Bare
20000691 Duratec (2.0L/2.3L) Race Ported & Machined Big Valve Cylinder Head- with valves & retainers
KK3240 D-Power Performance 2.3L Inlet Plenum With Fitting Kit
KK3706 87.5mm 2.0L 12:1cr
KK3703 87.5mm 2.3L 13:1cr
KK3731 87.5mm (2.0L) 13:1cr (2.3L) 14:1cr
YD0347 Single Piston 87.5mm 13:1 CR (2.3L) no rings
YD0394 Single Piston 87.5mm 13:1 CR (2.0L) 14:1CR (2.3L) no rings YD0200 Single Piston 87.5mm 12:1 CR (2.0L) 13:1CR (2.3L) no rings
YD0602 Single Piston Pin
PP2720 Pin Clip (2 req per piston)
KK3468 Duratec/MZR (2.0L) (2.3L) 87.5mm
YD0253 2.3L Billet Steel Crankshaft 94mm Stroke YD0448 2.0L Billet Steel Crankshaft
KK3704 2.0L Standard Crankshaft KK3456 2.3L (Ranger Style) Crankshaft
YD8148 Under Drive Pulley With Steel Trigger Disc
YD0378 Front Cover Modified For Under Drive Pulley (yd8148) PR6591 Front Cover Std 2.3lt (North American Focus Spec) PR6715 Standard Crankshaft Sprocket
YD0363 Keyed Crankshaft Sprocket
PR7135 Crankshaft Key
PR6703 Rear Crank Seal
PR7068 Front Crank Seal
PR6710 Crankshaft Spigot Bearing PR6716 Crankshaft Diamond dmpr washer KK3484 Balance Shaft Delete Kit (2.3L)
KK3470 (2.3L) Engine Set Of A Beam Forged steel Rods YD8004 (2.3l) Single Forged Steel A Beam Rod
KK3471 (2.0L) Engine Set Of A Beam Forged steel Rods YD8068 (2.0l) Single Forged Steel A Beam Rod
PR7159 Single Heavy Duty Rod bolt For Cosworth Rod PR7092 Single Standard Rod bolt
Crankshafts
Performance Ring Sets For Cosworth Pistons
Performance Engine Assemblies
Forged Pistons (Engine set with rings, pins and clips)
Performance Intake Manifold
CNC Ported Big Valve Cylinder Heads
Part # Item Description
KK3482 (2.0L) Main Bearing Set (Std) Grade B KK3481 (2.3L) Main Bearing Set (Std) Grade B
PR5717 (2.0L) Main Bearing (Std) Single Grade B - Upper PR5720 (2.0L) Main Bearing (Std) Single Grade B - Centre PR5723 (2.0L) Main Bearing (Std) Single Grade B - Lower PR7014 (2.3L) Main Bearing (Std) Single Grade B - Upper PR7015 (2.3L) Main Bearing (Std) Single Grade B - Center PR7016 (2.3L) Main Bearing (Std) Single Grade B - Lower PR7223 (2.3L) Main Bearing (Std) Single Grade C - Upper PR7229 (2.3L) Main Bearing (Std) Single Grade C - Center PR7226 (2.3L) Main Bearing (Std) Single Grade C - Lower KK3531 (2.3L) Rod Bearing Set-Tri Metal: VP2
YD0350 (2.3L) Rod Bearing Single
KK3483 (2.0L) Rod Bearing Set-Tri Metal: VP2 PR5726 (2.0L) Rod Bearing Single
YD0222 (2.0L/2.3L) Inlet cam (non VVT) "200hp spec" Specification "255" deg. 9.5 mm lift
YD0173 (2.0L/2.3L) Exhaust cam (non VVT) "200/240hp spec" Specification "255" deg. 9.5 mm lift
YD0224 (2.0L/2.3L) Inlet cam (non VVT) "240hp spec" Specification "282" deg. 11.3 mm lift
YD0716 2.0L Inlet cam (non VVT) "220hp spec" Specification "290" deg. 11.3mm lift
YD0717 2.0L Exhaust cam (non VVT) "220hp spec" Specification "266" deg. 9.95mm lift
YD0223 (2.0L/2.3L) Inlet cam (non VVT) "260hp spec" Specification "282" deg. 11.3 mm lift
YD0182 (2.0L/2.3L) Exhaust cam (non VVT) "260hp spec" Specification "262" deg. 9.95 mm lift
YD0718 (2.0L/2.3L) Inlet cam (non VVT) "250hp/280hp spec" Specification "303" deg. 12.5mm lift
YD0719 (2.0L/2.3) Exhaust cam (non VVT) "250hp/280hp spec" Specification "290" deg. 11.3mm lift
YJ0092 (2.0L/2.3L) Camshaft friction washer
KK3457 OE cam bolt set
PR6667 Camshaft Sprocket
PR6732 Camshaft Sprocket Bolt PR6850 Cosworth cam timing tool
PR6823 Timimg pin
PR6304 Head gasket (2.0L/2.3L) Bore=87.5mm PR6302 Exhaust Manifold Gasket
PR6286 Water outlet Gasket
PR7235 Crankshaft Breather Cover Gasket
PR6738 Water Pump (229 litres/min)
PR6739 Water Pump Pulley
YD0784 (2.0L/2.3L) Billet Low Speed Water Pump Pulley PR6595 Thermostat and housing (82 deg C)
PR6777 Cam cover OEM plastic
YD0698 Water outlet, cylinder head-Short
YD8100 Water outlet, cylinder head-Short w bypass fitting
High Performance Engine Bearings
Gaskets
Oil & Water Control / Misc.
High Performance Camshafts
Part # Item Description
PR6895 Coolant Temperature sensor
PR7167 Oil pump, high volume
PR6513 Oil pump Standard
PR6572 Oil Scavenge Drive Chain for dry sump PR6717 Oil Scavenge Drive Chain Tensioner 20000748 Oil cooler kit, water type
PR6630 Modeen oil cooler
PR6629 Oil Filter adapter housing YD8087 (2.3L) Wet Sump Baffle Kit
YD8140 (2.0L/2.3L) Dry Sump Kit (Internal Pump) 2 stage
YD8107 (2.0L/2.3L) Dry Sump Kit (Internal Pump) 3 stage extreme applications PR7246 (2.0) Timing chain
PR6731 Chain tensioner Arm
PR6733 (2.3L) Timing chain - Ranger style PR6734 (2.0/2.3) Timing chain long guide PR6735 (2.0/2.3L) Timing chain tensioner YD0212 Crankcase Breather Plate
YD8071 Crankcase Vent cover
High Performance Valve Train
KK3459 (2.0L/2.3L)High RPM Valve Spring set 11.5mm lift (16) YD0093 (2.0L/2.3L)High RPM Valve Spring (single) 11.5mm lift 20012351 (2.0L/2.3L) Ultra High RPM Valve Spring Set 12.5mm Lift (16)
YD0284 (2.0L/2.3L) Ultra High RPM Valve Spring (single) 12.5mm lift PR6698 (2.0L/2.3L) Inlet Valve OE size each
PR6699 (2.0L/2.3L) Exh Valve OE size each 20000692 (2.0L/2.3L) Inlet Valve +1mm oversize 20001996 (2.0L/2.3L) Exh Valve +1mm oversize
KK3452 (2.0L/2.3L)Valve Spring Retainer Set (16)
KK3453 (2.0L/2.3L)Valve Spring Retainer keeper(32) (PR6189) KK3454 (2.0L/2.3L)Exhaust Valve Stem Seal Set (8)
KK3455 (2.0L/2.3L)Inlet Valve Stem Seal Set (8) PR6518 (2.0L/2.3L)Graded Cam bucket 3.000 PR6519 (2.0L/2.3L)Graded Cam bucket 3.025 PR6520 (2.0L/2.3L)Graded Cam bucket 3.050 PR6521 (2.0L/2.3L)Graded Cam bucket 3.075 PR6522 (2.0L/2.3L)Graded Cam bucket 3.100 PR6523 (2.0L/2.3L)Graded Cam bucket 3.122 PR6524 (2.0L/2.3L)Graded Cam bucket 3.142 PR6525 (2.0L/2.3L)Graded Cam bucket 3.162 PR6526 (2.0L/2.3L)Graded Cam bucket 3.182 PR6527 (2.0L/2.3L)Graded Cam bucket 3.202 PR6528 (2.0L/2.3L)Graded Cam bucket 3.222 PR6529 (2.0L/2.3L)Graded Cam bucket 3.242 PR6530 (2.0L/2.3L)Graded Cam bucket 3.262 PR6531 (2.0L/2.3L)Graded Cam bucket 3.282 PR6532 (2.0L/2.3L)Graded Cam bucket 3.302 PR6533 (2.0L/2.3L)Graded Cam bucket 3.322 PR6534 (2.0L/2.3L)Graded Cam bucket 3.342 PR6535 (2.0L/2.3L)Graded Cam bucket 3.362 PR6536 (2.0L/2.3L)Graded Cam bucket 3.382 PR6537 (2.0L/2.3L)Graded Cam bucket 3.402 PR6538 (2.0L/2.3L)Graded Cam bucket 3.422 PR6539 (2.0L/2.3L)Graded Cam bucket 3.442 PR6540 (2.0L/2.3L)Graded Cam bucket 3.462 PR6541 (2.0L/2.3L)Graded Cam bucket 3.482
Part # Item Description
PR6542 (2.0L/2.3L)Graded Cam bucket 3.502 PR6543 (2.0L/2.3L)Graded Cam bucket 3.522 PR6544 (2.0L/2.3L)Graded Cam bucket 3.542 PR6545 (2.0L/2.3L)Graded Cam bucket 3.562 PR6546 (2.0L/2.3L)Graded Cam bucket 3.582 PR6547 (2.0L/2.3L)Graded Cam bucket 3.602 PR6548 (2.0L/2.3L)Graded Cam bucket 3.625 PR6549 (2.0L/2.3L)Graded Cam bucket 3.650 PR6550 (2.0L/2.3L)Graded Cam bucket 3.675 PR6551 (2.0L/2.3L)Graded Cam bucket 3.700 PR6552 (2.0L/2.3L)Graded Cam bucket 3.725
Induction / Fuel /Electrical
KK3450 (2.0L/2.3L) High volume Fuel Rail Kit W injectors (310g min) PR6647 Fuel Injector EV6 Type (310g min)
KK3563 (2.0L/2.3L) Barrel throttle incl fit kit (standard and race head) KK3702 (2.0L/2.3L) Barrel throttle incl fit kit (ultra race head)
KK3599 (2.0L/2.3L) Barrel throttle air box kit inc filter 100mm trumpets PR6874 (2.0L/2.3L) Barrel Throttle Air Filter Element
KK3710 (2.0L/2.3L) air box kit inc filter 115mm trumpets YD8070 (2.0L/2.3L) Cosworth Barrel Throttle Assembly 45mm YD8113 (2.0L/2.3L) Cosworth Barrel Throttle Assembly 48mm KK3562 Barrel Throttle Fit Kit-use with YD8070
PR6314 Throttle position sensor
PR6318 Cam position sensor
PR6319 Crank position sensor
PR5063 MAP sensor
KK3599 Carbon Fiber IntakeTrumpets/air box for Roller Throttle-use with YD8070 PR7496 Air filter replacement for KK3599 KK3710
YD0387 MBE ECU- For Duratec Application KK3558 MBE Loom Kit for Duratec Application 20014886 MBE ECU - Geartronic 255 special
PR6932 Alternator (40amp Race)
YD0161 Lightweight alternator bracket (Lower) YD0397 Lightweight alternator bracket (upper) YD0310 Alternator pulley Lightweight PR6628 Aux drive belt tensioner
YD0159 Modified aux drive belt tensioner
PR6783 Starter Motor
PR6084 Spark plug (cold range) YD8097 ignition coil loom PR6323 Ignition coil (coil on plug)
KK3559 ECU Flashing kit- CD Calibration software KK3545 Carbon fibre coil cover (including fit kit)
Drive Train
PR6993 Clutch - rear drive application T9 gearbox
PR6590 flywheel
PR6597 Standard Flywheel bolt
PR7115 (2.0L/2.3L) High performance head stud Kit PR6065 Single head bolt standard
KK3457 OE Cam bolt set
KK3451 OE Head bolt set (10) PR7116 (2.0L/2.3L) Main Stud Kit
PR6926 Durlok Clutch bolt
Part # Item Description
PR7117 (2.0L/2.3L) Heavy Duty Flywheel bolt set PR7118 (2.0L/2.3L) Heavy Duty Front Pulley Bolt PR6571 (2.0L/2.3L) Standard Front Pulley Bolt PR6601 M10 x 32 Exhaust studs
PR6631 M12 x 62.5 (oil cooler) PR6704 M6 x 14 screws (rear oiil seal)
PR6706 M6 x 20 screws
PR6713 M8 x 103 screws (Oil pump)
PR6714 M8 x 20 screws
PR6727 M10 x 80 Screw (front cover) PR6728 M6 x 30 Screw (front cover) PR6729 M8 x 40 Screw (front cover) PR6730 M10 x 40 Screw (front cover) PR6736 M6 x 23 Screws (chain guide) PR6737 M6 x 27 Bolts (chain tensioner)
PR6740 M8 x 12 screws (water pump pulley bolts) PR6741 M6 x 25 Screw (Front cover/water pump)
Cosworth Official Clothing
10000611 Genuine Cosworth Baseball cap (Box of 24) Blue 10000512 Official Cosworth Short Sleeve T-Shirt (box of 40) Blue 10000513 Official Cosworth Long Sleeve T-Shirt (box of 40) Blue
ALL PRICES AND PART NUMBERS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT THE DISCRETION OF COSWORTH Ltd.
Product Disclaimer:A vehicle modified with Cosworth competition and or racing performance products will not meet the legal requirementsfor operation on public roads and highways.It is the purchaser’s responsibility to check and comply with all local or/and national laws prior to operating vehicle. Installation and use of performance products may also affect/ void vehicle warranty and insurance policy.
All goods and services purchased from Cosworth Ltd are subject to our standard terms and conditions of sales as specified on http://www.cosworth.com
