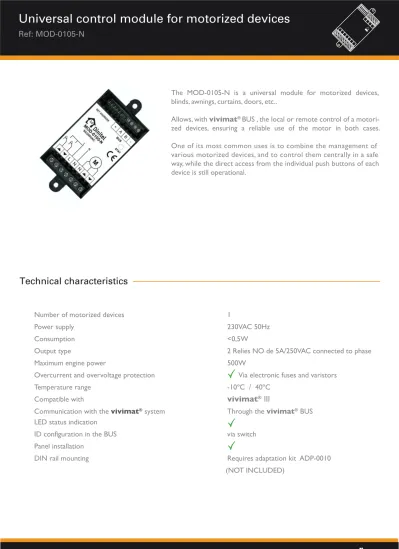

Universal control module for motorized devices

The MOD-0105-N is a universal module for motorized devices, blinds, awnings, curtains, doors, etc..

Allows, with vivimat® _{BUS , the local or remote control of a} motori-zed devices, ensuring a reliable use of the motor in both cases. One of its most common uses is to combine the management of various motorized devices, and to control them centrally in a safe way, while the direct access from the individual push buttons of each device is still operational.

Technical characteristics

Number of motorized devices 1

Power supply 230VAC 50Hz

Consumption <0,5W

Output type 2 Relies NO de 5A/250VAC connected to phase

Maximum engine power 500W

Overcurrent and overvoltage protection Via electronic fuses and varistors

Temperature range -10ºC / 40ºC

Compatible with vivimat® _III

Communication with the vivimat®_{system Through the vivimat}® _BUS

LED status indication

ID configuration in the BUS via switch

Panel installation

DIN rail mounting Requires adaptation kit ADP-0010 (NOT INCLUDED)

Dimensions

Connections

* MOD-0105 + adaptation part ADP-0010 for DIN rail. (NOT INCLUDED)

- Wiring: All wires of 0,22mm2

42 mm

+

-+

-Manual push down buttons Manual push up buttons

Remote push up buttons

Neutral motor N - Output

Phase Neuter

Remote push down buttons

Output motor down Output motor up

Earthing

+

-Switches vivimat® BUS

N F

Configuration

Via the switches the MOD-0105-N can define its module address in the vivimat® _{BUS . vivimat}® _{III can have up} to 50 motorized devices control modules. Select the address of each module as indicated in the configuration made with vivimat® _{Project. The addresses of the modules are consecutively} assigned by vivimat® _{Project (There must not be 2 modules of the same type with the same address).}

The modules MOD-0105-N belonging to a vivimat® _{III system must be registered in the configuration of the installation}

which is implemented by vivimat® _{Project, assigning an ID number to the module and specifying which motorized}

devices, the module is going to control.

ON 1 2 3 4 5 6 ADDRESS 1 ON 1 2 3 4 5 6 ADDRESS 2 ON 1 2 3 4 5 6 ADDRESS 3 ON 1 2 3 4 5 6 ADDRESS 4 ON 1 2 3 4 5 6 ADDRESS 5 ON 1 2 3 4 5 6 ADDRESS 6 ON 1 2 3 4 5 6 ADDRESS 7 ON 1 2 3 4 5 6 ADDRESS 8 ON 1 2 3 4 5 6 ADDRESS 9 ON 1 2 3 4 5 6 ADDRESS 10 ON 1 2 3 4 5 6 ADDRESS 11 ON 1 2 3 4 5 6 ADDRESS 12 ON 1 2 3 4 5 6 ADDRESS 13 ON 1 2 3 4 5 6 ADDRESS 14 ON 1 2 3 4 5 6 ADDRESS 15 ON 1 2 3 4 5 6 ADDRESS 16 ON 1 2 3 4 5 6 ADDRESS 17 ON 1 2 3 4 5 6 ADDRESS 18 ON 1 2 3 4 5 6 ADDRESS 19 ON 1 2 3 4 5 6 ADDRESS 20 ON 1 2 3 4 5 6 ADDRESS 21 ON 1 2 3 4 5 6 ADDRESS 22 ON 1 2 3 4 5 6 ADDRESS 23 ON 1 2 3 4 5 6 ADDRESS 24 ON 1 2 3 4 5 6 ADDRESS 25 ON 1 2 3 4 5 6 ADDRESS 26 ON 1 2 3 4 5 6 ADDRESS 27 ON 1 2 3 4 5 6 ADDRESS 28 ON 1 2 3 4 5 6 ADDRESS 29 ON 1 2 3 4 5 6 ADDRESS 30 ON 1 2 3 4 5 6 ADDRESS 31 ON 1 2 3 4 5 6 ADDRESS 32 ON 1 2 3 4 5 6 ADDRESS 33 ON 1 2 3 4 5 6 ADDRESS 34 ON 1 2 3 4 5 6 ADDRESS 35 ON 1 2 3 4 5 6 ADDRESS 36 ON 1 2 3 4 5 6 ADDRESS 37 ON 1 2 3 4 5 6 ADDRESS 38 ON 1 2 3 4 5 6 ADDRESS 39 ON 1 2 3 4 5 6 ADDRESS 40 ON 1 2 3 4 5 6 ADDRESS 41 ON 1 2 3 4 5 6 ADDRESS 42 ON 1 2 3 4 5 6 ADDRESS 43 ON 1 2 3 4 5 6 ADDRESS 44 ON 1 2 3 4 5 6 ADDRESS 45 ON 1 2 3 4 5 6 ADDRESS 46 ON 1 2 3 4 5 6 ADDRESS 47 ON 1 2 3 4 5 6 ADDRESS 48 ON 1 2 3 4 5 6 ADDRESS 49 ON 1 2 3 4 5 6 ADDRESS 50

Functioning

LOCAL CONTROL :

Local control is carried out by on or more buttons connected in parallel (see connections). -A short key press (less than 0,5 sec.) will move totally up or down (motorized device). depending on the push button you have press (up or down)

- If the device is moving, a short pressing in the opposite direction will stop the device.

- A long key press on the up or down buttons it will move up or down the device depending on the button you have pressed: In the panel you will just see the positions 0 - 20 - 40 - 60 - 80 - 100%

REMOTE CONTROL:

The control is carried out by the vivimat® _{home automation system BUS.} It is possible to activate the following functions remotely:

- Move up or down totally the motorized device.

- Move up or down the motorized device to a certain position. 0 - 20 - 40 - 60 - 80 - 100% - Know the status of the motorized device: 0 - 20 - 40 - 60 - 80 - 100%

- Configure the module.

LED STATUS INDICATION:

1- Green blinking: Module operative . 2- Red blinking: Module in communication.

3- Red or NOT illuminated: Problems with the module.

*SECURITY: The module prioritizes local orders to remote orders. If the module is executing

Installation recommendations

-Installation corresponding to a > 100 x 100mm box: The 100 x 100mm box is embedded in the wall of the housing.

With 2 screws (NOT INCLUDED) we fix the MOD-0105-N to the box (1).

1

3

Adaptation part x 2

-DIN rail installation: For the DIN rail installation, you require the adaptation kit ADP-0010 (NOT INCLUDED),

consisting of 2 pieces, which has to be inserted into the rear of the module (1). Once the pieces are inserted, we fit the module into the DIN rail (2).

1

Product manufactured by: Dinitel 2000 S.A. - Avda. Otaola 20 20600 Eibar ( Guipúzcoa ) Spaint T. +34 902 111 220 / +34 943 820 458 F. +34 902 124 779

www.domotica-vivimat.com [email protected]
