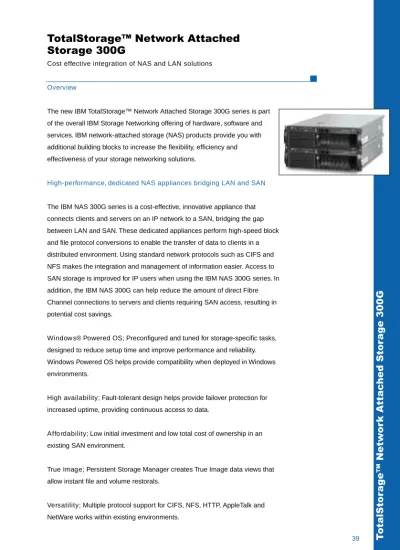

TotalStorage Network Attached Storage 300G Cost effective integration of NAS and LAN solutions

(1)

a

ge™ Netw

or

k Attac

hed Stor

a

ge 300G

TotalStorage™ Network Attached

Storage 300G

Cost effective integration of NAS and LAN solutions

Overview

The new IBM TotalStorage™ Network Attached Storage 300G series is part of the overall IBM Storage Networking offering of hardware, software and services. IBM network-attached storage (NAS) products provide you with additional building blocks to increase the flexibility, efficiency and effectiveness of your storage networking solutions.

High-performance, dedicated NAS appliances bridging LAN and SAN

The IBM NAS 300G series is a cost-effective, innovative appliance that connects clients and servers on an IP network to a SAN, bridging the gap between LAN and SAN. These dedicated appliances perform high-speed block and file protocol conversions to enable the transfer of data to clients in a distributed environment. Using standard network protocols such as CIFS and NFS makes the integration and management of information easier. Access to SAN storage is improved for IP users when using the IBM NAS 300G series. In addition, the IBM NAS 300G can help reduce the amount of direct Fibre Channel connections to servers and clients requiring SAN access, resulting in potential cost savings.

Window s® Powered OS; Preconfigured and tuned for storage-specific tasks, designed to reduce setup time and improve performance and reliability. Windows Powered OS helps provide compatibility when deployed in Windows environments.

High availability; Fault-tolerant design helps provide failover protection for increased uptime, providing continuous access to data.

Affo rdability; Low initial investment and low total cost of ownership in an existing SAN environment.

True Image; Persistent Storage Manager creates True Image data views that allow instant file and volume restorals.

(2)

40

Designed for flexible configurations

The IBM NAS 300G series is compatible with several SAN storage appliances, which makes it ideal for providing storage access to IP users. Depending on the amount of I/O traffic on the network, the

IBM NAS 300G series can support over 1000 IP-based clients per unit1_{To provide enough storage}

capacity for each user, up to 22 TB of storage can be allocated for use with the IBM NAS 300G

series2

. As situations and storage requirements change, an administrator is able to reallocate storage to fit the growing needs of the organisation. When requirements for storage increases, the IBM NAS 300G series can access multiple SAN devices to provide additional storage.

Some of the compatible appliances include the IBM Enterprise Storage Server™ (ESS), FAStT200 and FAStT500. With such flexible configurations, the IBM NAS 300G series provides administrators with the necessary tools to manage storage resources more efficiently, creating a more cost-effective storage system, and reducing total cost of ownership. By using the IBM NAS 300G series, access to existing SAN storage is a possible solution to the increasing demands for additional storage.

The IBM NAS 300G series is well suited to the following networking tasks:

.

Providing LAN clients and servers access to SAN storage for storing, retrieving

and backing up data

.

File server storage consolidation

.

File server management

.

Heterogeneous file sharing

High-reliability design

The IBM NAS 300G series high-performance engines are preloaded with an operating system and additional software tuned specifically to function as a dedicated network appliance. The IBM NAS 300G series incorporates a variety of high-reliability and availability features to support 24 x 7 operations.

(3)

Investment protection

The IBM NAS 300G series supports existing storage devices such as the IBM 71333

. When used with the IBM NAS 300G series, new storage networking configurations are possible. Properly configured, the 7133 can be used in a CIFS and NFS environment on a SAN. The result is that the 7133 enables file-server storage consolidation in a CIFS and NFS environment. Existing storage investments are extended by using the IBM NAS 300G series to allow access to UNIX and Windows users in a pooled storage environment. Tape backup and other SAN accessories are also supported in this

configuration.

System management support

The IBM NAS 300G series is preloaded with a base operating system and software that supports:

.

Web-based GUI and Microsoft® Terminal Services for remote administration

.

Windows NT® Backup for local backup

.

IBM Advanced Appliance Configuration Utility for initial configuration

.

Universal Manageability Services agent and Netfinity® Director agent for remote system

administration

.

Tivoli Storage Manager client for storage management and backups

.

Tivoli SANergy for data acceleration

.

Columbia Data Products Storage Manager for True Image data views creation of files,

drives and volumes (backup enablement)

Using the IBM advanced configuration utility allows an administrator to manage individual or large groups of IBM NAS appliances. Multiple units of the IBM NAS 300G can be used simultaneously within the same SAN network. Administrators can view hardware configurations of remote systems in detail, and monitor usage and performance of critical components. The IBM NAS 300G series offers a Tivoli Storage Manager backup client that can be used to backup data. File level and sub-file level backup and restore is provided.

The Universal System Management allows remote administration, monitoring and maintenance of IBM systems. The UM Services client is included in the IBM NAS 300G series and supports UM Services Upward Integration Modules (Aims), Common Information Model (CIM), Desktop Management Interface (DMI) and Simple Network Management Protocol (SNMP). System management platforms that are supported include Tivoli Enterprise, CA Unicenter TNG Framework and Microsoft System Management Server.

(4)

It is important to verify a user's identity and control his or her access to data. The IBM NAS 300G series can be easily integrated with a range of existing security and data protection software that provides authentication and access control on a SAN.

The new IBM NAS 300G series can increase the flexibility and efficiency of your storage networking solutions by providing LAN-to-SAN connectivity. It is ideal for customers who have a SAN or those planning to implement one in their networking storage infrastructure. If increasing efficiency and access to existing SAN storage is important in your storage networking environment, the IBM NAS 300G series can help provide a solution.

Product Features

Optimised performance - Dedicated appliance with software and application suite optimised for performance. Provides access to existing storage and enables efficient use of resources. Increased access - Allows IP clients and servers access on storage area network (SAN) devices without each server or client being individually connected by Fibre Channel.

Data protection - Instant file and volume restore capability utilising any one of a possible 250 True Images to recover corrupted/deleted data.

Data acceleration - Designed to provide ease of use and Fibre Channel speed when configured with Tivoli® SANergy™ software.

Fault tolerant - Dual engines and redundant power supplies help support high availability Flexible - Provides access to multiple SAN storage devices to enable flexible configurations and allows growth. Uses supported industry-standard protocols and hardware for storage access. Affo rdable - Designed for low initial investment, and low total cost of ownership.

Simple - Easily installed in a rack, ready to use in less than 30 minutes!

(5)

Network attached storage 300G at a glance

Single Engine Dual Engine

(5196 Model G01) (5196 Model G26)

Packaging

NAS 300G 5187 NAS Engine Model 6RY Dual 5187 NAS Engine Model 6RY

Form Factor Rack mountable / 3U Rack mountable / 6U

Engine Single Dual

Power supply (per engine) Two 270 W Two 270 W

Physical Dimensions

(per engine) (Height/Width/Depth) 133.4 mm x 414 mm x 660.4 mm (5.25 in x 16.3 in. x 26.0 in)

Weight (per engine) Min. 20.0 kg (44 lb), max. 28.1 kg (62.1 lb)

Operating Environment

Temperature (min.) 10° to 35°C (50° to 95°F) at 0 to 914 m (0 to 3000 ft)

Temperature (max.) 10° to 32°C (50° to 90°F) at 914 to 2133m (3000 to 7000 ft)

Relative Humidity 8% to 80%

Electrical 100 - 240 V ac; 50 Hz - 60 Hz; 4.3 - 2.1 A (at min.- max. voltage)

Performance

Processor (per engine) Dual 1.13-GHz Pentium® III with 133-MHz front-side bus4

Level 2 cache per processor 512 KB (full speed) 512 KB (full speed)

ECC SDRAM memory 1 GB (per engine) 1 GB (per engine)

Internal fixed disk ( per engine) 18 GB for OS 18 GB for OS

File protocols supported CIFS, NFS, HTTP, FTP, NetWare, AppleTalk

Advanced System Management Yes Yes

NetBench See 5 _See5

SPECsfs See 5 _See5

Connectivity (per engine)

Available PCI slots (per engine) 2x64-bit/33MHz, 1x32-bit/33MHz, 2x64-bit/66MHz

Ethernet connections 1-port 10/100-Mbps Ethernet 1-port 10/100-Mbps Ethernet

(on planar) (internodal communications

on planar)

Optional features 1-port Fibre Channel Adapter

2-port Fibre Channel Adapter 1-port 10/100-Mbps Ethernet 4-port 10/100-Mbps Ethernet Gigabit Ethernet SX Adapter OS mirroring feature Second 18 GB OS HDD ServeRAID 4Lx Adapter Ultrawide SCSI SE Adapter Ultra 160 SCSI LVD/SE Adapter Remote Supervisor Adapter

Software

Operating system Windows Powered OS

Backup Windows NT Backup

(6)

Storage management Tivoli Storage Manager Client (V4.2)

Systems management IBM Director 2.2 agent

Performance enhancement Tivoli SANergy Exec Agent (V2.2)

Remote administration Web-based GUI

Microsoft Terminal Services

Supported storage devices6 _{IBM 2105 Enterprise Storage Server, Models F10 and F20}

IBM 7133 Serial Storage Disk (SSA) connected via IBM 7140 SAN controller IBM FAStT500 Storage Server

IBM FAStT200 Storage Server Supported

Fibre Channel devices6 _{IBM - 2109 Fibre Channel Switches}

IBM - 2108 SAN Data Gateway and Router IBM - 2032 McDATA Fibre Channel Directors IBM - 2031 McDATA Fabric Switches

IBM - 2042 INFRANGE FC/9000 Fibre Channel Directors IBM - 3534 Managed Hub

Brocade 2800/2400/Compaq SAN Switch Vixel 2100 Managed Hub

High-availability features

Dual, redundant, and auto-ranging power supplies Dual-engine clustering and failover (Model G26 only) RAID protected OS

Redundant Fibre Channel SAN connection

Support features IBM Start Up Support

Advanced Systems Management

.

Light-Path Diagnostics(LPD)

.

Predictive Failure Analysis

.

Remote connect automated callup and dispatch Services from IBM Global Services:

.

IBM hardware services - IBM installation services for IBM TotalStorage

.

IBM operational support services - support line

Standard s MPS 1.4, PCI specification 2.1, ISO 9241 Part 3

Approvals and Safety FCC Class A Part 15, Canada ICES-003 issue 3 Class A, UL 1950,

CSA C22.2 No. 950, NOM-018

Warranty 3 year parts / 1 year labour warranty (warranty upgrades available)

1. Based on CIFS throughput with an assumption of an average client use.

2. 11 TB is the maximum storage tested and recommended per engine. Customers might choose to allocate less storage depending on the data traffic driven across each engine.

3. IBM 7133 used with an IBM 7140 SAN controller.

4. MHz only measures microprocessor internal clock speed, not application performance.

5. At the time of publication, NetBench and SPECsfs performance determination were in progress. Please check our performance page for the current status.

6. Refer to the Interoperability page for the latest information.

(7)

Network attached storage 300G at a glance

Single Engine Dual Engine

(5196 Model G00) (5196 Model G25)

Packaging

NAS 300G 5187 NAS Engine Model 5RY Dual 5187 NAS Engine Model 5RY

Form Factor Rack mountable / 3U Rack mountable / 6U

Engine Single Dual

Power supply (per engine) Two 270 W Two 270 W

Physical Dimensions

(per engine) (Height/Width/Depth) 133.4 mm x 414 mm x 660.4 mm (5.25 in x 16.3 in. x 26.0 in)

Weight (per engine) Min. 20.0 kg (44 lb), max. 28.1 kg (62.1 lb)

Operating Environment

Temperature (min.) 10° to 35°C (50° to 95°F) at 0 to 914 m (0 to 3000 ft)

Temperature (max.) 10° to 32°C (50° to 90°F) at 914 to 2133m (3000 to 7000 ft)

Relative Humidity 8% to 80%

Electrical 100 - 240 V ac; 50 Hz - 60 Hz; 4.3 - 2.1 A (at min.- max. voltage)

Performance

Processor (per engine) Dual 933-MHz Pentium® III with 133-MHz front-side bus5

Level 2 cache per processor 256 KB (full speed) 256 KB (full speed)

ECC SDRAM memory 1 GB (per engine) 1 GB (per engine)

Internal fixed disk (per engine) 9.1 GB for OS 9.1 GB for OS

File protocols supported CIFS, NFS, HTTP, FTP, NetWare

Integrated Advanced System Management Processor

Yes Yes

NetBench 40 MBps(CIFS) See 6

SPECsfs See 6 _See6

Connectivity (per engine)

Available PCI slots(per engine) 4 (2x64-bit and 2x32-bit) 4 (2x64-bit and 2x32-bit)

Ethernet connections 1-port 10/100-Mbps Ethernet 1-port 10/100-Mbps Ethernet

(on base) (internodal communications

on planar)

SAN Connection 1-port Fibre Channel Adapter (included in base unit)

Optional Adapters 1- 10/100-Mbps Ethernetport, 1-port Gigabit Ethernet,

Advanced System Management Adapter, 1-port Fibre Channel Adapter

Software

Operating system Windows Powered OS

Backup Windows NT Backup

Tivoli Storage Manager Client (v4.2)

Columbia Data Products Persistent Storage Manager (V2.1)

(8)

Storage management Tivoli Storage Manager Client (V4.2)

Systems management IBM Director 2.2 agent

Performance enhancement Tivoli SANergy Exec Agent (V2.2)

Remote administration Web-based GUI Microsoft Terminal Services

Supported storage devices7 _{IBM 2105 Enterprise Storage Server (Model 2105)}

IBM 7133 SLIC Serial Disk System (Model 7139-111) IBM FAStT500

IBM FAStT200 ESA -1200

Optional storage supported7 _{Tivoli Software Manager}

Supported Fibre Channel devices7 _{IBM - 2109 Fibre Channel Switche (Brocade)}

IBM - 2032 Fibre Channel Director (McData ED5000 Fibre Channel Director) IBM - 2042 Fibre Channel Director (Inrange FC9000 Director)

Brocade 2800

Brocade 3534 Managed Hub Vixel 2100 Managed Hub High-availability features

Dual, redundant, and auto-ranging power supplies Dual-engine clustering and failover (Model G25 only)

Support features IBM Start Up Support

Advanced Systems Management

.

Light-Path Diagnostics(LPD)

.

Predictive Failure Analysis

.

Remote connect automated callup and dispatch Services from IBM Global Services:

.

Capacity and performance planning to predict and assess storage needs

.

Storage Network assessment to implement best practice for NAS

.

Data migration to move data from existing platforms

Standard s MPS 1.4, PCI specification 2.1, ISO 9241 Part 3

Approvals and Safety FCC Class A Part 15, Canada ICES-003 issue 3 Class A, UL 1950,

CSA C22.2 No. 950, NOM-018

Accessories 270-W power supply

10/100 Ethernet Adapter

Netfinity Gigabit Ethernet SX Adapter

Warranty One year IBM onsite responce (IOR) next business day

(warranty upgrades available)

1. Based on running and completing setup task using original preloaded image. 2. Based on CIFS throughput with an assumption of an average client use.

3. 11 TB is the maximum storage tested and recommended per engine. Customers might choose to allocate less storage depending on the data traffic driven across each engine.

4. IBM 7133 used with a Fibre Channel adapter.

5. MHz only measures microprocessor internal clock speed, not application performance.

6. At the time of publication, NetBench and SPECsfs performance determination were in progress. Please check our performance page for the current status.

7. Refer to the Interoperability page for the latest information.
