Design of an IoT based Heart Attack Detection
System
Sandeep Kumar Polu PG Student
Department of Computer Science and Information Technology Acharya Nagarjuna University, India
Abstract
Averting heart disease is significant. Great information-driven systems for foreseeing heart disease can improve the whole research and prevention process, ensuring that more individuals can live healthy lives. Early discovery of cardiovascular disease and ceaseless supervision of clinicians can decrease the death rate. However, the exact identification of heart infections in all cases and meeting of a patient for 24 hours by a specialist isn't accessible since it requires more erudition, time and expertise. A heart attack isn't anything but difficult to identify, to survive and help our general public from heart illnesses and attack, I am proposing a system which will help early recognition a heart attack. In this framework, we are actualizing a heartbeat monitoring and heart detection system utilizing the Internet of Things. The sensor is then communicated to a microcontroller that permits checking pulse readings and transmitting them over the Internet. The user/patient may set the high and low levels of heartbeat limit. After setting these limits, the framework begins observing and furthermore alarms for lower pulses. For this, the framework utilizes two circuits. One is the transmitting circuit which is with the patient and the other is the receiver circuit which is being directed by the specialist or medical attendant.
Keywords: Smart Health, Internet of Things, Heart attack, ECG, Heart Beat sensors
_______________________________________________________________________________________________________
I. INTRODUCTION
Heart diseases have turned into a noteworthy worry to manage as studies demonstrate that the number of deaths because of heart diseases have expanded essentially in the course of recent decades everywhere throughout the world. This framework can identify the beat, temperature normally with the assistance of the sensors. A specialist can set the edge for all parameters. On the off chance that these parameters cross the most extreme point of confinement, System sends an alarm on the server through Wi-Fi.

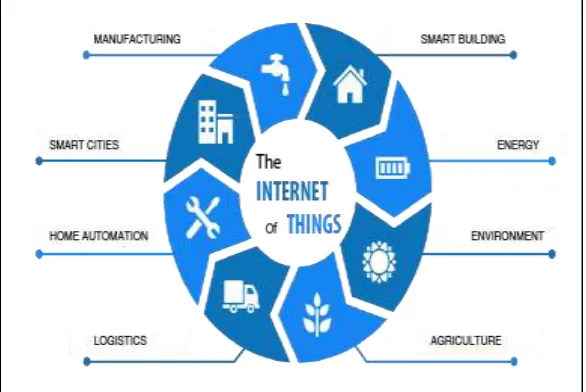

In the new generation of communication and technology, the explosive development of electronic devices, advanced mobile phones, and tablets which can be conveyed physically or remotely has turned into the crucial tool of everyday life. The next generation of the associated world is the Internet of Things (IoT) which interfaces gadgets, sensors, machines, vehicles and other "things". The things or items may incorporate the tag, cell phones, sensors, actuators and significantly more. With the assistance of IoT, we interface anything, access from any time and any place productively get to any service and information about any object. The point of IoT is to expand the advantages of the Internet with remote control capacity, information sharing, steady connectivity, etc. Utilizing an installed sensor which is dependable on and gathering information, every one of the gadgets would be attached to nearby and worldwide systems.
(IJIRST/ Volume 5 / Issue 12 / 010)
II. PROPOSED SYSTEM
The system utilizes the heartbeat sensor to discover the current heartbeat level and show it on the LCD screen. This framework can recognize body heartbeat and temperature consistent with the assistance of the sensors. The accompanying figure demonstrates the system architecture and flow diagram of this system.XX
Fig. 1: Block diagram of proposed framework
This framework utilizes two circuits. 1) Transmitting circuit
2) Receiver circuit
The framework utilizes a heartbeat sensor to discover the present heartbeat level and show it on the LCD screen. The transmitting circuit incorporates AVR family microcontroller interfaced to the LCD screen and this transmitting circuit is controlled by 12V transformer. Additionally, the receiving circuit incorporates AVR family microcontroller and RF recipient and furthermore has a 12V transformer. The beneficiary circuit additionally incorporates LED light and a ringer which are utilized to caution the individual regulating the heartbeat rate of the patient and turns on the LED light and alarm when the heartbeat dimension of the patient does not fall inside the typical heartbeat level set. Presently we make this framework general for all the medical clinic rooms. The operator can situate in a single spot and ready to screen every one of the patients.
The sensor shines a light projection (LED) through the ear and measures the light that gets transmitted to the Light Dependent Resistor. The enhanced sign gets transformed and sifted, in the Circuit. So as to ascertain the pulse depends on the blood flow to the fingertip, a pulse sensor is collected with the assistance of LM358 OP-AMP for checking the heartbeat beats. At the point when System controlled On IR Tx begins discharging Light with 100% power towards platelets. Light reflect back to Rx with '' 100% - x '' from it.
This 'x' value is the patient's heartbeat rate. All the information will send straightforwardly to server room so if there should be an occurrence of any crisis quick activity can be performed. A heartbeat sensor is a monitoring gadget that enables one to quantify his or her pulse continuously or record the pulse for later investigation. It gives a straightforward method to think of heart function. At the point when the sensor is working, the beat LED flashes in units on with every heartbeat. This computerized yield can be associated with the microcontroller legitimately to quantify the Beats every Minute (BPM) rate. The temperature sensor is analog quantity with the range 0-135 degree. Every one of the information can distinguish by the sensor and give display which is LCD of 16*2. At the same time, this information goes on the server and show on the control room.
We make this framework all-inclusive for all the emergency clinic rooms. The Operator can situate in a single place and ready to screen every one of the patients.
III. COMPONENTS REQUIRED
Heart Beat Sensor
Heartbeat sensor is utilized to quantify the beat rate of heart in digital output. Driven is utilized to distinguish the pulse. The ordinary heartbeat run is 78 bpm. This gives an immediate output digital signal.
Fig. 3: Heart beat sensor
Temperature Sensor
The LM35 temperature sensor is used to recognize the temperature levels of the body. The advantage of the LM35 sensor is its simplicity and most raised affectability between +2 C and +250
Fig. 4: LM35 Sensor
Pressure Sensor
The Pressure sensor is utilized to quantify the systolic and the diastolic pressure level utilizing the gadget. It is estimated in millimeter mercury (mmHg). Pulse changes from moment to minute.
Fig. 5: Pressure Sensor
Wifi Module
The ESP8266 Wi-Fi Module is prepared to do either facilitating an application or offloading all Wi-Fi organizing capacities from another application processor.
(IJIRST/ Volume 5 / Issue 12 / 010)
Atmega 328
Atmega 328 is an eight (8) bit small scale controller. It can deal with the information examined of eight (8) bits. It is an AVR based small scale controller. Its inherent interior memory is around 32KB. It works going from 3.3V to 5V. It has a capacity to store the information notwithstanding when the electrical supply is expelled from its biasing terminals.
Fig. 7: Atmega 328
Stimulation Output
In this paper, PIC microcontroller is utilized for handling the information. The reenactment circuit is drawn according to circuit graph utilizing the proteus 8software and Arduino IDE 1.5.6. In the current framework, 8051 microcontroller is utilized. The upsides of PIC controller is dependable, control origination less, writing computer programs is simple, interface simple gadgets legitimately.
Fig. 8: Heart beat and Pressure levels
IV. CONCLUSION
Present days we have an expanded danger of heart attacks. This framework which detects heart pulse of individual utilizing heartbeat sensor regardless of whether an individual is at home. This framework additionally helps for hospital monitoring system, all the patients observed by a single individual in the server room. This framework estimates body temperature, the heartbeat of an individual regularly. A heart attack isn't anything but difficult to identify, to survive and help our general public from heart illnesses and attack, I am proposing a system which will help early recognition a heart attack. In this framework, we are actualizing a heartbeat monitoring and heart detection system utilizing the Internet of Things.
