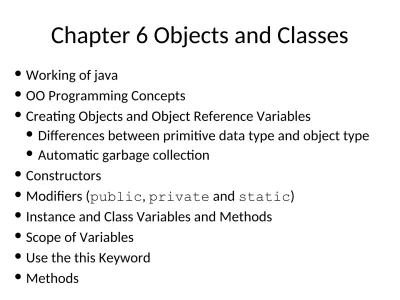

Chapter 6 Objects and Classes



Working of java



OO Programming Concepts



Creating Objects and Object Reference Variables



Differences between primitive data type and object type



Automatic garbage collection



Constructors



Modifiers (

public

,

private

and

static

)



Instance and Class Variables and Methods

(2)

(3)

OO Programming Concepts

data field 1

method n data field n

method 1 An object

...

State

Behavior

Data Field radius = 5

(4)

JAVA Classes

• _The_class_{is the fundamental concept in JAVA (and other}

OOPLs)

• _{A class describes some data object(s), and the operations}

(or methods) that can be applied to those objects

• _{Every object and method in Java belongs to a class}

• _{Classes have data (fields) and code (methods) and classes}

(member classes or inner classes)

• _{Static methods and fields belong to the class itself} • _{Others belong to instances}

(5)

Class and Objects

circle1: Circle

radius = 2 new Circle()

circlen: Circle

radius = 5

new Circle()

...

UML Graphical notation for classes

UML Graphical notation for objects

Circle

radius: double

findArea(): double

(6)

Class Declaration

class Circle {

double radius = 1.0;

double findArea(){

return radius * radius * 3.14159;

}

(7)

Declaring Object Reference Variables

ClassName objectReference;

Example:

(8)

Creating Objects

objectReference = new ClassName();

Example:

myCircle = new Circle();

(9)

Declaring/Creating Objects

in a Single Step

ClassName

objectReference

= new

ClassName();

Example:

(10)

Differences between variables of

primitive Data types and object types

1

c: Circle

radius = 1

Primitive type

int i = 1 i

Object type

Circle c c

reference

Created using

new Circle()

(11)

Copying Variables of Primitive Data

Types and Object Types

1

c1: Circle

radius = 5

Primitive type assignment i = j

Before: i 2 j 2 After: i 2 j

Object type assignment c1 = c2

Before: c1 c2 After: c1 c2 c2: Circle

(12)

Garbage Collection

As shown in the previous

figure, after the assignment

statement c1 = c2, c1 points to

the same object referenced by

c2. The object previously

referenced by c1 is no longer

useful. This object is known as

garbage. Garbage is

(13)

Garbage Collection, cont

TIP: If you know that an

object is no longer needed,

you can explicitly assign

null to a reference

variable for the object.

The Java VM will

(14)

Accessing Objects

•

Referencing the object’s data:

objectReference.data

myCircle.radius

•

Invoking the object’s method:

objectReference.method

(15)

Constructors

• Classes should define one or more methods to create or construct instances of the class

• _{Their name is the same as the class name}

– note deviation from convention that methods begin with lower case

• _{Constructors are differentiated by the number and types of}

their arguments

– An example of overloading

• _{If you don’t define a constructor, a default one will be}

created.

• _{Constructors automatically invoke the zero argument}

constructor of their superclass when they begin (note that this yields a recursive process!)

(16)

Constructors

Circle(double r) {

radius = r;

}

Circle() {

radius = 1.0;

}

myCircle = new Circle(5.0);

Constructors are a

special kind of

methods that are

(17)

Constructors, cont.

A constructor with no parameters

is referred to as a

default

constructor

.



Constructors must have the

same name as the class itself.



Constructors do not have a

return type—not even void.



Constructors are invoked using

the new operator when an object is

created. Constructors play the

(18)

Visibility Modifiers and

Accessor Methods

By default, the class, variable, or data can be

accessed by any class in the same package.



public

The class, data, or method is visible to any class in any

package.



private

The data or methods can be accessed only by the declaring

class.

(19)

Passing Objects to Methods

•

Passing by value (the value is the reference

to the object)

(20)

Passing Objects to Methods, cont.

main method Reference myCircle 5

n 5

times printAreas method Reference c myCircle: Circle radius = 1

Pass by value (here the value is 5)

(21)

Instance

Variables, and Methods

Instance variables belong to a specific instance.

(22)

Class Variables, Constants,

and Methods

Class variables are shared by all the instances of the

class.

Class methods are not tied to a specific object.

Class constants are final variables shared by all the

instances of the class.

(23)

Scope of Variables

•

The scope of instance and class variables is the

entire class. They can be declared anywhere

inside a class.

•

The scope of a local variable starts from its

(24)

The static keyword

•

Java methods and variables can be declared static

•

These exist

independent of any object

•

This means that a Class’s

–_{static methods can be called} _{even if no objects of that}

class have been created and

–_{static data is “shared” by all instances (i.e., one rvalue}

per class instead of one per instance

24

class StaticTest {static int i = 47;} StaticTest st1 = new StaticTest(); StaticTest st2 = new StaticTest(); // st1.i == st2.I == 47

(25)

Methods

• _{A method is a named sequence of code that can be invoked}

by other Java code.

• _{A method takes some parameters, performs some}

computations and then optionally returns a value (or object).

• _{Methods can be used as part of an expression statement.}

public float convertCelsius(float tempC) {

(26)

Method Signatures

• _{A method signature specifies:}

– _{The name of the method.}

– The type and name of each parameter.

– _{The type of the value (or object) returned by the method.} – The checked exceptions thrown by the method.

– _{Various method modifiers.}

– modifiers type name ( parameter list ) [throws exceptions ]

public float convertCelsius (float tCelsius ) {}

(27)

Methods, arguments and return values

• _{Java methods are like C/C++ functions. General case:}

returnType methodName ( arg1, arg2, … argN) { methodBody

}

The return keyword exits a method optionally with a value

int storage(String s) {return s.length() * 2;} boolean flag() { return true; }

float naturalLogBase() { return 2.718f; } void nothing() { return; }

void nothing2() {}

(28)

Simple Class and Method

Class

Fruit

{

int

grams

;

int

cals_per_gram

;

int

total_calories

() {

return(

grams

*

cals_per_gram

);

}

(29)

Command Line Arguments

C:\UMBC\331\java>type echo.java

// This is the Echo example from the Sun tutorial

class echo {

public static void main(String args[]) { for (int i=0; i < args.length; i++) { System.out.println( args[i] );

} }}

C:\UMBC\331\java>javac echo.java

C:\UMBC\331\java>java echo this is pretty silly this

is

(30)

Arrays

• _{Am array is a list of similar things} • _{An array has a fixed:}

–

name

–

type

–

length

• _{These must be declared when the array is created.}

• _{Arrays sizes cannot be changed during the execution of the}

(31)

myArray has room for 8 elements



the elements are accessed by their index



in Java, array indices start at 0

3

6

3

1

6

3

4

1

myArray =

(32)

Declaring Arrays

int myArray[];

declares

myArray

to be an array of integers

myArray =

new

int[8];

sets up 8 integer-sized spaces in memory, labelled

myArray[0]

to

myArray[7]

int

myArray[] =

new

int[8];

(33)

Declaring the Array

1. Declare the array

private Student studentList[];

–

this declares studentList

2 .Create the array

studentList =

new

Student[10];

–

this sets up 10 spaces in memory that can

hold references to Student objects

3. Create Student objects and add them to the array:

(34)

Assigning Values

• _{refer to the array elements by index to store values in them.}

myArray[0] = 3;

myArray[1] = 6;

myArray[2] = 3;

...

• _{can create and initialise in one step:}

(35)

Iterating Through Arrays

•

for

loops are useful when dealing with arrays:

for (int i = 0; i < myArray.length;

i++) {

(36)

Array of Objects

Circle[] circleArray = new

Circle[10];

An array of objects is actually

an array of reference variables

.

So invoking

circleArray[1].findArea() involves

two levels of referencing as

shown in the next figure.

circleArray references to the

entire array. circleArray[1]

(37)

Array of Objects, cont.

Circle[] circleArray = new

Circle[10];

reference circleArray[0] _{Circle object 0}

…

circleArray

circleArray[1]

(38)

Class Abstraction

Class abstraction means to separate class

implementation from the use of the class. The

creator of the class provides a description of the

class and let the user know how the class can be

used. The user of the class does not need to

(39)

Java API and Core Java classes

•

java.lang

Contains core Java classes, such as numeric

classes, strings, and objects. This package is

implicitly imported to every Java program.

•

java.awt

Contains classes for graphics.

•

java.applet

(40)

•

java.io

Contains classes for input and output

streams and files.

•

java.util

Contains many utilities, such as date.

•

java.net

Contains classes for supporting

network communications.

(41)

•

java.awt.image

Contains classes for managing bitmap images.

•

java.awt.peer

Platform-specific GUI implementation.

•

Others:

java.sql

java.rmi

(42)

Java Development Kit

•

javac

- The Java Compiler

•

java

- The Java Interpreter

•

jdb

- The Java Debugger

•

appletviewer

-Tool to run the applets

•

javap - to print the Java bytecodes

•

javaprof - Java profiler

•

javadoc - documentation generator
