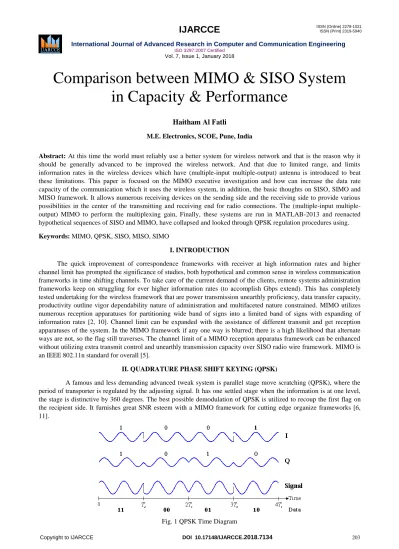

Comparison between MIMO & SISO System in Capacity & Performance
Haitham Al Fatli
M.E. Electronics, SCOE, Pune, India
Abstract: At this time the world must reliably use a better system for wireless network and that is the reason why it should be generally advanced to be improved the wireless network. And that due to limited range, and limits information rates in the wireless devices which have (multiple-input multiple-output) antenna is introduced to beat these limitations. This paper is focused on the MIMO executive investigation and how can increase the data rate capacity of the communication which it uses the wireless system, in addition, the basic thoughts on SISO, SIMO and MISO framework. It allows numerous receiving devices on the sending side and the receiving side to provide various possibilities in the center of the transmitting and receiving end for radio connections. The (multiple-input multiple- output) MIMO to perform the multiplexing gain, Finally, these systems are run in MATLAB-2013 and reenacted hypothetical sequences of SISO and MIMO, have collapsed and looked through QPSK regulation procedures using.
Keywords: MIMO, QPSK, SISO, MISO, SIMO
I. INTRODUCTION
The quick improvement of correspondence frameworks with receiver at high information rates and higher channel limit has prompted the significance of studies, both hypothetical and common sense in wireless communication frameworks in time shifting channels. To take care of the current demand of the clients, remote systems administration frameworks keep on struggling for ever higher information rates (to accomplish Gbps extend). This has completely tested undertaking for the wireless framework that are power transmission unearthly proficiency, data transfer capacity, productivity outline vigor dependability nature of administration and multifaceted nature constrained. MIMO utilizes numerous reception apparatuses for partitioning wide band of signs into a limited band of signs with expanding of information rates [2, 10]. Channel limit can be expanded with the assistance of different transmit and get reception apparatuses of the system. In the MIMO framework if any one way is blurred; there is a high likelihood that alternate ways are not, so the flag still traverses. The channel limit of a MIMO reception apparatus framework can be enhanced without utilizing extra transmit control and unearthly transmission capacity over SISO radio wire framework. MIMO is an IEEE 802.11n standard for overall [5].
II. QUADRATURE PHASE SHIFT KEYING (QPSK)
A famous and less demanding advanced tweak system is parallel stage move scratching (QPSK), where the period of transporter is regulated by the adjusting signal. It has one settled stage when the information is at one level, the stage is distinctive by 360 degrees. The best possible demodulation of QPSK is utilized to recoup the first flag on the recipient side. It furnishes great SNR esteem with a MIMO framework for cutting edge organize frameworks [6, 11].
Fig. 1 QPSK Time Diagram
Fig. 2 QPSK Constellation
III. TRANSMISSION PROGRAM A. MULTIPLE INPUT MULTIPLE OUTPUT (MIMO)
MIMO is a strategy for transmitting numerous of information streams at the transmitter side and also numerous of information streams at the receiver side. MIMO reception system setup depicts that use of numerous transmit and numerous receiver antennas for one user produces higher Capacity, otherworldly proficiency and more information rates for wireless network communication. At the point when the information rate is to be expended for a solitary client, this is called single client MIMO (SU-MIMO) and when the individual streams are doled out to different clients; this is called multiuser MIMO (MU-MIMO) [3, 4]. Radio wire setup and info yield connection of MIMO (Transmit Diversity) are given by [12],
Fig. 5. MIMO
From the above fig. 4 Output client information stream 𝑦=𝐻𝑠+𝜂 (input yield connection of MIMO channel), where 𝑠=
[𝑠1 𝑠2… 𝑠𝑀] 𝑡 is the transmitted information vector, and the 𝑦= [𝑦1 𝑦2… 𝑦𝑀] 𝑡 is the gotten information vector, and in the 𝜂= [𝜂1 𝜂2… 𝜂𝑀] 𝑡 is the Additive White Gaussian clamor (AWGN). QPSK regulation is utilized as a part of each piece tweak of flag for long separation transmission likewise it fulfills the great flag to-commotion proportion (SNR). Give us a chance to consider a MIMO framework with (MT) transmit reception apparatuses and MR get radio wires, indicate the motivation reaction between the jth (j= 1, 2, … MT) transmit receiving wire and the ith (i= 1, 2, … MR) accepting reception apparatus.
The MIMO channel can be represented to utilizing a MR× MT lattice design H is given by,
Where hij is refer to Gaussian random variable that models fading gain between together the(ith) transmit and (jth) receive antenna. If a signal 𝑆j(𝑡) is transmitted from the (jth) transmitted antenna, the signal receives at the ith receive antenna. The input output relation is given by [10],
𝑦𝑖(𝑡)= Ʃ𝑀𝑇𝑗=1 hij 𝑆j(𝑡), i= 1, 2, … MR (4)
Here we take the transmit(MT) and the receive(MR) antennas with (S)input information data stream and (Y) output data stream. Multiple input multiple output has higher capacity as compare with other system.
The Multiple input multiple output capacity is given by,
𝐶=𝑀𝑡𝑀𝑟𝐵𝑙𝑜𝑔2(1+𝑆/𝑁) (5)
Where capacity is Symbolizes him as, (C), and bandwidth is referring to (B), and signal to noise ratio is refer to S/N. All the number of antennas are used at the transmitter side Symbolizes him as, (𝑀𝑡) and all the number of antennas are used at receiver side Symbolizes him as, (𝑀𝑟).
B. SINGLE INPUT SINGLE OUTPUT (SISO)
Single input, Single output (SISO) refers to the single antenna in the transmitter side and single antennas at receiver side in the familiar wireless communications (S)input information data stream and h11is channel is and (Y) is output information, data stream. Antenna connection of Single Input Single output SISO framework is given in the Fig. 2.
The Channel limit is poor as contrast with other Technique However System configuration is not Complex
Fig. 2. SISO
The capacity of (SISO) channel is given by,
𝐶𝑆𝐼𝑆𝑂 = 𝐵𝑙𝑜𝑔2 (1+S/N) (1)
Where capacity of channel symbolizes him as, (C) and bandwidth of the signal channel Symbolizes him as, (B) and signal to noise ratio symbolizes him as, (S/N).
C. SINGLE INPUT MULTIPLE OUTPUT (SIMO)
SIMO refers to the single antenna on the transmitter side and number of multiple antennas at the receiver side in the familiar wireless communication in this case we assume have two receiving signals (Y1) and (Y2) with different fading channel class (h1) and (h2) with input information data stream (S). Antenna formation is order input, output relation of SIMO system is given by. Fig. 3 SIMO model.
Fig. 3. SIMO
The channel limit has not expanded. The multiple antennas in the receive case can get reception apparatuses can enable us to get a more grounded flag through assorted qualities. The SIMO channel limit is given by,
𝐶=𝑀𝑟𝐵𝑙𝑜𝑔2 (1+𝑆/𝑁) (2)
Where the capacity symbolizes him as (C), and bandwidth symbolizes him as (B), and signal to noise ratio symbolizes them as (S/N). And the number of antennas Symbolizes him is 𝑀𝑟 which is used on the receiver side.
D. MULTIPLE INPUT SINGLE OUTPUT (MISO)
MISO framework has multiple antennas at the transmitter side and single antennas at the receiver side. In this case we expect we have two transmitting signal antenna (S1) and signal antenna (S2) with various fading channel coefficients (h1) and (h2) with output information data stream (Y). The antenna order both the input and output relation of MISO is given by, Fig. 4 MISO demonstrates
Fig. 4 MISO demonstrates
The channel limit has not by any means expanded on the grounds that despite everything we need to transmit two signals at a time 2. The MISO limit is given by,
𝐶=𝑀𝑡𝐵𝑙𝑜𝑔2 (1+𝑆/𝑁) (3)
Where C is known as the limit, B is known as transmission capacity, S/N is known as a flag to clamor proportion. 𝑀𝑡 is the quantity of reception apparatuses utilized at the transmitter side.
IV. RESULT A. MIMO ANTENNA COMBINATION
The possible combination and comparison of minimum transmitting antennas (MT) and number of receiving antennas (MR) is given in Table 1 & 2 [9].
Table.1 compare the antenna at the transmitter and receiver end.
Combination NO.TX. antenna NO.RX. antenna
1 1 1
2 2 2
3 2 2
4 3 3
5 4 4
B. CAPACITY COMPARISON OF SISO AND MIMO SYSTEM The limit of MIMO system is given by:
𝐶 = 𝑀𝑡 𝑀𝑟 𝐵𝑙𝑜𝑔2 (1 + 𝑆/𝑁)
Where C is the capacity of the channel, and B is the bandwidth of the signal, then the S/N is the signal to noise ratio.
𝑀𝑡 is known the number of antennas which is used of transmitter side & 𝑀𝑟 is known number of antennas which is used on the receiver side.
Table. 2 comparisons of the different antenna system.
Type TX-antenna RX-antenna Data rates Capacity Coverage
SISO Single Single Less Less Less
MIMO Multiple Multiple Greater Greater Greater
Fig. 7 Capacity of SISO and MIMO compare System
From the fig. 7 the capacity of MIMO is versus the average of the SNR, for NT=NR=1 and NT= NR=3, watch that at elevation SNR, the limit of the (NT, NR) = (3, 3) MIMO is approximately 3 times the limit of the SISO system. But the limit of the capacity it increases when increases the number of antennas at of both transmitter & receiver side.
B. Limit OF SISO AND SHANNON SYSTEM The SISO capacity framework is given by the recipe as,
𝐶𝑆𝐼𝑆𝑂 = 𝐵𝑙𝑜𝑔2 (1+S/N) (6)
Where the capacity of channel symbolizes him as, (C) and bandwidth of signal symbolizes him as (B) and signal to noise ratio symbolizes him as, (S/N).
Fig. 6 (a) Capacity of Shannon system
Fig. 6 (b) Capacity of SISO system
From fig. 6 (a) and (b) we acquired. Limit versus of (SNR) of the (SISO) and with Shannon framework and by Utilizing MATLAB 2013 programming with absolute Single input and also Single output antenna set radio wire i.e.
Just the absolute way will be between. Transmitter & receiver. The channel limit will be poor. But the framework plan will be a whole lot less demanding with whatever 2G. Cell phone.
V. CONCLUSION
This paper has presented the major of the features technologies of MIMO performance as well as SISO and MIMO limit compete with the next generation in wireless network systems. The performance and high data rates of the system is completed by convenient of the design of MIMO system. MIMO system is successful because the filtration of it with the commercial standards such as 3G and 4G networks, LTE networks, WiMAX, Wireless LAN,etc. The gain MIMO system possesses approximately three times the data rates and the capacity of the SISO system with QPSK modulation technique. This is with high SNR, and the capacity of MIMO is directly in proportion with the number of antennas as there is increased with the number of antennas at the transmitter and receiver sides the capacity of MIMO system increases, and the Further result analysis and the performance of the system is gained by the use of MATLAB (2013).
REFERANCES
[1], Kumar Ramamoorthy ,Sabita Gauni, “Analysis of Reduction in Complexity of MIMO-OFDM Systems with Frequency Offset Estimation and correction,” Journal of Computer Science (JCS), Vol. 10, No.2, pp.198-209, 2014.
[2] N. Rani, K. Sengar, “Study and Capacity Evaluation of SISO, MISO and MIMO RF Wireless Communication Systems,” IJETT, Vol. 9, No. 9, Mar-2014.
[3] S. Meghwal, G. Saini, “Capacity Improvement in Multi-User MIMO System uses Dirty Paper Coding,” IJRITCC, Vol.2, Issue-2, Feb. 2014.
[4] SK Mohammed Ali,and Nimay Ch. Giri, Rupanita Das and “BER Analysis And Performance Of MIMO-OFDM System Using BPSK Modulation Scheme For Next Generation Communication Systems,” (IJESRT), Vol. 3, Issue 3, pp. 1622-1629, March 2014.
[5] Deepak Kedia, and S. Kumar,”Study and Performance Analysis of a General MIMO-OFDM System for Next Generation Communication Systems,” International Journal of Electronic Communication and Computer Technology (IJECCT), Vol. 3, Issue 5, pp. 460-463, Sept. 2013.
[6] M.Divya, “BER performance of BPSK modulation and OFDM-BPSK with Rayleigh multipath channel,” IJEAT, vol. 2, Issue 4, pp. 623-626, April 2013.
[7] T. kanti Roy, “Capacity and Performance analysis of Rayleigh Fading MIMO Channels using CSI at the Transmitter Side,” IJAR-CSIT, Vol. 1, Issue-3, July 2012.
[8] Theodore S. Rappaport, “Wireless Communication: Principles and Practice”, Prentice-Hall, 2ndEdition, 2010, India. [12] Yong Soo Cho, Jaekwon Kim Won Young Yang, Chung-Gu-Kang, “MIMO-OFDMWireless Communication with MATLAB”, John Willey & Sons (Asia) Pte Ltd.
[9] V. V. Veeravalli, Y. Liang, “Correlated MIMO Wireless Channels: Capacity, Optimal Signaling, and Asymptotic,” IEEE Transaction, Vol. 51, No. 6, June 2005.
[10] A. F. Sengar, N. Rani, “Capacity of MIMO Systems with Antenna Selection,” IEEE Transaction, Vol. 4, No. 4, July 2005.
[11] A. Goldsmith, “Capacity Limits of MIMO Channels,” IEEE Communication, Vol. 21, Issue-5, June 2003.
