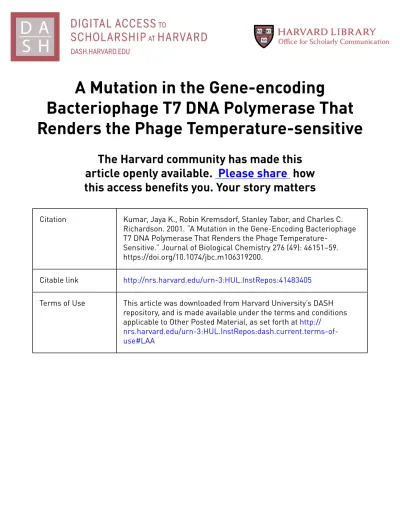

A Mutation in the Gene-encoding
Bacteriophage T7 DNA Polymerase That
Renders the Phage Temperature-sensitive
The Harvard community has made this
article openly available.
Please share
how
this access benefits you. Your story matters
Citation
Kumar, Jaya K., Robin Kremsdorf, Stanley Tabor, and Charles C.
Richardson. 2001. “A Mutation in the Gene-Encoding Bacteriophage
T7 DNA Polymerase That Renders the Phage
Temperature-Sensitive.” Journal of Biological Chemistry 276 (49): 46151–59.
https://doi.org/10.1074/jbc.m106319200.
Citable link
http://nrs.harvard.edu/urn-3:HUL.InstRepos:41483405
Terms of Use
This article was downloaded from Harvard University’s DASH
repository, and is made available under the terms and conditions
applicable to Other Posted Material, as set forth at
http://
A Mutation in the Gene-encoding Bacteriophage T7 DNA
Polymerase That Renders the Phage Temperature-sensitive*
Received for publication, July 6, 2001, and in revised form, August 29, 2001 Published, JBC Papers in Press, September 10, 2001, DOI 10.1074/jbc.M106319200
Jaya K. Kumar, Robin Kremsdorf, Stanley Tabor, and Charles C. Richardson‡
From the Department of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, Boston, Massachusetts 02115
Gene 5 of bacteriophage T7 encodes a DNA polymer-ase essential for phage replication. A single point muta-tion in gene 5 confers temperature sensitivity for phage growth. The mutation results in an alanine to valine substitution at residue 73 in the exonuclease domain. Upon infection of Escherichia coliby the temperature-sensitive phage at 42 °C, there is no detectable T7 DNA synthesis in vivo. DNA polymerase activity in these phage-infected cell extracts is undetectable at assay temperatures of 30 °C or 42 °C. Upon infection at 30 °C, both DNA synthesisin vivoand DNA polymerase activity in cell extracts assayed at 30 °C or 42 °C approach levels observed using wild-type T7 phage. The amount of solu-ble gene 5 protein produced at 42 °C is comparasolu-ble to that produced at 30 °C, indicating that the temperature-sensitive phenotype is not due to reduced expression, stability, or solubility. Thus the polymerase induced at elevated temperatures by the temperature-sensitive phage is functionally inactive. Consistent with this ob-servation, biochemical properties and heat inactivation profiles of the genetically altered enzyme over-pro-duced at 30 °C closely resemble that of wild-type T7 DNA polymerase. It is likely that the polymerase produced at elevated temperatures is a misfolded intermediate in its folding pathway.
Protein folding represents an important yet unsolved prob-lem in biology. In particular, the sequence-specific signals that dictate protein folding (1–3), and ultimately, biological function are still not well understood. It is of interest to identify amino acid substitutions that result in the aberrant folding of a protein, as misfolded proteins are implicated in a number of human diseases. For example, protein misfolding and aggregation have been implicated in amyloid-related disease states such as Alzheimer’s disease (4) as well as in cancer via amino acid substitutions in the tumor suppressor p53 (5). Thus, examples of amino acid substitutions that alter the folding, structure, and stability of proteins should provide a framework for the structural analysis of disease-causing mutations and in predicting the effects of some single nucle-otide polymorphisms (6).
However, the prediction of protein folding based on sequence
remains elusive despite a number of computational models (7–10). A genetic approach to studying folding pathways of globular proteins involves altering specific amino acid residues to determine their role in modulating the activity and structure of a protein (11–14). Temperature-sensitive mutants retain gene function at lower “permissive” temperatures but not at elevated “non-permissive” temperatures. One class of temper-ature-sensitive mutants are those that alter the folding kinet-ics of a protein (15).
The replicative DNA polymerase of bacteriophage T7 is the product of gene 5 of the phage. The identity of gene 5 or the structural gene for T7 DNA polymerase was elucidated initially by the use of a temperature-sensitive strain of bacteriophage
T7,ts11 (16). The T7ts11 mutant strain was known to carry a
mutation in gene 5. Grippo and Richardson (16) first reported that cells infected with T7ts11 phage failed to replicate the phage DNA at elevated temperatures, and extracts of the in-fected cells contained a DNA polymerase activity that was more heat-labile than that in extracts of cells infected with wild-type T7 phage.
T7 gene 5 protein has become a model DNA polymerase for elucidating mechanisms of DNA replication and fidelity (17, 18). This 80-kDa polymerase with its associated 3⬘-5⬘ -exonu-clease activity is by itself distributive for DNA synthesis and incorporates less than 15 nucleotides before dissociating from a primer terminus (19). However, in a 1:1 complex with a host protein, Escherichia coli thioredoxin, gene 5 protein proces-sively catalyzes the addition of thousands of nucleotides at rates approaching 300 nucleotides per second (19 –23). The gene 5 protein-thioredoxin complex will be referred to as T7 DNA polymerase in this manuscript.
Identification of mutations in T7 DNA polymerase that im-part temperature sensitivity is of interest not only for struc-ture-function studies but also for locating amino acid residues and specific interactions critical to folding of the polymerase. A crystal structure of T7 DNA polymerase in a catalytically trapped complex with duplex DNA and an incoming nucleotide facilitates the interpretation of such data (24). To this end, the gene 5 region of T7ts11 was sequenced in its entirety. A single mutation that encodes an alanine to valine substitution at position 73 in the exonuclease domain was found to be respon-sible for the temperature-sensitive phenotype. Ala-73 resides in the exonuclease domain although it is not in the active site (Fig. 1). Such mutations that are spatially removed from the active site and yet effect function are likely to shed light on conformation and folding of the protein. In this paper we de-scribe in vivo studies with temperature-sensitive T7 phage strains that have different mutations at residue 73 of T7 DNA polymerase and biochemical analysis of the purified mutant T7 DNA polymerases.
* This work was supported by United States Public Health Service Grant GM-54397 and by U. S. Department of Energy Grant DE-FG02-96ER62251. The costs of publication of this article were defrayed in part by the payment of page charges. This article must therefore be hereby marked “advertisement” in accordance with 18 U.S.C. Section 1734 solely to indicate this fact.
‡ To whom correspondence should be addressed: Dept. of Biological Chemistry and Molecular Pharmacology, Harvard Medical School, 240 Longwood Ave., Boston, MA 02115. Tel.: 1864; Fax: 617-432-3362; E-mail: [email protected].
THEJOURNAL OFBIOLOGICALCHEMISTRY Vol. 276, No. 49, Issue of December 7, pp. 46151–46159, 2001 © 2001 by The American Society for Biochemistry and Molecular Biology, Inc. Printed in U.S.A.
This paper is available on line at http://www.jbc.org
46151
by guest on October 5, 2019
http://www.jbc.org/
EXPERIMENTAL PROCEDURES
Materials
DNA—M13 mGP1–2 is a 9950-nt1
derivative of vector M13 mp8 that has been described earlier (25). The 24-nt M13 sequencing primer (⫺47) (5⬘-CGCCAGGGTTTTCCCAGTCACGAC-3⬘) and oligonucleotides forin vitromutagenesis were from Integrated DNA Technologies. The 24-nt M13 sequencing primer and M13 mGP1–2 DNA were mixed in a 1:1 molar ratio (100 nM) in 40 mMTris-Cl, pH 7.5, and 50 mMNaCl and annealed by heating to 95 °C for 5 min, followed by slowly cooling to room temperature. Oligonucleotide concentrations were determined spectrophotometrically. DNA concentrations are expressed in terms of primer 3⬘-ends unless otherwise specified. Salmon sperm DNA (Type III) was from Sigma. Salmon sperm ssDNA was prepared by alkali denaturation of native salmon sperm DNA by incubation with 50 mM
NaOH at 20 °C for 15 min, followed by neutralization with HCl.
Phage and Bacterial Strains—E. coli B and mRI80 (F⫺⌬lacU169
araD139 thiA rpsL relA⌬rbs-7 pcnB80) have been described (26, 27).E. coliD110 (thyA endA polA1) and C600 (thi-1 thr-1 leuB6 lacY1 tonA21 supE44 mcrB) are from the laboratory collection.E. coliHMS174 (DE3) is from Novagen. Wild-type T7 and mutant T7⌬5 (gene 5 deletion) phage are from the laboratory collection. T7ts11, T7am28 and T7am196 (26) phage were from Dr. F. W. Studier. T7am28 and T7am196 phage contain an amber mutation in gene 5 and have been described (26). Growth and manipulation of bacteriophage T7 andE. coliwere carried out as described (26).
Mutagenesis of T7 Gene 5—Plasmids pGP5-A73V, pGP5-A73L, pGP5-A73I, and pGP5-A73F were constructed using standard polym-erase chain reaction and cloning techniques. Two oligonucleotide prim-ers, one with a MfeI restriction site and a second with a BamHI restriction site (5⬘-CGGGATCCCATATGAAGAGATTGTTAAGTCA-3⬘) were used to amplify 279 base pairs of the T7 DNA sequence encoding Ala-73. The oligonucleotides used were 5⬘ -CTCGGTTCAATTG-CAACTTTACCAGTTTGG-3⬘(A73V), 5⬘ -CTCGGTTCAATTGCAACTT-TAGCAGTTTGG-3⬘(A73L), 5⬘ -CTCGGTTCAATTGCAACTTTATCAG-TTTGG-3⬘(A73I), and 5⬘ -CTCGGTTCAATTGCAACTTGAACAGTTTG-G-3⬘(A73F). Sequence changes from wild-type T7 gene 5 have been underlined. Polymerase chain reaction-generated fragments were di-gested withBamHI andMfeI, and the resulting fragment was ligated into theBamHI andMfeI sites of plasmid pGP5–3. Plasmid pGP5–3 and all mutant derivatives contain gene 5 protein under control of the T7⌽10 promoter. The identity of the clones was confirmed by DNA sequencing.
Enzymes and Proteins—Native T7 gene 5 protein and genetically altered gene 5 proteins (gp5-A73V, gp5-A73L) were over-produced inE. coliHMS174 (DE3) cells containing plasmids pGP5–3, pGP5-A73V, and pGP5-A73L, respectively. The 1:1 complex of polymerase and thiore-doxin was purified to apparent homogeneity as described (22). Protein concentrations were determined by the method of Bradford (28) and were confirmed by amino acid analysis. Restriction enzymes were from
New England Biolabs. ThermoSequenase was from Amersham Phar-macia Biotech. Bovine pancreatic DNase I was from Sigma. Rabbit polyclonal antibodies to gene 5 and gene 4 proteins were from Hazelton Research Products, Inc.
Nucleotides—Unlabeled nucleotides (high pressure liquid chroma-tography grade) were obtained from Amersham Pharmacia Biotech. [33
P]ddNTPs, [3
H]dTTP (3000 Ci/mmol), [methyl-3
H]thymidine (25 Ci/ mmol), and [␣-33P]dATP (2500 Ci/mmol) were obtained from Amersham
Pharmacia Biotech. [3
H]dTTP (3000 Ci/mmol) was diluted with dTTP to 2 cpm/pmol. [␣-33P]dATP (2500 Ci/mmol) was diluted with dATP to 56
cpm/pmol.
Methods
Purification of T7ts11 DNA—E. colimRI80 cells were grown at 30 °C to a cell density of 6⫻108cells/ml. The cells were infected with T7ts11
phage at an m.o.i. of 5, and the infected cultures were grown for 3 h. Bovine pancreatic DNase I (0.05g/ml) was added, and the incubation continued another 15 min. The culture was then chilled on ice, and NaCl (125 mM) was added. The cell-lysate was centrifuged to remove
cell debris. To the supernatant, PEG 8000 (United States Biochemical) was added to a final concentration of 10%, and after the sample was incubated at 4 °C for 2 h the solution was centrifuged. The pellet was redissolved in 40 ml of a 10% polyethylene glycol solution in TE (10 mM
Tris-Cl, 1 mMEDTA, pH 8.0), and the solution centrifuged. The result-ing pellet was resuspended in 5 ml of TE and extracted with an equal volume of buffer-saturated phenol (pH 8.0):chloroform:isoamyl alcohol (24:24:1). The aqueous phase was dialyzed against TE. The DNA sam-ple was purified by anion exchange chromatography (Qiagen).
Sequencing of T7ts11 Gene 5—Gene 5 of T7ts11 DNA was first amplified by polymerase chain reaction. Two oligonucleotide primers, 5⬘-AATCGTTGCCGATAAGACCAACATGAT-3⬘ and 5⬘ -CTCATCAC-CAGCACCATAGAG-3⬘, were used to amplify the 5⬘-end of gene 5. The 3⬘-end of gene 5 was amplified using primers 5⬘ -CTAAAGGTGGCACT-GAGATGTTCT-3⬘and 5⬘-AGCAGCACCTGTTAAGTGTCTTTC-3⬘. Se-quencing reactions were carried out with33P-labeled ddNTPs and
Ther-moSequenase using 13 primers. The products of the reaction were separated by electrophoresis on 8% polyacrylamide gels containing 50% urea and then analyzed by autoradiography.
Phage Crosses with Gene 5 Mutations on Plasmids—Crosses were carried out at 30 °C. Plasmids pGP5-A73V, pGP5-A73I and pGP5-A73F were used to transformE. coliC600 cells, which are su⫹. The cells were grown to a density of 3⫻108cells/ml and then infected with T7am28
phage at an m.o.i. of⬃5. Recombinant phage (T7tsval, T7tsile, T7tsphe) were isolated by plating onE. coliB cells, which are su⫺. Temperature sensitivity of the recombinant phage was determined by replica plating at 30 °C and 42 °C. All of the recombinant phage were temperature-sensitive. The gene 5 region of phage DNA was sequenced to confirm the presence of each mutation.
Plating Efficiencies—The efficiencies of plating of T7 wild-type, T7ts11, T7tsval, T7tsile, and T7tsphe phage were measured on a lawn of
E. coliB cells at various temperatures.E. coliB cells were grown to a density of 2⫻ 108cells/ml. Dilutions of phage (T7, T7ts11, T7tsval,
T7tsile, and T7tsphe) were mixed with 0.5 ml of cells and 3 ml of top agar (1% tryptone, 0.5% yeast, 0.5% NaCl, 0.7% agar, pH 7.0) and
1The abbreviations used are: nt, nucleotide(s); m.o.i., multiplicity of
infection; DTT, dithiothreitol; BSA, bovine serum albumin; ss, single stranded; ds, double stranded.
FIG. 1.Crystal structure of T7 DNA polymerase. A ternary complex of T7 gene 5 protein with its processivity factor, thioredoxin, a primed DNA template, and an incoming 2⬘-, 3⬘-dideoxynucleotide (ddGTP) determined at 2.2 Å resolution (7).Inset,Ala-73 (inred) in the exonucle-ase domain (helix C) and side chains of the surrounding residues (ingreen).
by guest on October 5, 2019
http://www.jbc.org/
plated on TB (1% tryptone, 0.5% yeast, 0.5% NaCl, 1.5% agar, pH 7.0) plates. The plates were incubated at 25 °C, 30 °C, 37 °C, and 42 °C. The plates were analyzed for plaques after 3–15 h.
Plating efficiencies of T7⌬5 phage were measured onE. coliC600 cells harboring the plasmids pT7–7, pGP5–3, pGP5-A73V, pGP5-A73L, pGP5-A73I, and pGP5-A73F. Plasmid pT7–7 is the parent vector of pGP5–3 missing the gene 5 insert. Cells harboring the plasmids were grown to a density of 2⫻108cells/ml in LB media containing 80g/ml
ampicillin. Dilutions of phage were mixed with 0.5 ml of cells, 3 ml of top agar, and ampicillin (200g) and plated on TB plates. The plates were incubated at 25 °C and 42 °C and analyzed for plaques after 4 h and 20 h, respectively.
[3H]Thymidine Incorporation Assays—DNA synthesis upon infection ofE. coliC600 cells by T7 phage was measured by thymidine incorpo-ration assays (29).E. coliC600 cells were grown to a density of 3⫻108
cells/ml in Davis media (0.7% potassium diphosphate, 2% potassium monophosphate, 0.05% sodium citrate, 0.01% magnesium sulfate, 0.1% ammonium sulfate) supplemented with glucose, thiamine, and casamino acids. The cells were infected with either wild-type T7 or T7tsval phage at an m.o.i. of 5. At the indicated time intervals, 200l of the samples were removed, and [3H]thymidine was added to the
infected cells to a final concentration of 50Ci/ml. Radioactive labeling was terminated after 90 s by the addition of 40l of 2 mMEDTA, 2% SDS, and 50 mMTris-Cl, pH 7.5, at 0 °C. The incorporation of [3
H]dTMP was measured on DE81 filter discs as described (30).
Preparation of Phage-infected Cell Extracts—E. coliD110 cells (25 ml) were grown to a density of 5⫻108cells/ml. T7 wild-type or T7tsval
phage was used to infect the cells at an m.o.i. of 5. The infected cultures were grown at 30 °C and 42 °C for 15 min. The cultures were then chilled on ice for 15 min. The cells were lysed by incubation with lysozyme (1g/ml) for 1 h at 4 °C. The lysates were centrifuged at 10,000 g for 30 min. The supernatant was collected and stored at
⫺80 °C.
DNA Polymerase Assays—DNA polymerase activity of purified T7 DNA polymerases was measured on primed M13 ssDNA. Reaction mixtures (50l) contained 40 mMTris-Cl, pH 7.5, 10 mMMgCl2, 5 mM
DTT, 50 mMNaCl, 20 nMM13 mGP1–2 ssDNA annealed to a 24-nt
oligonucleotide, 500Meach of dATP, dCTP, dGTP, and [3H]dTTP (2
cpm/pmol), 50g/ml BSA, and the indicated amounts of DNA polym-erase. The enzyme was pre-incubated with the primer-template in the absence of Mg2⫹and nucleotides for 4 min at 22 °C, 37 °C or 42 °C. The reaction was initiated by the addition of 7.5l of 66 mMMgCl2, 1.6 mM
each of dATP, dCTP, dGTP, and [3H]dTTP. Reaction mixtures were
incubated for 10 min, and the reactions were stopped by the addition of 10 l of 0.5 M EDTA, pH 7.5. The incorporation of [3H]dTMP was
measured on DE81 filter discs as described (30). Reactions at 42 °C also contained 30% glycerol.
Polymerase activity in phage-infected cell-lysates was measured us-ing salmon sperm ssDNA. Reaction mixtures (50l) contained 40 mM
Tris-Cl, pH 7.5, 10 mMMgCl2, 5 mMDTT, 50 mMNaCl, 300Msalmon
sperm ssDNA (in terms of total nucleotides), 500 Meach of dATP,
dCTP, dGTP, and [3H]dTTP (2 cpm/pmol), 50 g/ml BSA and the
indicated amounts of phage extract. Reaction mixtures were incubated for 15 min at 30 °C or 42 °C. The incorporation of [3H]dTMP was
measured as described above.
Heat Inactivation Assays—Wild-type T7 DNA polymerase or gp5-A73V was pre-incubated at 42 °C in 20l of 70 mMTris-Cl, pH 7.5, 9 mM
DTT, 90 mMNaCl, 50g/ml BSA and 75% glycerol. At the indicated times, aliquots were withdrawn, and DNA polymerase activity was measured at 37 °C on primed M13 ssDNA. Final concentrations of the components in the polymerase assay (in 50l) were 40 mMTris-Cl, pH
7.5, 10 mMMgCl2, 5 mMDTT, 50 mMNaCl, 20 nMprimed M13 DNA, 300 Meach of dATP, dCTP, dGTP, and [3H]dTTP (2 cpm/pmol), 50g/ml
BSA, 30% glycerol and 1 nMDNA polymerase. The reaction mixtures were incubated for 5 min at 37 °C. Heat inactivation assays with gp5-A73L were carried out under similar conditions, except the enzymes were pre-incubated at 37 °C and assayed for polymerase activity at 30 °C; the polymerase concentration was 2 nM, and there was no glyc-erol in the reactions.
Exonuclease Assays—The 3⬘-5⬘-exonuclease activity of T7 DNA poly-merase was measured using uniformly3H-labeled M13 ss or dsDNA.
The substrate was prepared by annealing the 24-nt oligonucleotide to M13 mGP1–2 DNA and then extending the primer in a reaction mixture (300l) that contained 30 mMTris-Cl, pH 7.5, 10 mMMgCl2, 5 mMDTT,
50 mMNaCl, 50Meach of dATP, dCTP, dGTP, and [3H]dTTP (3000
Ci/mmol), and 100 nMT7 DNA polymerase. After incubation at 37 °C for 8 min, the DNA was extracted with an equal volume of buffer-saturated phenol (pH 8.0):chloroform:isoamyl alcohol (24:24:1), and the labeled
DNA was purified through a Sepharose (CL-6B) column (Amersham Pharmacia Biotech). M13 [3H]ssDNA was prepared by alkali
denatur-ation of [3H]dsDNA by incubation with 50 m
MNaOH at 20 °C for 15 min, followed by neutralization with HCl.
The enzymes were pre-incubated with DNA in the absence of Mg2⫹ for 4 min at 22 °C, 37 °C, or 42 °C, and then the reactions were initiated by the addition of Mg2⫹. The pre-incubation mixture (45l) contained 1.1 nmol3H-labeled M13 ss or dsDNA (in terms of total nucleotides).
The reaction was initiated by the addition of 5l of 100 mMMgCl2.
Final concentrations were 1 nmol 3H-labeled M13 ss or dsDNA (in
terms of total nucleotides), 0.02– 0.4 nMDNA polymerase, and 10 mM
MgCl2. Reactions also contained 40 mMTris-Cl, pH 7.5, 5 mMDTT, 50
mMNaCl, and 50g/ml BSA. Reaction mixtures incubated at 42 °C also contained 30% glycerol. After 10 min at 22 °C, 37 °C, or 42 °C, the reactions were quenched by the addition of 30l BSA (10 mg/ml) and 30
l of trichloroacetic acid (100% w/v). After incubation at 0 °C for 15 min, precipitated DNA was collected by centrifugation at 12,000gfor 30 min. The acid-soluble radioactivity was counted by scintillation counting in UltraGold Fluor (Packard).
Nucleotide Turnover Assays—The rate of hydrolysis of nucleoside triphosphates to the corresponding monophosphate (turnover) during DNA synthesis was measured using primed M13 ssDNA and [␣-33P]dATP. The reaction mixture for turnover assays was essentially
the same as for polymerase assays with primed M13 DNA. Reactions contained 1 nM polymerase and 30% glycerol. Incorporation of [␣-33P]dAMP into the primer strand was measured as described for
polymerase assays. The amount of [␣-33P]dAMP obtained upon
exonu-cleolytic hydrolysis was quantified by TLC. An aliquot of the reaction mixture was applied to a polyethylenimine plate (JT Baker) and pre-developed with distilled water. The thin layer plate was pre-developed with 0.6MLiCl in 1Mformic acid. [␣-33P]dAMP formed was measured using
phosphorimage analysis with a Fuji BAS 1000 bio-imaging analyzer.
RESULTS
DNA Sequence Analysis of Gene 5 of T7ts11 Phage—T7ts11 is a temperature-sensitive mutant of phage T7 that carries a mutation in gene 5 that renders the DNA polymerase heat-labile relative to wild-type T7 DNA polymerase (16). To identify the mutations in gene 5 responsible for this phenotype, T7ts11 phage DNA was purified, and its gene 5 region sequenced. T7ts11 has two point mutations; a C to T transition at nucleo-tide 218 of gene 5 (base pair 14,570 in the T7 genome) and a G to A transition at nucleotide 1445 of gene 5 (base pair 15,797 in the T7 genome). These two point mutations result in two amino acid substitutions in T7 DNA polymerase: codon 73, alanine (GCA) to valine (GTA), and codon 482, arginine (CGC) to histidine (CAC), where the mutations are shown in bold.
To assess the contribution of each mutation in conferring temperature sensitivity to T7ts11 phage, the mutations were separated by recombination. The gene 5 mutation in the codon for residue 482 was introduced into the T7 chromosome by recombination between T7am196 phage and the plasmid en-coded gene 5. T7am196 phage carries an amber mutation in gene 5 and consequently does not plate efficiently on su⫺hosts. The amber mutation is the result of a change in codon 540 from ATT, coding for isoleucine, to TAG, a termination codon.2 Re-combination between the T7am196 phage and a homologous region on the plasmid containing the wild-type sequence at the codon for residue 540 can be observed directly by the increase in plating efficiency of the phage on a suppressor-free strain (31). Since the codon for residue 482 is near the amber muta-tion at the codon for residue 540, the two mutamuta-tions will be tightly linked and most of the recombinant phage that plate on a suppressor-free strain will have the mutation at residue 482. While phage mutants carrying the R482H mutation were not temperature-sensitive, phage mutants carrying the A73V mu-tation were as temperature-sensitive as the parent strain (data not shown). Thus, all the studies reported here have been carried out with mutants of phage T7 and mutant T7 DNA
2S. Tabor and C. C. Richardson, unpublished result.
Temperature-sensitive T7 DNA Polymerase
46153
by guest on October 5, 2019
http://www.jbc.org/
polymerases that contain substitutions only at codon 73. Ability of Plasmid-encoded Gene 5 with Mutations at the Codon for Residue 73 to Complement the Growth of T7 Phage Containing a Deletion of Gene 5—To analyze the role of residue 73 in T7 DNA polymerase, we constructed four mutants in which its codon, which normally codes for alanine, was changed to code for either valine, leucine, isoleucine, or phenylalanine. The ability of each of these mutant proteins produced from a plasmid to complement the growth of a T7 phage deleted for gene 5 (T7⌬5) was determined at 25 °C and 42 °C (Table I). In the absence of gene 5, no phage were detected at either 25 °C or 42 °C, since the phage requires T7 DNA polymerase for growth (26). At 25 °C, all four mutants produced plaques at the same efficiency as with the plasmid expressing the wild-type gene 5. When residue 73 is changed to valine, isoleucine or phenylala-nine, the plaques were the same size as when residue 73 was alanine (wild-type). In contrast, when residue 73 was leucine, the plaques were significantly smaller than those produced with the wild-type gene 5. At 42 °C, the only gene 5 mutant that complemented the growth of T7 phage is the one in which residue 73 was valine; the plaques produced were the same size as those observed with wild-type gene 5. Thus the gene 5 mutation responsible for the temperature-sensitive phenotype of T7ts11 (alanine 73 to valine) does not manifest a tempera-ture-sensitive phenotype when it is produced from a plasmid. A likely explanation for this is the higher expression of gene 5 from a plasmid than from the T7 chromosome due to the high copy number of the plasmid. To study the effect of lower con-centrations of these mutant proteins on temperature sensitiv-ity of phage growth, we introduced each of these four mutations back into gene 5 on the T7 chromosome.
Introduction of Gene 5 Mutations in the Codon for Residue 73 into T7 Phage—Gene 5 mutations in the codon for residue 73 were introduced into the T7 chromosome by recombination
between T7am28 phage and each plasmid-encoded gene 5. T7am28 phage carries an amber mutation in gene 5. The amber mutation is the result of a change in codon 141 from GAC, coding for aspartic acid, to TAG, a termination codon.2If the mutation at the codon for residue 73 is lethal for phage growth, then all of the viable recombinants will be T7 phage that have picked up the wild-type allele corresponding to the codon for residue 141 from the plasmid but have had a cross-over event between residues 73 and 141, and thus retain the wild-type allele at residue 73.
Recombinant phage were isolated by plating T7am28 phage
on E. coli B cells harboring A73V, A73L,
pGP5-A73I, or pGP5-A73F at 25 °C. In each case, 12 plaques were isolated (except for pGP5-A73L, where 42 plaques were iso-lated) and tested for whether they were temperature-sensitive by replica plating on cells at 25 °C or 42 °C. With phage grown on cells containing pGP5-A73V, pGP5-A73I, and pGP5-A73F, all of the recombinants were temperature-sensitive, suggesting that they had obtained the mutation at residue 73 by recombi-nation. DNA was isolated from 3 representative examples of each phage, and the gene 5 region was sequenced. In every case, the residues corresponding to codon 73 were mutated as expected. In contrast, in the case of phage plated on cells harboring pGP5-A73L, none of the 42 recombinants screened were temperature-sensitive, and DNA sequence analysis of six representative phage all contained the wild-type sequence at the codon corresponding to residue 73.
We tested the efficiency of plating of wild-type T7, ts11 (A73V, R482H), tsval (A73V),tsile (A73I), and tsphe (A73F) phage at 25 °C, 30 °C, 37 °C, and 42 °C (Table II). While T7tsval and T7tsile phage are viable at 37 °C and express the temperature-sensitive phenotype only at 42 °C, T7tsphe phage are not viable at 37 °C. It is apparent that as the side-chain of residue 73 becomes progressively more bulky, the phage be-come increasingly temperature-sensitive.
In summary, the substitution of alanine with valine at resi-due 73 (thets11 mutation) results in a temperature-sensitive phenotype when the mutant gene 5 is expressed on the T7 chromosome but not on a plasmid. When residue 73 is isoleu-cine or phenylalanine, a temperature-sensitive phenotype is observed regardless of whether the mutant gene 5 is produced by the phage or on a plasmid. Finally, when residue 73 is leucine, the mutation is lethal when expressed on the T7 chro-mosome, and while it can support T7 growth when expressed from a plasmid, the plaques formed at the permissive temper-ature are smaller than those formed using the wild-type polymerase.
Effect of Temperature on DNA Synthesis in Vivo by T7 Gene 5 Mutant Phage—T7 wild-type and T7tsval phage were com-pared for their ability to synthesize T7 DNA during phage growth at 30 °C and 42 °C.E. coliC600 cells were infected with T7 wild-type or T7tsval phage. Rates ofin vivoDNA synthesis
TABLE I
Ability of gene 5 plasmids to complement T7 phage growth
Plating efficiencies of T7⌬5 phage onE. coliC600 were measured as described under “Experimental Procedures”. Plating efficiencies are expressed as the fraction of T7⌬5 phage that produce plaques relative to plating on cells containing pGP5–3 (wild-type gene 5) and represents an average of three experiments.
Plasmid Amino acid substitution Efficiency ofplating
25 °Ca 42 °Cb
pT7–7 No gene 5 ⬍10⫺6 ⬍10⫺6
pGP5–3 Wild-type 1.0 1.0
pGP5-A73V Ala-73 to Val 1.0 1.0
pGP5-A73L Ala-73 to Leu 1.0c ⬍10⫺6
pGP5-A73I Ala-73 to Ile 1.0 ⬍10⫺5
pGP5-A73F Ala-73 to Phe 1.0 ⬍10⫺5
aPlates were incubated overnight.
bPlates were incubated for 4 h and prewarmed to 42 °C before use. cSmaller plaques were observed even at 25 °C.
TABLE II
Effect of temperature on the efficiency of plating of T7 phage strains
Phagea Mutation Efficiency of platingb
25 °Cc 30 °Cd 37 °Cd 42 °Cd
T7 Wild-type 1.0 (⫹) 1.0 (⫹) 1.0 (⫹) 1.0 (⫹)
ts11 A73V, R482H 1.0 (⫾) 1.0 (⫾) 0.3 (⫺) ⬍10⫺5
tsval A73V 1.0 (⫾) 1.0 (⫾) 0.2 (⫺) ⬍10⫺5
tsile A73I 1.0 (⫾) 0.6 (⫾) 0.2 (⫺) ⬍10⫺6
tsphe A73F 1.0 (⫺) 0.5 (⫺) ⬍10⫺7 ⬍10⫺7
aT7 refers to wild-type T7 phage.tsphage refer to mutant strains of T7 that exhibit a temperature-sensitive phenotype. The substitutions at residue 73 are shown.
bPlating efficiencies of each phage onE. coliB is given relative to the number of plaque-forming units at 25 °C for that phage and represent an average of three experiments. Signs in parentheses (⫹,⫾, or⫺) indicate large, medium, or small plaques, respectively.
cPlates were incubated overnight. dPlates were incubated for 4 h.
by guest on October 5, 2019
http://www.jbc.org/
were measured by monitoring the incorporation of [3 H]thymi-dine into DNA after phage infection (Fig. 2). Fig. 2, (left panel) shows a plot of the incorporation of [3H]thymidine as a function of the time of phage infection at 30 °C. T7 DNA synthesis in infected cells started ⬃10 min after infection, after the shut down of host DNA synthesis (26). In T7tsval-infected cells, DNA synthesis also started to increase 10 min after infection, and at 30 min the level of DNA synthesis was about half that with wild-type phage. The kinetics of DNA synthesis by T7tsval phage at 30 °C was in dramatic contrast to the kinetics of its DNA synthesis at 42 °C (right panel). Upon infection of cells with wild-type T7 phage at 42 °C, T7 DNA synthesis started⬃4 min after infection and reached a maximum at 10 min. In contrast, with T7tsval phage at 42 °C, DNA synthesis declined immediately upon infection, and there was no detectable DNA synthesis even after 40 min, at which time the cells have lysed. Effect of Temperature on the Production of T7 Gene 5 Pro-tein—To determine whether the failure of T7tsval phage to synthesize T7 DNA at 42 °C is due to a failure to synthesize T7 DNA polymerase, decreased solubility of the protein, increased proteolysis of the protein, or the synthesis of an inactive en-zyme, we examined the amount of soluble gene 5 protein pro-duced after T7tsval infection at both permissive and non-per-missive temperatures. We also determined the polymerase activity in extracts prepared from the infected cells. T7 wild-type or T7tsval phage were used to infectE. coli D110 cells growing at 30 °C or 42 °C at an m.o.i. of 5. After 15 min, the cells were lysed, and the cell debris removed by centrifugation. The amount of gene 5 protein present in the supernatant was measured by immunoblot analysis using polyclonal antibodies against gene 5 protein (Fig. 3). As a control, the amount of gene 4 protein present in each extract was also measured using a separate antibody specific for this protein. As judged from densitometry of the blots, the amount of gene 5 protein is constant in wild-type T7 and T7tsval-infected cell extracts pre-pared at either permissive or non-permissive temperatures. Thus the temperature-sensitive phenotype is not due to differ-ential expression, solubility, or susceptibility to proteolysis.
To determine whether the temperature-sensitive phenotype is due to the production of a catalytically inactive gene 5 pro-tein at the non-permissive temperature, we measured the DNA polymerase activity in extracts prepared from T7 phage-in-fected D110 cells (Table III). D110 cells are deficient in the host DNA polymerase I activity and thus have low levels of host DNA polymerase activity in extracts (32). When the cells were infected at 30 °C, DNA polymerase activity in extracts pre-pared from wild-type T7-infected cells was 2.5-fold higher than
the activity in extracts prepared from T7tsval-infected cells whether the assay was carried out at 30 °C or 42 °C. In con-trast, when the extracts were prepared from cells infected at 42 °C, there was no detectable DNA polymerase activity in the extracts prepared from T7tsval, regardless of whether the as-say was carried out at 30 °C or 42 °C. As a control, with ex-tracts prepared from cells infected with wild-type T7 phage at 42 °C, the activity was⬃60% of the amount observed when the cells were infected at 30 °C, irrespective of the assay tempera-ture. Thus gene 5 protein with residue 73 mutated to a valine is inactive when it is synthesized at the non-permissive tem-perature, even when assayed at the permissive temperature. However, it is not detectably more temperature-sensitive when it is synthesized at the permissive temperature and assayed at the non-permissive temperature.
DNA Synthesis in Vitro by Purified Gene 5 Proteins—To characterize the temperature-sensitivity of the gene 5 proteins with mutations at residue 73 in greater detail, gp5-A73V and gp5-A73L were over-produced from cloned genes induced at 30 °C and purified. We chose these two proteins to characterize biochemically as the change from alanine to valine is the rele-vant mutation in T7ts11 phage, while in vivoanalysis impli-cated that substitution of residue 73 with leucine had the most drastic effect of the four mutations.
We compared the polymerase activity of wild-type T7 DNA polymerase to gp5-A73V and gp5-A73L on primed M13 ssDNA at varying temperatures (Figs. 4 and 5). The polymerase activ-ity of gp5-A73V is within a factor of two of the activactiv-ity of wild-type T7 DNA polymerase at 22 °C (Fig. 5), 37 °C (Figs. 4 and 5), and 42 °C (Fig. 4). The polymerase activity of wild-type T7 DNA polymerase is also 2-fold higher than that of gp5-A73L at 22 °C and 37 °C (Fig. 5).
T7 gene 5 protein is extremely non-processive by itself. As a result, the rate of DNA synthesis on long templates like M13 DNA is only a few percent of processive DNA synthesis ob-served when it is in a complex with thioredoxin (19). The rates of DNA synthesis on M13 DNA observed with gp5-A73V and gp5-A73L indicate normal processivity. The processivity of DNA synthesis catalyzed by gp5-A73V at 22 °C and 42 °C was also measured directly by measuring the length of products formed by gel electrophoresis. M13 ssDNA annealed to a 5⬘ -32P-labeled 24-nt oligonucleotide was used as the
primer-tem-plate. To measure the length of products formed from a single polymerase-DNA binding event, the concentration of the prim-er-template was maintained in excess over the polymerase (33). Aliquots of the reaction mixture were removed at different times and were subjected to electrophoresis in an agarose gel. The processivity of gp5-A73V is in the order of thousands of nucleotides, similar to that of T7 wild-type DNA polymerase (data not shown). This result provides strong evidence that a
FIG. 2.Time course ofin vivo DNA synthesis after infection with T7 phage.E. coliC600 cells (3⫻108/ml) grown in Davis media at
30 °C (left panel) and 42 °C (right panel) were infected at an m.o.i. of 5 with wild-type (E) ortsval (●) T7 phage. At the indicated times after infection, the cells were pulse labeled with [3H]thymidine for 90 s. The
labeling was terminated by the addition of EDTA and SDS, and the incorporation of [3
H]thymidine was measured on DE81 filter discs as described under “Experimental Procedures”. The plots represent [3H]thymidine incorporated (cpm) as a function of time after infection.
FIG. 3.T7 DNA polymerase induced upon infection with T7 phage.E. coliD110 cells were grown at 30 °C and 42 °C to a concen-tration of 5⫻108/ml and then were infected with wild-type ortsval T7
phage at an m.o.i. of 5. After 15 min, the cells were lysed, and the supernatant collected by centrifugation. Aliquots of the supernatant were subjected to SDS-PAGE. After electrophoresis, the proteins were transferred onto nitrocellulose membranes. Gene 5 protein and gene 4 protein were detected by a mixture of polyclonal antibodies specific to each protein. Gene 4 protein provides an internal standard. Arrows
indicate the positions of the two proteins.
Temperature-sensitive T7 DNA Polymerase
46155
by guest on October 5, 2019
http://www.jbc.org/
normal complex is formed between the polymerase and thioredoxin.
Heat Inactivation of Mutant Gene 5 Proteins—To determine whether replacing the side chain of residue 73 with sterically larger substituents disrupts the stability of the enzyme, we compared the heat inactivation profiles of A73V and gp5-A73L to that of wild-type T7 DNA polymerase (Fig. 6). In this experiment, the stabilities of the enzymes have been extrapo-lated from residual polymerase activity measured after bation at elevated temperatures. Each polymerase was incu-bated at the elevated temperature, aliquots were withdrawn at varying times, and DNA synthesis activity was measured on primed M13 ssDNA at 30 °C or 37 °C as described in “Experi-mental Procedures”. The data represent the amount of [3H]dTMP incorporated as a function of the time of incubation of the enzyme at the elevated temperature. The rate of decay of
gp5-A73V (t1⁄2⫽4.5 min) and wild-type T7 DNA polymerase (t1⁄2
⫽5.2 min) at 42 °C was nearly identical (Fig. 6A). In these experiments, incubations carried out at 42 °C contained 75% glycerol to increase the stability of the proteins. We have found that wild-type T7 DNA polymerase has a half-life of less than 2 min at 42 °C that increases to 5.2 min in the presence of 75% glycerol (data not shown). However, since the presence of glyc-erol may mask the differential temperature sensitivity of the mutant gene 5 proteins compared with wild-type T7 DNA po-lymerase, we also carried out this assay by incubating the enzymes at 37 °C in the absence of glycerol. At 37 °C, while wild-type T7 DNA polymerase decays with a half-life of 4.6 min, and gp5-A73L and gp5-A73V decay slightly more rapidly with half-lives of 2.3 min and 3.3 min, respectively (Fig. 6B).
3⬘-5⬘-Exonuclease Activity of Mutant Gene 5 Proteins—Gene
5 protein has a 3⬘-5⬘-exonuclease activity that is active on both ds and ssDNA. Thioredoxin greatly stimulates the 3⬘-5⬘ -exonu-clease activity on dsDNA (34). Since residue 73 is located in the
TABLE III
DNA polymerase activity in phage-infected cell extracts
E. coliD110 cells were infected with T7 wild-type andtsval phage at 30 °C and 42 °C at an m.o.i. of 5. The cells were lysed 15 min after infection, and the polymerase activity in the supernatant was measured at 30 °C and 42 °C as described under “Experimental Procedures.” Values are expressed as [3H]dTMP incorporated (pmol)/min/mg of protein.
Phage 30 °C infection 42 °C infection
Assay at 30 °C Assay at 42 °C Assay at 30 °C Assay at 42 °C
T7 120 88 68 49
tsval 49 34 ⬍1 ⬍1
FIG. 4.DNA synthesis catalyzed by wild-type T7 DNA polym-erase and gp5-A73V.A 24-nt oligonucleotide annealed to circular M13 ssDNA was used as the primer-template in a standard polymerase assay with wild-type (E) or gp5-A73V (●) T7 DNA polymerase. The rate of incorporation of [3H]dTMP was measured at 37 °C and 42 °C on
DE81 filter discs as described under “Experimental Procedures”. The data has been presented as the rate of incorporation of [3H]dTMP.
Reaction mixtures contained 20 nMDNA and 0.4 nMDNA polymerase.
FIG. 5.DNA synthesis catalyzed by wild-type, gp5-A73V, and gp5-A73L T7 DNA polymerase.A 24-nt oligonucleotide annealed to circular M13 ssDNA was used as the primer-template in a standard polymerase assay. Indicated amounts of wild-type T7 DNA polymerase, gp5-A73V, or gp5-A73L were preincubated with the primer-template at 22 °C or 37 °C for 4 min. DNA synthesis was initiated by the addition of Mg䡠dNTP. After 10 min, the reactions were quenched by the addition of 100 mMEDTA. The incorporation of [3H]dTMP was measured on DE81
filter discs as described under “Experimental Procedures”. The data have been presented as the incorporation of [3
H]dTMP as a function of polymerase concentration at 22 °C and 37 °C.
FIG. 6.Heat inactivation of T7 DNA polymerase.T7 DNA polym-erase was incubated at the indicated temperature. Aliquots of the enzyme solution were withdrawn at the indicated periods of time and added to a solution that contained primed M13 DNA, Mg2⫹, dATP, dCTP, dGTP, and [3
H]dTTP. After 5 min, the reaction was stopped by the addition of 100 mMEDTA. The incorporation of [3H]dTMP was
measured on DE81 filter discs. The amount of DNA synthesis is plotted as a function of time of incubation at the indicated temperature. Curves are best fits, computed for first-order decay of the polymerase. A,
wild-type T7 DNA polymerase and gp5-A73V were incubated at 42 °C in 70 mMTris-Cl, pH 7.5, 9 mMDTT, 90 mMNaCl, 50g/ml BSA, and 75% glycerol. Aliquots were withdrawn after the indicated periods of time, and the residual polymerase activity measured at 37 °C.B,wild-type T7 DNA polymerase, gp5-A73V, and gp5-A73L were incubated at 37 °C. These assays were carried out in the absence of glycerol. After the indicated periods of time, residual polymerase activity was measured at 30 °C.
by guest on October 5, 2019
http://www.jbc.org/
exonuclease domain of the T7 DNA polymerase, we measured the 3⬘-5⬘-exonuclease activity of the altered polymerases on both dsDNA and ssDNA at 37 °C and 22 °C (Fig. 7). The frac-tion of DNA degraded by the exonuclease activity was meas-ured as a function of enzyme concentration. The 3⬘-5⬘ -exonu-clease activities on dsDNA of gp5-A73V and gp5-A73L are within 1.5-fold of the activities of wild-type T7 DNA polymer-ase at both 37 °C and 22 °C (Fig. 7A). The 3⬘-5⬘-exonuclease activities on ssDNA of both gp5-A73V and gp5-A73L are lower than wild-type T7 DNA polymerase by a factor of 2 at 22 °C and a factor of 4 at 37 °C (Fig. 7B).
Nucleotide Turnover by Mutant Gene 5 Proteins—Nucleotide turnover is the DNA-dependent conversion of deoxynucleoside triphosphates into their corresponding monophosphates under conditions of DNA synthesis. The polymerization of nucleotides into a primer followed by exonucleolytic degradation by the 3⬘-5⬘-exonuclease activity associated with the polymerase re-sults in nucleotide turnover. Thus, it reflects the amount of “editing” that takes place in a reaction (35, 36). To determine whether the substitution of alanine with valine at residue 73 alters the amount of editing, the nucleotide turnover associated with gp5-A73V was compared with that of wild-type T7 DNA polymerase (Table IV). The rate of hydrolysis of nucleoside triphosphate to the corresponding nucleoside monophosphate (turnover) during DNA synthesis was measured using primed M13 ssDNA and [␣-33P]dATP at 22 °C, 37 °C, and 42 °C. Rates of DNA synthesis were measured by the incorporation of [␣-33P]dAMP. To measure the exonucleolytic release of [␣-33P]dAMP, an aliquot of the reaction mixture was removed at the indicated time and analyzed by TLC. The turnover percentage of dAMP was similar for both enzymes at all three assay temperatures.
DISCUSSION
The replicative DNA polymerase of bacteriophage T7 is en-coded by T7 gene 5. A temperature-sensitive mutant of bacte-riophage T7, T7ts11 was used by Grippo and Richardson (16) to demonstrate the link between gene 5 and T7 DNA polymerase. In this report, the mutation that imparts temperature sensi-tivity to T7ts11 phage has been identified, and the biochemical basis for the temperature sensitivity examined. Sequencing of gene 5 of T7ts11 phage revealed two point mutations from the wild-type gene. One of the mutations, a C to T transition, encodes for an alanine to valine substitution at residue 73 in T7 DNA polymerase. This single mutation confers the tempera-ture sensitivity for T7 phage growth observed with T7ts11. The other mutation most likely arose during mutagenesis and has no demonstrable effect on phage growth.
T7 DNA polymerase, like most polymerases of the Pol I family, has a bipartite architecture with a distinct C-terminal polymerase and an N-terminal exonuclease domain (37– 41). From crystallographic data, the alanine at residue 73 resides in helix C of the exonuclease domain of the polymerase (Fig. 1). Sequence alignment shows that this alanine is conserved inE. coliDNA polymerase I (Ala-928) and in the DNA polymerases
from Bacillus stearothermophilus (Ala-121) and Thermus
aquaticus (Ala-129). The alanine at residue 73 is buried in a
hydrophobic environment and has low thermal factors and solvent accessibility. It does not appear to be close to the exonuclease active site. Mutations that are spatially removed from the active site and yet affect function could be informative about the conformation and folding of a protein. Previous work has shown that relatively large deletions (42) as well as chem-ical modifications (43) in the exonuclease domain of T7 DNA polymerase do not affect the polymerase activity. Thus it is especially interesting that the conservative change of alanine to valine in the exonuclease domain of T7 DNA polymerase has such a severe affect on polymerase activity.
In vivo, T7tsval phage cannot replicate its DNA at 42 °C, whereas at 30 °C, the amount of DNA synthesis approaches that of wild-type T7 phage. There are a number of possible explanations for this deficiency at the non-permissive temper-ature: 1) the polymerase could be poorly induced, 2) the polym-erase could be insoluble, 3) the polympolym-erase could be susceptible to proteolysis, 4) the polymerase and/or exonuclease activity could be inactive, or 5) the polymerase could be defective in interacting with another essential replication protein. To de-termine which of these mechanisms explains the temperature sensitivity of T7tsval, we examined the amount of soluble gene 5 protein produced by the wild-type and T7tsval phage at the non-permissive temperature. The levels of the two proteins were comparable, ruling out differences in induction, solubility, or proteolysis accounting for the temperature sensitivity.
To determine whether the altered polymerase was tempera-ture-sensitive for polymerase activity, we measured polymer-ase activity at both 30 °C and 42 °C in extracts of cells infected with either wild-type or T7tsval phage at either 30 °C or 42 °C. The level of DNA synthesis activity in extracts that were in-fected at 30 °C with T7tsval phage was within 50% of that of cells infected with wild-type T7 phage, whether the assay was carried out at 30 °C or 42 °C. This result implies that the polymerase synthesized at 30 °C is as thermally stable as wild-type T7 DNA polymerase. Biochemical data with the purified mutant enzymes, gp5-A73V and gp5-A73L, over-produced at the lower temperatures permissive for T7 phage growth sup-port this model. The thermal stabilities of A73V and gp5-A73L are within 2-fold of the wild-type polymerase as extrap-olated from the kinetics of heat inactivation. The rate of DNA synthesis on primed M13 ssDNA, exonuclease activity on ss
FIG. 7.3ⴕ-5ⴕ-Exonuclease activity on [3H]-labeled M13 DNA.A,
double-stranded DNA exonuclease activity. B, single-stranded DNA exonuclease activity. Uniformly 3H-labeled M13 dsDNA and ssDNA
were prepared as outlined in “Experimental Procedures”. Wild-type T7 DNA polymerase, gp5-A73V, or gp5-A73L were preincubated with M13 dsDNA (A) or ssDNA (B) in the absence of Mg2⫹ at the indicated temperatures for 4 min. The reaction was initiated by the addition of Mg2⫹. Acid-soluble radioactivity was measured as described in “Exper-imental Procedures”. The percentage of DNA hydrolyzed has been pre-sented as a function of polymerase concentration. 100% dsDNA (A) or ssDNA (B) corresponds to 1 nmol M13 DNA (in terms of total nucleotides).
Temperature-sensitive T7 DNA Polymerase
46157
by guest on October 5, 2019
http://www.jbc.org/
and dsDNA, and nucleotide turnover during DNA synthesis catalyzed by the mutant proteins are also within 2– 4-fold of the wild-type polymerase. These data suggest that the mutant enzymes synthesized at lower temperatures are folded in an active conformation that is similar to the native state of the protein. The consistent lower activity of the altered enzymes in biochemical assays may reflect a local perturbation in struc-ture, with the Ala-73 to leucine substitution being more severe than the valine substitution.
There was no detectable polymerase activity in extracts pre-pared from cells infected with T7tsval phage at 42 °C, irrespec-tive of the assay temperature. This lack of activity presumably is the consequence of misfolding of the mutant gene 5 protein when it is synthesized at the non-permissive temperature. Since DNA polymerase activity in such extracts using salmon sperm DNA as a template is dependent only on T7 DNA po-lymerase, the principal reason for the temperature-sensitive phenotype cannot be a defect in the ability of the misfolded polymerase to interact with other essential replication pro-teins. Nevertheless, to examine whether the interaction of the polymerase with another replication protein such as the heli-case/primase is disrupted at elevated temperatures, interac-tions with the primase-helicase of bacteriophage T7 encoded by gene 4 (gp4) were examined in assays with purified proteins. T7 DNA polymerase does not catalyze strand displacement DNA synthesis at a preformed replication fork by itself; it requires the helicase activity of gp4 to catalyze rapid and extensive DNA synthesis via a rolling circle mechanism. This coupling of activity is used as a measure of a functional inter-action between the two proteins (44, 45). Gp5-A73V catalyzes strand displacement DNA synthesis in complex with gp4 at elevated temperatures, implying that it interacts with gp4 in a functional mode.3
It is clear that the purified mutant gene 5 proteins synthe-sized at the permissive temperature interact normally with thioredoxin at all assay temperatures. This conclusion is based on the fact that the rates of extensive DNA synthesis on M13 DNA and exonuclease activity on dsDNA, activities that both require thioredoxin, of the purified mutant polymerases were within a factor of three of wild-type T7 DNA polymerase at all assay temperatures. In addition, the processivity of DNA syn-thesis catalyzed by the genetically altered polymerase (gp5-A73V) in complex with thioredoxin is on the order of thousands of nucleotides, similar to that of wild-type T7 DNA polymerase. We attempted to purify the mutant DNA polymerases that were over-produced at the non-permissive temperature. How-ever, when over-produced the solubility of the mutant poly-merases decreased sharply with increasing temperature. This observation is consistent with protein misfolding and aggrega-tion at higher temperatures. The inactive T7 DNA polymerase
produced at elevated temperatures from phage-infected cells was soluble (Fig. 3) presumably because it is present at much lower levels in the cell.
It seems likely that the protein synthesized at elevated tem-peratures is a kinetically trapped intermediate in the folding pathway of T7 DNA polymerase that does not attain the native conformation, rather than a mutant with reduced stability. We hypothesize that Ala-73 is at a site critical for correct folding of T7 DNA polymerase. In summary, biochemical data with pu-rified proteins andin vivostudies with mutant phage strains suggest that the Ala-73 to Val substitution in T7 DNA polym-erase results in a temperature-sensitive for folding (tsf) pheno-type, similar to that of the temperature-sensitive mutants of the P22 tail spike protein (15). Mutants that display tempera-ture-sensitive folding defects have also been found in interleu-kin 1(46), enterotoxin B (47), andEcoRI endonuclease (48). This mutant of T7 DNA polymerase differs from the well char-acterized temperature-sensitive mutants of T4 lysozyme (14) that have decreased thermal stability for the native protein formed at permissive temperatures. Among temperature-sen-sitive mutants of DNA polymerases, to our knowledge, there are only a few well characterized examples of DNA polymerase mutants, such as adenovirus DNA polymerase (Adts36), that have such folding defects (49). The T4 DNA polymerase mu-tant,tsL56 has been reported to be inactive when synthesized at elevated temperatures (50, 51) and may in fact have similar properties to the T7 DNA polymerase mutant described here. The extensively studiedtsL141 andtsCB120 mutants of bacte-riophage T4 also are the result of an alanine to valine mutation (at residue 737) in T4 DNA polymerase (35, 52); however this mutant retains polymerase activity even when synthesized at the restrictive temperature.
Since T7 DNA polymerase is known to tolerate extensive amino acid deletions as well as chemical modifications in its exonuclease domain, it is striking that a single amino acid substitution in the exonuclease domain disrupts polymerase activity. It will be of interest to identify suppressors to this mutation. Such suppressors should not only shed light on the mechanism of temperature sensitivity of T7 DNA polymerase, but may provide insight into improving the yield of recombi-nant proteins by reducing the extent of aggregation.
The prediction of critical amino acid residues that affect the structure and folding of a protein is an important but elusive task. Using a genetic approach, we have identified a residue that is crucial for the folding of T7 DNA polymerase into its biologically active form. Experimental data on model systems such as T7 DNA polymerase are invaluable in understanding protein folding and such data can be incorporated in the design of computer-based folding algorithms. Since a number of dis-ease states are caused by protein misfolding, examples of amino acid substitutions that alter the folding of a protein are important for providing a framework for understanding the structural basis of misfolding mutations.
3J. K. Kumar, S. Tabor, and C. C. Richardson, unpublished
observation.
TABLE IV
Incorporation and turnover of dAMP during DNA synthesis on primed M13 DNA
Reaction mixtures were incubated with [␣-33P]dATP and primed M13 ssDNA template. DNA synthesis was measured by the incorporation of
[␣-33P]dAMP as described under “Experimental Procedures.” The hydrolysis of [␣-33P]dATP to [33P]dAMP was monitored by TLC analysis of the
reaction mixture.
Polymerase Temperature dAMP incorporated dAMP formed % Turnover
pmol/min (a) pmol/min (b) [b/(b⫹a)]⫻100
Wild-type 22 °C 5.2 0.15 2.8
gp5-A73V 3.3 0.07 2.1
Wild-type 37 °C 56 1.9 3.2
gp5-A73V 28 1.1 3.8
Wild-type 42 °C 81 3.1 3.7
gp5-A73V 48 1.8 3.6
by guest on October 5, 2019
http://www.jbc.org/
Acknowledgements—We thank Thomas Hollis for graphics in Fig. 1 and Lisa Rezende for reading the manuscript.
REFERENCES
1. Fersht, A. R. (1999)Structure and Mechanism in Protein Science: A Guide to Enzyme Catalysis and Protein Folding, W. H. Freeman and Co., New York 2. Clarke, J., and Dobson, C. M. (2001)Curr. Opin. Struct. Biol.11,67– 69 3. Rumbley, J., Hoang, L., Mayne, L., and Englander, S. W. (2001)Proc. Natl.
Acad. Sci. U. S. A.98,105–112
4. Dobson, C. M. (2001)Philos. Trans. R. Soc. Lond-Biol. Sci.356,133–145 5. Vogelstein, B., and Kinzler, K. W. (1992)Cell70,523–526
6. Sunyaev, S., Lathe, W., and Bork, P. (2001)Curr. Opin. Struct. Biol.11,
125–130
7. Mirny, L. A., and Shakhnovich, E. I. (1999)J. Mol. Biol.291,177–196 8. Ptitsyn, O. B., and Ting, K. L. H. (1999)J. Mol. Biol.291,671– 682 9. Plaxco, K. W., Larson, S., Ruczinski, I., Riddle, D. S., Thayer, E. C., Buchwitz,
B., Davidson, A. R., and Baker, D. (2000)J. Mol. Biol.298,303–312 10. Banavar, J. R., and Maritan, A. (2001)Proteins42,433– 435 11. Alber, T. (1989)Annu. Rev. Biochem.58,765–798
12. Serrano, L., Kellis, J. T., Cann, P., Matouschek, A., and Fersht, A. R. (1992)J. Mol. Biol.224,783– 804
13. Jackson, S. E., Elmasry, N., and Fersht, A. R. (1993) Biochemistry32,
11270 –11278
14. Liu, R. J., Baase, W. A., and Matthews, B. W. (2000)J. Mol. Biol.295,127–145 15. Betts, S., and King, J. (1999)Struct. Fold. Des.7,R131–R139
16. Grippo, P., and Richardson, C. C. (1971)J. Biol. Chem.246,6867– 6873 17. Doublie, S., and Ellenberger, T. (1998)Curr. Opin. Struct. Biol.8,704 –712 18. Lee, J., Chastain, P. D., Kusakabe, T., Griffith, J. D., and Richardson, C. C.
(1998)Mol. Cell.1,1001–1010
19. Tabor, S., Huber, H. E., and Richardson, C. C. (1987)J. Biol. Chem.262,
16212–16223
20. Modrich, P., and Richardson, C. C. (1975)J. Biol. Chem.250,5508 –5514 21. Huber, H. E., Russel, M., Model, P., and Richardson, C. C. (1986)J. Biol.
Chem.261,5006 –5012
22. Tabor, S., Huber, H. E., and Richardson, C. C. (1986) inThioredoxin and Glutaredoxin Systems: Structure and Function(Holmgren, A., Branden, C.-I., Jornvall, H., and Sjoberg, B.-M., eds) pp. 285–300, Raven Press, New York
23. Huber, H. E., Tabor, S., and Richardson, C. C. (1987)J. Biol. Chem.262,
16224 –16232
24. Doublie, S., Tabor, S., Long, A. M., Richardson, C. C., and Ellenberger, T. (1998)Nature391,251–258
25. Tabor, S., and Richardson, C. C. (1987)Proc. Natl. Acad. Sci. U. S. A.84,
4767– 4771
26. Studier, F. W. (1969)Virology39,562–574
27. Lopilato, J., Bortner, S., and Beckwith, J. (1986) Mol. Gen. Genet.205,
285–290
28. Bradford, M. M. (1976)Anal. Biochem.72,248 –254 29. Saito, H., and Richardson, C. C. (1981)J. Virol.37,343–351
30. Bryant, F. R., Johnson, K. A., and Benkovic, S. J. (1983)Biochemistry22,
3537–3546
31. Campbell, J. L., Richardson, C. C., and Studier, F. W. (1978)Proc. Natl. Acad. Sci. U. S. A.75,2276 –2280
32. Moses, R. E., and Richardson, C. C. (1970)Proc. Natl. Acad. Sci. U. S. A.67,
674 – 681
33. Kumar, J. K., Tabor, S., and Richardson, C. C. (2001)J. Biol. Chem.,276, 34905–34912
34. Hori, K., Mark, D. F., and Richardson, C. C. (1979) J. Biol. Chem.254,
11598 –11604
35. Hershfield, M. S., and Nossal, N. G. (1972)J. Biol. Chem.247,3393–3404 36. Muzyczka, N., Bessman, M. J., and Poland, R. L. (1972)J. Biol. Chem.247,
7116 –7122
37. Ollis, D. L., Brick, P., Hamlin, R., Xuong, N. G., and Steitz, T. A. (1985)Nature
313,762–766
38. Beese, L. S., Derbyshire, V., and Steitz, T. A. (1993)Science260,352–355 39. Joyce, C. M., and Steitz, T. A. (1994)Annu. Rev. Biochem.63,777– 822 40. Brautigam, C. A., and Steitz, T. A. (1998)Curr. Opin. Struct. Biol.8,54 – 63 41. Doublie, S., Sawaya, M. R., and Ellenberger, T. (1999)Struct. Fold. Des.7,
R31–R35
42. Tabor, S., and Richardson, C. C. (1989)J. Biol. Chem.264,6447– 6458 43. Tabor, S., and Richardson, C. C. (1987)J. Biol. Chem.262,15330 –15333 44. Notarnicola, S. M., Mulcahy, H. L., Lee, J., and Richardson, C. C. (1997)
J. Biol. Chem.272,18425–18433
45. Chowdhury, K., Tabor, S., and Richardson, C. C. (2000)Proc. Natl. Acad. Sci. U. S. A.97,12469 –12474
46. Wetzel, R., and Chrunyk, B. A. (1994)FEBS Lett.350,245–248 47. Sandkvist, M., and Bagdasarian, M. (1993)Mol. Microbiol.10,635– 645 48. Muir, R. S., Flores, H., Zinder, N. D., Model, P., Soberon, X., and Heitman, J.
(1997)J. Mol. Biol.274,722–737
49. Chen, H. F., Ramachandra, M., and Padmanabhan, R. (1994)Virology205,
364 –370
50. Swartz, M. N., Nakamura, H., and Lehman, I. R. (1972)Virology47,338 –353 51. Thorner, J., Huang W., and Lehman, I. R. (1975)Virology68,338 –348 52. Nossal, N. G. (1998)Genetics148,1535–1538
Temperature-sensitive T7 DNA Polymerase
46159
by guest on October 5, 2019
http://www.jbc.org/
Jaya K. Kumar, Robin Kremsdorf, Stanley Tabor and Charles C. Richardson
the Phage Temperature-sensitive
A Mutation in the Gene-encoding Bacteriophage T7 DNA Polymerase That Renders
doi: 10.1074/jbc.M106319200 originally published online September 10, 2001
2001, 276:46151-46159.
J. Biol. Chem.
10.1074/jbc.M106319200
Access the most updated version of this article at doi:
Alerts:
When a correction for this article is posted
•
When this article is cited
•
to choose from all of JBC's e-mail alerts
Click here
http://www.jbc.org/content/276/49/46151.full.html#ref-list-1
This article cites 50 references, 19 of which can be accessed free at
by guest on October 5, 2019
http://www.jbc.org/
