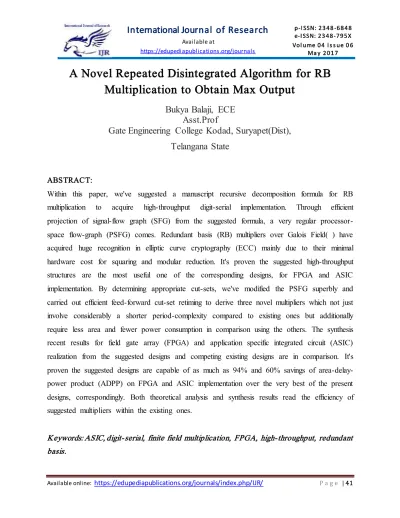

A Novel Repeated Disintegrated Algorithm for RB
Multiplication to Obtain Max Output
Bukya Balaji, ECE
Asst.Prof
Gate Engineering College Kodad, Suryapet(Dist),
Telangana State
ABSTRACT:
Within this paper, we've suggested a manuscript recursive decomposition formula for RB multiplication to acquire high-throughput digit-serial implementation. Through efficient projection of signal-flow graph (SFG) from the suggested formula, a very regular processor-space flow-graph (PSFG) comes. Redundant basis (RB) multipliers over Galois Field( ) have acquired huge recognition in elliptic curve cryptography (ECC) mainly due to their minimal hardware cost for squaring and modular reduction. It's proven the suggested high-throughput structures are the most useful one of the corresponding designs, for FPGA and ASIC implementation. By determining appropriate cut-sets, we've modified the PSFG superbly and carried out efficient feed-forward cut-set retiming to derive three novel multipliers which not just involve considerably a shorter period-complexity compared to existing ones but additionally require less area and fewer power consumption in comparison using the others. The synthesis recent results for field gate array (FPGA) and application specific integrated circuit (ASIC) realization from the suggested designs and competing existing designs are in comparison. It's proven the suggested designs are capable of as much as 94% and 60% savings of area-delay-power product (ADPP) on FPGA and ASIC implementation over the very best of the present designs, correspondingly. Both theoretical analysis and synthesis results read the efficiency of suggested multipliers within the existing ones.
I. INTRODUCTION
The majority of the real-time programs, therefore, need hardware implementation of finite field arithmetic procedures for those benefits like low-cost and-throughput rate. Furthermore, multiplication on the finite field may be used further to do other field procedures, e.g., division, exponentiation, and inversion [1]. Multiplication over could be implemented on the general purpose machine, but it's costly to utilize a general purpose machine to apply cryptographic systems on price-sensitive consumer items. Finite field multiplication over Galois Field is really a fundamental operation frequently
experienced in modern cryptographic
systems like the elliptic curve cryptography (ECC) and error control coding. Besides, a
minimal-finish micro-processor cannot
satisfy the real-time dependence on different programs since word-period of these processors is simply too small in comparison using the order of typical finite fields utilized in cryptographic systems [2]. The option of basis to represent field elements, namely the polynomial basis, normal basis, triangular basis and redundant basis (RB) includes a major effect on the performance from the arithmetic circuits. The multipliers according to RB have acquired significant
attention recently because of their several positive aspects. Furthermore they provide free squaring, normally basis does, but additionally involves lower computational complexity and could be implemented in highly regular computing structures. Several digit-level serial/parallel structures for RB multiplier over happen to be reported within the last years after its introduction by Wu et al. A competent serial/parallel multiplier using redundant representation continues to be presented. A little-serial word-parallel (BSWP) architecture for RB multiplier continues to be as stated by Naming et al. Other RB multipliers also provide been produced by exactly the same authors for lowering the complexity of implementation as well as for high-speed realization. We discover the hardware utilization efficiency and throughput of existing structures of could be enhanced by efficient style of formula and architecture. Within this paper, we goal at showing efficient digit-level serial/parallel designs for top-throughput finite field multiplication over according to RB. We've planned the formula to 3
different high-speed architectures by
projection of SFG to at least one-dimensional processor-space flow graph (PSFG), and the option of feed-forward cut-set to boost the throughput rate [3]. We've
suggested a competent recursive
decomposition plan for digit-level RB multiplication, and according to we have
derived parallel calculations for top
throughput digit-serial multiplication. Our suggested digit-serial multipliers involve
considerably less area-time-power
complexities compared to corresponding existing designs. Field gate array (FPGA) has developed like a mainstream devoted computing platform. FPGAs however don't have abundant quantity of registers for use within the multiplier. Therefore, we've
modified the suggested formula and
architecture for decrease in register-complexity designed for the implementation of RB multipliers on FPGA platform. Aside from these we present a minimal critical-path digit-serial RB multiplier for high throughput programs.
Fig.1.Proposed Structure 1 for RB
II. PROPOSED SYSTEM
known to as suggested structure-I (PS-I). PS-I consist of three modules, namely the part-permutation module (BPM), partial product generation module (PPGM) and finite field accumulator module [4]. The BPM performs rewiring of items of operand to give its output to partial product generation models (PPGU)s based on the S nodes of PSFG. The AND cell, XOR cell and register cell of PPGM carry out the purpose of M node, A node and delay enforced through the retiming of PSFG, correspondingly. Structures and processes of AND cell, XOR cell and register cell, correspondingly. The input operands are given to PPGU in staggered manner to satisfy the timing requirement in systolic pipeline. The accumulator includes parallel bit-level accumulation cells. The recently received input will be added using the formerly accrued result and it makes sense kept in the register cell for use throughout the next cycle. Accordingly, two regular PPGUs within the structure could be emerged right into a new regular PPGU. Featuring its two AND cells and 2 XOR cells (the very first PPGU requires just one XOR cell). The functions of AND cell, XOR
cell and register cell overlap with
individuals described. The critical road to
the dwelling We are able to further transform the PSFG to lessen the latency and hardware complexity of PS-I. To get the suggested structure [5]. The critical path and throughput of PS-II overlap with individuals of PS-I. Similarly, PS-II can be simply extended to bigger values of to possess low register-complexity structures. Therefore, we are able to introduce a manuscript cut-set retiming to lessen the critical path further. It may be observed the cut-set retiming enables to do the part-addition and bit-multiplication concurrently, The suggested high-throughput structure (PS-III) of RB multiplier thus derived is. It includes PPGUs, and every PPGU includes one AND cell, one XOR cell and 2 register cells. The suggested structure yields the very first creation of preferred result cycles following the first input is given towards the structure, as the successive outputs can be found in each cycles. we discover that PS-I and PS-II outshine another structures both in FPGA and ASIC platforms when it comes to area, some time and power complexities. Besides,
due to their low area-time-power
complexities and throughput rate, PS-I and PS-II may be used in a variety of real-time
programs. Specifically for FPGA
use of either PS-I/II (for ) in line with the area constraint and speed dependence on programs. For ASIC implementation, PS-I and PS-II or PS-III are preferred for his or
her efficiency in area-time-power
complexities. For programs needing greatest throughput, PS-III is the greatest choice. In conclusion, we are able to distinct structures based on the needs of various application conditions.
RTL SCHEMATIC OF RB MODEL:
Simulation Form:
III. CONCLUSION
The suggested structures have different area-time-power trade-off behavior. Therefore, one inch the 3 suggested structures could be selected with respect to the dependence on the applying conditions. By appropriate projection of SFG of suggested formula and determining appropriate cut-sets for feed-forward cut-set retiming, three novel high-throughput digit-serial RB multipliers are derived to attain considerably less area-time-power complexities compared to existing
ones. We've suggested a manuscript
recursive decomposition formula for RB multiplication to derive high-throughput
digit-serial multipliers. Furthermore,
happen to be derived for area-restricted
implementation especially for
implementation in FPGA platform where registers aren't abundant. The outcomes of synthesis reveal that suggested structures is capable of saving as high as 94% and 60%, correspondingly, of ADPP for FPGA and
ASIC implementation, correspondingly,
over the very best of the present designs.
