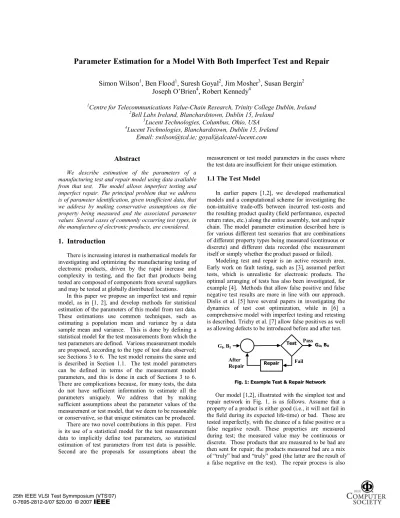

Parameter Estimation for a Model With Both Imperfect Test and Repair

Simon Wilson

, Ben Flood

, Suresh Goyal

, Jim Mosher

, Susan Bergin

Joseph O’Brien

_{, Robert Kennedy}

1_{Centre for Telecommunications Value-Chain Research, Trinity College Dublin, Ireland} 2_{Bell Labs Ireland, Blanchardstown, Dublin 15, Ireland}

3_{Lucent Technologies, Columbus, Ohio, USA} 4_{Lucent Technologies, Blanchardstown, Dublin 15, Ireland}

Email: swilson@tcd.ie; goyal@alcatel-lucent.com

Abstract

We describe estimation of the parameters of a manufacturing test and repair model using data available from that test. The model allows imperfect testing and imperfect repair. The principal problem that we address is of parameter identification, given insufficient data, that we address by making conservative assumptions on the property being measured and the associated parameter values. Several cases of commonly occurring test types, in the manufacture of electronic products, are considered.

1. Introduction

There is increasing interest in mathematical models for investigating and optimizing the manufacturing testing of electronic products, driven by the rapid increase and complexity in testing, and the fact that products being tested are composed of components from several suppliers and may be tested at globally distributed locations.

In this paper we propose an imperfect test and repair model, as in [1, 2], and develop methods for statistical estimation of the parameters of this model from test data. These estimations use common techniques, such as estimating a population mean and variance by a data sample mean and variance. This is done by defining a statistical model for the test measurements from which the test parameters are defined. Various measurement models are proposed, according to the type of test data observed; see Sections 3 to 6. The test model remains the same and is described in Section 1.1. The test model parameters can be defined in terms of the measurement model parameters, and this is done in each of Sections 3 to 6. There are complications because, for many tests, the data do not have sufficient information to estimate all the parameters uniquely. We address that by making sufficient assumptions about the parameter values of the measurement or test model, that we deem to be reasonable or conservative, so that unique estimates can be produced.

There are two novel contributions in this paper. First is its use of a statistical model for the test measurement data to implicitly define test parameters, so statistical estimation of test parameters from test data is possible. Second are the proposals for assumptions about the

measurement or test model parameters in the cases where the test data are insufficient for their unique estimation.

1.1 The Test Model

In earlier papers [1,2], we developed mathematical models and a computational scheme for investigating the non-intuitive trade-offs between incurred test-costs and the resulting product quality (field performance, expected return rates, etc.) along the entire assembly, test and repair chain. The model parameter estimation described here is for various different test scenarios that are combinations of different property types being measured (continuous or discrete) and different data recorded (the measurement itself or simply whether the product passed or failed).

Modeling test and repair is an active research area. Early work on fault testing, such as [3], assumed perfect tests, which is unrealistic for electronic products. The optimal arranging of tests has also been investigated, for example [4]. Methods that allow false positive and false negative test results are more in line with our approach. Dislis et al. [5] have several papers in investigating the dynamics of test cost optimization, while in [6] a comprehensive model with imperfect testing and retesting is described. Trichy et al. [7] allow false positives as well as allowing defects to be introduced before and after test.

Fig. 1: Example Test & Repair Network

Our model [1,2], illustrated with the simplest test and repair network in Fig. 1, is as follows. Assume that a property of a product is either good (i.e., it will not fail in the field during its expected life-time) or bad. These are tested imperfectly, with the chance of a false positive or a false negative result. These properties are measured during test; the measured value may be continuous or discrete. Those products that are measured to be bad are then sent for repair; the products measured bad are a mix of “truly” bad and “truly” good (the latter are the result of a false negative on the test). The repair process is also

Test

Repair

GI, BI

Pass

Fail

After Repair

GO, BO

25th IEEE VLSI Test Symmposium (VTS'07) 0-7695-2812-0/07 $20.00 © 2007

imperfect, and may not successfully repair a product. Repaired products are then re-tested, with the possibility as before of a false negative or a false positive result.

The test model is defined by the following parameters. We define GI to be the probability that a product is truly

good (the proportion of good products). We define αBG to be the probability that a product that is truly bad is measured as good, or

αBG = P(product measured as good | product is truly bad). Similarly:

αGB = P(product measured bad | product is truly good);

αBB = P(product measured bad | product is truly bad);

αGG = P(product measured good | product is truly good). Since αGB = 1 – αGG and αBG = 1 – αBB, it is sufficient to specify αGG and αBB.

As we have said, the values of GI and the α’s are not defined explicitly in our model, although they are the quantities of interest. They are defined in terms of a statistical model for the value of the quantity being measured over the population of units, a statistical model for the measurement error of that value, and what makes a unit good or bad. It is the measurement error that leads us to make false positives and false negatives (so that αGB and αBG are not zero). As we have said, the advantage of this approach is that the test parameters can be estimated from data on the measurements recorded in the test.

We define β’s to be the probabilities that truly good/bad products are repaired to good/bad in the same way, e.g., βGB = P(product repaired to be bad | product was truly good before), _βGG = P(product repaired to be good | product was truly good before), βBB = P(product repaired to be bad | product was truly bad before) and _βBG = P(product repaired to be good | product was truly bad before). Since _βGB = 1 – βGG and βBG = 1 – βBB, it is sufficient to figure out βGG and βBB. We will assume in all of this work that _βGB = 0, i.e., it is impossible to take a truly good product and, by repairing it, make it truly bad. This implies that βGG = 1, leaving us to estimate only one free β parameter (either βBG or βBB).

1.2. The Data

We assume that there are three sets of data available. The first is a set that is collected only once from "one-off" experiments and is a set of m repeated measurements

z1,...,zm on one example of the product. These data have

information on the size of the measurement error. The second set comes from every time that we test and is a set of measurements y1,...,yn on n different examples of the

product. We refer to this as the first pass data. The third set is the yield prG on the second pass test (after repair),

that is the proportion of units that pass this second run of the test.

1.3. Structure of the Article

The remainder of this paper is structured as follows. First, in Section 2, we describe how to estimate the _β's

were we to know the α's, GI and the yield of the second

pass test of repaired items. We do this first because this is the same regardless of the measurement model. Sections 3 to 6 describe how to estimate the α's and GI for 6 cases

of data type and measurement that commonly occur in testing of electronic products. This is done by defining a statistical model for the data in each case and estimating the parameters of the statistical model using standard statistical estimation methods, and using these estimates to get values of GI and the α's. Section 7 is a small case study and Section 8 concludes the paper with a discussion and conclusion.

2. Estimating

β

's given

α

's and GI

Assume that we observe the yield from the second test (the proportion of products passing the second test that failed the first pass test and were repaired), which we denote prG. This means that prG is an estimate of the probability of passing the second pass test given that the first test is failed (product measured bad).

Assume for the moment that we have values for the

α's and GI (these will be obtained from the work described

in sections 3, 4 and 5). By the partition law: P(failed 1st test)

= P(failed 1st test | truly good) P(truly good) + P(failed 1st test | truly bad) P(truly bad)

= αGBGI + αBB (1 −GI) (Eq. 2.1)

By Bayes' law and substituting in Eq. 2.1: P(truly good before repair | failed 1st test) = P(failed 1st test | truly good) P(truly good)

/ P(failed 1st test)

= αGBGI / (αGBGI + αBB (1 −GI)) (Eq. 2.2)

By the partition law and substituting in Eq. 2.2: P(truly good after repair | failed 1st test)

= P(truly good after repair | truly good before repair and failed 1st test)

× P(truly good before repair | failed 1st test) + P(truly good after repair | truly bad before repair and failed 1st test)

× P(truly bad before repair | failed 1st test) = [_βGGαGBGI + βBG αBB (1 −GI)]

/ [αGBGI + αBB (1 −GI)] (Eq. 2.3)

By the partition law again and substituting Eq. 2.3 we have:

prG≈ P(pass 2nd test | failed 1st test)

= P(product measured good | truly good after repair and failed 1st test)

× P(truly good after repair | failed 1st test) + P(product measured good | truly bad after repair and failed 1st test)

× P(truly bad after repair | failed 1st test) = [αGGβGGαGBGI + αGGβBGαBB(1 −GI)

+ αBGβGBαGBGI+ αBGβBBαBB(1 −GI)]

/ [αGBGI + αBB (1 −GI)].

Now substituting the assumptions that βGB = 0, βGG = 1, and also βBB = 1 −βBG, we have:

25th IEEE VLSI Test Symmposium (VTS'07) 0-7695-2812-0/07 $20.00 © 2007

prG≈ [αGGαGBGI + αGGβBGαBB(1−GI)

+ αBG(1−βBG)αBB(1 −GI)]

/ [αGBGI+ αBB (1 −GI)]

Re-arranging this equation gives a formula for βBG:

. ) 1 )( ( ) 1 ( )) 1 ( ( I BG GG BB I BB BG I GB GG I BB I GB rG BG _G G G G G p − − − − − + = −α α α α α α α α α β (Eq. 2.4) The other β's are βBB = 1 −βBG, and, by assumption

βGB = 0, βGG = 1.

3. Estimating

α

's and GI for Continuous

Analogue Measurements

In this case the tested property x of the product is continuous. An example is a test that involves the measurement of an analogue power level which is stored. The measurement model is that x is normally distributed with mean µ and variance σ2_{. Items are truly good if the} property value is in the interval (L,U), otherwise bad, so that GI = P(L < x < U). The measured value of the tested

property is y. The imperfect test is modelled by assuming that, given x, the value of y is normally distributed with a mean x and measurement variance s2_{; that the mean of y is} x implies that there is no measurement bias. Standard properties of the normal distribution imply that y is distributed normally with a mean µ andvariance σ2_{+ s}2_.

Where the Gaussian distribution is inappropriate, one can find a transform of the data where it is a reasonable approximation. What follows in this section then applies to the transformed data, including a transform of L and U. This idea is illustrated by the log transform in Section 4.

Recall from Section 1 that our data are: "one-off" data, being a set of m repeated measurements z1,...,zm on one

example of the product, first pass data y1,...,yn on n

different examples of the product and the yield prG on the

second pass test (after repair), that is the proportion of units that pass the test. Basic statistical theory on sample sizes can give the values of m and n so that with sufficient confidence the estimates of µ, σ2 _{and s}2 _{are estimated to a} certain precision [8, 9].

The variance in the measurements of the one-off test data is s2_{, and so we estimate s}2 _{as the sample variance of} the zi. The mean and variance of the first pass tests are µ

and σ2 _{+ s}2 _{respectively, so that we estimate µ and σ}2 _{+ s}2 by the sample mean and variance of the yi. Subtracting

the estimate of σ2 _{+ s}2 _{from the estimate of s}2 _{gives us an} estimate of σ2_{. Once we have estimates for µ, σ}2 _{and s}2 then we can use these to estimate GI and the α's.

First, GI is given by:

. ) (       − Φ −       − Φ = < < = σµ σµ L U U x L P

GI (Eq. 3.1)

where Φ(z) is the standard normal distribution function. By the definition of conditional probability, we have:

. / ) , ( ) | ( I GG G U x L U y L P U x L U y L P < < < < = < < < < =

α _{(Eq. 3.2)}

The numerator of this equation is a probability on the joint distribution of y and x, which in this case is a

bi-variate normal with mean vector (µ , µ) and variance matrix:

Σ = σ 2

+s2 σ2 σ2 _σ2

.

Given this, we can compute αGG by using:

). , ( ) , ( ) , ( ) , ( ) , ( ) , ( ) , ( ) , ( ) , ( , , ,

, UU LU UL LL

L x L y P L x U y P U x L y P U x U y P U x L U y L P x y x y x y x

y −Φ −Φ +Φ

Φ = < < + < < − < < − < < = < < < <

where Φy,x(y,x) is the bivariate normal cumulative distribution function of y and x with the given mean and variance. We can derive an expression for _αBB in a similar manner: ). or ( / ) , or , ( 1 ) or | ( 1 bad) is item | good measured item ( 1 bad) is item | bad measured item ( U x L x P U x U y L L x U y L P U x L x U y L P P P BB > < > < < < < < − = > < < < − = − = = α (Eq. 3.3)

Letting p1 = P(L < y < U, x < L or L < y < U, x > U) and p2 = P(x < L or x > U), we haveαBB = 1 – p1/p2 where:

        + − Φ −         + − Φ + Φ − Φ − Φ + Φ = 2 2 2 2 , , , ,

1 ( , ) ( , ) ( , ) ( , )

s L s U L L U U U L L U

p yx yx yx yx

σ µ σ

µ

andp2= Φ((L−µ) /σ)+1− Φ((U−µ) /σ).

Having estimated GI and the α's, the result of Section

2 can be used to determine the β's from prG. We note that

the above formulae hold if the accept interval is infinite, i.e., either L = –∞ or U = ∞.

For example, suppose we have a test with accept limits L = −13.5 and U = −10. We observe a sample variance of the one-off test data set to be 0.0028, the sample mean and variance of the first pass test to be −11.215 and 0.152, and a yield of prG = 0.942 from the second pass test. This gives model parameter estimates: µ = −11.215, s2 ₌ 0.0028 and _σ2 _{= 0.152}

− 0.0028 = 0.1492. Substituting these into Equations 3.1, 3.2 and 3.3 we compute: GI = 0.97, αGG = 0.995 and αBB = 0.896. Substituting these and prG into Equation 2.4, we obtain βBG = 0.93.

4. Binary Result of A Continuous Analogue

Measurement

In many tests there is a continuous property being measured, as in the model of Section 3, but the observation is binary, either good (e.g. L≤ y≤U) or bad (e.g. y<L or y>U). The data z1,...,zm and y1,...,yn of Section

3 are now binary (good/bad) and can be summarized by the yields pone and pG, being the proportion of the zj and yi

that are good respectively. In this case the underlying measurement model is the same as Section 3 but the data contain less information than in that case and it is much more difficult to obtain the estimates of the µ, σ2 _{and s}2 that we need to compute _α's and GI. Here we adopt a

strategy of making an assumption about the value of µ. We have different assumptions according to the test in

25th IEEE VLSI Test Symmposium (VTS'07) 0-7695-2812-0/07 $20.00 © 2007

question. In all cases, the methods that we present will work only if pone and pG are neither 0 or 1 (must have

observed at least one fail and one pass in each set of tests).

4.1. Assume that the Population Mean is at the Centre of the Accept Interval

In certain cases it may be reasonable to assume that µ

= (L+U)/2; because the normal distribution is symmetric about its mean, this is equivalent to assuming that the probability that we measure a value below the lower bound L is the same as the probability that we measure a value above the upper bound U. We also assume that the true value of the property of the product used in the one-off tests is close to µ. This leads to a conservative estimation procedure because it produces the largest estimates of σ2 _{and s}2 _{consistent with the population mean} of the property being in the accept interval (L,U).

From the one-off test, an estimate of P(L < y < U | x) is pone. Our assumptions lead us to the following:

, 1 ) ( 5 . 0 2 ) ( 5 . 0 ) ( 5 . 0

) | (

−    



 −

Φ =    



 −

Φ −    



 −

Φ =

< < ≈

s L U s

U L s

L U

x U y L P pone

which can be solved to get an estimate for s:

, )) 1 ( 5 . 0 ( ) ( 5 .

0 2

1 

  

 

+ Φ

−

= ₋

one p L

U

s (Eq. 4.1)

where Φ−1 _{is the inverse normal distribution function}

(available from tables or in computing environments, like Excel). Note that if we were to observe the measurement from the one-off tests rather than the yield then we could estimate s2 more reasonably from the sample variance, as in Section 3. From the observed yield at every test, an estimate of P(L < y < U) is pG. Our assumptions lead us

to the following:

4.2) Eq. ( ,

1 2 2

) ( 5 . 0 2

2 2

) ( 5 . 0 2 2

) ( 5 . 0 ) (

−     

  

+ − Φ

=

    

  

+ − Φ −     

  

+ − Φ = < < ≈

s L U

s U L

s L U U

y L P G p

σ

σ

σ

which can be solved for σ2 _{in the same manner as} Equation 4.1. The equations in Sections 2 and 3 can then be used to obtain estimates of the GI, α's and β's.

For example, suppose we have a test with accept limits L = ₋13.5 and U = ₋10. We observe a sample variance of the one-off test to be 0.0028, but only the yield of the first pass test pG = 0.995, and a yield of prG = 0.942 from the second pass test. We assume that µ = −11.75 (the mid-point of the accept interval). We can still estimate s2 ₌ 0.0028. Had we not observed the sample variance of the one-off test but just the yield, we would have used Equation 4.1 to compute an estimate of s2_{. Then we solve} Equation 4.2 to get σ2 _{= 0.196. Substituting these into} Equations 3.1, 3.2 and 3.3 we compute: GI = 0.995, αGG = 0.999 and αBB = 0.878. Substituting these and prG into Equation 2.4, we obtain βBG = 0.81.

4.2. The Population Mean is not at the Centre of the Accept Interval

When it is not reasonable to assume that µ = (L+U)/2, one can still invoke the assumption that the probability that we measure a value below the lower bound L is the same as the probability that we measure a value above the upper bound U. One approach to this is to assume that the data are Gaussian on the log scale, and then make this assumption. The property is then lognormally distributed; the mean and variance of the log of the property are µ and

σ2_{. We still assume the Gaussian model for measurement} error, also on the log scale. In this case, Equations 4.1 and 4.2 still hold as equations to be solved for _σ2 _{and s}2 but with U and L replaced by log(L) and log(U), while µ = (log(L)+log(U))/2. The equations in Sections 2 and 3 can then be used to obtain estimates of the GI, α's and β's, but

again with L and U replaced by log(L) and log(U).

4.3. Approaches when Accept Limit is not Finite

One common scenario where the assumption µ = (L+U)/2 cannot be used is if either L = –∞ or U = ∞. (An example of such a test is the measurment for reciever sensitivity; as long as it is below a certain thresh-hold, it is recorded as passed.) We advocate the use of the model of Section 4.2, assuming a lognormal model and so x, y≥ 0. Clearly this is not a viable model if the data can be both positive and negative. In the case where we can assume x, y ≥ 0 then the most extreme lower limit that is L = 0. Note that if we have x, y ≤ 0 then we can still use the model of Section 4.2 by applying it to the negative of the data and accept limits.

In the case where L = 0 and U < ∞ then the spirit of the assumption about the mean of Section 4.2 can still be followed. Setting µ = 0.5 log(U) (the log of the mid-point of the accept interval) and x = µ for the product that is tested for the one-off experiments is a value that gives a conservative estimate of s2 _{and σ}2_{, obtained by solving} for s:

pone≈P(0<y<U|x)= Φ

0.5 log(U) s

,

4.4) (Eq. .

) log( 5 . 0 ) 0 (

2

2 

   

  

+ Φ = < < ≈

s U U

y P p_G

σ

In the case where L > 0 and U = ∞, it is more difficult to derive a value of µ that produces a conservative estimate of _σ2 _{and s}2_{. One approach is to set}

µ = c log(L) and x = _µ for some constant c > 1 which must be chosen according to how far one believes the mean to be from the lower accept limit. Using this, the analogue of Equation 4.3 is:

pone≈P(L<y< ∞|x)= Φ

(c−1) log(L) s

, (Eq. 4.5)

and then for σ:

p_G ≈P(L<y< ∞)= Φ (c−1) log(L)

σ2 +s2

. (Eq. 4.6)

25th IEEE VLSI Test Symmposium (VTS'07) 0-7695-2812-0/07 $20.00 © 2007

There is a solution to Equations 4.3 to 4.6 if and only if pone, pG > 0.5, which is another restriction on the

estimation procedure for this specific case. The equations in Sections 2 and 3 can then be used to obtain estimates of the GI, α's and β's, but again with L and U replaced by

log(L) and log(U).

We note that some of the assumptions made in this section may be unrealistic and lead to errors in estimation of the GI, α's and β's, They are a consequence of the

scarce data available to estimate the parameters. The contrast between this section and Section 3, where more complete data led to a more straightforward estimation procedure with fewer ad-hoc assumptions, demonstrates the desirability of recording as much data as possible during the test.

5. Binary Result of Discrete Measurement

In this case there is a count measurement made on the product. The true value of this count is x. This count is made with error, and y is the count that we measure. As with the cases of Section 3 and 4, all we are told is whether the measurement shows it to be good (e.g. L ≤ y

≤ U) or bad (e.g. y < L or y > U); our data are the proportion of the products pG that pass the test in the first

round of testing and the proportion prG that pass from the

second round of testing of repaired products.

A common model for count data is Poisson and we adopt that here. The true count x is Poisson distributed with an unknown mean _λ. The true count x is measured with Poisson error; the distribution p(y | x) is Poisson with mean x. Unconditionally, the distribution of the measurement y is then a mixture of Poisson distributions. There is only one parameter λ in this model for x and y

(versus 3 — µ, σ2 _{and s}2 _{— in Sections 3 and 4) and this} means that it is unecessary to do any "one-off" experiments. We can estimate λ every time we run a test using reasonably tractable equations. However the disadvantage of this model is that the mean of x and y

given x are equal to the variance ─ this is the well known property of the Poisson distribution. While there are physical motivations for its use as a count model (as a limiting form of the binomial distribution), the motivation for its use as an error measurement model for y given x is not as strong, other than that it allows a relatively easy solution to the test parameter estimation problem.

The joint distribution of x and y is:

. ! !

) | ( ) ( ) , (

x y x

e y x e x

x X y Y P x X P y Y x X P

− − =

= = = = = =

λ λ

The marginal probability distribution of y is (summing out

x) then:

P(Y=y)= λ

x

x!e

−λ xy

y!e

−x

.

x=0

∞

(Eq. 5.1)

An estimate of P(board measured good) = P(L ≤ y ≤

U) is pG. Using Equation 5.1, we have:

pG=P(L≤y≤U)= λ x

x!e

−λ xy

y!e

−x

.

x=0

∞

y=L U

Equation 5.2 can be solved numerically for λ, approximating the infinite sum by an appropriate truncated sum. Once λ is estimated, we estimate GI and

the α's in a manner similar to Sections 3 and 4. We have:

GI =P(L≤x≤U)=

λx

x!e

−λ

x=L U

. (Eq. 5.3)

For _αGG, we have:

5.4) (Eq. .

! !

) ,

(

I U

L x

U L y

x y x

I GG

G e y x e x

G

U y L U x L P

∑ ∑ =

≤ ≤ ≤ ≤ =

= =

− −λ λ α

Then for αBB we have:

5.5) (Eq. .

! 1

! ! !

! 1

) ( ) (

) , ( ) , ( 1

1 = 1

0 =

∑ −

    

  

∑ ∑ +     

  

∑ ∑ − =

> + <

≤ ≤ > + ≤ ≤ < − =

= − ∞

+ =

− − −

=

− −

U L x

x U x

U L y

x y x L

x U

L y

x y x BB

e x

e y x e x e

y x e x

U x P L x P

U y L U x P U y L L x P

λ λ λ

λ λ λ

α

These estimates also hold in the case that L = 0 or U = ∞.

6. Fully Binary Testing

In this final case we have a binary result for the test (either pass of fail) and there is a binary classification of the product (good or bad); the data are not a summary of a continuous or discrete measurement. An example is a test that looks for the presence or absence of a component on a circuit board. In this case, the three sets of data are three proportions. From a one-off experiment where a single example of the product was tested, we observe the proportion of tests pone that passed. From each time that a

test is conducted there is the proportion pG that passed the

first pass of testing and the proportion prGthat passed the

second pass, following repair. This is the one case where the distinction between the parameters of the statistical model ─ like µ or λ ─ and the GI and α's, is lost: we model the test directly with GI, α's and βBG.

We make two assumptions. First, αBG = αGB so the probability that a good product is tested to be bad is the same as the probability that you measure a bad product is tested to be good. Second, if we test a single example many times and the proportion of times that the test is passed is greater than 0.5 then assume that we have a truly good example of the product, while if we test a single example many times and the proportion of times that the test is passed is less than 0.5 then assume that we have a truly bad example. Since αGB = 1 – αGG, we are assuming that αBG = αGB and αBG = 1 – αBB, it is sufficient to figure out αGG. The second assumption is assured with high probability, as long as we have tested the product many times.

If pone ≥ 0.5 then we assume that we have a good

example under test and hence pone is an estimate of αGG. Given αGG = pone, we have from our assumptions that αGB

25th IEEE VLSI Test Symmposium (VTS'07) 0-7695-2812-0/07 $20.00 © 2007

= 1 – αGG = 1 – pone, αBG = αGB = 1 – αGG = 1 – pone and

finally αBB = 1 – αBG = αGG = pone. If pone < 0.5 then we

assume that we have a bad example and hence pone is an

estimate of αBG. Given αBG = pone, we have from our

assumptions that αGB = αBG = pone, αGG = 1 – αGB = 1 –

αBG = pone and finally αBB = 1 – αBG = 1 – pone.

By the partition law, P(measured good) = αGG GI +

αBG (1 – GI) which is estimated by pG. Equating

P(measured good) to pG we arrive at an expression for GI

in terms of the α's that we have just computed: GI = [ pG

– _αBG] / [αGG – αBG]. We note that this is valid if and only if pone≥ pG. This means that the probability of passing

cannot be greater than the probability of a good item passing. While intuitively making sense, random chance in the course of the different experiments that compute

pone and pG could give a result that pone < pG even though

their true values do satisfy the condition. Equation 2.1 then allows the β's to be computed, as in rest of paper.

7. Small Case Study

An obvious concern with one of the models discussed here is in Section 4, where we only observe the binary response (pass/fail) of a continuous measurement. The simplest solution is in Section 4.1; the population mean µ

= (L+U)/2, the centre of the accept interval (L,U). Here we describe a small simulation study that shows what happens if this assumption is made but is not true.

We generated 100 sets of data from the continuous model with L = 8, U = 12 and "true" parameter values µ = 10, s2 _{= 0.01 and σ}2 _{= 1. This gives "true" test parameter} values GI = 0.9545, αGG = 0.995 and αBB = 0.92. For this study we ignored estimation of βBG. Each data set consisted of m=500 one-off measurements and n=500 first pass measurements.

For each set of data we inputted the yields pone and pG into the method described in Section 4.1, and estimated GI, αGG and αBB, assuming that µ = 10 (the mid-point of the accept interval). So in this case our assumption µ = 10 was actually correct. The average estimates over the 100 sets of data were: GI = 0.97, αGG = 0.999 and αBB = 0.999. So the method worked reasonably well.

We then repeated this experiment but altered the "true" mean used to generate the 100 data sets to µ = 11; s2 _and

σ2 _{were kept the same. This leads to G}

I = 0.95, αGG = 0.987 and αBB = 0.94. We ran the method of Section 4.1, still assuming, now incorrectly, that µ = 10. The average estimates over 100 sets of data were: GI = 0.226, αGG = 1.02 and αBB = 0.9998. So we see that the estimate of GI is much smaller than the true value, while on average the estimate of αGG does not make sense (it is a probability, so should be between 0 and 1).

8. Conclusion

In this paper we have outlined procedures for estimating the parameters of an imperfect test and repair model given different types of data that are typically

available from the testing process. In cases where the dimension of the data are less than that of the model parameters, we have proposed some different assumptions that can be made in order to arrive to parameter estimates. As far as possible these are made so that conservative parameter estimates are made. However we observe that there are scenarios, particularly in the cases of Section 4, where strong assumptions must be made and the study in Section 7 shows that if this assumption is wrong then the estimation can have substantial error.

Clearly the next step in this work is to assess the implications of these assumptions for the estimation, and to derive expressions for the estimation error in terms of the error in the assumptions. If this is done then calculations of appropriate sample sizes, and model assessment methods such as computation of standardized residuals, can be made. This work has also motivated consideration of other statistical approaches that may be able to reduce the number of difficult assumptions that must be made; Bayesian inference techniques appear to offer a good alternative with this property.

9. Acknowledgements

The involvement of BLI researchers is supported by a grant from the Industrial Development Agency of Ireland. The involvement of CTVR researchers is supported by Science Foundation Ireland grant 03/CE3/I405.
