Building context - aware applications with reusable components for the android platform

(1)

Elpida Kyriakou University of Cyprus, 2012

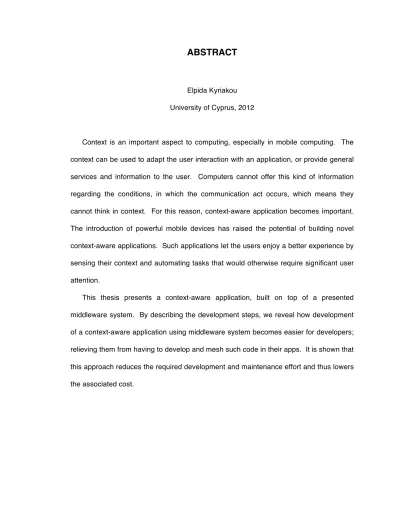

Context is an important aspect to computing, especially in mobile computing. The context can be used to adapt the user interaction with an application, or provide general services and information to the user. Computers cannot offer this kind of information regarding the conditions, in which the communication act occurs, which means they cannot think in context. For this reason, context-aware application becomes important. The introduction of powerful mobile devices has raised the potential of building novel context-aware applications. Such applications let the users enjoy a better experience by sensing their context and automating tasks that would otherwise require significant user attention.

This thesis presents a context-aware application, built on top of a presented middleware system. By describing the development steps, we reveal how development of a context-aware application using middleware system becomes easier for developers; relieving them from having to develop and mesh such code in their apps. It is shown that this approach reduces the required development and maintenance effort and thus lowers the associated cost.

(2)

BUILDING CONTEXT-AWARE APPLICATIONS WITH REUSABLE

COMPONENTS FOR THE ANDROID PLATFORM

Elpida Kyriakou University of Cyprus, 2012

A Thesis

Submitted in Partial Fulfilment of the Requirements for the Degree of

Master of Science at the

University of Cyprus

Recommended for Acceptance By the Department of Computer Science

(3)

APPROVAL PAGE

Master of Science Thesis

BUILDING CONTEXT-AWARE APPLICATIONS WITH REUSABLE

COMPONENTS FOR THE ANDROID PLATFORM

Presented by Elpida Kyriakou Research Supervisor George A. Papadopoulos Committee Member Nearchos Paspallis University of Cyprus May 2012

(4)

ACKNOWLEDGEMENTS

First, I would like to thank my supervisor Professor George A. Papadopoulos, who provided his support throughout the progress of my dissertation. Also, many thank to my advisor Nearchos Paspallis, who also provided his support and guidance throughout the progress of my thesis. My advisor Nearchos Paspallis, provided me with a lot of advice, and help through the process of my project especially in the implementation of context-aware middleware system.

(5)

(6)

4.1 Introduction... 36-37 4.2 The context-aware middleware system framework ... 37-38 4.3 Implementation of Context-aware Middleware system framework ... 39-44 4.3.1 Developing context-aware applications ... 40-41 4.3.2 Context plug-ins ... 41-44 4.4 Context-aware media player application (CaMPlayer) ... 44-52 4.4.1 Main Functional aspects of CaMPlayer ... 45-46 4.4.2 Register CaMPlayer application ... 46-52 4.5 Conclusions...52

Chapter 5: Evaluation 53

5.1 Component based and Monolithic based application... 53-54 5.2 Practical Evaluation... 54-55 5.3 Requirement Driven Evaluation... 55-59

Chapter 6: Conclusions and Future Work 61

6.1 Conclusions and Future Work ... 61-63

(8)

Chapter 1

Introduction

When the widespread adoption of mobile and ubiquitous computing devices is considered, it is nowadays becoming evident; that there is significant interest for developing applications featuring context-aware and self-adaptive behaviour. During this period many new opportunities arise for creating more intelligent application, which can sense the environment and understand the user actions in a more profound way, in other words applications that can sense and react to context. This thesis studies the role of mobile computing, context-awareness, and middleware and presents an extensive case study of using a middleware-based architecture for building context-aware applications. This architecture is evaluated and shown to bring important benefits for mobile application developers.

1.1 Motivation

Currently, the common paradigm for developing a context-aware mobile application is building it from scratch. When a developer needs access to simpler context data (e.g., battery level or GPS location) then the underlying platform (such as the Android Middleware) offers some well-formed APIs (e.g., BatteryManager and LocationManager respectively). However, when it comes to enabling generic, as well as more sophisticated context-aware behaviour (say identify when the user is driving or sleeping), then the

(9)

corresponding code is developed either from scratch or copy-pasted from a relevant source (e.g., from an open source implementation, or some other form of documentation).

Naturally, this approach suffers from two important drawbacks. First, individual developers are required to spend time repeating the same tasks in different situations, often reinventing a wheel that others have already created (but did not share with the rest). Second, with a wide variety of isolated solutions used interchangeably in different applications, the context-aware behaviour appears to be fragmented and inconsistent to the end users.

Today, there are many smart phones that contain the basic building blocks for context-awareness like GPS, accelerometers, light sensors, and physical sensors, which let the developers create their own applications. This is not enough, as users expect the application to combine information about their physical location with data from other applications. This thesis studies such middleware solution implemented for the Android platform, where the developers of context-aware applications use ready-made components for realizing the context sensing part of their applications.

1.1.1 The role of mobile computing

Mobile computing is introduced as an important technology underlying context-aware computing, due to the fact that mobility causes frequent and interesting changes in application context, which may be used to proactively influence application behaviour.

There are many definitions for mobile computing; Most notably: “Mobile computing is a variety of wireless devices that has the ability to allow people to connect to the Internet

(10)

providing wireless transmission to access data and information from where ever location they may be” [1]. Alternatively: “A technology that allows transmission of data, via a computer, without having to be connected to a fixed physical link” [2].

Additionally, in a consideration based, towards context-aware computing as a subset of pervasive computing, mobility causes frequent changes to the context in which an application executes. In marked contrast to stationary systems, mobile systems may experience rapid changes in location, administrative domain, bandwidth availability and economy, temperature, speed, proximity to other devices, and a host of other environmental parameters. Related to this consideration is the fact that awareness of the dynamic execution context by an application on a mobile device allows the application to initiate specific activity, for instance, reallocation of resources. As a result, mobile computing environments exhibit a range of characteristics that both challenge the developer of applications for such environments, as well as provide a source of input to applications that may be used to control behaviour. Some of these characteristics are listed below.

• Portability: Ability to move a device within different environments with ease. • Social Interactivity: Allows for data sharing and collaboration between users. • Context Sensitivity: Ability to gather and respond to real or simulated data unique

to a current location, environment, or time.

• Connectivity: Ability to be digitally connected for the purpose of communication of data in any environment.

On the other hand mobile computing provides some limitations. One of these is the limited bandwidth: mobile Internet access is generally slower than direct cable connections. Security standard is another limitation of mobile computing; since when you are working on mobile you are dependent on public networks and your data may be

(11)

eavesdropped. Also, mobile devices rely entirely on battery power, thus another limitation is power consumption and the fact that mobile devices require expensive batteries so they can provide the necessary battery life. While mobile computing is a form of human–computer interaction by which a computer is expected to be transported during normal usage, it is important to refer two limitations that refer to the human. The first limitation refers to the potential health hazards that is; people have more accidents because they use the mobile during driving as a result to destruct them [1]. The second limitation is called as the human interface with device while screens and keyboards tend to be small, which may make them hard to use [1]. Alternate input methods such as speech or handwriting recognition require training.

Our proposed solution aims, primarily at mobile computing environments and reviewing the limitations and advantages of mobile computing, guide us to the implementation of our system.

1.1.2 The role of context-aware computing

Context-awareness was first discussed as “as software that adapts according to its location of use, the collection of nearby people and objects, as well as changes to those objects over time” by Schlitz and Theimer [3,4]. Many definitions were proposed throughout the years while new research evolves context-aware computing.

In order to better understand the role of context-aware applications we first need to declare the definition of context and how it can be used, that will enable application developers to choose what context to use in their applications and to determine what context-aware behaviours to support in their applications. Context is “any information

(12)

that can be used to characterize the situation of an entity. An entity is a person, place, or object that is considered relevant to the interaction between a user and an application, including the user and application themselves” [3,4]. Context-aware application is defined as follows: “a system is context-aware if it uses context to provide relevant information and/or services to the user, where relevancy depends on the userʼs task” [3, 4].

For a long time, context-aware applications were hard to develop because there werenʼt devices able to support it. Nowadays, almost every smart phone is equipped with sensors and communication systems which can provide a lot of information about the environment, sufficient to act as input for such applications. Despite the complexity of writing this kind of applications, especially when the information comes from many different types of sensors, each with their own unique programming interface; context-aware applications have increased in the last few years and can also make assumptions about the userʼs current location or activity. There are some of characteristics that wearable computers should meet to be appropriate for hosting context-aware applications such as: [4]

• Portable while operational: a wearable computer is capable of being used while the user is mobile. When the user is mobile, his context is much more dynamic. He is moving through new location and does other activities so the services and information she requires will change based on these new entities.

• Sensors: a wearable computer should use sensor to collect information about the userʼs surrounding environment.

• Proactive: a wearable computer should be acting on its userʼs behalf even when the user is not explicitly using it. This is the essence of context-aware computing:

(13)

the computer analyzes the userʼs context and makes task relevant information and services available to the user, interrupting the user when appropriate.

• Always on: this is important for context-aware computing because the wearable computer should be continuously monitoring the userʼs situation or context so that it can adapt and respond appropriately. It is able to provide useful services to the user anytime.

However there are some challenges when building context-aware applications. One challenge of mobile distributed computing is to exploit the changing environment with a new class of applications that are aware of the context in which they are run. Such context-aware software adapts according to the location of use, the collection of nearby people, hosts, and accessible devices, as well as to changes to such things over time. A system with these capabilities can examine the computing environment and react to changes to the environment. Three important aspects of context are: where you are, whom you are with, and what resources are nearby. Context encompasses more than just the userʼs location, because other things of interest are also mobile and changing. Context includes lighting, noise level, network connectivity, communication costs, communication bandwidth, and even the social situation. Furthermore another challenge is the lack of reusable context-aware mechanisms; that is every context-aware system requires mechanism in order to support context sensing for gathering information and context reasoning dealing with the interpretation of the gathering information. Finally, the last challenge of context-aware computing is the privacy. People are worried about how computer systems use and share their personal information. Context-aware application has this limitation and this raises the concern for user privacy.

Despite the existence of application that provide context information there is still a need of a direct, uniform way to access the information.

(14)

1.1.3 The role of middleware

In a distributed computing system, “middleware is the software layer that lies between the operating system and the applications on each site of the system” [6]. There are many uses of middleware such as the reuse of legacy code. By this, many enterprise-wide information systems need to integrate legacy code with newly implemented components, in a result to avoid cost when they want to re-implement them. Another use is for mediation systems. Many complex systems of multiple devices interconnected via a network. Management involves tasks such as monitoring performance, logging alarms, executing remote maintenance function etc. A third use of middleware is for component-based architecture that are based on separation-of-concerns and on well-defined standards interfaces. For an example if you have 3-tier architecture and provide common services through a layer, it is possible to further facilitate the development.

Formally, middleware is defined as “reusable software that resides between the applications and the underlying operating systems, network protocol stacks, and hardware” [7]. Based on this definition, the role of middleware is to provide common programming abstractions, to hide the heterogeneity and the distribution of the underlying hardware and operating systems and finally to hide low-level programming details.

Make use of middleware has some benefits and drawbacks. Some of the benefits are; the reuse of code, the independence of language and platform, the ease application development and maintenance and finally and more important the lower development cost and time. On the other hand, there are two main drawbacks. The first one, is the possible performance penalty, this can be caused of the messages that are often

(15)

required to pass through multiple layers. And the second one is the re-training efforts for developers.

Although there are some challenges in middleware design. First of all is the performance penalties that can arise from the interception and indirection mechanisms that middleware rely on. A second challenge is the large-scale system; modern applications are overly complex and they involve a large number of distributed objects, users and devices and this results to a problem with respect to the capability of communication and the complexity of administration. A third challenge is that enables the vision of ubiquitous computing that requires significant leaps in the front of mobility and dynamic reconfiguration. And finally, there is a managements challenge, that is handling such issues such as security and resource management for large, heterogeneous application poses new challenges.

One example of middleware architecture is MUSIC [8]. MUSIC dynamically monitor context and adapt the applications in order to optimize the quality perceived by the user, we will refer later in detail in chapter 2. This thesis presents an implementation of a middleware solution, where the developers of context-aware applications use ready-made components for realizing sensing part of their application.

1.2 Thesis statement

This thesis consists of two parts: First, it presents a middleware solution, where the developers of context-aware applications use ready-made components for realizing the context sensing part of their applications. Instead of embedding such code in their own apps, developers will be able to utilize the proposed middleware and have access to the

(16)

equivalent functionality. The developed middleware will offer a centralized and uniform way of accessing a dynamically changing set of context types. By adding new context sensor plug-ins, the middleware will be enriched with additional context sensing capabilities, relieving individual developers from having to develop and mesh such code in their apps. It is argued that this approach offers ease of development for sophisticated context-aware applications, via a market of context-aware plug-ins, fostering the development of and promoting excellence in context sensing techniques and easier maintenance of the resulting applications as the context sensing code is separated from the context-aware application (and, consequently, even their corresponding lifecycles are separated).

Second, we evaluate the resulting development approach by designing and implementing a context-aware application as component framework. The constituent components realize the roles of context providers (referred to as context plug-ins) and context consumers (i.e., context-aware, self-adaptive applications), and can be reused across multiple platforms and/or shared by concurrently deployed applications. The approach is then compared to the straight-forward (brute force) implementation of the context-aware application.

1.3 Approach

The thesis is based both on theoretical and practical aspects. The theoretical aspect referred to a development methodology that is based on the examination of related work and the examination of the Android platform. The practical aspect consists of building a context-aware application and evaluating the middleware architecture. This middleware

(17)

provides support for the deployment of context-aware applications—which are constructed using the proposed methodology—and facilitates context sensing, management, and distribution. The steps we followed to manage our target are:

1. We develop a quick prototype of the architecture, along with a few simple context sensors and a simple pilot app,

2. We formalize the middleware architecture and the plug-in specification a. Examine related work,

b. Study and assess the relevance of the APIs available in Android (i.e., main context services, content providers, event mechanism)

3. We revise the implementation, and develop additional (real) sensors 4. Implement a real context-aware application showcasing the architecture 5. Evaluate the impact of the proposed solution

1.4 Thesis structure

The thesis is organized as follows:

Chapter 1 presented the motivation of the thesis and a literature review of mobile computing, context-awareness, and middleware that this thesis is dealing with. We gave a description about their advantages, drawbacks, and challenges for each field. Following that, a description about the approach we have followed to build a context-aware application using middleware-based architecture was described.

Chapter 2 presents literature review with respect of existing middleware systems and context-aware applications. In this literature, requirements and challenges were identified that we took into consideration while building our context-aware application.

(18)

In chapter 3, a presentation of the Android platform was given. This includes the android architecture, the components of android: activities, services, broadcast receivers and intents and content provides. Also it refers to the android interface definition language (aidl) and to the sensors on android.

Based on the analysis of the related work of chapter 2, chapter 4 presents the implementation of our context-aware application. It describes the steps we have followed to develop this context-aware application using the presented middleware. Furthermore, it describes a way that developers can register the presented middleware to their own context-aware application.

Following that, in chapter 5 an evaluation is described of the context-aware application using the presented middleware. The evaluation consists of two phases. The first phase gives a comparison of a component context-aware application and a monolithic context-aware application. The latter revisited the requirements derived from the literature and listed in chapter 2 evaluated the proposed solution against them.

Finally, the thesis ends with chapter 6 that refers to some conclusions, as well as some lists of directions for future work.

(19)

Chapter 2

Related Work

In a distributed computing system, “middleware is the software layer that lies between the operating systems and the applications on each site of the system” [6]. In traditional way, the role of middleware is to provide common programming abstractions, to hide the heterogeneity and the distribution of the underlying hardware and operating systems and finally to hide low-level programming details.

This chapter provides a survey of context-aware middleware systems. First, the categories for context-aware middleware systems are studied, followed by an extensive list of requirements as they are documented in the literature. These requirements are further discussed and used in the rest of this thesis as they provide a well-formed benchmark for the design of the context-aware application using the presented middleware. Finally, a number of representative context-aware middleware systems are presented, that provide some method of adapting to changes in the context, and methods for collecting context.

2.1 Categories of middleware systems

This section provides a list of the categories of context-aware middleware systems, that the evaluation of such software systems should be made [9, 10].

(20)

• Environment: A middleware system makes explicit or implicit assumptions about the environment it is to be used in. We have two types of environment the infrastructure and self-contained. The first refers to middleware systems that assume the existence of an infrastructure, which offers services needed by the middleware and applications. The second refers to systems that assume that devices have some method of communication and does not rely on external services.

• Storage: Some systems provide a context-aware data store, which order data based on context information, allowing it to be retrieved based on certain context-parameters. For example, some systems provide file systems where data is ordered according to the current context. Other systems provide centralized storage facilities for context information, allowing applications to retrieve it.

• Quality: Quality is a measure of how well a service can be performed or how good data is. In the case of context-aware middleware quality is mostly concerned with quality of service, how well a resource can be provided. However, some systems provide quality measures of the offered context.

• Composition: Some middleware do component composition based on contextual events. For example, entities might be composed with all entities in their vicinity, or composition might be changed if some context event occurs. • Migration: Some systems provide migration of entities. Some of the systems

merely provide mechanisms for migrating running code when the application decides, possibly based on context, while other systems migrate entities automatically based on context.

• Adaption: When context-information is available, systems can adapt to changes in the context. Different parts might all use contexts in different ways, but most

(21)

middleware systems do not use context-information on all parts of the system. Adaption to changes might happen in middleware or in the applications. If adaption takes place at the middleware level, there are three sub-categories:

a. Transparent: The middleware reacts to changes in context without the application being aware of it.

b. Profile: The middleware receives a profile from the application detailing what kind of service is interested in. It is then the responsibility of the middleware to adapt so that it can provide a service as close to the requested as possible.

c. Rules: Rules are typically of the form if a then b. les are provided by either applications or by users, and indicate what action the middleware should or must take when a happens. When adaption is the responsibility of the application, the programmer is free to use context in any way imaginable. However, some middleware systems provide methods for invoking certain actions in the application based on context changes in the form of rules, typically with a callback to the application.

2.2 Requirements of context-aware middleware systems

This section provides the requirements for context-aware middleware systems as we have identified through many publications. The middleware we are presenting must address many of the requirements of traditional distributed systems, such as hetero, scalability, and tolerance for component failures, ease of development and configuration, adaptivity etc. [9,11].

(22)

• Scalability: context processing components and communication protocol must perform adequately in very changing domains.

• Support for privacy: flows of context information between the distributed components of a context-aware system must be controlled according to userʼs privacy needs and expectations.

• Tolerance for component failures: sensors are likely to fail in the ordinary operation of a context-aware system; disconnection may also occur.

• Ease of deployment and configuration: it must be easily deployed and configured to meet user and environmental requirements.

• Dynamic reconfiguration: detecting changes in available resources and reallocating them or notify the application to change its behavior.

• Adaptivity: the ability of a system to recognize unmet needs within its execution context and to adapt itself to meet those needs.

• Asynchronous paradigm: decoupling the client and server components and delivering multicast messages.

2.3 Existing context-aware middleware systems

While the previous section focused on the requirements identified in the literature that should be taken into consideration during the analysis of context systems, this section provides existing context-aware middleware systems that support those requirements.

ACAM [13]: is a middleware specially designed to facilitate the development of context-aware applications. It provides a direct, uniform way to access the information.

(23)

ACAM sits between the operating system and the context-aware applications. The ACAM consists of three components that are organized on several layers. The first layer deals with the data acquisition that is responsible for gathering information from the surrounding environment. Based on the current capabilities of mobile devices make use different context providers: sensors, data links, clock and user data. Sensors are used to capture information such as current temperature, altitude, location, the movement of the user (acceleration or direction), or the light intensity in the environment. ACAM also includes support for data links (through WiFi or Bluetooth technologies test the presence of nearby devices, access and exchange information), clock (leads to discovery of current user activity), and user data (outside the inference mechanism, the user is able to control the system response to context changes).

The second layer deals with abstraction. Information from context sources is gathered by the context manager and organized based on concepts from predefined model. This actually represents an abstraction layer, which is used by application to access context information. The domain described by the model acts as a contract between the middleware and the applications.

The last layer deals with the applications. Application can include the context in response to stimulus (interior or exterior request) so to better serve the userʼs needs. The application can react to context changes and take actions depending on some predefined rules. For this, data is retrieved and conditions are evaluated periodically. ACAM includes a rule engine capable of interpreting context-based rules. It provides the base for developing context-aware application that can change their appearance, and provide more dynamic interaction.

All these components are interconnected. The context acquisition is performed by specialized Monitoring Modules. A module can collect the data for a specific sensor or

(24)

some specific operating platform. The Context Manager is responsible with the management of these modules. It provides context information to the applications in a structured form. The context depends on the information provided by the context modules. The user can download from a remote repository the context modules his current application requires. Also the Context Manager maintains a directory with information currently provided by the loaded monitoring modules. When a request for a specific context parameter is received, the manager mediated the request towards the corresponding context monitoring modules. A common scenario for this middleware system, in context-aware computing is when changes in the context trigger a specific action: for example when the clock shows 8 a.m the alarm goes off and announce the user that a new day has started. Another important function of the context-aware middleware is to serve such necessities again in the most flexible manner as possible. So, they designed a built-in rule engine that evaluates business rules from an input XML file and decides which actions should be started based on the current context parameters.

CARISMA [14,15]: deals with adaption of middleware depending on the needs of the applications. Profiles for each application are kept as meta-data of the middleware and consists of passive and active parts. The passive parts define actions the middleware should take when specific context events occurs, such as shutting down if battery is low. The active information defines relations between services used by the application and the policies that should be applied to deliver those services. The active part is thus only used when the application requests a service. Different environmental conditions may be specified, which determine how a service should be delivered. At any time, the application can use reflection to alter the profile kept by the middleware through an XML

(25)

representation. To deal with conflicts between profiles, CARISMA adopts a micro-economic approach, where a computing system is modeled as an economy where consumers makes a collective choice over a limited set of goods. In this case, the goods are the policies used to provide services, not the resources providing them. The middleware plays auctioneer in an action protocol, where each application submits a single, sealed bit on each alternative profile. The auctioneer then selects the alternative, which maximizes the sum of bids. To determine the bid each of the applications are willing to pay, functions, which translate from, profile requirements to values are defined. Like profiles, these functions may be changed at any time through reflection. This type of protocol makes sense because CARISMA delivers the same service to all participants.

CARMEN [16] is intended for handling resources in wireless setting assuming temporary disconnects. It uses proxies, mobile agents residing in the same CARMEN environment as the user. If a user moves to another environment the proxy will migrate using wired connections. Each mobile user has a single proxy, which provides access to resources needed by the user. When migrating, the proxy makes sure that resources are also available in the new environment. This can happen by: moving the resources with the agent, copying the resources, using remote references, or re-binding to new resources which provide similar services. The method is determined by inspecting the profile of the device.

Each entity in CARMEN is described by a profile. User profiles contain information about preferences, security settings, subscribed services etc. Device profiles define the hardware and software of devices. Service component profiles define the interface of services and Site profiles group together the profiles which all belong to a single location. Thus, context information in CARMEN describes the entities, which make up the system.

(26)

2.4 IST-MUSIC

MUSIC (Mobile Users In Ubiquitous Computing Environments) is a focused initiative aiming to alleviate the development of context-aware mobile applications that dynamically and seamlessly adapt to changes in the user and execution context MUSIC can be deployed on Windows, Linux, Windows Mobile, and Android devices [30].

The motivation of the creation of MUSIC was mostly the high use of handheld devices [31]. When users moving around in ubiquitous computing environment many situations derived that affect different services such as the network connections come and go and QoS carry handheld devices varies. Therefore services available for use come and go, service quality varies, user tasks vary and are interleaved with tasks related to movement, and social interaction computing resources and power are limited.

In such environments applications and users will benefit a lot from context awareness and self-adaptiveness. The demand for applications exhibiting such properties is accelerating mobile computing, ubiquitous computing, service oriented computing. So, developing such applications with existing methods and technology is difficult, time-consuming, and costly.

The role of MUSIC project is to simplify the development of adaptive applications, for this reasons it offers [31]: a model-driven development approach that facilitates the development of self-adaptive applications and the reuse of adaptive components and services; and a sophisticated middleware that enables the dynamic adaptation of component-based applications. Some of the benefits that MUSIC offers and can be observed in many areas are [31]:

• Architecture Complexity: The MUSIC approach features a structured (layered) architecture that is easier to understand and easier to maintain.

(27)

• Code reusability: In addition MUSIC provides an extensible set of standardized reusable context sensors and reasoners (context plug-ins), facilitating the monitoring of common context elements.

• Resource management: Only the components, which are actually activated, are loaded (better memory management). Context sensor plug-ins are activated only when the corresponding context data is needed (managed by the middleware). • Multiple applications: Context sensing is externalized and encapsulated in with

context plug-ins. These plug-ins are deployed directly in the middleware and thus are easily shared and managed. Adaptation reasoning is also handled by the middleware, which is a centralized authority capable of reasoning on the complete adaptation domain, which might include multiple applications (possibly deployed on multiple devices).

To conclude, MUSIC provides an open platform for developing and deploying easily innovative applications suited for mobile users in ubiquitous and service oriented computing environments, which are context aware and self-adapting.

It should be noted that the MUSIC context system and its pluggable architecture were the inspiration for the core of this work, as it provides developers a methodology for developing context-aware applications and a middleware platform for deploying them. Our aim was to realize the equivalent functionality, while exploiting the facilities of the ANDROID platform.

(28)

2.5 Summary and Conclusions

This chapter presented a representative subset from the perspective of designing and building context-aware middleware systems. The examined approaches were analyzed in three aspects: categories of middleware, requirements, and existing systems. The author of this thesis, while designing the system, adopted the requirements. Furthermore, the current state-of-the-art of context-aware middleware explores quite different approaches to support ubiquitous and mobile computing based on context information. All of the middleware systems provided some method of adapting to changes in the context, and methods for collecting context, but otherwise use different entities and have different focus.

(29)

Chapter 3

Android Model

Android designed for mobile operating systems offering low power consumption. As smart phones and tablets become more popular, the operating systems such as Appleʼs iPhone, Android and Windows mobile for those devices become more important. The main difference between Android and the other operating systems is that, they are built on proprietary operating systems that often prioritize native applications over those created by third parties and restrict communication among applications and native phone data. In spite that these operating systems provide richer, simplified development environment for mobile applications, Android, from the other hand is an open development environment built on an open source Linux kernel that offers new possibilities for mobile applications. This chapter discusses the android model, which include the android architecture, android components, and android interface component language (aidl). Furthermore, it refers to the context-awareness in Android including context sensor support.

3.1 Android architecture

The first step to understand Android is to see how the general application model looks like. Android it is not only an operating system, it is also a software stack divided into five layers: Linux kernel, libraries, the android runtime the application framework and

(30)

the applications. Figure 3.1 contains an architectural overview of the Android as it is published in the Android Developers Guide [17].

Figure 3.1: Android System Architecture

A brief description is given below for the five layers is of the Android architecture starting from the last level of the system [17]:

• Linux kernel: Android makes use of the standard Linux 2.6 kernel which is responsible for core system services such as security, memory management, process management, network stack, and driver model. The kernel also acts as an abstraction layer between the hardware, which is responsible for supplying low-level functionalities like threading, and low-level memory management; and the rest of the software stack.

(31)

• Libraries: includes a set of C/C++ libraries used by various components in the Android system. Most of these libraries exist open source libraries, tuned for execution on embedded Linux-based systems.

• Android Runtime: unlike other operating systems that are written in C/C++ libraries, Android applications are written in Java and run in virtual machine. There are a set of core libraries using the functionality of core Java libraries. Android, features the Dalvik virtual machine, which execute its own byte code and every Android application runs with its own instance of Dalvik machine. Dalvik it is used to run multiple virtual machines efficiently and it is optimized for mobile devices. It relies on Linux kernel for underlying functionality such as threading and low-level memory management.

• Application framework: Developers have full access to the same framework APIs used by the core applications. The application architecture is designed to simplify the reuse of components; any application can publish its capabilities and any other application may then make use of those capabilities. This same mechanism allows components to be replaced by the user.

• Applications: Android will ship with a set of core applications including an email client, SMS program, calendar, maps, browser, contacts, and others. All applications are written using the Java programming language and run on top of the application framework.

Androidʼs architecture offers you the option to reuse its components, allowing you to share and publish activities, services, and data with other applications without the need to develop the code, just to install it using some security restrictions from your application.

(32)

3.2 Components of an Android application

Mostly, Android applications written in java and are built up using four essential [18]: activities, services, broadcast receivers, and content providers. Each component has its own lifecycle that defines you how the component is created and destroyed.

1. Activities: Is the fundamental concept that allows interaction with the user. At any point in time, a single activity is visible on the screen. A simple application might have only a single activity, while more complex applications consist of several activities that, together, form a user interaction model. Normally, an activity is started at the moment that it needs to interact with the user and it is stopped as soon as it is not visible on the screen anymore. Activities in the system are managed as an activity stack. When a new activity is started, it is placed on the top of the stack and becomes the running activity — the previous activity always remains below it in the stack, and will not come to the foreground again until the new activity exits. Figure 2.2, shows an Activity diagram with its methods [19]:

• onCreate: Called when your activity is first created. This is the place you normally create your views, open any persistent data files your activity needs to use, and in general initialize your activity. When calling onCreate, the Android framework is passed a Bundle object that contains any activity state saved from when the activity ran before.

• onStart: Called just before your activity becomes visible on the screen. Once onStart completes, if your activity comes to the foreground control will transfer to onResume. If the activity cannot become the foreground activity for some reason, control transfers to the onStop method.

(33)

• onResume: Called right after onStart if your activity is the foreground activity on the screen. At this point your activity is running and interacting with the user. You are receiving keyboard and touch inputs, and the screen is displaying your user interface. onResume is also called if your activity loses the foreground to another activity, and that activity eventually exits, popping your activity back to the foreground. This is where your activity would start (or resume) doing things that are needed to update the user interface (receiving location updates or running an animation, for example).

• onPause: Called when Android is just about to resume a different activity, giving that activity the foreground. At this point your activity will no longer have access to the screen, so you should stop doing things that consume battery and CPU cycles unnecessarily. If you are running an animation, no one is going to be able to see it, so you might as well suspend it until you get the screen back. Your activity needs to take advantage of this method to store any state that you will need in case your activity gains the foreground again—and it is not guaranteed that your activity will resume. Followed either by onResume() if the activity returns back to the front, or by onStop() if it becomes invisible to the user. Once you exit this method, Android may kill your activity at any time without returning control to you. • onStop: Called when your activity is no longer visible, either because

another activity has taken the foreground or because your activity is being destroyed. Followed either by onRestart() if the activity is coming back to interact with the user, or by onDestroy() if this activity is going away. • onDestroy: The last chance for your activity to do any processing before it

(34)

is destroyed. Normally you'd get to this point because the activity is done and the framework called its finish method. But as mentioned earlier, the method might be called because Android has decided it needs the resources your activity is consuming. If an activity is paused or stopped, the system can drop the activity from memory by either asking it to finish, or simply killing its process. When it is displayed again to the user, it must be completely restarted and restored to its previous state.

(35)

2. Services: are application components that run in the background and are not visible to the user, i.e. that donʼt have a user interface. Services can run in the background if a user switches to another application. Moreover, components can bind to a service that is already running in order to communicate with them. There are two types of services [20].

• The first one is the Started Service that starts by calling startService(). This type of service runs in the background indefinitetly. Usually it only performs a single operation and does not return a result to the caller and when the operation is finished, the service should stop itself.

• The second type of service it the Bound Service that binds by calling bindService(). It offers a client-server interface that allows components to interact with the service, send requests and get results. This service does not run indefinitetly, it destroyed when components unbind to it.

Despite of these two types, you can create services that can use both types. Just like activities services must be declared in the manifest file. Figure 3.2.2 show the lifecycle for a service that is similar to an activity but simpler [20]:

• onCreate and onStart differences: Services can be started when a client calls the Context.startService(Intent) method. If the service isn't already running, Android starts it and calls its onCreate method followed by the onStart method. If the service is already running, its onStart method is invoked again with the new intent.

• onResume, onPause, and onStop are not needed: Recall that a service generally has no user interface, so there isn't any need for the onPause, onResume, or onStop methods. Whenever a service is running, it is always in the background.

(36)

• onBind: If a client needs a persistent connection to a service, it can call the Context.bindService method. This creates the service if it is not running, and calls onCreate but not onStart. Instead, the onBind method is called with the client's intent, and it returns an IBind object that the client can use to make further calls to the service. It's quite normal for a service to have clients starting it and clients bound to it at the same time.

• onDestroy: As with an activity, the onDestroy method is called when the service is about to be terminated. Android will terminate a service when there are no more clients starting or bound to it. As with activities, Android may also terminate a service when memory is getting low. If that happens, Android will attempt to restart the service when the memory pressure passes, so if your service needs to store persistent information for that restart, it's best to do so in the onStart method [20]:

(37)

3. Broadcast receivers and intents: These respond to requests for service from another application. A Broadcast Receiver responds to a system-wide announcement of an event. These announcements can come from Android itself (e.g., battery low) or from any program running on the system. An Activity or Service provides other applications with access to its functionality by executing an Intent Receiver, a small piece of executable code that responds to requests for data or services from other activities. The requesting (client) activity issues Intent, leaving it up to the Android framework to figure out which application should receive and act on it.

Intents are one of the key architectural elements in Android that facilitate the creation of new applications from existing applications. Intents are useful in your application to interact with other applications and services that provide information needed by your application.

4. Content providers: provide an interface to applications to access data provided by the content provider application. Often, a content provider uses the file system or an SQLite database to store the data, but any method thatʼs appropriate for the type of data is acceptable.

Our implementation makes use of bound service instead of started service. That is because we want to send requests and receive responses. A brief description about AIDL (Android Interface Definition language) is given below as we used with our service to manage the implementation of context manager that we will refer in the Chapter 4.

(38)

3.3 AIDL (Android Interface Definition Language)

Clients interact with the service through a programming interface called IBinder. This is required when you create service that provides binding. There are three ways to define the programming interface and one of these is the AIDL. We choose AIDL for our implementation, as we want our service to handle multiple requests simultaneously, and allow clients from different applications to access our service for IPC and to handle multithreading in our service. The role of the AIDL is to decompose objects into primitives that the operating system can understand and marshals them across processes to perform IPC. Finally, to use AIDL directly, you must create an .aidl file that defines the programming interface. The Android SDK tools use this file to generate an abstract class that implements the interface and handles IPC, which you can then extend within your service.

3.4 Context Awareness in Android

The increasingly popularity of smart phones, become a major subject. People, prefer smart phones than usual mobiles for the functionality they can offer. Smart phones are ideal for context-aware applications. Before we decided in which platform to implement our system, we have been through a comparison about other platforms such as iPhone and Windows. Today, most popular platforms are iPhone and Android because they offer high usability, powerful CPUs and available sensors. [25]. After this research we have decided to implement our system in Android. As we have referred earlier, in spite that these operating systems provide richer, simplified development environment for

(39)

mobile applications, Android, from the other hand is an open development environment built on an open source Linux kernel that offers new possibilities for mobile applications. Further more, it provides more access to more OS functionalities, and the Android SDK is available on multiple platforms. Android provides access to a wide range of useful libraries and tools that can be used to build rich applications. For example, Android enables developers to obtain the location of the device, the user activity etc.

The context support in Android application framework consists of two main parts [25]: • Raw context data sources: contains several packages and classes such as for the camera, Bluetooth scanning of nearby devices, sensor manager for controlling interaction with physical sensors on the Android device, geographical location, time, and sound recording. The sensor manager enables Android applications to access a wide range of sensors: accelerometer, light, magnetic field, orientation, pressure, proximity, and temperature.

• Context processing: contains functionality for processing raw context data into more useful contextual data and includes face recognition, speech recognition, text-to-speech, location proximity, and a Google Maps API.

• Another important thing is that separation between context acquisition and usage is very important for context-aware system architectures [27, 28]. Such separation of concern is well supported in the Android application framework through the broker architecture that provides an intent-based communication between components. The Android application framework uses a middleware infrastructure for context acquisition providing interfaces for various sensors in such a way that no data is accessed directly from the hardware. Further, access to remote context servers are supported in Android through various network APIs as well as specific APIs such as for Google Maps.

(40)

Below we have referred to some of the available sensors in android and also about the android sensor model that we can use to access these sensors and acquire raw context data sources.

3.4.1 Android sensors

Android sensors are an integral part of the Android powered devices. Android offers support for various sensors that are used to measure motion, orientation, and environmental conditions [21]. A brief description is given below of the three sensor categories:

• Motion Sensor [22]: this category includes accelerometers, gravity sensors, gyroscopes, and rotation sensors. Using this type of sensor you can monitor the device movement such as shake, rotation etc. These sensors are not used to monitor the device position. In order to achieve this functionality, other sensors can use them to determine the device position. As a result, returns a multi-dimensional array of sensors values for each SensorEvent.

• Environment Sensors [23]: this category includes barometers, photometers, and thermometers. Using this category of sensors you can monitor the monitor relative ambient humidity, luminance, ambient pressure, and ambient temperature near an Android-powered device. As a result, returns a single sensor value for each data event.

• Position sensors [24]: this category includes orientation sensors and magnetometers. Using this type of sensor you can monitor the physical position

(41)

of a device. As a result, returns a multi-dimensional array of sensors values for each SensorEvent.

3.4.2 Android Sensor Framework

In order to access these sensors and acquire raw sensor data you can use the Android sensor framework. Using the android sensors framework we can determine which sensors are available on device, determine an individual sensorʼs capabilities, acquire raw sensor data and register and unregister sensor event listeners that monitor sensor changes

The sensor framework is a part of the android.hardware package and includes the following classes and interfaces: [29]

• android.hardware.SensorManager: a class that permits access to the sensors available within the Android platform. Not ever Android-equipped device will support all of the sensors in the SensorManager, though its exciting to see about the possibilities.

• android.hardware.SensorListener: an interface implemented by a class that wants to receive updates to sensor values as they change in real time. An application implements the interface to monitor one ore more sensors available in the hardware.

• android.hardware.Event: a class that creates an instance of a specific sensor. It lets you determine various sensorʼs capabilities.

(42)

• android.hardware.SensorEvent: this class provides information about sensor event usch as the raw sensor data, the type of sensor that generated the event, the accuracy of the data, and the timestamp for the event

.

To interact with a sensor, an application must register to listen for activity related to one or more sensors.

3.5 Conclusion

This chapter has introduced the Android platform, which is based on the Linux kernel. Linux kernel provides huge power and power for Android. We chose Android as the primary mobile platform target for our middleware, because it supports Java programming and provides many powerful APIs and libraries for location-awareness, GUI development, and access to Google Maps. Also, using an open source foundation unleashes the capabilities of numerous talented individuals and components to move the platform forward. Also, Android gives developers a special opportunity to write mobile applications that change the way people use their phones rather than writing small-screen versions of software that can be run on low-power devices. This is very important in the world of mobile devices where the products change so quickly.

(43)

Chapter 4

An implementation of Context-Aware Application using the presented middleware

system running on Android

This chapter presents the implementation of context-aware application using the presented middleware system running on Android. As we have mentioned in previous chapter, the middleware system sits between the operating system and the application, and it offers context information in a simple way. The presented framework is a solution for developers of context-aware applications to use ready-made components for realizing the context sensing part of their applications. Instead of embedding such code in their own apps, developers will be able to utilize the proposed middleware and have access to the equivalent functionality. Furthermore by separating the role of context providers and context consumers; this middleware system facilitates code reuse with the notion of context plug-ins.

4.1 Introduction

As we have mentioned before, the presented system aims for mobile computing. Despite the existence of such smart phones that are endowed with various hardware devices that can be used as context sources; there is still a need of a direct, uniform way to access the information. The main scope of this system is to help both developers at design-time and users at run-time.

(44)

A number of requirements specified in chapter 2, that guide us to the implementation phase as well as for the evaluation as you will see in chapter 5. The main requirement of the system is to provide application specific access to context information. More requirements were analyzed that also guide us to the implementation of the system such as interoperability, adoption etc.

4.2 The context-aware middleware system framework

Our platform consists of two levels, which represent the main components of our system; that is a Context-aware Application (Client), and the ContextMiddleware. Figure 4.1 presents these two levels and shows the general interaction between the middleware system and a context-aware application.

(45)

1. Context-aware application: the application as showed in Figure 4.2 is our client. The role of the application is to request for a context type that is for example; user activity or battery and to be notified about the state of each context type (e.g., stopped, started, battery low,) of each context type has change. When the request is received, it is responsible to subscribe or unsubscribe the context types that the client requests for. Context types are responsible for gathering data, which will help to define the context.

2. After gathering data from context type then the context manager that is our middleware takes place. Its role it to gather the information of context types. The developed middleware offer a centralized and uniform way for accessing a dynamically changing set of context types. For example, by adding new context-sensor plug-ins, the middleware will be enriched with additional context sensing capabilities, relieving individual developers from having to develop and mesh such code in the apps.

3. When the context manager gathers the information it needs, it will contact again the context-aware application and it will notify it about the state of context type and its behaviour.

In the end of this thesis we present details about an implemented context-aware application called CaMPlayer that we have designed to evaluate the Context-aware Middleware.

(46)

4.3 Implementation of Context-aware Middleware system framework

This implementation is closely coupled to the notion of context plug-ins and the context manager that is the middleware that collects the generated data from the plug-ins and processes, stores and provides it to context listeners.

Our implementation consists of the following projects:

1. Library: It is not installed as a separate application. It is included in the applications as a library project.

2. Middleware: is the main project and has no User Interface. It is a service and thus runs in the background acting as we have referred in the previous section. 3. ControlPanel: is an optional application, which allows visualization of the

individual context plug-ins, which are dynamically installed or removed and deployed to provide the necessary context types (e.g., a location plug-in which uses an underlying GPS sensor, a Wi-Fi plug-in that uses the internet connection). It provides a simple User Interface to view the plug-ins. It connects with the middleware at runtime, and when connected it displays the installed plug-ins that lets us to enable and disable them accordingly. Figure 4.3 shows the Control panel with the plug-ins.

4. battery_plugin: It is a simple context sensor with battery values. It illustrates how to build context sensors using the battery broadcast receiver.

5. Location_plugin: It is a simple context sensor with location values. It illustrates how to build context sensors using the location service.

6. User-activity_plugin: It is a simple context sensor with user-activity values. It illustrates how to build context values giving the activity of the user.

(47)

7. Network_plugin: It is a simple context sensor with Internet connection values. It illustrates how to build context sensors using the network service.

4.3.1 Developing context-aware applications using the presented middleware

This section provides a method for designing and implementing context-aware applications using the presented middleware system.

• The first step is to identify the relevant context types. Referring to our system, we have four context types (battery, location, user-activity and network connectivity). • Secondly, a context pug-in should be defined (such as battery, location,

user-activity and Wi-Fi plug-ins accordingly) for each context type.

(48)

• Then, implement your functional requirements for your application according to the relevant context types.

• And finally, register your application to the relevant context types interacting with the middleware and adapt the code accordingly. These includes:

o A service that will refer to the IContextAccess

o Implement the IContextListener interface and define the code that will handle the asynchronous context notifications.

4.3.2 Context plug-ins

Context plug-ins are reusable pieces of code responsible for generating context data as needed. They are the main components defined in our system. They are classified into context sensors and context reasoners. Context sensors are pure providers of context information, typically used as wrappers of physical hardware sensors (e.g Bluetooth or GPS adapters) and context reasoners are more elaborate processors that take as input elementary context data and produce higher level context information (e.g. user activity, WiFi signal). Both of them correspond to pluggable code components implementing the IContextPlugin interface. This interface specifies methods for activating and deactivating the individual plug-in components, as well as for accessing its associated metadata. The context plug-in reflects information on the context types provided and possibly required by the corresponding plug-in.

Plug-ins that are used in context-aware applications are not always active. The plug-ins are activated only when required. This led to an intelligent activation mechanism, which autonomously decides when each plug-in is activated based on its dependencies

Building context - aware applications with reusable components for the android platform

BUILDING CONTEXT-AWARE APPLICATIONS WITH REUSABLE

COMPONENTS FOR THE ANDROID PLATFORM

APPROVAL PAGE

BUILDING CONTEXT-AWARE APPLICATIONS WITH REUSABLE

COMPONENTS FOR THE ANDROID PLATFORM

ACKNOWLEDGEMENTS

Table of Contents

.
