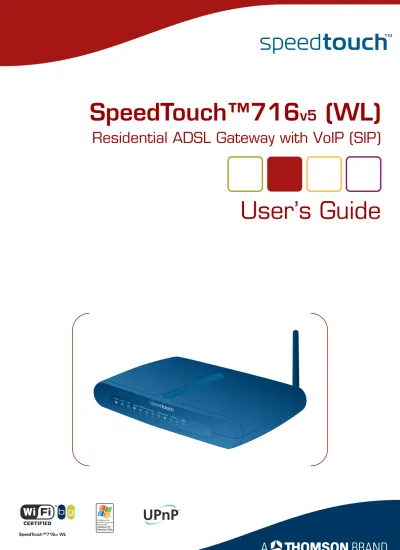

SpeedTouch 716v5 (WL)

User’s Guide

PWR DSL

PPP Ethernet

VoIP Ready Phone WLAN USB 2 1

4 3

2 1

716

v5

(WL)

User’s Guide

SIP

and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

Thomson Telecom Belgium Prins Boudewijnlaan, 47 B-2650 Edegem Belgium

http://www.thomson-broadband.com

Trademarks

The following trademarks are used in this document: SpeedTouch™ is a trademark of THOMSON. DECT is a trademark of ETSI.

Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Ethernet™ is a trademark of Xerox Corporation.

Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.

UPnP™ is a certification mark of the UPnP™ Implementers Corporation.

Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpo-ration in the United States and/or other countries.

Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other countries.

UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.

Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incor-porated, registered in the United States and/or other countries.

Other brands and product names may be trademarks or registered trademarks of their respective holders.

Document Information

Status: v2.0 (August 2006)

Reference: E-DOC-CTC-20051017-0150

Contents

About this User’s Guide ... 1

1

Getting to know your SpeedTouch™ ... 3

1.1 SpeedTouch™ LED Behaviour ... 4

1.2 Accessing your SpeedTouch™ ... 6

1.2.1 Access via the Web Interface ... 7

1.2.2 Access via CLI... 8

1.2.3 Access via FTP... 10

1.2.4 Remote Assistance ... 13

2

Local Network Setup ... 15

2.1 Wired Ethernet ... 16

2.2 USB ... 17

2.3 Wireless Ethernet ... 20

2.3.1 Wireless Basics ... 21

2.3.2 Connecting Wireless Clients for the First Time ... 23

2.3.3 Wireless Security ... 25

2.3.4 Connecting Additional Wireless Clients... 27

2.3.5 Extending the Range of Your Wirelstess Network... 28

4

Voice over IP... 37

4.1 Telephony Setup ... 38

4.2 Supplementary Telephony Services ... 43

5

SpeedTouch™ Web Interface ... 47

5.1 Navigation ... 48

5.1.1 Menu ... 49

5.1.2 Language Bar ... 50

5.1.3 Navigation Bar ... 51

5.1.4 Notification Area ... 52

5.1.5 Tasks ... 53

5.2 Home ... 54

5.3 SpeedTouch ... 55

5.3.1 Information... 56

5.3.2 SpeedTouch™ Easy Setup... 57

5.3.3 Restart... 58

5.3.4 Configuration ... 59

5.3.5 Back up & Restore... 60

5.3.6 Reset to Factory Defaults ... 61

5.3.7 Event Logs ... 62

5.4 Broadband Connection... 63

5.4.1 Connectivity Check ... 64

5.4.2 DSL Connection ... 65

5.4.3 Internet Services ... 66

5.5 Toolbox ... 68

5.5.1 Remote Assistance ... 69

5.5.2 Address Book ... 70

5.5.3 Telephony... 71

5.5.4 Telephony Statistics ... 75

5.5.5 Game & Application Sharing ... 76

5.5.6 Defined Games & Applications... 78

5.5.7 Game or Application Definition ... 79

5.5.8 New Game or Application... 81

5.5.9 Parental Control ... 82

5.5.10 Content Level ... 85

5.5.11 Firewall ... 86

5.5.12 Intrusion Detection ... 89

5.5.13 Dynamic DNS ... 90

5.5.14 User Management ... 91

5.5.15 Edit User ... 93

5.5.16 Change Default User... 94

5.5.17 Add User... 95

5.6 Home Network ... 96

5.6.1 Devices... 97

5.6.2 Device Settings ... 98

5.6.3 Assign Public IP... 100

5.6.4 Wireless Device Settings... 101

5.6.5 Access Point Settings ... 102

5.6.6 Configuring WDS ... 106

5.6.7 Interfaces ... 107

5.6.8 Interface Settings ... 108

5.6.9 DHCP Pool ... 109

6.1 General SpeedTouch™ Troubleshooting ... 112

6.1.1 Wired Ethernet Troubleshooting ... 113

6.1.2 Wireless Ethernet Troubleshooting... 114

6.2 UPnP™ on Windows XP Systems... 115

6.3 Voice over IP Troubleshooting ... 117

About this User’s Guide

Used symbols The following symbols are used in this User’s Guide:

Terminology Generally, the SpeedTouch™716v5(i) and the SpeedTouch™ 716v5(i) WL will be

referred to as SpeedTouch™ in this User’s Guide.

Documentation and software updates

THOMSON continuously develops new solutions, but is also committed to improve its existing products.

For suggestions regarding this document, please contact

[email protected].

For more information on THOMSON's latest technological innovations, documents

and software releases, visit us at: www.speedtouch.com.

A note provides additional information about a topic.

A tip provides an alternative method or shortcut to perform an action.

1 Getting to know your SpeedTouch™

Introduction With the SpeedTouch™716v5(WL) (Wireless) Residential DSL Gateway with Voice

over IP (VoiP) you can build a secure home or small office network, seamlessly connecting wired and wireless devices, surf the Internet at high speed, make and receive phone calls over the Internet or over the traditional phone line - all combined in one device.

Installation For more information on how to set up, install and wire your SpeedTouch™ and set up Internet connection, refer to the Installation and Setup Guide.

Configuration This User’s Guide will help you configuring your SpeedTouch™.

Before you begin Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick Installation Guide and the Safety Instructions and Regulatory Notices.

1.1 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating the state of the device during normal operation.

The following table shows the meaning of the different LEDs.

Indicator Description

Name Colour State

PWR Green Solid on Power on, normal operation

Red Solid on Startup pending

Blinking Updating firmware

Orange Solid on Bootloader active

Off Power off

DSL Green Blinking DSL line trying to detect carrier

signal

High speed blinking

DSL line trying to synchronise

Solid on DSL line synchronised, no Internet

activity

Off Power off or DSL line not

synchronised

PPP Green Blinking Internet activity

Solid on At least one PPPoA or PPPoE

connection is up. Users can access the Internet.

Off No PPPoA or PPPoE connection

USB WLAN Phone VoIP Ready

Ethernet PPP

DSL PWR

Ethernet 1-4 Green Blinking Ethernet activity

Solid on Ethernet connection, no activity

Off No Ethernet connection

USB Green Blinking USB activity

Solid on USB connection, no activity

Off Power off or wait for USB

connection going up

WLAN

(SpeedTouch™ 706 WL,

716v5WL and

780 WL only)

Green Blinking Wireless activity

Solid on Wireless LAN enabled

Off Wireless LAN disabled

Phone 1-2 Green Solid on The phone is off hook

Off The phone is on hook or no phone

connected

VoIP Ready Green Solid on VoIP service up

Blinking VoIP activity

Off VoIP service down

Indicator Description

1.2 Accessing your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of the following ways:

Access Method Can be used to

Web browser Configure your SpeedTouch™ via HTTP or

HTTPS.

For more information, see “1.2.1 Access via

the Web Interface” on page 7.

Command Line Interface (CLI) Fine-tune your SpeedTouch™ configuration.

For more information, see “1.2.2 Access via

CLI” on page 8.

File Transfer Protocol (FTP) Back up and restore data on your

SpeedTouch™.

For more information, see “1.2.3 Access via

FTP” on page 10.

Remote Assistance Allow a remote user to help you configuring

your SpeedTouch™.

For more information, see “1.2.4 Remote

1.2.1 Access via the Web Interface

To access the SpeedTouch™ via the Web interface

Proceed as follows:

1 Open a Web browser.

2 In the address bar, type your SpeedTouch™’s IP address or DNS host name

(http://speedtouch.lan or 192.168.1.254 by default)

The SpeedTouch™ Home page appears, from where you can navigate to all

the configurable aspects of the SpeedTouch™.

For more information on the Web pages, see “5 SpeedTouch™ Web Interface” on

page 47.

You can access the pages via HTTP or HTTPS.

For remote assistance the secure version HTTPS is used in

combination with certificates. Simply provide your ISP with the link as shown, user name and password before he can log on to the pages.

1.2.2 Access via CLI

To access the SpeedTouch™ via the Command Line Interface (CLI)

You can access the Command Line Interface (CLI) via:

A Telnet session

This requires a TCP/IP connection between the host from which the Telnet session is opened and the SpeedTouch™. Your SpeedTouch™ and the connected computer must have an IP address in the same subnet.

Quote site commands (over FTP)

For more information, see “ Quote site command” on page 12.

For more information on CLI commands, see the SpeedTouch™ CLI Reference Guide.

To start a Telnet session

Proceed as follows:

1 Open a telnet application.

2 Connect to your SpeedTouch™.

3 Enter your SpeedTouch™ security user name and password.

As soon as you have opened a session to the CLI, the SpeedTouch™ banner is displayed, followed by the CLI prompt, as shown in the example below.

You can use the Command Prompt window.

In Microsoft Windows XP for instance:

1 On the Windows taskbar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

In the Command Prompt window:

At the prompt, type telnet followed by the IP address of your

SpeedTouch™ (192.168.1.254 by default).

The default user is ‘Administrator’ and the default password is blank.

Username : Administrator

-* ______ SpeedTouch

* ___/_____/\

* / /\\ Version X.X

* _____/__ / \\

* _/ /\_____/___ \ Copyright (c) 1999-2005,

* // / \ /\ \ THOMSON

* _______//_______/ \ / _\/______ * / / \ \ / / / /\ * __/ / \ \ / / / / _\__ * / / / \_______\/ / / / / /\ * /_/______/___________________/ /________/ /___/ \ * \ \ \ ___________ \ \ \ \ \ / * \_\ \ / /\ \ \ \ \___\/ * \ \/ / \ \ \ \ / * \_____/ / \ \ \________\/ * /__________/ \ \ / * \ _____ \ /_____\/ * \ / /\ \ /___\/ * /____/ \ \ / * \ \ /___\/ * \____\/ ---{Administrator}=>

1.2.3 Access via FTP

To access the SpeedTouch™ via the File Transfer Protocol (FTP)

You can access the file system of the SpeedTouch™ via the File Transfer Protocol (FTP), in order to:

Restore or back up configuration files, templates or language packs.

Upgrade your configuration.

File system The SpeedTouch™ file system is stored on non-volatile memory and contains the SpeedTouch™ software, service template files and (optionally) default setting files.

To open an FTP session Proceed as follows:

1 Open a Command Prompt window.

2 At the prompt, type ftp followed by the IP address of your SpeedTouch™

(192.168.1.254 by default).

3 Enter your SpeedTouch™ security user name and password.

The example below shows an FTP session to the SpeedTouch™ file system.

File system structure The structure of the file system is very simple: it consists of a single root directory

called root and a subdirectory called dl (download).

The root directory contains:

all the necessary files for the SpeedTouch™ to start correctly

the dl directory

The dl directory contains the software image.

In Microsoft Windows XP for instance:

1 On the Windows taskbar, click Start.

2 Select (All) Programs > Accessories > Command Prompt.

The default user is ‘Administrator’ and the default password is blank.

If you made changes to the SpeedTouch™ configuration and saved

them, a user.ini configuration settings file is created in the dl

File system access rights

In the different directories you have the following rights:

Common FTP commands

Depending on the access rights you have in a directory, you can use one of the following commands:

Directory Access rights

root NO read/write

dl read/write

Use the command ...

to ...

cd access another directory than the one currently open.

Example: ftp>cd dl.

dir list the directory files.

Example: ftp>dir.

bin set the transfer mode to ‘binary’.

hash turn on the hashing option.

put upload files.

Example: ftp>put C:/MyBackupFiles/user.ini.

A configuration file must be uploaded to the dl directory.

get download files.

Example: ftp>get user.ini.

Downloading the configuration file must be done from the dl directory.

delete delete files.

FTP file transfer To allow correct file transfers, set the transfer mode to “binary”: at the ftp prompt,

type bin and press ENTER.

Example.

Quote site command All the CLI commands can be executed from within an FTP session. Only complete CLI commands (in other words, the complete command syntax with all the parameters already specified) can be executed.

Example: To execute the CLI command _{:ip iplist} to list all IP addresses

currently assigned to SpeedTouch™ interfaces, at the FTP prompt, type ‘quote site ip iplist’ and press ENTER.

For more information on CLI commands, see the SpeedTouch™ CLI Reference Guide.

Turn on the hashing option to see the progression of the file transfer: At the

ftp prompt, type _hash and press ENTER.

/home/doejohn{1}$ftp 192.168.1.254 Connected to 192.168.1.254

220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change. Name (192.168.1.254:doejohn):

331 SpeedTouch™ (00-90-D0-01-02-03) User 'doejohn' OK. Password requir

ed.

Password : ###### 330 OK

ftp> ftp>bin

200 TYPE is now 8-bit binary ftp>

ftp>hash

200Hash mark printing on (8192 bytes/hash mark). ftp>cd dl

250 Changed to /dl ftp>put C:\user.ini

200 Connected to 192.168.1.10 port 1271 150 Opening data connection for user.ini 226 File written successfully

ftp: 256 bytes sent in 0,000Seconds 256000,000Kbytes/sec. ftp>

ftp> quote site ip iplist

200- Interface Type IP-address Point-to-point/Mask

200- 2 LocalNetwork Ethernet 10.0.0.138 255.255.255.0

200- 2 LocalNetwork Ethernet *192.168.1.254 255.255.255.0

200- 1 Internet Serial 81.240.198.191 81.240.198.1

200- 0 loop Internal 127.0.0.1 255.255.255.255

200-200 CLI command "ip iplist" executed ftp>

1.2.4 Remote Assistance

To access the SpeedTouch™ remotely

You can make your SpeedTouch accessible from the Internet with regard to remote support. In this way, you can allow your help desk to access your SpeedTouch™ remotely.

To enable remote access

Proceed as follows:

1 Go to the SpeedTouch™ pages, as described in “1.2.1 Access via the Web

Interface” on page 7.

2 In the menu, select Toolbox > Remote Assistance.

3 Click Enable Remote Assistance.

4 Provide the following parameters to your help desk:

URL (the HTTPS link)

User name

Password

Your ISP is now able to access your SpeedTouch™ via the HTTPS link in combination with the provided certificate (a secure authentication mechanism).

To disable remote access

Proceed as follows:

1 Go to the SpeedTouch™ pages, as described in “1.2.1 Access via the Web

Interface” on page 7.

2 In the menu, select Toolbox > Remote Assistance.

3 Click Disable Remote Assistance.

For security reasons, remote assistance will be automatically disabled after 20 minutes of inactivity, or after restarting your SpeedTouch™.

2 Local Network Setup

Introduction The SpeedTouch™ offers you the following local networking solutions:

Wired Ethernet

USB (v1.1)

Wireless Ethernet on the SpeedTouch™716v5 WL

Device settings Once you have connected a device, you can personalise its settings. For more

2.1 Wired Ethernet

Local network The Ethernet ports on the back panel allow you to connect the SpeedTouch™ to an existing 10 or 100Base-T Ethernet network or one (or more) computer(s) with an installed Ethernet card.

Using the SpeedTouch™ Ethernet switch, you can create a local Ethernet network of up to four devices, without needing extra networking devices.

Standard wiring procedure

Use the yellow Ethernet cable provided to wire your computer's Ethernet port to one of the SpeedTouch™'s Ethernet ports.

Device settings Once you have connected a device, you can personalise its settings.

For more information, see “ Device settings” on page 15.

Managed Ethernet switch

Your SpeedTouch™ intelligently switches data between the devices on your LAN, using priority queuing to ensure that higher priority messages are delivered first and in real time. This feature maximizes your network performance.

The managed Ethernet switch allows you to configure a Virtual Local Area Network (VLAN), group ports or isolate a port, configure secure channel connections, define Quality of Service (QoS), and configure port mirroring, allowing monitoring from one port to another.

You can configure the managed Ethernet switch manually using CLI (For more information, see the SpeedTouch™ CLI Reference Guide).

In the SpeedTouch™ package, a yellow full-wired straight-through RJ-45/ RJ-45 Ethernet cable is included.

The Ethernet cable can also be used to wire an Ethernet port of your SpeedTouch™ to any external Ethernet hub or switch.

Please follow the installation instructions supplied with the external hub or switch for connections and Ethernet cabling.

2.2 USB

Supported operating systems

USB connectivity on the SpeedTouch™ is supported for the following operating systems:

Microsoft Operating Systems:

Microsoft Windows 98SE

Microsoft Windows Millennium

Microsoft Windows 2000

Microsoft Windows XP

You may need the Microsoft Windows installation CD-ROM during installation.

Mac Operating Systems:

Mac OS X Jaguar (10.2)

Mac OS X Panther (10.3)

Mac OS X Tiger (10.4)

System requirements For Microsoft Windows 98SE/ME:

Pentium processor 166 MHz or compatible

32 megabytes (MB) of memory

30 MB of free disk space

For Microsoft Windows 2000/XP:

Pentium II processor or compatible

64 MB of memory

30 MB of free disk space

For Mac OS X:

128 MB of memory

30 MB of free disk space

Prerequisites It is highly recommended to remove any SpeedTouch™ USB driver installation that may reside on your computer before you install USB drivers from the

SpeedTouch™ Setup CD delivered with your SpeedTouch™.

Make sure both your computer and your SpeedTouch™ are turned on and operational.

The installation procedures might be slightly different depending on the Microsoft Windows operating system you are using.

In the SpeedTouch™ package, a blue USB cable is included to connect a single computer to your SpeedTouch™.

To install Windows USB drivers

The first time you connect the SpeedTouch™ to your computer through the USB port, you will be prompted for a USB driver as soon as you plug the USB cable into the computer.

You can find the required USB driver software on the Setup CD. The installation is Plug and Play, meaning that installation requires almost no effort.

Proceed as follows:

1 Insert the blue USB cable into the SpeedTouch™ USB port marked with the

USB logo:

2 Insert the other end of the USB cable into (one of) the USB port(s) of your

computer. In most cases your computer's USB port is marked with the same USB symbol.

Microsoft Windows will automatically recognise the Thomson USB Remote NDIS device.

The Windows Found New Hardware Wizard appears:

This wizard will guide you through the installation procedure of the USB drivers.

3 Click Next to continue.

4 Select Install the software automatically (Recommended), and then click

Next.

The USB driver is being installed. After a while a completing dialogue will appear.

5 Click Finish to complete the installation.

Your USB connection is installed and ready for use. A USB logo looks like this:

You can also connect your computer to the SpeedTouch™ via a USB hub.

The Windows Found New Hardware Wizard may ask your

authorisation to connect to Windows Update to search for software. If

To verify USB connectivity in Windows

The SpeedTouch™ USB connection is represented as a local network interface. You can easily check this interface by opening the Network Connections window from Windows’ Control Panel.

To install Mac USB drivers

You can find the required USB driver software on the Setup CD. The installation is Plug and Play, meaning that installation requires almost no effort.

Proceed as follows:

1 Insert the blue USB cable into the SpeedTouch™ USB port marked with the

USB logo.

2 Plug the other end of the USB cable into (one of) the USB port(s) of your

computer. In most cases your computer's USB port is marked with the same USB symbol.

Mac OS X will automatically recognise the detection of a new port.

3 Make sure the SpeedTouch™ Setup CD is inserted, and then click OK.

4 In the Network window, click Apply Now.

Device settings Once you have connected a device, you can personalise its settings. For more

information, see “ Device settings” on page 15.

A USB logo looks like this:

You can also connect your computer to the SpeedTouch™ via a USB hub, provided that the hub is autonomously powered.

2.3 Wireless Ethernet

Introduction The SpeedTouch™ 716v5WL Wi-Fi® certified IEEE 802.11g compliant wireless

access point allows multiple computers to connect wirelessly to your local network over the SpeedTouch™ Wireless LAN environment. The SpeedTouch™ is backward compatible with IEEE 802.11b, which means 802.11b and 802.11g devices can coexist in the same wireless network.

The Wireless Distribution System (WDS) on your SpeedTouch™ allows you to extend the range of your wireless network. To be able to use WDS, you will need to introduce an additional WDS-enabled access point into your wireless network. To be able to connect the computers, make sure that a wireless client adapter (WLAN client) is installed on each computer you want to connect via the WLAN.

Wireless client requirements

All wireless client adapters compliant to 802.11g and/or 802.11b can communicate with the SpeedTouch™ and other members of the SpeedTouch™ (W)LAN

environment. However, be aware that only 802.11g compliant wireless clients are able to gain full profit of the 54 Mb/s (Max) bandwidth delivered by the

SpeedTouch™.

It is highly recommended to use only wireless client adapters that are Wi-Fi™ certified to ensure smooth interoperability with the SpeedTouch™’s WLAN.

2.3.1 Wireless Basics

802.11b/g 802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s.

802.11g, a newer IEEE standard also operating at 2,4 GHz, gives you up to 54

Mb/s speed, more security and better performance.

Wireless Fidelity The Wi-Fi certification ensures that your SpeedTouch™ will interoperate with any Wi-Fi certified 802.11g and 802.11b compliant wireless device.

Access Point The SpeedTouch™ Wireless LAN Access Point (AP) behaves as a networking hub allowing to wirelessly interconnect several devices to the local (W)LAN and to provide access to the Internet.

Network Name or SSID The WLAN's 'radio' link is a shared medium. As no physical connection exists between the SpeedTouch™ and wireless clients, a name must be given to allow unique identification of your WLAN radio link. This is done by the Service Set ID (SSID), also referred to as Network Name. Wireless clients must be part of this SSID environment in order to be able to communicate with other clients on the (W)LAN - including the SpeedTouch™.

Radio channels The 802.11g standard allows several WLAN networks using different radio channels to be co-located. The SpeedTouch™ supports multiple radio channels and is able to select the best radio channel at each startup.

You can choose to set the channels automatically or manually.

The SpeedTouch™ supports all channels allowed for wireless networking. However, depending on local regulations, the number of channels actually allowed to be used may be additionally restricted, as shown in the table below.

The different channels overlap. To avoid interference with another access point, make sure that the separation (in terms of frequency) is as high as possible. It is recommended to keep at least 3 channels between 2 different access points.

Regulatory Domain Allowed Radio Channels

China 1 to 13

Europe 1 to 13

Israel 5 to 8

Japan 1 to 14

Antennas Direct the external antenna to allow optimization of the wireless link. If for example the antenna is erect, wireless links in the horizontal plane are favoured. Please note that the antenna characteristics are influenced by the environment, that is by reflections of the radio signal against walls or ceilings. It is advisable to use the received signal strength as indicated by the wireless client manager to optimize the antenna position for the link to a given client.

2.3.2 Connecting Wireless Clients for the First Time

Wireless default settings

After every Reset-to-Defaults, the SpeedTouch™ wireless access point configuration is returned to its initial default settings.

These default settings are:

Security level is low (security disabled) for an easy first use, meaning the data

will not be encrypted. Wireless security settings are described in

“2.3.3 Wireless Security” on page 25.

This default network name (SSID) is printed on the identification label located

on the bottom of your SpeedTouch™ and is unique for each device. It consists of the concatenation of the word “SpeedTouch” and 6 hexadecimal

characters, without any spaces, for example SpeedTouch123456.

The SpeedTouch™ is broadcasting its network name (SSID).

The radio channel number is set to ‘automatically scan for the best radio

channel’.

Registration is not activated. New stations are allowed automatically. The

Access Control List is open and empty. No wireless client will be denied access to the SpeedTouch™ based on its physical hardware address.

To prepare wireless clients for the first time

Make sure that:

The SpeedTouch™ is turned on and ready for service.

The SpeedTouch™ is in its default configuration.

If necessary, reset the SpeedTouch™ to its default configuration (See

“6.4 Reset to Factory Defaults” on page 118 for more information).

A wireless client adapter is installed on your computer.

The wireless client adapter’s IP configuration is set to dynamically obtain its IP

configuration (DHCP) - this is usually the default. For more information, see the documentation of your wireless client adapter.

To configure wireless clients for the first time

The wireless client must be correctly configured for the default network name. As the SpeedTouch™ broadcasts its network name to the wireless clients, you can select the SpeedTouch™ wireless network from a list of available networks. Depending on your wireless client a wireless icon may become green or a message similar to the following may appear: “Successfully joined Wireless network SpeedTouch123456”.

!

to the installation/configuration instructions provided by your Service Provider.

Some wireless clients do not automatically join a wireless network. If so, follow the instructions for the wireless client software to initiate association.

First-time association example

The example below shows how the SpeedTouch™ wireless network is presented towards a Windows XP Service Pack 2 system.

Proceed as follows to associate your wireless client to the SpeedTouch™:

1 Click the network icon in the notification area:

The Wireless Network Connection window appears:

2 In the Choose a wireless network list, select the SpeedTouch™ wireless

network and click Connect.

The following window appears:

3 Click Connect Anyway.

Your computer is now connected to the SpeedTouch™ wireless network.

For other Operating Systems the wireless client will in most cases be configured via dedicated client managers.

2.3.3 Wireless Security

Introduction Since the SpeedTouch™ wireless environment is a radio environment, precautions must be taken to ensure that your wireless network is safe from malicious intruders. To secure your wireless network, the following wireless access point settings can be personalised:

Your Network Name (SSID)

ACL setting

Data encryption

Security settings To personalise the wireless security settings on your SpeedTouch™:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Home Network.

3 Click your WLAN.

4 In the upper right corner, click Configure.

5 On the Wireless Access Point page, you can modify the Security settings.

Network Name (SSID) On the Wireless Access Point page, you can give a new name to your Network Name (SSID).

Under Security, you can clear Broadcast Network Name (SSID), to prohibit the

Access Control List (ACL)

The SpeedTouch™ features a managed Access Control List (ACL).

On the Wireless Access Point page, you have the following options for the ACL:

New stations are

Allowed (automatically): All new stations can access the SpeedTouch™.

Allowed (via registration): Only allowed stations in the ACL have access.You can add new stations via:

The Search for wireless devices task.

For more information, see “ Registering wireless clients” on page 27.

Not allowed: Only allowed stations in the ACL have access.

You can add new stations to the ACL only via the Search for wireless devices

task. For more information, see “ Registering wireless clients” on page 27.

Data encryption To set up wireless connectivity, you can choose different levels of security:

Security disabled (default)

No security; the data will not be encrypted, no authentication process will be used.

WEP(Wired-Equivalent Privacy)

Traffic between the SpeedTouch™ and the clients is encrypted by sharing a pre-defined 64-bit or a 128-bit Network key for secure communication with legacy 802.11b clients.

WPA-PSK (Wi-Fi Protected Access Pre-Shared Key)

The highest form of security available for home users. Make sure that your wireless client and client manager are compatible with it.

The default 64 bit hexadecimal WEP key is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.

The default WPA-Personal pass phrase is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.

The WPA-Personal pass phrase must consist of 8 to 63 ASCII characters or 8 to 64 HEX digits.

Wireless access points may already have been configured during the Home Install Wizard.

If

If you change wireless settings, wireless clients will be disconnected. In this case, you need to reconfigure the wireless clients before you can connect to the Internet again.

2.3.4 Connecting Additional Wireless Clients

Preconditions Make sure that:

The SpeedTouch™ is turned on and ready for service.

The SpeedTouch™ has been configured as DHCP server (default).

The wireless client adapters have been installed on all the computers you

want to connect to the WLAN.

Security issues Depending on the personalised wireless settings:

Make sure you use the same encryption or security level on the client as

on your SpeedTouch™. If for instance WPA-PSK is enabled on the SpeedTouch™, you must also configure the wireless client to use WPA-PSK and configure the same WPA-WPA-PSK pass phrase.

If the Network Name (SSID) is not broadcast, you must configure the

wireless client for the SpeedTouch™ Network Name. Refer to the documentation of your wireless client for more information.

If the SpeedTouch™ ACL settings are set to:

New stations are allowed (automatically), your device can access the SpeedTouch™ WLAN without additional configuration.

New stations are allowed (via registration), you have to register your

wireless client(s).For more information, see “ Registering wireless

clients” on page 27.

New stations are not allowed, you have to search for wireless client(s)

using the SpeedTouch™ web pages, see “ Registering wireless clients”

on page 27.

Registering wireless clients

Proceed as follows to add a wireless client to the ACL:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Home Network > Devices.

3 In the Pick a task list, click Search for wireless devices.

The SpeedTouch™ searches for new wireless stations that use the encryption key of the SpeedTouch™ Access Point.

The SpeedTouch™ takes you to the Home Network. The new station will be shown next to the name of the SpeedTouch™ WLAN.

4 Click the name of the new station.

5 Click Configure.

6 Select Allowed on WLAN, and then click Apply.

The device is added to the ACL and will always be allowed to connect to the SpeedTouch™.

2.3.5 Extending the Range of Your Wirelstess

Network

Wireless Distribution System (WDS)

The SpeedTouch™ features the Wireless Distribution System (WDS) functionality. This feature allows you to extend the range of your wireless network by introducing one or more WDS-enabled devices into your wireless network.

WDS enables data packets to pass from one wireless access point to another, as if the access points were ports on a wired Ethernet switch. WDS allows you to extend the range of your SpeedTouch™ by means of one or more wireless repeaters, like for instance a SpeedTouch™180. The following illustration depicts two WDS-enabled devices communicating via WDS.

Preconditions Make sure that:

Your wireless repeater is be WDS enabled.

Both your SpeedTouch™ and your wireless repeater use:

The same WEP key if WEP is enabled.

The same fixed channel.

The SpeedTouch™ allows you to add up to four wireless repeaters.

Repeaters extend the coverage area of your wireless LAN. However, bear in mind that throughput is reduced for wireless clients that are connected through a repeater.

SpeedTouch™180 SpeedTouch™716v5 WL

WDS Link

!

The SpeedTouch™ and your wireless repeater do not necessarily need to use the same SSID. Using different SSIDs allows you to force your wireless clients to use either the access point of the SpeedTouch™ or the one of your wireless repeater.

To configure WDS Proceed as follows:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Home Network.

3 Click your WLAN.

4 In the upper right corner, click Configure.

5 On the Wireless Access Point page, in the Pick a task list, click Configure WDS.

6 Select WDS Enabled.

7 In the Pick a task list, click Scan for wireless access points.

A warning is displayed.

8 Click OK.

The SpeedTouch™ scans for access points on the same radio channel.

9 Select your repeater in the List of Accessible Access Points, and then click

Apply.

If not already done, set a fixed channel and check whether the security

settings (WEP encryption or no encryption) on your SpeedTouch™ are the same as on the repeater.

3 Internet Connectivity Dial-In Clients

Introduction If you want to set up initial Internet connectivity using the Home Install Wizard on the Setup CD or the embedded Easy Setup, refer to the provided Installation and Setup Guide.

Access methods Depending on the configuration of the SpeedTouch™ you may have:

Direct access:

As soon as the initial configuration is finished, immediate and uninterrupted WAN access is provided.

Dial-in access:

Access must be explicitly established, that is by “dialling” into a Broadband Remote Access Server (BRAS).

Depending on the SpeedTouch™ configuration, dial-in access is provided via the SpeedTouch™’s Routed PPPoA or Routed PPPoE packet services with embedded PPP client.

Connection protocols The applied connection protocol model depends on the service profile you selected to configure the SpeedTouch™ and should correspond with the Service Provider’s requirements. If, for instance, your ISP provides PPPoE, you should configure PPPoE.

You can find more information on connection protocols in the Internet Connection Configuration Guide.

Dial-in clients There are different ways to dial in, depending on the operating system on your computer and your preferences.

If you have direct access, the remote organisation might ask for a user name and password on an Internet welcome page.

Dial-in method: can be used on following operating system:

For more information, see:

Embedded PPP dial-in client:

1 Dial-in client on

embedded pages

Windows, Mac, unix, other

“3.1 SpeedTouch™ Web Pages”

2 Windows XP/UPnP

(Internet Gateway Device)

Windows XP “3.2 Internet Gateway

Device Control Agent” on page 35

Embedded PPP dial-in clients

The SpeedTouch™’s embedded PPP dial-in client allows you to establish an Internet connection for computers residing on your local network, using only one computer of the network to control the client.

If this computer runs:

Any Operating System

you can always use the SpeedTouch™ Web pages.

See “3.1 SpeedTouch™ Web Pages” on page 33 to proceed.

Windows XP

you can use the Windows XP Internet Gateway Device Control Client. See “3.2 Internet Gateway Device Control Agent” on page 35 to proceed.

Broadband host PPPoE dial-in clients

You can also connect to the Internet using a Broadband PPPoE dial-in application. The PPP over Ethernet connection scenario provides PPP-like dial-in behaviour over the virtual Ethernet segment.

To be able to use a broadband dial-in application on your computer for connecting to the Internet, the SpeedTouch™ needs to be configured for Bridged Ethernet or Routed PPPoE (with PPPoE relay) via the SpeedTouch™ Home Install Wizard on the Setup CD or the embedded Easy Setup. .

If your computer runs ... you can use ...

Windows XP the Windows XP broadband dial-in client

Mac OS X a Mac OS X broadband dial-in client

a broadband PPPoE dial-in client provided by you Service Provider

Upon availability of OS-specific PPPoE dial-in client applications, the latter method is Operating System independent.

For PPPoE session connectivity from a Mac OS 8.6/9.x, a Windows 95/ 98(SE)/ME/2000 or a Linux system, a host PPPoE dial-in application is mandatory.

3.1 SpeedTouch™ Web Pages

Introduction As the SpeedTouch™ Web pages are controllable from any Operating System with an installed Web browser, the method to establish PPP sessions described later, can be used on any computer system.

For more information on Internet connection setup, refer to the provided Installation and Setup Guide.

Starting an Internet session

Proceed as follows to start an Internet session:

1 Open a Web browser on your computer and browse to the SpeedTouch™ Web

pages (see “1.2.1 Access via the Web Interface” on page 7 for more

information).

The SpeedTouch™ home page appears by default.

2 Click Connect at the appropriate broadband connection.

The SpeedTouch™ embedded PPP dial-in client establishes the Internet connection.

3 Browse the Web.

Monitoring your Internet connection

You can view and monitor your connection to the Internet as long as the session is running via:

Terminating an Internet session

Proceed as follows to close an active PPP connection:

1 Go to the SpeedTouch™ Web pages.

2 Click Disconnect at the appropriate broadband connection.

The SpeedTouch™ embedded PPP dial-in client closes the Internet connection.

3.2 Internet Gateway Device Control Agent

Introduction Windows XP users can easily establish PPP sessions, thanks to the Windows XP Internet Gateway Device (IGD) Discovery and Control Client that allows you to control the SpeedTouch™ directly from you computer.

Preconditions Make sure that:

The following subcomponents of the Windows XP Networking Services are

added to your Windows XP system:

UPnP™ (see “ SpeedTouch™ not detected by UPnP™ or IGD Control

Client” on page 115).

IGD Discovery and Control Client (see “ Adding IGD Discovery and

Control” on page 116).

UPnP™ is enabled on your SpeedTouch™. To enable UPnP, see “5.5.5 Game &

Application Sharing” on page 76.

Starting an Internet session

Proceed as follows to start an Internet session:

1 In the Windows taskbar, click Start.

2 Select (Settings >) Control Panel.

The Control Panel window appears.

3 Go to (Network and Internet Connections >)Network Connections.

The Network Connections window appears.

You will find an Internet Gateway icon, representing the SpeedTouch™ IGD

The IGD Control Client only allows to connect or disconnect a fully configured connection.

Internet connection status

As long as the SpeedTouch™ embedded PPP dial-in client is connected, you can

view the connection status and some counters by double-clicking the Internet

Connection icon in the Network Connections window.

Terminating an Internet session

Proceed as follows to terminate an Internet session:

1 In the Windows taskbar, click Start.

2 Select (Settings >) Control Panel > (Network and Internet Connections >)

Network Connections.

3 In the Network Connections window, right-click the Internet Connection icon

and select Disconnectto close the session.

4 The SpeedTouch™ embedded PPP dial-in client will close the Internet

connection. The Internet Gateway icon displays Disconnected and your

computers are offline.

You can also double-click the icon. Then the Internet Connection

Status window will appear on which a Disconnect button is available to close the session.

4 Voice over IP

Voice over IP Internet telephony or Voice over IP (VoIP) can be defined as the transfer of telephone calls over your Internet connection.

The SpeedTouch™ VoIP solution

With your SpeedTouch™ you can make Internet and regular telephone calls using traditional analogue phones, connected to your SpeedTouch™.

Multi-line service The voice service on your SpeedTouch™ provides additional lines without the need for additional copper pairs. The additional lines allow you to make and receive several internal and external Internet calls simultaneously.

Fax You can also connect a fax machine to your SpeedTouch™ in order to send and

receive faxes over your Internet connection or over the traditional phone line.

What you need from your ISP

The following SIP configuration parameters are provided by your ISP:

Uniform Resource Identifier (URI)

User name

Password

IP address and port number (usually 5060) of the provider’s registrar

IP address and port number (usually 5060) of the provider’s SIP proxy server

Uniform Resource Identifier

The SIP Uniform Resource Identifier (URI) is a unique name used to identify and locate your telephone. The SIP URI can have a numerical format or the format user@host. Examples: 3443614 [email protected] [email protected] [email protected] (

As VoIP signalling protocol your SpeedTouch™ uses the Session Initiation Protocol (SIP), defined in RFC 3261.

If your provider gives you an URI in the format containing an ‘@’, your service provider will tell you whether the ‘@’ can be formed on your phone by dialing a ‘1’, ‘*’, or ‘#’.

4.1 Telephony Setup

Telephony installation The SpeedTouch™ is equipped to connect one or two analogue phones or faxes.

Use a phone cable with RJ-11 connectors to:

1 Wire the SpeedTouch™ Phone port(s) to your phone(s) or fax.

2 Wire the SpeedTouch™ PSTN port to your telephone wall outlet or distributed

filter depending on your Service Provider’s specific needs.

Telephony configuration The telephony service might already have been configured on your SpeedTouch™ during initial setup.

If not, follow the instructions below:

Enable the telephony service Assign phone numbers

Configure the telephony service

This is only required if you still want to make phone calls using the regular telephone line.

!

!

Your Internet connection must be up and running before you can configure Internet telephony.

Enable the telephony service

Proceed as follows to enable the telephony service:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Toolbox > Telephony.

3 In the upper right corner, click Configure.

4 Select Service Enabled.

5 Click Apply.

Assign phone numbers Proceed as follows to configure your Internet SIP telephone numbers:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Toolbox > Telephony.

3 In the upper right corner, click Configure.

4 Assign phone numbers to phone port 1 (FXS1) and phone port 2 (FXS2). If you

want to use the same number for both ports, select Port ‘all’.

5 Click Apply.

Configure the telephony service

Proceed as follows to configure the SIP telephony service:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Toolbox > Telephony.

3 In the upper right corner, click Expert configure.

4 Enter the IP address and the port number of the registrar and the proxy, as

For more information, see “1.2.1 Access via the Web Interface” on

page 7.

provided by your ISP:

5 Click Apply.

Verifying telephone connectivity

Proceed as follows to verify the voice connection:

1 Make sure the SpeedTouch™ is turned on and ready for service.

2 Check whether your phone is properly attached to the SpeedTouch™.

3 Make sure the Internet telephony service is enabled and configured.

4 The VoIP Ready LED must be lit.

5 Pick up your phone, wait for the dialling tone, and dial the number. If you dial

a ‘#’ after the phone number, the phone number will be called instantly. Some of the SIP components are explained below:

Proxy: The SIP proxy server at your provider’s forwards signalling messages between the caller and callee.

Registrar: The SIP registrar resembles a DNS, as it matches your URI with your IP address. Your SpeedTouch™ will periodically - depending on the expire time - register its correct IP address with the SIP registrar that may be collocated with the proxy server.

Expire Time: This is the frequency with which your IP address is updated on the registrar.

The phone(s) attached to the SpeedTouch™ can receive incoming VoIP calls, as long as your SpeedTouch™ is turned on and the VoIP Ready LED is lit.

For calls over the regular phone line, your phones are line powered by the telephone company and can therefore always be reached, even if the modem is turned off.

Multiple identities You can assign up to three Internet telephone numbers or URIs to one or both phone ports or assign a common number to both phone ports.

Proceed as follows:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Toolbox > Telephony.

3 In the upper right corner, click Configure.

4 In the Pick a task list, click Use multiple identities.

5 Click Add.

6 Enter another URI, your user name and password.

7 Choose the phone port for which you want to use this telephone number.

8 Click Apply.

Telephony statistics The telephony statistics page gives you:

Call Statistics: an overview of the successful, unsuccessful, missed or total number of incoming or outgoing calls per phone.

Call Log: detailed statistics per call. Proceed as follows to retrieve the statistics:

1 Go to the SpeedTouch™ Web pages (http://speedtouch.lan or 192.168.1.254).

2 In the menu, select Toolbox > Telephony.

3 In the Pick a task list, click View telephony statistics and logs.

Your last ten calls (outgoing, incoming, missed or unsuccessful) are also

4.2 Supplementary Telephony Services

Supported telephony services

Depending on your provider’s configuration, the following services will be available.

For more information on how to use some of these services, see “ Using the

services on the phone” on page 45.

Service Description

Call Hold Allows you to put a call on hold, to dial another number, and

to switch between the active and held call whenever you want, or to terminate the active or held call.

Call Waiting Allows you to answer or reject an incoming call while you

are in a conversation.

Call Transfer Allows you to transfer a call to another person.

Conference Call (3 Parties)

Allows you to make a conference call.

Calling Line Identification Presentation (CLIP)

Allows you to see the phone number of the person who is calling you on your phone display.

If you cannot take the call, the phone number is stored on the SpeedTouch™ Web pages, guaranteeing you do not miss important calls.

CLIP will only work if CLIR is deactivated on the calling phone.

Calling Line Identification Restriction (CLIR)

Restricts the transmission of your phone number when you make a call, in order to protect your confidentiality. Your phone number will not appear on the screen of your partner. When this service is activated, your phone number will never be transmitted.

To activate CLIR on call basis, see “ Using the services on

the phone” on page 45.

Forced FXO Allows you to force the SpeedTouch™ to make the phone

Activating/Deactivating the services

Before you can use a telephony service, the service needs to be activated. This might have been done during the initial setup of your SpeedTouch™.

If not, you can activate or deactivate a particular telephony service:

on the SpeedTouch™ Web pages: see “ (De)activating services on the Web

pages”.

by dialling the activation code on your telephone: see “ (De)activating services

on your telephone”.

(De)activating services on the Web pages

Proceed as follows to activate a service on the Web pages:

1 Go to the SpeedTouch™ Web pages.

2 In the menu, select Toolbox > Telephony.

3 In the upper right corner, click Configure.

4 In the Pick a task list, click Configure telephony services.

A list of telephony services provided by your Service Provider appears:

5 Select the services you want to activate.

6 Click Apply.

(De)activating services on your telephone

Proceed as follows to activate a service using the attached telephone:

1 Take the phone off the hook.

2 Dial an ‘*’ followed by the activation code. If you dial a ‘#’ after the activation

code, the service will be activated instantly.

3 Wait for the confirmation tone, and place the phone on the hook.

To deactivate the service, clear the corresponding check box.

The activation code depends on your provider’s configuration. The

activation codes can be found on the Telephony Services Web page.

To deactivate the service, dial a ‘#’ followed by the activation code.

Using the services on the phone

The following table explains how to use a telephony service. The commands depend on your provider’s configuration and might be different from those described here. For more information, see your provider’s documentation.

Make sure your phone is off-hook when you dial the commands.

If your phone does not have an R or another hook flash button, put down

the hook for 1/2 second and then dial the command number.

To use the service: Proceed as follows:

Call Hold To put person A on hold:

1 Dial R, 2 to put the call with person A on hold.

2 Dial R, 1 to retrieve the call on hold.

To put person A on hold and set up a call to person B:

1 Dial R, 2 to put the call with person A on hold.

2 Wait for the dialling tone, and dial the number

of person B.

3 Dial R, 2 to switch back to person A.

Person B is put on hold.

Call Waiting You are in a phone conversation with person A

while person B is calling you. The phone produces a waiting tone and - if CLIP is enabled and CLIR disabled - displays the number of person B. Do one of the following:

To reject the incoming call, dial R, 0.

To terminate the first call and to switch to the

waiting call, dial R, 1.

If you do not want to terminate the first call,

dial R, 2 to keep the first caller on hold while

answering the second call.

To return to person A while putting

person B on hold, dial R, 2.

To return to person A while terminating

the call with person B, dial R, 1.

Call Transfer You receive a phone call from person A and you

want to transfer him to person B.

1 Dial R, 2.

2 Wait for the dialling tone.

3 Dial the number of person B.

Command overview The table below lists all standard service codes of the telephony services. These might be different on your SpeedTouch™, depending on your provider.

Address book On the SpeedTouch™ Web pages, an address book is available list your contacts, so

Conference Call (3 Parties) To set up a conference call:

1 Call person A.

2 Dial R, 2.

Person A is put on hold.

3 Wait for the dialling tone.

4 Dial the number of person B.

Person B picks up the phone.

5 Dial R, 3.

Once the conference call has been established, you can:

1 Dial R, 2 to put the 2 calls on hold.

2 Dial R, 3 to retrieve the 2 held calls.

CLIR on call basis It is possible to hide your phone number for one

particular call. Dial *31* directly followed by the

phone number of person A.

Forced FXO To make a phone call over the regular telephone

line:

1 Dial *01*.

2 Wait for the dialling tone, and then dial the

phone number of person A.

To use the service: Proceed as follows:

Phone command: Is used to:

R 0 drop a held call

reject an incoming call

R 1 terminate an active call and switch to the

waiting or held call

R 2 put a call on hold

switch between active and waiting or held call

put a conference call on hold

R 3 establish a 3-party conference call

R 4 transfer a call

*31* make an anonymous call (use CLIR) on call

basis

5 SpeedTouch™ Web Interface

Embedded The SpeedTouch™ comes with embedded Web pages, providing an interface to the software installed on the device. It allows easy setup and management of the SpeedTouch™ via your Web browser from any PC connected to the SpeedTouch™. See “1.2.1 Access via the Web Interface” on page 7 to access the pages.

SpeedTouch™ documentation

Consult:

The SpeedTouch™ Installation and Setup Guide

5.1 Navigation

Navigation components The SpeedTouch™ Web interface consists of the following components:

Menu

Language Bar Navigation Bar Notification Area

Tasks

Menu

Tasks

5.1.1 Menu

Menu items The menu is located on the left side of the page and consists of the following menu items:

SpeedTouch:

Provides basic information on the SpeedTouch™.

Broadband Connection:

Allows you to view/configure your broadband connections.

Toolbox:

Allows you to assign games or applications to a device and secure your Internet connection.

Home Network:

Allows you to manage your local network.

Collapsing and expanding the menu

You can collapse/expand the menu by clicking the arrow located at the top of the menu.

5.1.2 Language Bar

Language bar The language bar is located under the SpeedTouch™ logo and allows you to change the language of the SpeedTouch™ Web interface.

5.1.3 Navigation Bar

Navigation bar The navigation bar is located at the top of the page and allows you to:

View the current user name.

Click this name to change your password or switch to another user.

View the current position on the SpeedTouch™ Web interface.

Get context-related Help information.

Display level Depending on the page you are viewing, the following buttons will be available:

Overview to view a summary of the current status or configuration.

Details to view more detailed information on the current status or configuration.

5.1.4 Notification Area

Notification area The notification area is located under the Navigation Bar and is used to display:

Error messages, indicated by a red traffic light.

Warnings, indicated by an orange traffic light.

Information, indicated by a green traffic light.

5.1.5 Tasks

Tasks To allow a quick configuration of your SpeedTouch™, some pages may offer you a

number of related tasks in the Pick a task list. These tasks will guide you to the page

5.2 Home

SpeedTouch™ home page

The SpeedTouch™ home page gives you a short overview of all the configurable aspects of the SpeedTouch™:

SpeedTouch

Broadband Connection

Toolbox

5.3 SpeedTouch

The SpeedTouch menu The SpeedTouch menu consists of the following items:

Information Configuration Event Logs

The SpeedTouch page The SpeedTouch page gives you some basic information on the SpeedTouch™:

Product Information

5.3.1 Information

Information The Information page summarizes important information on your SpeedTouch™. You may need this information when you contact your helpdesk.

5.3.2 SpeedTouch™ Easy Setup

Easy Setup Wizard The Easy Setup Wizard helps you to configure your SpeedTouch™ Internet connection.

Proceed as follows to configure the SpeedTouch™ using the SpeedTouch™ Easy Setup wizard:

1 In the left menu, click SpeedTouch.

2 In the Pick a task list, click Set up.

The Easy Setup wizard will now guide you through the configuration of your SpeedTouch™.

5.3.3 Restart

Restarting your SpeedTouch™

Proceed as follows:

1 In the left menu, click SpeedTouch.

2 In the Pick a task list, click Restart.The following message appears:

3 Click Yes, restart my SpeedTouch.

The SpeedTouch™ restarts.

5.3.4 Configuration

Overview The Overview page displays the current configuration of your SpeedTouch™.

Details The Details page displays more detailed information on the current configuration of your SpeedTouch™.

Configure The Configure page allows you to change the current configuration.

If you want to:

Reconfigure your SpeedTouch™:

Click Configuration Wizard under Service Configuration. For more

information, see “5.3.2 SpeedTouch™ Easy Setup” on page 57.

Configure the time settings of your SpeedTouch™:

Select Auto-configuration if you want the SpeedTouch™ to use a time

server to synchronise its clock to a dedicated time server.

Clear Auto-configuration to manually configure the SpeedTouch™ time

settings.

Disable/enable Web browsing interception or set it to automatic:

In the Web Browsing Interception list, click the Web browsing interception

setting of your choice.

5.3.5 Back up & Restore

Introduction The Back up & Restore page allows you to:

Save your current configuration.

Restore a previously saved configuration.

Accessing the Backup & Restore page

Proceed as follows:

1 In the SpeedTouch menu, click Configuration.

2 Click Configure.

3 In the Pick a task list, click Save or Restore Configuration.

Saving your current configuration

Proceed as follows:

1 Click Back up Configuration Now.

2 Click Save.

3 Choose a location to save your backup file and click Save.

Restoring a previously saved configuration

Proceed as follows:

1 Click Browse.

2 Select the configuration file you want to restore and click Open.

3 Click Restore Configuration Now.

The SpeedTouch™ loads your configuration and restarts.

5.3.6 Reset to Factory Defaults

Introduction The Reset to Factory Defaults page allows you to reset the SpeedTouch™ to return to the initial configuration of your SpeedTouch™. All your changes will be

deleted.The following message appears:

Resetting the SpeedTouch™ factory defaults

Proceed as follows:

1 In the left menu, click SpeedTouch.

2 In the Pick a task list, click Return to Factory Default Settings.

3 Click Yes, reset my SpeedTouch.

5.3.7 Event Logs

Event Logging The Event Logs page summarizes the last events recorded on your SpeedTouch™.

Recorded Events The Recorded Events table gives you an overview of the last event logs that have been recorded since the SpeedTouch™ was turned on. The first column of the table indicates the importance of the event log.

Category The Category list allows you to filter the events shown in the Recorded Events

table. For example, by clicking Security you can view all security related events, for

example generated by the SpeedTouch™ firewall.

Indicator Description

Informational

Warning

5.4 Broadband Connection

The Broadband Connection menu

The Broadband Connection menu consists of following menu items:

DSL Connection Internet Services

The Broadband Connection page

The Broadband Connection page gives you a short status overview of the connections configured on the SpeedTouch™.

Click View more to see more information on the selected broadband connection.

If you configured a dial-up connection, you can establish/terminate the

5.4.1 Connectivity Check

Introduction On this page, you can perform a connectivity check on an Internet service of your SpeedTouch™. The following message appears:

Checking your Internet connectivity

Proceed as follows:

1 In the left menu, click Broadband Connection.

2 In the Pick a task list, click Check connectivity to the Internet.

3 In the Internet Service to Check list, click the Internet service that you want to

check.

4 Click Check Connectivity.

The SpeedTouch™ lists the test results in the Test Results list.

Analysing the test results

If the test is successful, you will get a list of green check marks. Otherwise a red cross will indicate which tests have failed.

5.4.2 DSL Connection

Overview Click Overview to view basic information on your DSL connection.
