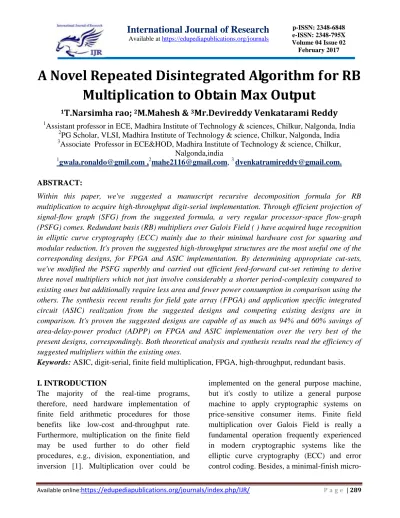

A Novel Repeated Disintegrated Algorithm for RB
Multiplication to Obtain Max Output
1
T.Narsimha rao;
2M.Mahesh &
3Mr.Devireddy Venkatarami Reddy
1
Assistant professor in ECE, Madhira Institute of Technology & sciences, Chilkur, Nalgonda, India 2
PG Scholar, VLSI, Madhira Institute of Technology & science, Chilkur, Nalgonda, India 3
Associate Professor in ECE&HOD, Madhira Institute of Technology & science, Chilkur, Nalgonda,india
1
[email protected] ,2[email protected], 3 [email protected].
ABSTRACT:
Within this paper, we've suggested a manuscript recursive decomposition formula for RB multiplication to acquire high-throughput digit-serial implementation. Through efficient projection of signal-flow graph (SFG) from the suggested formula, a very regular processor-space flow-graph (PSFG) comes. Redundant basis (RB) multipliers over Galois Field ( ) have acquired huge recognition in elliptic curve cryptography (ECC) mainly due to their minimal hardware cost for squaring and modular reduction. It's proven the suggested high-throughput structures are the most useful one of the corresponding designs, for FPGA and ASIC implementation. By determining appropriate cut-sets, we've modified the PSFG superbly and carried out efficient feed-forward cut-set retiming to derive three novel multipliers which not just involve considerably a shorter period-complexity compared to existing ones but additionally require less area and fewer power consumption in comparison using the others. The synthesis recent results for field gate array (FPGA) and application specific integrated circuit (ASIC) realization from the suggested designs and competing existing designs are in comparison. It's proven the suggested designs are capable of as much as 94% and 60% savings of area-delay-power product (ADPP) on FPGA and ASIC implementation over the very best of the present designs, correspondingly. Both theoretical analysis and synthesis results read the efficiency of suggested multipliers within the existing ones.
Keywords: ASIC, digit-serial, finite field multiplication, FPGA, high-throughput, redundant basis.
I. INTRODUCTION
The majority of the real-time programs, therefore, need hardware implementation of finite field arithmetic procedures for those benefits like low-cost and-throughput rate. Furthermore, multiplication on the finite field may be used further to do other field procedures, e.g., division, exponentiation, and inversion [1]. Multiplication over could be
micro-processor cannot satisfy the real-time dependence on different programs since word-period of these processors is simply too small in comparison using the order of typical finite fields utilized in cryptographic systems [2]. The option of basis to represent field elements, namely the polynomial basis, normal basis, triangular basis and redundant basis (RB) includes a major effect on the performance from
the arithmetic circuits. The multipliers
according to RB have acquired significant attention recently because of their several positive aspects. Furthermore they provide free squaring, normally basis does, but additionally involves lower computational complexity and could be implemented in highly regular
computing structures. Several digit-level
serial/parallel structures for RB multiplier over happen to be reported within the last years after its introduction by Wu et al. A competent
serial/parallel multiplier using redundant
representation continues to be presented. A little-serial word-parallel (BSWP) architecture for RB multiplier continues to be as stated by Naming et al. Other RB multipliers also provide been produced by exactly the same authors for lowering the complexity of implementation as well as for high-speed realization. We discover
the hardware utilization efficiency and
throughput of existing structures of could be enhanced by efficient style of formula and architecture. Within this paper, we goal at showing efficient digit-level serial/parallel
designs for top-throughput finite field
multiplication over according to RB. We've planned the formula to 3 different high-speed architectures by mapping the parallel formula to some regular 2-dimensional signal-flow graph (SFG) array, adopted by appropriate projection of SFG to at least one-dimensional
processor-space flow graph (PSFG), and the option of feed-forward cut-set to boost the throughput rate [3]. We've suggested a competent recursive
decomposition plan for digit-level RB
multiplication, and according to we have derived parallel calculations for top throughput serial multiplication. Our suggested digit-serial multipliers involve considerably less
area-time-power complexities compared to
corresponding existing designs. Field gate array (FPGA) has developed like a mainstream devoted computing platform. FPGAs however don't have abundant quantity of registers for use within the multiplier. Therefore, we've modified the suggested formula and architecture for decrease in register-complexity designed for the implementation of RB multipliers on FPGA platform. Aside from these we present a minimal critical-path digit-serial RB multiplier for high throughput programs.
Fig.1.Proposed Structure 1 for RB
II. PROPOSED SYSTEM
Within the lately suggested RB multipliers, both operands and therefore are decomposed into
numerous blocks to attain digit-serial
multiplication, we discover the hardware utilization efficiency and throughput of existing structures of might be enhanced further by efficient style of formula and architecture. For efficient realization of the digit-serial RB multiplier, we are able to perform feed-forward cut-set retiming inside a regular interval within the PSFG. Because of cut-set retiming, the minimum time period of each clock period is reduced The PSFG, is planned towards the high-throughput digit-serial RB multiplier, known to as suggested structure-I (PS-I). PS-I consist of three modules, namely the part-permutation module (BPM), partial product generation module (PPGM) and finite field accumulator module [4]. The BPM performs rewiring of items of operand to give its output to partial product generation models (PPGU)s based on the S nodes of PSFG. The AND cell, XOR cell and register cell of PPGM carry out the purpose of M node, A node and delay enforced through
the retiming of PSFG, correspondingly.
Structures and processes of AND cell, XOR cell and register cell, correspondingly. The input operands are given to PPGU in staggered manner to satisfy the timing requirement in systolic pipeline. The accumulator includes parallel bit-level accumulation cells. The recently received input will be added using the formerly accrued result and it makes sense kept in the register cell for use throughout the next cycle. Accordingly, two regular PPGUs within the structure could be emerged right into a new regular PPGU. Featuring its two AND cells and 2 XOR cells (the very first PPGU requires just one XOR cell). The functions of AND cell, XOR cell and register cell overlap with individuals described. The critical road to the dwelling We are able to further transform the PSFG to lessen the latency and hardware
complexity of PS-I. To get the suggested structure [5]. The critical path and throughput of PS-II overlap with individuals of PS-I. Similarly, PS-II can be simply extended to bigger values of to possess low register-complexity structures. Therefore, we are able to introduce a manuscript cut-set retiming to lessen the critical path further. It may be observed the cut-set retiming enables to do the part-addition
and bit-multiplication concurrently, The
RTL SCHEMATIC OF RB MODEL:
Simulation Form:
III. CONCLUSION
The suggested structures have different area-time-power trade-off behavior. Therefore, one inch the 3 suggested structures could be selected with respect to the dependence on the applying conditions. By appropriate projection of SFG of suggested formula and determining appropriate cut-sets for feed-forward cut-set retiming, three
novel high-throughput digit-serial RB
multipliers are derived to attain considerably less area-time-power complexities compared to existing ones. We've suggested a manuscript
recursive decomposition formula for RB multiplication to derive high-throughput
digit-serial multipliers. Furthermore, efficient
structures with low register-count happen to be derived for area-restricted implementation especially for implementation in FPGA platform where registers aren't abundant. The outcomes of synthesis reveal that suggested structures is capable of saving as high as 94% and 60%, correspondingly, of ADPP for FPGA and ASIC implementation, correspondingly, over the very best of the present designs.
REFERENCES
[1] L. Song, K. K. Parhi, I. Kuroda, and T.Nishitani, “Hardware/software codesign of finite field datapath for low-energy Reed-Solomn codecs,” IEEE Trans. Very Large Scale Integr. (VLSI) Syst., vol. 8, no. 2, pp.160–172, Apr. 2000.
[2] S. Gao and S. Vanstone, “On orders of
optimal normal basis generators,” Math.
Comput., vol. 64, no. 2, pp. 1227–1233, 1995.
[3] A. Reyhani-Masoleh and M. A. Hasan, “Low complexity word-level sequential normal
basis multipliers,” IEEE Trans. Comput., vol.
54, no. 2, pp. 98–C110, Feb. 2005.
[4] A. H. Namin, H. Wu, and M. Ahmadi, “An efficient finite field multiplier using redundant representation,” ACMTrans. Embedded Comput. Sys., vol. 11, no. 2, Jul. 2012, Art. 31.
[5] H.Wu, M. A. Hasan, I. F. Blake, and S. Gao, “Finite field multiplier using redundant
representation,” IEEE Trans. Comput., vol. 51,
