The reverse genetics applied to fish RNA viruses

R E V I E W

Open Access

The reverse genetics applied to fish RNA viruses

Stéphane Biacchesi

Abstract

Aquaculture has expanded rapidly to become a major economic and food-producing sector worldwide these last 30 years. In parallel, viral diseases have emerged and rapidly spread from farm to farm causing enormous economic losses. The most problematic viruses encountered in the field are mainly, but not exclusively, RNA viruses belonging to theNovirhabdovirus, Aquabirnavirus,AlphavirusandBetanodavirusgenera. The recent establishment of reverse genetics systems to recover infectious fish RNA viruses entirely from cDNA has made possible to genetically manipulate the viral genome. These systems have provided powerful tools to study all aspects of the virus biology and virus-host interactions but also gave the opportunity to use these viruses as live vaccines or as gene vectors. This review provides an overview on the recent breakthroughs achieved by using these reverse genetics systems in terms of viral protein function, virulence and host-specificity factor, vaccine development and vector design.

Table of contents 1. Introduction

2. Reverse genetics systems: description and technical tricks

2.1.Alphavirus

2.2.Aquabirnavirus

2.3.Betanodavirus

2.4.Novirhabdovirus

3. A wide panel of applications and breakthroughs

3.1. Analysis of viral proteins of unknown function 3.1.1. Novirhabdovirus NV protein

3.1.2. Betanodavirus B1 and B2 proteins 3.1.3. Aquabirnavirus VP5 protein 3.2. Virus vectors

3.2.1. Antigenic chimeric viruses: example of Novirhabdovirus glycoprotein gene exchange 3.2.2. Insertion of a foreign gene

3.3. Virulence and host specificity factors

4. Conclusion remarks

1. Introduction

Fish farmers are faced worldwide to viral infections which destroy each year a significant part of the produc-tion and thus induce important economic losses [1,2]. In addition to direct losses and delay in the aquaculture expansion, viral diseases also cause additional impacts including shortage of food and jobs as well as social and environmental costs. Major viral diseases are mainly due to two antigenetically distinctNovirhabdoviruses which can coexist in the same fish farms: the viral hemorrhagic septicemia virus (VHSV) and the infectious hematopoie-tic necrosis virus (IHNV). Other viruses have also a ser-ious impact in the field such as the infectser-ious pancreatic

necrosis virus (IPNV), an Aquabirnavirusinfecting for

instance salmonid and viruses belonging to the

Betano-davirus genus which cause serious diseases in several marine fish species. The genome of these viruses con-sists of either a negative-sense single-stranded RNA

molecule for the Novirhabdoviruses of about 11

kilo-bases (kb) [3,4], two segments of double-stranded RNA (A and B) of about 2.8 and 3.1 kilobase pairs (kbp) each for the Aquabirnavirus[5,6] or two positive-sense sin-gle-stranded RNA (RNA1 and RNA2) of about 1.4 and 3.1 kb each for the Betanodaviruses[7,8].

These viral diseases are the most frequent but due to the expansion of the salmonid aquaculture and the development of new fish species production, new dis-eases have emerged in the recent years [2]. One of the most striking examples is undoubtedly the emergence of Correspondence: [email protected]

Unité de Virologie et Immunologie Moléculaires, INRA, CRJ, 78352 Jouy-en-Josas, France

the sleeping disease in farmed rainbow trout ( Oncor-hynchus mykiss) and the pancreas disease in marine-reared Atlantic salmon (Salmo salar). These diseases are known since the 80s and have now spread in most of the European countries and in North America. For instance, the sleeping disease may affect 30 to 40% of the French fish farms. Viruses responsible for these dis-eases, the sleeping disease virus (SDV) and the salmon

pancreas disease virus (SPDV) belong to theAlphavirus

genus, with a genome which consists of a positive-sense single-stranded RNA molecule of about 12 kb [9,10].

Since many years, goals of different laboratories around the world have been mainly but not exclusively devoted to the development of new vaccine approaches based in part on live attenuated viruses to prevent viral diseases in aquaculture [11,12] and the determination of potential genetic factors that could explain the differ-ences of virulence existing between virus strains and their host range restriction. For that, a way allowing the manipulation of the viral genome is required. A major step in engineering a viral RNA genome is the ability to recover live virus from a DNA copy of the RNA gen-ome: this is called “reverse genetics”. First success in reverse genetics for a positive-stranded RNA virus, the

poliovirus (Picornaviridae family), was in 1981 [13].

Thirteen years later, a reverse genetics system was estab-lished for the recovery of a nonsegmented negative-stranded RNA virus, the rabies virus (RV) [14]. The abil-ity to manipulate a cDNA intermediate, exact copy of the viral RNA genome, opens the possibility of deleting genes for studying their function, introducing targeted mutations to determine potential genetic factors of viru-lence or inserting heterologous genes of interest and using these recombinant viruses as gene vectors.

Reverse genetics systems have been now established

for several fish RNA viruses such as the

Novirhabdo-virusesIHNV and VHSV [15-18], the Alphavirus SDV [19], the AquabirnavirusIPNV [20] and also for several

Betanodavirus species such as for the striped jack ner-vous necrosis virus (SJNNV) [21]. A large number of various recombinant viruses have been generated by dif-ferent groups. Some of them are currently being evalu-ated as live vaccines in field trials and some others are being used as gene vectors in fish. Some examples of such recombinant viruses will be described and the advances in terms of vaccine development, virulence and host-specificity factor mapping and vector design will be discussed.

2. Reverse genetics systems: description and technical tricks

2.1 Alphavirus

SalmonidAlphavirusesare recognized as serious

patho-gens of farmed Atlantic salmon and rainbow trout in

Europe [9]. Sleeping disease (SD) is an infectious disease of rainbow trout reared in fresh water while salmon pan-creas disease (SPD) has been recorded in farmed Atlantic salmon. The aetiological agents responsible for these dis-eases, namely SDV and SPDV, respectively, are closely related viruses that belong to theAlphavirusgenus of the

Togaviridaefamily [10,22]. Sindbis virus (SINV), one the most studied virus among theAlphavirusgenus, is trans-mitted by mosquitoes, and its alternate vertebrate host is usually a bird or a mammal. Like all Alphaviruses, SDV and SPDV virions are spherical (70 nm in diameter), with a lipid envelop containing heterodimeric glycoprotein spikes composed of two virus glycoproteins (E1 and E2). Some alphaviruses may contain a third envelop protein (E3). The envelope is tightly organized around an icosahe-dral nucleocapsid which contains the genomic RNA. The viral genome consists of a positive-sense single-stranded RNA molecule of about 12 kb in length, which is capped at the 5’-terminus and polyadenylated at the 3’-terminus, and contains two open reading frames (ORF). The 5’ two-thirds of the genome encode four non-structural proteins (nsP1 to nsP4) that are translated directly from the geno-mic RNA as a polyprotein precursor, which undergoes subsequent proteolytic cleavage. The four non-structural proteins are involved in genome replication and the synth-esis of a subgenomic RNA from the negative-strand copy of the genome that corresponds to the 3’third of the viral genome and encodes the second ORF. This second ORF is translated as a polyprotein, which is processed to produce the viral structural proteins: the capsid, the glycoproteins E3, E2, E1 and the 6K protein. In contrast to the other Alphaviruses, an arthropod-independent transmission has been demonstrated for salmonid Alphaviruses by cohabi-tation experiments [9].

sequence at the 5’-end of the cDNA copy of SDV full-length genome [19]. Indeed, a precise 5’-end of SDV RNA genome appears to be crucial to initiate an infectious cycle. This cDNA construct was then cloned under the control of a T7 RNA polymerase (T7RNAP) promoter (Figure 1) and recombinant SDV was recovered upon transfection of this cDNA plasmid into fish cells (bluegill fry BF-2 cells) previously infected by a recombinant vacci-nia virus (vTF7-3; [26]) expressing the T7RNAP. Because

of the temperature requirement of each virus (37°C and 10°C for vTF7-3 and SDV, respectively), cells were first incubated at least 7 h at 37°C to allow their infection by the vTF7-3 and the expression of enough functional T7RNAP before being shifted at 10°C following the proto-col previously described for fish rhabdovirus minigenome rescue ([27] and section 2.4). This system was further sim-plified by the exchange of the T7RNAP promoter by that of the CMV avoiding the restrictive use of the vTF7-3

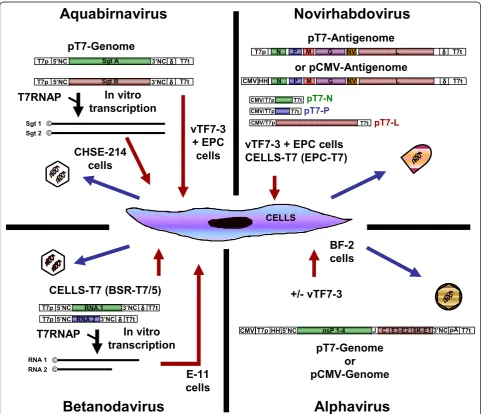

T7p δδδδ T7t

pT7-Antigenome

T7t T7t

T7t

pT7-N

pT7-P

pT7-L

vTF7-3 + EPC cells

CELLS-T7 (EPC-T7)

Novirhabdovirus

+/- vTF7-3

Alphavirus

Betanodavirus

Aquabirnavirus

vTF7-3

+ EPC

cells

CELLS

T7p δδδδ T7t

pT7-Genome

T7pHH5’NC nsP 1-4 J C E3-E2 6K-E13’NCpAT7t CMV

pT7-Genome

or

pCMV-Genome

T7p δδδδ T7t

RNA 1 RNA 2 T7p

T7p

δδδδT7t T7t

δδδδ

CELLS-T7 (BSR-T7/5)

T7RNAP

In vitro

transcription

RNA 1 RNA 2

T7RNAP

In vitro

transcription

Sgt 1 Sgt 2

Sgt A

Sgt B 5’NC

5’NC 3’NC

3’NC

5’NC

5’NC 3’NC

3’NC

T7t

δδδδ

or pCMV-Antigenome

N P M G NV L

HH CMV

T7p CMV/

T7p CMV/

T7p CMV/

© ©

© ©

CHSE-214

cells

BF-2

cells

E-11

cells

[19]. A similar cDNA construct was recently used with success for the expression of a salmon alphavirus subtype 3 replicon in fish cells [28].

2.2 Aquabirnavirus

Infectious pancreatic necrosis (IPN) is a serious disease of salmonid and a number of other fish species that can lead to high mortality (70%) in first feeding fry and fin-gerlings of most salmonids. Furthermore, the aetiologi-cal agent responsible for the disease (IPNV) can be vertically transmitted via the egg and broodstock carrier fish facilitating its rapid spread to new geographic area and its expansion to other farmed fish species [29]. IPNV is the type species of theAquabirnavirusgenus of theBirnaviridae family. Infectious bursal disease virus

(IBDV), another member ofBirnaviridaefamily that has

been studied in the greatest detail is the causative agent of highly immunosuppressive disease in young chickens

and belongs to another genus, Avibirnavirus[5]. IPNV

is a non-enveloped icosahedral capsid virus (60 nm in diameter) that contains two segments (A and B) of dou-ble-stranded RNA [30]. Segment A (about 3.1 kbp) con-tains two ORF. ORF2 encodes a 106-kDa precursor protein, which is autoproteolytically cleaved by the viral encoded protease (VP4 or NS for non structural) to gen-erate the viral capsid proteins VP2 and VP3. Segment A also encodes an additional non structural protein VP5 from the small ORF1, which precedes and partly over-laps the large ORF2. Segment B (about 2.8 kbp) encodes a 94-kDa protein, called VP1, which is the viral asso-ciated RNA-dependant RNA polymerase (RdRp).

The first description of segmented double-stranded RNA virus recovery entirely from cDNA was given by Mundt and Vakharia for IBDV [31]. Few years later, Yao and Vakharia used a similar approach to recover IPNV and thus reporting the first reverse genetics sys-tem for a RNA virus infecting an aquatic species [20]. In both cases, synthetic positive-sense RNA transcripts of segments A and B were transcribed in vitro from linearized full-length cDNA plasmids with the T7RNAP in the presence of a synthetic cap analogue and used to transfect permissive cells (chinook salmon CHSE-214 cells) (Figure 1). IPNV recovery was also achieved upon transfection of vTF7-3-infected fish

cells (fathead minnow EPC (epithelioma papulosum

cyprinid) cells) with segment A and B cDNA copies (Biacchesi S., unpublished data). Segments A and B were cloned under the control of a T7RNAP promoter and upstream the antigenomic sequence of a self-cleav-ing ribozyme derived from the hepatitis delta virus (δ) allowing the expression by the T7RNAP of RNA mole-cules displaying a precise 3’-end without any additional nucleotide [32].

2.3 Betanodavirus

Viral nervous necrosis (VNN) and viral encephalopathy and retinopathy (VER) have emerged as major con-straints on culture of larval and juvenile and sometimes older marine fish worldwide leading to behavioural abnormalities and high mortalities [2,7]. The aetiological agents responsible for these diseases are small

icosahe-dral viruses belonging to the Betanodavirus genus,

within the Nodaviridae family. Betanodavirusgenus is

further divided in four species based on similarities in the variable region of the RNA2 and designated as Barfin flounder nervous necrosis virus (BFNNV), Red-spotted grouper nervous necrosis virus (RGNNV), Striped jack nervous necrosis virus (SJNNV, the type

species of the Betanodavirus genus) and Tiger puffer

nervous necrosis virus (TPNNV) [8]. Black Beetle virus (BBV) and Flock House virus (FHV), the most studied

viruses among the Nodaviridae family, infects insects

and belongs to the second genus,Alphanodavirus. Fish

nodaviruses are icosahedral, non-enveloped viruses with a commonly reported diameter of about 25 nm. The virus contains two single-stranded positive-sense RNA molecules, namely RNA1 (3.1 kb) and RNA2 (1.4 kb). Both RNA molecules are capped at their 5’-ends and lack poly(A) tails at their 3’-ends. The larger genomic segment, RNA1, encodes the RdRp (or protein A) and the smaller genomic segment, RNA2, encodes the coat protein. In addition, subgenomic RNA3, which is synthesized from RNA1 during RNA replication and not packaged into virions, encodes the two non-structural proteins B1 and B2.

were inoculated on permissive fish cells at the optimal temperature for the viral replication [35,36]. Reverse genetics systems are now available for several betanoda-virus species [21,35-37].

2.4 Novirhabdovirus

IHNV and VHSV are causative agents of acute systemic diseases leading to high mortality, mainly, but not exclu-sively, in young cultured and wild salmonid fish all over the world and are listed as notifiable by the World Organisation for Animal Health (OIE) [2,38]. IHNV and VHSV are both enveloped bullet-shaped viruses (about 180 nm long and 70 nm in diameter) with a genome consisting of a non-segmented negative-sense single-stranded RNA molecule of about 11 kb [3,4]. These

viruses belong to the Rhabdoviridaefamily within the

Mononegavirales order. The most extensively studied mammalian rhabdoviruses are the rabies virus (RV) that belongs to theLyssavirusgenus and the vesicular stoma-titis virus (VSV) that belongs to theVesiculovirusgenus. Similar to the mammalian rhabdoviruses, the IHNV and VHSV genomic RNA which encodes five structural pro-teins, is tightly encapsidated with a nucleoprotein (N), a polymerase-associated phosphoprotein (P) and the large RdRp (L) to form the helical ribonucleoprotein complex (RNP). The two other structural proteins are the matrix protein (M), which interacts with the RNP and the viral envelope and is involved in the budding step, and the unique viral surface glycoprotein (G) which is implicated in the entry step. In contrast to other rhabdoviruses, IHNV and VHSV genomes encode a small non struc-tural NV (Non Virion) protein. Due to the presence of the NV gene, localized between the G and L genes, IHNV and VHSV are separated from the other rhabdo-viruses and belong to theNovirhabdovirusgenus [4].

The recovery of rhabdoviruses from cDNA presents a unique challenge because neither their genomic RNA nor their antigenomic complements serve as mRNA, and thus cannot be used directly to recover infectious viruses. In other words, the RNA of negative-stranded viruses (NSV) are not infectious upon transfection into a permissive cell line in contrast to those of positive-stranded viruses. The minimal infectious unit of NSV is the RNP complex which is able to drive both the sequential transcription of each viral gene and the repli-cation of the full-length RNA genome. Based on this observation, the feasibility of producing infectious NSV

entirely from cDNA was demonstrated by Conzelmann’s

group for RV, 15 years ago [14]. The goal of this system is to reconstruct into permissive cells a functional RNP complex. In that goal, cells are co-transfected with expression plasmids encoding N, P and L proteins together with a plasmid encoding the full-length viral antigenome, all under the control of the T7RNAP,

which is provided to the cells by an infection with a recombinant vaccinia virus (vTF7-3; [26]) (Figure 1). In the co-transfected cells, the antigenome RNA is encapsi-dated by the N protein to form a suitable template for the RdRp (L and P) to drive the replication and the synthesis of genomic RNP. Once genomic RNP are available, an infectious cycle can be initiated with the expression of all viral proteins followed by the produc-tion of new infectious virions. Two tricks have contribu-ted to the success of this system. The first one was the expression of an antigenome instead of a genome to prevent any hybridization with the mRNA expressed from the helper plasmids (N, P and L), which could pre-vent the initial encapsidation of the genome into a func-tional RNP complex and/or induce the host innate response mediated by the type I interferon. The second trick was the use of a self-cleaving ribozyme δsequence

fused to 3’-end of the antigenome cDNA allowing the

expression of an antigenome RNA molecule having a precise 3’-end without any additional nucleotides, which were found deleterious for the rescue.

This system was then adapted to numerous viruses

belonging to the Mononegavirales order [39] and was

IHNV and VHSV using the cellular RNA polymerase II [15,16]. In this latter system, the cDNA encoding the IHNV N, P and L proteins and the viral antigenome were cloned under the control of a CMV promoter instead of that for the T7RNAP. In addition, a

hammer-head ribozyme was fused to the 5’-end of the

antige-nome cDNA allowing the expression by the RNA polymerase II of an antigenome RNA molecule display-ing a precise 5’-end.

3. A wide panel of applications and breakthroughs Reverse genetics makes it possible to manipulate viral RNA genomes through its cDNA copy and thus to eval-uate genomic changes, such as gene deletion, heterolo-gous gene exchange or addition and nucleotide substitution, on the biology and the pathogenesis of these recombinant viruses. All these reverse genetics-based studies over the last twelve years have provided new insights on fish RNA viruses that are presented above.

3.1 Analysis of viral proteins of unknown function 3.1.1 Novirhabdovirus NV protein

The ability to generate recombinant viruses by reverse genetics allows the opportunity to examine the role of the non-structural proteins in virus biology and patho-genic mechanisms. For instance, the NV proteins (111 to 122 amino acids), expressed by IHNV and VHSV in infected cells [46], were shown dispensable but necessary for an efficient virus replication in cell culture [15,17,18] and essential for virus pathogenicity in rainbow trout [47,48] and yellow perch (Perca flavescens) [15]. Indeed,

both rVHSV-ΔNV and rIHNV-ΔNV, in which the entire

gene was deleted, were highly reduced compared to their wild-type parents with regard to the efficiency of multi-cycle replication in cell culture, with up to 10 000-fold

reduction. Moreover, rIHNV-ΔNV induced no mortality

when administrated to rainbow trout by bath immersion and as low as 25% of cumulative mortality when intraper-itonealy injected compared to the wild-type rIHNV which induced roughly 100% of cumulative mortality by both routes. Trans-complementation experiments using fish cells constitutively expressing NV protein clearly demonstrated that the lack of NV expression by itself

was responsible for rIHNV-ΔNV phenotype, rather than

a role of structural“spacer”for the NV gene in the IHNV genome [48]. The observation that the replacement of the NV gene by a reporter gene such as the chloramphe-nicol acetyltransferase (CAT) had no positive effect on

rIHNV-ΔNV phenotype reinforced the above conclusion.

Moreover, although the IHNV and VHSV NV proteins exhibit a low percentage of homology (31%) and no obvious conserved domains, both NV proteins shared a similar function since a recombinant IHNV virus,

rIHNV-NVVHSV, in which the IHNV NV ORF was replaced by that of VHSV, was shown to replicate effi-ciently in fish cell and to induce similar cumulative per-centage of mortality in vivo in trout compared to the wild-type IHNV [48]. Thus, altogether these results demonstrate the essential role of the NV protein of cold-water Novirhabdoviruses. In contrast to these findings, Leong’s group, using a reverse genetics system estab-lished on the SHRV, a warm-water fish Novirhabdovirus, have observed no apparent role of the NV protein in replication in vitro as well as in fish pathogenesis [42,45]. This difference in NV requirement observed between IHNV and VHSV versus SHRV might be linked to the cold-temperature adaptation of IHNV and VHSV since no NV gene is found in warm-temperature rhaddoviruses such as the spring viremia of carp virus (SVCV, a fish vesiculovirus) and mammalian rhabdoviruses. But, it should be noted that the pathogenicity of the

SHRV-ΔNV was assayed on zebrafish and by intraperitoneal

injection which do not reflect the SHRV natural host (snakehead fish) and its presumed route of infection (waterborne). The intriguing result was that the elimina-tion of the NV ORF by deleelimina-tion or interrupelimina-tion with a premature stop codon had no effect on SHRV phenotype, whereas the deletion of the NV ORF together with the upstream gene stop/gene start signal has a deleterious effect. The authors speculate that the NV gene might have a spacing function regulating the SHRV genome transcription excluding any biological role of the NV pro-tein which differs from the observations on both IHNV and VHSV viruses. It is well known that RNA viruses sustain mutations at a frequency of approximately of 10-4 mutations per nucleotide copied, which is almost equiva-lent to one mutation per rhabdovirus genome copy, and thus exist as quasispecies [49]. This provides the capacity for the rapid outgrowth of variants that acquired a selec-tive advantage. It can reasonably be assumed that an ORF without any critical function for the virus replica-tion would accumulate several mutareplica-tions leading to its rapid loss. Therefore, the fact that the NV ORF is still conserved in the SHRV genome and more generally in theNovirhabdovirusgenus indicates that the NV protein by itself has a function. It could be of interest to replace the VHSV and IHNV NV gene by that of SHRV (24% and 20% of homology, respectively) to evaluate the potential of complementation of this NV protein on both virus phenotypes, and thus evaluate whether these three NV proteins that share less than 30% of homology have a common function.

3.1.2 Betanodavirus B1 and B2 proteins

RNA3 encodes two small non-structural proteins, B1 and B2 (for review [50]). B2 protein is required for sup-pression of RNA silencing in infected insects, an adap-tive antiviral response that controls viral infection in plants and animals. Efficient replication of FHV RNA and formation of progeny virus particles are critically dependent on the expression of B2 protein in vitro and in vivo [51-53]. The function of alphanodavirus B1 pro-tein, which represents the C-terminus of RdRp propro-tein,

is currently unknown. Concerning the Betanodavirus

genus, all viruses studied to date express a small RNA3 (about 0.4 kb) during their replication in infected cells and fish [54-56]. The RNA3 encodes a highly-conserved B2 protein among the betanodaviruses that consists of only 75 amino acids compared to their alphanodavirus counterparts which are 90 to 137 amino acids in size. Moreover, betanodavirus B2 protein does not possess any characteristic sequence motifs and domains in com-mon with their alphanodavirus counterparts. Nonethe-less, the B2 protein of betanodaviruses displays cellular RNA interference (RNAi) antagonist activity. For exam-ple, SJNNV B2 suppresses RNA silencing in a plant model [57], and greasy grouper nervous necrosis virus (GGNNV) B2 is important for the intracellular accumu-lation of viral RNA1 in a variety of cell types as shown

with a RNA1-ΔB2 replicon vector, presumably due to

its ability to block RNAi in animal cells [35]. Fenner and colleagues were unable to recover an infectious

GGNNV-ΔB2 virus mutant using their reverse genetics

system [35]. Indeed, although virus replication could be detected by indirect immunofluorescence assay after five consecutive passages on permissive cells, the genome analysis of these recovered viruses demonstrated that all of them had a C-to-T reversion at the B2 start codon restoring its expression. These results underline that betanodavirus B2 protein has an essential function at least during the virus replication. Additional data showed that GGNNV B2 binds long double-stranded RNA (dsRNA) preventing their recognition by the siRNA machinery and thus blocking the subsequent production of virus-derived small interfering RNA [58,59]. In contrast, B2 protein is unable to antagonize the dsRNA-mediated interferon response, as monitored

by the Mx gene induction which is proportional to

RNA1 accumulation in fish cells. Thus it seems that for betanodaviruses, which cause high mortalities in larval and juvenile marine fish, the most important host response at these fish developmental stages is RNA silencing [60]. To further complicate the understanding of B2 involvement in betanodavirus replication, recent studies indicate that B2 may play a dual role during the viral infection by first modulating the host siRNA response and then inducing mitochondria-mediated

necrotic cell death [61]. The existence of a B1 ORF encoded by the betanodavirus subgenomic RNA3 is con-troversial. Although several groups reported that the B1 ORF may be absent in RNA3 [56,57], Chen and collea-gues recently detected the early expression of B1 protein in RGNNV-infected fish cells using a B1 polyclonal anti-body and showed that B1 may have an antagonist effect on B2 function by enhancing host cell viability [62]. Recovery of a recombinant virus in which the B1 ORF

will be ablated (RGNNV-ΔB1) and observation of an

enhancement of cell death in RGNNV-ΔB1-infected

cells could give an additional argument to this new B1 function.

3.1.3 Aquabirnavirus VP5 protein

The reverse genetics has also been used to investigate the potential role of VP5 on IPNV replication and viru-lence. Indeed, studies on recombinant IBDV lacking expression of VP5 showed that VP5 was nonessential for productive virus replication in cell culture, but played a key role in pathogenicity of IBDV [63]. Several recombinant IPNV, encoding for different size variants

of VP5 or ablated for VP5 expression (IPNV-ΔVP5),

were then successfully recovered. These virus mutants demonstrated that VP5 protein is not required for effi-cient virus growth in vitro, as previously observed for IBDV, but also in vivo in Atlantic salmon fry and

post-smolt which differs from IBDV [64,65]. IPNV-ΔVP5

mutant was able to cause IPN disease in challenged Atlantic salmon post-smolts, leading to final cumulative mortality of 86% compared to 81% recorded with the wild-type virus [64]. Moreover, VP5 does not seem to be involved in the establishment of a carrier state since

surviving salmon fry infected by IPNV-ΔVP5 were all

VP5 in the blockage of the interferon signalling does not appear to be crucial since IPNV-ΔVP5 was as virulent as its wild-type parent [64].

3.2 Virus vectors

With efficient reverse genetics systems available for several major fish pathogens, the degree of flexibility of the genome of these viruses to genetic engineering and their ability to express foreign genes of interest were verified by several groups. For this purpose, negative-stranded viruses (NSV), such as rhabdoviruses, appear to be good candidates as vectors for transient gene expression compared to positive-stranded viruses (PSV) for many reasons (for review on mammalian virus-derived vectors [24,40,41]). Indeed, NSV genomes pre-sent a modular organization with individual cistrons defined by conserved gene start and gene end signals recognized by the viral RdRp and leading to the tran-scription of separate mRNA. In contrast, PSV genomes are expressed from unique polycistron mRNA which are translated into polyprotein precursors that follow a sub-sequent maturation by cellular or viral proteases. More-over, the helical structure of the RNP complex of NSV brings two additional interesting features. First, due to the helical structure of the RNP, there is no defined size limit for the genomes in contrast to viruses with icosa-hedral capsids such as aquabirnaviruses, fish alpha-viruses and betanodaalpha-viruses, in which the genome size is constrained. Nevertheless, although no size limit for NSV genome has been clearly defined, this rise of the genome size is always correlated with an increasing attenuation of the NSV vector. Second, the tight encap-sidation of the NSV genome in the RNP reduces the chance of recombination as observed at high frequency with PSV, and prevents access of reverse transcriptases to the RNA avoiding any risk of cellular transformation. Finally, due to a decreasing gradient of gene expression

along the NSV genome from the 3’-end to the 5’-end

(i.e. the expression of the first gene is the most abun-dant and the last gene the least); the level of expression of the gene of interest can be modulated by moving its position in the gene order. Thus, NSV modular organi-zation can be readily manipulated for the insertion and stable maintenance of nonessential sequences such as foreign genes. In both cases, the host restriction has to be considered for a wider use of the NSV and PSV vec-tors to other fish species.

3.2.1 Antigenic chimeric viruses: example of Novirhabdovirus glycoprotein gene exchange

An attractive method to express foreign antigens by a recombinant virus is to replace its major protective sur-face antigen with that of another virus of interest. Such constructs have been generated by exchanging the

unique surface glycoprotein of different distantly-related and antigenically-distinct fish rhabdoviruses [45,69]. The IHNV genome was engineered such that the IHNV G gene was replaced by those of VHSV (another fish

and VHSV cannot grow at a temperature above 20°C, whereas SVCV, SHRV and VSV replicate well up to 28°C, 30°C and 37°C, respectively. However, SHRV-Gihnv only gives limited replication at 30°C pointing out the confor-mational instability of the IHNV glycoprotein at this temperature [45]. Moreover, Gsvcv and IHNV-Gvsv do not replicate at temperatures higher than 20°C, demonstrating that the G is not the only protein involved in the temperature growth restriction and that probably the polymerase complex requires an optimal temperature for its efficient activity [69,70].

3.2.2 Insertion of a foreign gene

As explained above (see section 3.2), the strategy used to insert an additional ORF in RNA viruses depends on the genome organization. Concerning NSV, such as rhabdoviruses, the sequential transcription is initiated by the RdRp upstream of each ORF by the recognition of a gene start signal and ended at a gene end signal that serve as transcription stop and polyadenylation signals (for review on mammalian NSV [40,41]). A functional cassette expressing a foreign gene has to be engineered as a cDNA including the desired ORF flanked by the viral gene start and gene end signals. These signals can be added artificially or recovered from an existing gene by exchanging the viral ORF by that of the gene of interest or by engineering a fusion protein. In the case of an artificial cassette, the cDNA is then inserted into a non-coding intergenic region found between each viral gene. Due to the gradient of expression in NSV genome, the insertion site into the viral gene order will influence the level of expression of the foreign gene as well as the level of attenuation of the virus vector. Indeed, the insertion of a foreign sequence decreases the expression of the following genes and has more or less effect on the replication of the recombinant virus.

Both strategies were tested for IHNV and VHSV [15-17,47,72]. First, the IHNV NV ORF was replaced by different reporter genes as CAT, the green fluorescent

protein (GFP), the Renillaluciferase (LUC), the VHSV

G and different other virus-antigen encoding genes ([18,47,73,74], Harmache A. and Brémont M., unpub-lished data). Although these viruses were highly attenu-ated by the deletion of the NV gene (see section 3.1), they were all able to efficiently express detectable amount of the foreign protein in cell culture. In vivo, these viruses were non-pathogenic in rainbow trout and too much attenuated to be used as vaccine vectors (see below) [47,48,74]. Second, artificial cassettes of expres-sion were then constructed for both IHNV and VHSV [15-17,47,72]. IHNV and VHSV share similar consensus sequences for the gene end and gene start signals except for the hairpin loop structure shown to be part of the end of the IHNV gene start signal: (UCURUC

(U)7RCCGUG(N)4CACR versus UCUAUC(U)7RCCGUG, respectively). These signals were successfully used to express a large panel of reporter genes: LUC, GFP and red fluorescent proteins such as Cherry and Tomato [15-17,47] and viral antigens from ISAV, IPNV and SDV ([72], Harmache A. and Brémont M., unpublished data). All these recombinant viruses were readily recovered at high titer demonstrating that the insertion of an addi-tional gene in the intergenic region between P-M genes (IHNV), M-G genes (IHNV and VHSV) and N-P genes (VHSV) have a limited effect on the efficacy of replication at least in cell culture. Moreover, recombinant IHNV viruses with insertion between M-G genes were shown fully pathogenic in rainbow trout by bath immersion inducing final cumulative mortalities similar to that induced by IHNV [47]. As compared to other RNA viruses, foreign sequence introduced into IHNV and VHSV genomes were surprisingly stable after multiple passages in cell culture (up to 20 passages) and in rain-bow trout (Biacchesi S. and Brémont M., unpublished data). For a mammalian rhabdovirus (RV), it was shown that the expression of a reporter gene that does not affect the virus replication was stable over 25 passages in cell culture [75].

These recombinant viruses, expressing a foreign gene, were used for several applications that led to amazing observations. The most interesting example was achieved with a recombinant IHNV expressing the LUC gene and a non-invasive bioluminescence imaging device [47]. Indeed, this technology provided evidence that the fins were the portal entry of IHNV into the rainbow trout. The authors also showed that a

non-pathogenic IHNV-ΔNV, in which the NV gene was

replaced by the LUC gene, had a limited replication exclusively in the fins and could persist in fins up to 3 weeks postinfection without any further propagation into the infected fish. These observations explained

why IHNV-ΔNV could not be detected by RT-PCR in

internal organs and in part the absence of

induced-antibody expression [48,74]. Although IHNV-Δ

NV-immunized fish were fully protected against a subse-quent challenge with a highly-pathogenic IHNV strain at 30 days post-immunization [48], mortalities could be recorded for challenge performed at a later period post-immunization (Harmache A. and Brémont M., unpublished data). Altogether, the results suggest that the early protection was the consequence of an inter-ference phenomenon in the fins between the IHNV-ΔNV and the wild-type virus.

superinfection exclusion between these two Novirhabdo-viruses. These results suggest that fish living in endemic region for IHNV and VHSV are likely to be coinfected by both viruses, as previously observed during experi-mental coinfection [76]. As mentioned above (in section 3.2.1), IHNV has an extreme flexibility to accommodate heterologous structural proteins, such as foreign glyco-proteins. So, it could be assumed that during coinfection such events occur and lead to chimeric and/or pseudo-typed viruses with unique phenotype in fish. In contrast, it is less probable that recombination occurs between both viruses since IHNV and VHSV display a high genetic divergence (57% of position identity between both genomes) and recombination is extremely rare in NSV [77,78].

Finally, Harmache et al. investigated the potential of IHNV as vaccine vehicle against other fish viral diseases ([72] and Harmache A. and Brémont M., unpublished data). They reported the production of recombinant IHNV based vaccine vectors that carry three expression cassettes of foreign antigens derived from four of the most devastating fish viral pathogens: VHSV G glyco-protein, IPNV VP2, SDV C-E3-E2 and infectious salmon anaemia virus (ISAV) hemagglutinin-esterase glycopro-tein and fusion proglycopro-tein. They found that the three for-eign antigens were efficiently and stably expressed by the recombinant IHNV vector although its genome was increased in size more than 50% compared to the wild-type genome (about 5.5 kb of foreign sequences). Because of this important increase of the genome size together with the effect on the expression of the down-stream viral genes, these IHNV vectors were unsurpris-ingly highly attenuated in trout leading to only 10% of cumulative mortality. Nevertheless, surviving trout were protected against subsequent challenges with not only the pathogenic IHNV but also with the targeted viruses. Thus, genome size increase has an effective attenuation effect which can be assumed relatively stable due to the low rate of recombination observed in NSV genomes [77,78]. However, it cannot be totally excluded that the foreign gene sequences by themselves or their products are somewhat responsible for the observed attenuation.

The use of fish PSV as gene vector has been less explored compared to fish NSV. Indeed, the flexibility of the PSV genomes for genetic engineering and their abil-ity to stably express foreign genes of interest are impaired for several reasons. PSV genomes are expressed as polyprotein precursors that require a sub-sequent maturation by cellular or viral proteases. More-over, because of packaging constraints (icosahedral capsids), large inserts (> 2 kb) are not stable upon pas-saging and rapidly removed by recombination which is observed at high frequency with PSV (for review on mammalian alphavirus [24]). Therefore, a foreign gene

has to be engineered as a cDNA including the desired ORF flanked by a protease cleavage site and inserted in the genome in frame with the viral ORF without ablat-ing a potential overlappablat-ing ORF. The gene or the anti-gen of interest can also be expressed as a fusion protein. These kinds of genome manipulation are generally lethal for the vector and thus various insertion sites have to be tested in the goal to generate an infectious virus. Con-cerning the alphaviruses, the identification of the subge-nomic RNA promoter element allowed the construction of viral genomes with additional subgenomic RNA pro-moters leading to the synthesis of additional subgenomic mRNA. This strategy was applied to SDV by Moriette and colleagues [19]. The SDV replication was not drasti-cally impaired when an extra gene (GFP or LUC) was present in the viral genome. The second subgenomic mRNA was inserted either upstream or downstream to the structural protein genes and up to three additional subgenomic mRNAs were tested. These data demon-strated that SDV is able to encapsidate a genome that could be more than 20% longer than that of the wild-type virus. However, expression of GFP was highly unstable and no longer detected after one additional passage of the recombinant virus in cell culture. How-ever, the long-term success of developing mammalian alphavirus as vaccine vector should not be underesti-mated. Further development should be necessary to increase the stability of the foreign gene such as expres-sion of the foreign protein as a cleavable component of the viral structural polyprotein or insertion of the for-eign protein in a viral nonstructural protein as described for SINV [79,80]. No example of betanodavirus and aquabirnavirus used as gene vector are available in the literature underlying the difficulty to generate gene vec-torswith PSV.

3.3 Virulence and host specificity factors

strains have Pro217 and Ala221 and variants having Thr221 are almost avirulent, irrespective of the amino acid in position 217. In parallel, these observations allowed better understanding of the molecular basis of the cell culture attenuation by detecting the Thr221 substitution in VP2 after 10 passages of a virulent strain in a certain fish cell line. This virus became highly atte-nuated and induced only 15% of cumulative mortality in Atlantic salmon fry, compared to 68% mortality recorded with its virulent parent strain. The recent pub-lication of the crystal structure of IPNV virion demon-strated that these two amino acid residues at position 217 and 221 are localized in the most peripheral loop at the top of the VP2 spike [30]. Since these two residues are exposed and do not participate in VP2 folding and interactions between subunits, their major role in IPNV strain virulence suggest that they may be involved in attachment to the target cell.

Similar approaches were undertaken to study betano-davirus host specificity and temperature restriction. Although a high overall percentage of homology is found between the four types of betanodavirus isolates, some isolates have marked host specificity. For example, SJNNV causes disease only in the striped jack ( Pseudo-caranx dentex), whereas members of RGNNV type, such as sevenband grouper nervous necrosis virus (SGNNV), has a broad host range and causes diseases for a variety of warm-water fish species, particularly for sevenband

grouper (Epinephelus septemfasciatus). Recombinant

reassortant and chimeric viruses were generated by using reverse genetics systems established for SJNNV, RGNNV and SGNNV [37,84]. The authors of these two reports showed that the variable region of the RNA2, which encodes the C-terminal region of the coat pro-tein, controls host specificity in betanodaviruses. Indeed, RNA2 chimeric viruses from SJNNV and RGNNV demonstrated that SJNNV mutants containing the vari-able region of RGNNV RNA2 infected sevenband grouper larvae as efficiently as RGNNV, while RGNNV mutants containing the variable region of SJNNV RNA2 infected striped jack larvae similarly to SJNNV. Since the C-terminal of the coat protein was shown by elec-tron cryomicroscopy to form the surface-protruding domain of virus-like particles [85], its major role in betanodavirus host specificity suggests that this region may be involved in attachment to the target cell. These two reverse genetics systems were further used to inves-tigate the temperature restriction observed between SJNNV and RGNNV [86]. Whereas the optimal tem-perature for the growth of SJNNV is 20-25°C, that of RGNNV is 25-30°C. Thus, a set of recombinant reassor-tant and chimeric viruses from SJNNV and RGNNV were recovered and their optimal temperature for repli-cation in cell culture was determined. Although both

RNA1 and RNA2 seem to control this temperature sen-sitivity as shown by reassortant viruses, chimeric viruses indicate that the RGNNV RNA1 region, encoding amino acid residues 1 to 445 of the RdRp was impli-cated in this restriction. Interestingly, this region encodes a mitochondrial-targeting signal and is located outside of the catalytic domain of the RdRp.

For alphaviruses, incidental mutations introduced dur-ing the RT-PCR steps needed to construct infectious cDNA for SDV have also contributed to identify poten-tial attenuating position in their genomes. Concerning SDV, several nucleotide substitutions have been mapped in the structural and non-structural genes of the infec-tious cDNA compared to the published sequence (see details in [19,25]). Although the recombinant SDV (rSDV) was fully efficient for replication in cell culture reaching a final titer of 3 × 108

a large number of amino acid changes, roughly 60 and 20 in the non-structural genes of SDV14 and SDV10 compared to the counterpart region in rSDV [25].

Concerning IHNV, the introduction of four incidental mutations during the construction of the full-length cDNA construct was enough to highly attenuate the recovered virus. This recombinant IHNV, containing 2 amino acid substitutions in the N, one in the P and one in the M, induced less than 10% of cumulative mortality in trout by bath immersion and was found to be a strong inducer of IHNV-specific antibodies [70,71]. Surprisingly, when two additional mutations, previously described in the G of a neutralization-escape IHNV mutant (RB1 strain) as highly attenuating (amino acids 78 and 218) [87], were introduced in this virus, virus-induced mortality was not decreased [71]. This observation together with the fact that a recombinant IHNV containing G78 and G218 as unique mutations was only slightly attenuated suggest that the RB1 strain, for which the G was the only gene fully sequenced, have other changes in its genome [71]. No example of putative virulence factor screening by reverse genetics has been reported for Novirhabdoviruses in the literature yet. However, recombinant IHNV viruses containing the G and/or NV genes from North American U or M IHNV strains have been constructed and tested for host-specific virulence in both rainbow trout and

sock-eye salmon (Oncorhynchus nerka) (Kurath G., Harmache

A., and Brémont M., unpublished data). The U and M IHNV strains differ in host specific virulence: U strain is virulent in sockeye salmon but not rainbow trout, and the M strain is virulent in rainbow trout but not sockeye sal-mon. These studies revealed that the G and NV genes do not contain the determinants of host-specific virulence for these IHNV strains, suggesting that the molecular mechanism(s) of host-specificity in this case must be dif-ferent from the viral coat protein host cell attachment mechanism described for IPNV and betanodaviruses. Finally, in recent decades, several VHSV and IHNV strains have been isolated and fully sequenced. For instance, sev-eral VHSV strains have been isolated from sevsev-eral marine fish species (for review see [38]). The interesting observa-tion was that VHSV isolates originating from marine fish show low pathogenicity to rainbow trout and Atlantic sal-mon, although some of these isolates are pathogenic for turbot (Scophthalmus maximus). Several nearly complete genome sequences from marine and freshwater isolates displaying variable level of virulence in rainbow trout are now available in GenBank. From the analysis of these sequences, several groups have already pinpointed putative amino acid residues that could be involved in VHSV strain virulence [88,89]. Interestingly, these authors point out that as few as 4 to 10 amino acid changes were identically substituted between the marine and freshwater strains suggesting that only a limited number of amino acid

residues might be involved in the level of virulence between isolates. Using the newly described reverse genet-ics system based on the hypervirulent freshwater VHSV 23-75 strain [17], these amino acid residues could be easily tested in the goal to determine their biological relevance in VHSV virulence.

4. Conclusion remarks

Since the description of the first reverse genetics system for a fish RNA virus in 1998 [20], several other systems have been established for the major fish RNA virus pathogens. These technologies have largely contributed to a better understanding of the biology of these viruses in term of virulence and host specificity factors as well as virus-host interactions and virus entry in the host. They also allowed the genomic manipulation of these viruses and thus the generation of gene-deletion mutants, attenuated virus vaccines and gene vectors, such as multivalent live attenuated vaccines and tracer viruses expressing reporter genes. Live attenuated virus vaccines would be the optimal fish vaccines in term of cost, protective efficacy and ease of administration (bath immersion instead of injection for traditional vaccines). But, additional works have to be undertaken to remove any existing residual virulence and insure their stability avoiding any reversion to a wild-type phenotype in the goal to address the safety concerns of the consumers and to the environment (for review on development of safer live attenuated virus vaccines see [90]). Regulatory constraints are the main obstacle for this kind of vac-cines especially in view of aquaculture practices where cultured fish live in ponds or nets with no physical bar-riers to wild stocks. Indeed, even if non-pathogenic for the targeted animal, the live virus vaccine has to be safe to all other species in the aquatic environment. One alternative would be the use of these live virus vaccines in a confined environment during the immunization protocol and then assure the absence of any persistent virus infection before housing the immunized fish in an open aquatic environment. Furthermore, reverse genet-ics systemscould be used to generate single-replication cycle virus-based vaccine vectors such as alphavirus replicons. Although this kind of vaccine was found safe and protective in mammals after injection, the immuno-genicity in fish of such vaccines should be demonstrated when administrated by bath immersion. The next sev-eral years will clearly be very exciting time in fish RNA virus research since advances in virus genome manipula-tion, fish genome sequencing and fish immune system characterization have greatly increased these last years.

Acknowledgements

International (Boxmeer, the Netherlands). The fish facility staff (INRA) is gratefully acknowledged for the fish experiments. The author thanks all the members of the Fish Molecular Virology group (INRA) who contributed to this work and more especially Michel Brémont, Monique LeBerre, Annie Lamoureux, Emilie Mérour, and Julie Bernard. The author thanks Michel Brémont and Emilie Mérour for critically reading the manuscript.

Competing interests

The author declares that he has no competing interests.

Received: 23 August 2010 Accepted: 18 November 2010 Published: 24 January 2011

References

1. Ariel E, Olesen NJ:Finfish in aqualculture and their diseases - A retrospective view on the European Community.Bull Eur Ass Fish Pathol

2002,22(2):72-84.

2. Walker PJ, Winton JR:Emerging viral diseases of fish and shrimp.Vet Res

2010,41(6):51.

3. Hoffmann B, Beer M, Schutze H, Mettenleiter TC:Fish rhabdoviruses: molecular epidemiology and evolution.Curr Top Microbiol Immunol2005,

292:81-117.

4. Tordo N, Benmansour A, Calisher C, Dietzgen RG, Fang R-X, Jackson AO, Kurath G, Nadin-Davis S, Tesh RB, Walker PJ:Rhabdovidae.InVirus Taxonomy VIII.Edited by: Fauquet CM, Mayo MA, Maniloff J, Desselberger U, Ball LA. London: Elsevier Academic Press; 2005:623-644.

5. Delmas B, Kibenge FSB, Leong JA, Mundt E, Vakharia VN, Wu JL:Birnaviridae.

InVirus taxonomy VIII.Edited by: Fauquet CM, Mayo MA, Maniloff J, Desselberger U, Ball LA. London: Elsevier Academic Press; 2005:561-569. 6. Rodriguez Saint-Jean S, Borrego JJ, Perez-Prieto SI:Infectious pancreatic

necrosis virus: biology, pathogenesis, and diagnostic methods.Adv Virus Res2003,62:113-165.

7. Munday BL, Kwang J, Moody N:Betanodavirus infections of teleost fish: a review.J Fish Dis2002,25:127-142.

8. Schneemann A, Ball LA, Delsert C, Johnson JE, Nishizawa T:Nodaviridae.In

Virus taxonomy VIII.Edited by: Fauquet CM, Mayo MA, Maniloff J, Desselberger U, Ball LA. London: Elsevier Academic Press; 2005:865-872. 9. McLoughlin MF, Graham DA:Alphavirus infections in salmonids–a review.

J Fish Dis2007,30(9):511-531.

10. Weaver SC, Frey TK, Huang HV, Kinney RM, Rice CM, Roehrig JT, Shope RE, Strauss EG:Togaviridae.InVirus taxonomy VIII.Edited by: Fauquet CM, Mayo MA, Maniloff J, Desselberger U, Ball LA. London: Elsevier Academic Press; 2005:999-1008.

11. Biering E, Villoing S, Sommerset I, Christie KE:Update on viral vaccines for fish.Dev Biol (Basel)2005,121:97-113.

12. Sommerset I, Krossoy B, Biering E, Frost P:Vaccines for fish in aquaculture.

Expert Rev Vaccines2005,4(1):89-101.

13. Racaniello VR, Baltimore D:Cloned poliovirus complementary DNA is infectious in mammalian cells.Science1981,214(4523):916-919. 14. Schnell MJ, Mebatsion T, Conzelmann KK:Infectious rabies viruses from

cloned cDNA.EMBO J1994,13(18):4195-4203.

15. Ammayappan A, Kurath G, Thompson TM, Vakharia VN:A reverse genetics system for the Great Lakes strain of viral hemorrhagic septicemia virus: the NV gene is required for pathogenicity.Mar Biotechnol (NY)2010, Epub ahead of print.

16. Ammayappan A, Lapatra SE, Vakharia VN:A vaccinia-virus-free reverse genetics system for infectious hematopoietic necrosis virus.J Virol Methods2010,167(2):132-139.

17. Biacchesi S, Lamoureux A, Merour E, Bernard J, Brémont M:Limited interference at the early stage of infection between two recombinant novirhabdoviruses: viral hemorrhagic septicemia virus and infectious hematopoietic necrosis virus.J Virol2010,84(19):10038-10050. 18. Biacchesi S, Thoulouze MI, Bearzotti M, Yu YX, Brémont M:Recovery of NV

knockout infectious hematopoietic necrosis virus expressing foreign genes.J Virol2000,74(23):11247-11253.

19. Moriette C, Leberre M, Lamoureux A, Lai TL, Brémont M:Recovery of a recombinant salmonid alphavirus fully attenuated and protective for rainbow trout.J Virol2006,80(8):4088-4098.

20. Yao K, Vakharia VN:Generation of infectious pancreatic necrosis virus from cloned cDNA.J Virol1998,72(11):8913-8920.

21. Iwamoto T, Mise K, Mori K, Arimoto M, Nakai T, Okuno T:Establishment of an infectious RNA transcription system for Striped jack nervous necrosis virus, the type species of the betanodaviruses.J Gen Virol2001,82(Pt 11):2653-2662.

22. Weston J, Villoing S, Bremont M, Castric J, Pfeffer M, Jewhurst V, McLoughlin M, Rodseth O, Christie KE, Koumans J,et al:Comparison of two aquatic alphaviruses, salmon pancreas disease virus and sleeping disease virus, by using genome sequence analysis, monoclonal reactivity, and cross-infection.J Virol2002,76(12):6155-6163. 23. Rice CM, Levis R, Strauss JH, Huang HV:Production of infectious RNA

transcripts from Sindbis virus cDNA clones: mapping of lethal mutations, rescue of a temperature-sensitive marker, and in vitro mutagenesis to generate defined mutants.J Virol1987,61(12):3809-3819.

24. Frolov I, Hoffman TA, Pragai BM, Dryga SA, Huang HV, Schlesinger S, Rice CM:Alphavirus-based expression vectors: strategies and applications.Proc Natl Acad Sci USA1996,93(21):11371-11377. 25. Moriette C:Le virus de la maladie du sommeil des salmonidés: mise au

point d’un ADNc infectieux et obtention d’anticorps monoclonaux.

Orsay: Paris XI Orsay; 2005.

26. Fuerst TR, Niles EG, Studier FW, Moss B:Eukaryotic transient-expression system based on recombinant vaccinia virus that synthesizes bacteriophage T7 RNA polymerase.Proc Natl Acad Sci USA1986,

83(21):8122-8126.

27. Biacchesi S, Yu YX, Bearzotti M, Tafalla C, Fernandez-Alonso M, Brémont M:

Rescue of synthetic salmonid rhabdovirus minigenomes.J Gen Virol2000,

81(Pt 8):1941-1945.

28. Karlsen M, Villoing S, Rimstad E, Nylund A:Characterization of untranslated regions of the salmonid alphavirus 3 (SAV3) genome and construction of a SAV3 based replicon.Virol J2009,6:173.

29. Roberts RJ, Pearson MD:Infectious pancreatic necrosis in Atlantic salmon, Salmo salar L.J Fish Dis2005,28(7):383-390.

30. Coulibaly F, Chevalier C, Delmas B, Rey FA:Crystal structure of an Aquabirnavirus particle: insights into antigenic diversity and virulence determinism.J Virol2010,84(4):1792-1799.

31. Mundt E, Vakharia VN:Synthetic transcripts of double-stranded Birnavirus genome are infectious.Proc Natl Acad Sci USA1996,93(20):11131-11136. 32. Perrotta AT, Been MD:A pseudoknot-like structure required for efficient

self-cleavage of hepatitis delta virus RNA.Nature1991,

350(6317):434-436.

33. Dasmahapatra B, Dasgupta R, Saunders K, Selling B, Gallagher T, Kaesberg P:

Infectious RNA derived by transcription from cloned cDNA copies of the genomic RNA of an insect virus.Proc Natl Acad Sci USA1986,83(1):63-66. 34. Buchholz UJ, Finke S, Conzelmann KK:Generation of bovine respiratory

syncytial virus (BRSV) from cDNA: BRSV NS2 is not essential for virus replication in tissue culture, and the human RSV leader region acts as a functional BRSV genome promoter.J Virol1999,73(1):251-259. 35. Fenner BJ, Thiagarajan R, Chua HK, Kwang J:Betanodavirus B2 is an RNA

interference antagonist that facilitates intracellular viral RNA accumulation.J Virol2006,80(1):85-94.

36. Takizawa N, Adachi K, Kobayashi N:Establishment of reverse genetics system of betanodavirus for the efficient recovery of infectious particles.

J Virol Methods2008,151(2):271-276.

37. Iwamoto T, Okinaka Y, Mise K, Mori K, Arimoto M, Okuno T, Nakai T:

Identification of host-specificity determinants in betanodaviruses by using reassortants between striped jack nervous necrosis virus and sevenband grouper nervous necrosis virus.J Virol2004,78(3):1256-1262. 38. Skall HF, Olesen NJ, Mellergaard S:Viral haemorrhagic septicaemia virus in

marine fish and its implications for fish farming–a review.J Fish Dis2005,

28(9):509-529.

39. Conzelmann KK:Reverse genetics of mononegavirales.Curr Top Microbiol Immunol2004,283:1-41.

40. Bukreyev A, Skiadopoulos MH, Murphy BR, Collins PL:Nonsegmented negative-strand viruses as vaccine vectors.J Virol2006,

80(21):10293-10306.

41. Finke S, Conzelmann KK:Recombinant rhabdoviruses: vectors for vaccine development and gene therapy.Curr Top Microbiol Immunol2005,

292:165-200.

43. Brémont M:Reverse genetics on fish rhabdoviruses: tools to study the pathogenesis of fish rhabdoviruses.Curr Top Microbiol Immunol2005,

292:119-141.

44. Garcin D, Pelet T, Calain P, Roux L, Curran J, Kolakofsky D:A highly recombinogenic system for the recovery of infectious Sendai paramyxovirus from cDNA: generation of a novel copy-back nondefective interfering virus.EMBO J1995,14(24):6087-6094. 45. Alonso M, Kim CH, Johnson MC, Pressley M, Leong JA:The NV gene of

snakehead rhabdovirus (SHRV) is not required for pathogenesis, and a heterologous glycoprotein can be incorporated into the SHRV envelope.

J Virol2004,78(11):5875-5882.

46. Schutze H, Enzmann PJ, Mundt E, Mettenleiter TC:Identification of the non-virion (NV) protein of fish rhabdoviruses viral haemorrhagic septicaemia virus and infectious haematopoietic necrosis virus.J Gen Virol1996,77(Pt 6):1259-1263.

47. Harmache A, LeBerre M, Droineau S, Giovannini M, Brémont M:

Bioluminescence imaging of live infected salmonids reveals that the fin bases are the major portal of entry for Novirhabdovirus.J Virol2006,

80(7):3655-3659.

48. Thoulouze MI, Bouguyon E, Carpentier C, Brémont M:Essential role of the NV protein of Novirhabdovirus for pathogenicity in rainbow trout.J Virol

2004,78(8):4098-4107.

49. Lauring AS, Andino R:Quasispecies theory and the behavior of RNA viruses.PLoS Pathog2010,6(7):e1001005.

50. Venter PA, Schneemann A:Recent insights into the biology and biomedical applications of Flock House virus.Cell Mol Life Sci2008,65(17):2675-2687. 51. Galiana-Arnoux D, Dostert C, Schneemann A, Hoffmann JA, Imler JL:

Essential function in vivo for Dicer-2 in host defense against RNA viruses in drosophila.Nat Immunol2006,7(6):590-597.

52. Li H, Li WX, Ding SW:Induction and suppression of RNA silencing by an animal virus.Science2002,296(5571):1319-1321.

53. Wang XH, Aliyari R, Li WX, Li HW, Kim K, Carthew R, Atkinson P, Ding SW:

RNA interference directs innate immunity against viruses in adult Drosophila.Science2006,312(5772):452-454.

54. Delsert C, Morin N, Comps M:Fish nodavirus lytic cycle and semipermissive expression in mammalian and fish cell cultures.J Virol

1997,71(7):5673-5677.

55. Nagai T, Nishizawa T:Sequence of the non-structural protein gene encoded by RNA1 of striped jack nervous necrosis virus.J Gen Virol1999,

80(Pt 11):3019-3022.

56. Sommerset I, Nerland AH:Complete sequence of RNA1 and subgenomic RNA3 of Atlantic halibut nodavirus (AHNV).Dis Aquat Organ2004, 58(2-3):117-125.

57. Iwamoto T, Mise K, Takeda A, Okinaka Y, Mori K, Arimoto M, Okuno T, Nakai T:Characterization of Striped jack nervous necrosis virus subgenomic RNA3 and biological activities of its encoded protein B2.

J Gen Virol2005,86(Pt 10):2807-2816.

58. Fenner BJ, Goh W, Kwang J:Sequestration and protection of double-stranded RNA by the betanodavirus b2 protein.J Virol2006,

80(14):6822-6833.

59. Fenner BJ, Goh W, Kwang J:Dissection of double-stranded RNA binding protein B2 from betanodavirus.J Virol2007,81(11):5449-5459. 60. Lu MW, Chao YM, Guo TC, Santi N, Evensen O, Kasani SK, Hong JR, Wu JL:

The interferon response is involved in nervous necrosis virus acute and persistent infection in zebrafish infection model.Mol Immunol2008,

45(4):1146-1152.

61. Su YC, Wu JL, Hong JR:Betanodavirus non-structural protein B2: A novel necrotic death factor that induces mitochondria-mediated cell death in fish cells.Virology2009,385(1):143-154.

62. Chen LJ, Su YC, Hong JR:Betanodavirus non-structural protein B1: A novel anti-necrotic death factor that modulates cell death in early replication cycle in fish cells.Virology2009,385(2):444-454.

63. Mundt E, Kollner B, Kretzschmar D:VP5 of infectious bursal disease virus is not essential for viral replication in cell culture.J Virol1997,

71(7):5647-5651.

64. Santi N, Song H, Vakharia VN, Evensen O:Infectious pancreatic necrosis virus VP5 is dispensable for virulence and persistence.J Virol2005,

79(14):9206-9216.

65. Weber S, Fichtner D, Mettenleiter TC, Mundt E:Expression of VP5 of infectious pancreatic necrosis virus strain VR299 is initiated at the second in-frame start codon.J Gen Virol2001,82(Pt 4):805-812.

66. Hong JR, Gong HY, Wu JL:IPNV VP5, a novel anti-apoptosis gene of the Bcl-2 family, regulates Mcl-1 and viral protein expression.Virology2002,

295(2):217-229.

67. Santi N, Sandtro A, Sindre H, Song H, Hong JR, Thu B, Wu JL, Vakharia VN, Evensen O:Infectious pancreatic necrosis virus induces apoptosis in vitro and in vivo independent of VP5 expression.Virology2005,342(1):13-25. 68. Skjesol A, Aamo T, Hegseth MN, Robertsen B, Jorgensen JB:The interplay between infectious pancreatic necrosis virus (IPNV) and the IFN system: IFN signaling is inhibited by IPNV infection.Virus Res2009,143(1):53-60. 69. Biacchesi S, Bearzotti M, Bouguyon E, Brémont M:Heterologous exchanges

of the glycoprotein and the matrix protein in a Novirhabdovirus.J Virol

2002,76(6):2881-2889.

70. Biacchesi S:Recovery of recombinant piscine rhabdovirus by reverse genetics.Orsay: Paris XI Orsay; 2002.

71. Romero A, Figueras A, Tafalla C, Thoulouze MI, Brémont M, Novoa B:

Histological, serological and virulence studies on rainbow trout experimentally infected with recombinant infectious hematopoietic necrosis viruses.Dis Aquat Organ2005,68(1):17-28.

72. Harmache A, LeBerre M, Lamoureux A, Brémont M:Recombinant IHNV expressing three foreign expression units an an efficient bath immersion vaccine in salmonids.XIII International conference on negative strand viruses

Salamanca, Spain; 2006.

73. Boudinot P, Bernard D, Boubekeur S, Thoulouze MI, Brémont M, Benmansour A:The glycoprotein of a fish rhabdovirus profiles the virus-specific T-cell repertoire in rainbow trout.J Gen Virol2004,85(Pt 10):3099-3108.

74. Romero A, Figueras A, Thoulouze MI, Brémont M, Novoa B:Recombinant infectious hematopoietic necrosis viruses induce protection for rainbow trout Oncorhynchus mykiss.Dis Aquat Organ2008,80(2):123-135. 75. Mebatsion T, Schnell MJ, Cox JH, Finke S, Conzelmann KK:Highly stable

expression of a foreign gene from rabies virus vectors.Proc Natl Acad Sci USA1996,93(14):7310-7314.

76. Brudeseth BE, Castric J, Evensen O:Studies on pathogenesis following single and double infection with viral hemorrhagic septicemia virus and infectious hematopoietic necrosis virus in rainbow trout (Oncorhynchus mykiss).Vet Pathol2002,39(2):180-189.

77. Chare ER, Gould EA, Holmes EC:Phylogenetic analysis reveals a low rate of homologous recombination in negative-sense RNA viruses.J Gen Virol

2003,84(Pt 10):2691-2703.

78. Spann KM, Collins PL, Teng MN:Genetic recombination during coinfection of two mutants of human respiratory syncytial virus.J Virol

2003,77(20):11201-11211.

79. Atasheva S, Gorchakov R, English R, Frolov I, Frolova E:Development of Sindbis viruses encoding nsP2/GFP chimeric proteins and their application for studying nsP2 functioning.J Virol2007,81(10):5046-5057. 80. Thomas JM, Klimstra WB, Ryman KD, Heidner HW:Sindbis virus vectors

designed to express a foreign protein as a cleavable component of the viral structural polyprotein.J Virol2003,77(10):5598-5606.

81. Santi N, Vakharia VN, Evensen O:Identification of putative motifs involved in the virulence of infectious pancreatic necrosis virus.Virology2004,

322(1):31-40.

82. Shivappa RB, Song H, Yao K, Aas-Eng A, Evensen O, Vakharia VN:Molecular characterization of Sp serotype strains of infectious pancreatic necrosis virus exhibiting differences in virulence.Dis Aquat Organ2004, 61(1-2):23-32.

83. Song H, Santi N, Evensen O, Vakharia VN:Molecular determinants of infectious pancreatic necrosis virus virulence and cell culture adaptation.

J Virol2005,79(16):10289-10299.

84. Ito Y, Okinaka Y, Mori K, Sugaya T, Nishioka T, Oka M, Nakai T:Variable region of betanodavirus RNA2 is sufficient to determine host specificity.

Dis Aquat Organ2008,79(3):199-205.

85. Tang L, Lin CS, Krishna NK, Yeager M, Schneemann A, Johnson JE:Virus-like particles of a fish nodavirus display a capsid subunit domain

organization different from that of insect nodaviruses.J Virol2002,

76(12):6370-6375.

86. Hata N, Okinaka Y, Iwamoto T, Kawato Y, Mori K, Nakai T:Identification of RNA regions that determine temperature sensitivities in

betanodaviruses.Arch Virol2010,155(10):1597-1606.

88. Betts AM, Stone DM:Nucleotide sequence analysis of the entire coding regions of virulent and avirulent strains of viral haemorrhagic septicaemia virus.Virus Genes2000,20(3):259-262.

89. Campbell S, Collet B, Einer-Jensen K, Secombes CJ, Snow M:Identifying potential virulence determinants in viral haemorrhagic septicaemia virus (VHSV) for rainbow trout.Dis Aquat Organ2009,86(3):205-212.

90. Lauring AS, Jones JO, Andino R:Rationalizing the development of live attenuated virus vaccines.Nat Biotechnol2010,28(6):573-579. doi:10.1186/1297-9716-42-12

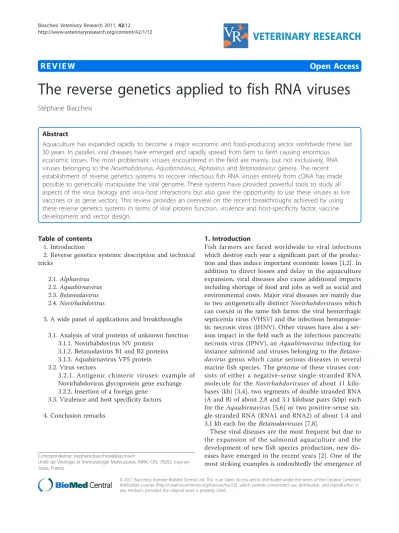

Cite this article as:Biacchesi:The reverse genetics applied to fish RNA viruses.Veterinary Research201142:12.

Submit your next manuscript to BioMed Central and take full advantage of:

• Convenient online submission

• Thorough peer review

• No space constraints or color figure charges

• Immediate publication on acceptance

• Inclusion in PubMed, CAS, Scopus and Google Scholar

• Research which is freely available for redistribution
