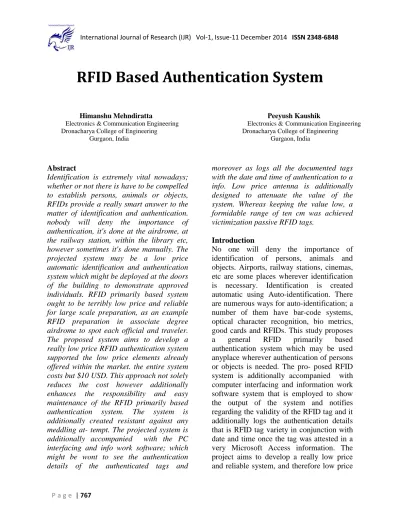

RFID Based Authentication System
Himanshu Mehndiratta Peeyush Kaushik
Electronics & Communication Engineering Electronics & Communication Engineering Dronacharya College of Engineering Dronacharya College of Engineering
Gurgaon, India Gurgaon, India
Abstract
Identification is extremely vital nowadays; whether or not there is have to be compelled to establish persons, animals or objects, RFIDs provide a really smart answer to the matter of identification and authentication. nobody will deny the importance of authentication, it's done at the airdrome, at the railway station, within the library etc, however sometimes it's done manually. The projected system may be a low price automatic identification and authentication system which might be deployed at the doors of the building to demonstrate approved individuals. RFID primarily based system ought to be terribly low price and reliable for large scale preparation, as an example RFID preparation in associate degree airdrome to spot each official and traveler. The proposed system aims to develop a really low price RFID authentication system supported the low price elements already offered within the market. the entire system costs but $10 USD. This approach not solely reduces the cost however additionally enhances the responsibility and easy maintenance of the RFID primarily based authentication system. The system is additionally created resistant against any meddling at- tempt. The projected system is additionally accompanied with the PC interfacing and info work software; which might be wont to see the authentication details of the authenticated tags and
moreover as logs all the documented tags with the date and time of authentication to a info. Low price antenna is additionally designed to attenuate the value of the system. Whereas keeping the value low, a formidable range of ten cm was achieved victimization passive RFID tags.
Introduction
No one will deny the importance of identification of persons, animals and objects. Airports, railway stations, cinemas, etc are some places wherever identification is necessary. Identification is created automatic using Auto-identification. There are numerous ways for auto-identification; a number of them have bar-code systems, optical character recognition, bio metrics, good cards and RFIDs. This study proposes
a general RFID primarily based
elements were used. Low cost RFID module was used that prices solely $5 USD. RFID module not solely reduces price as compared to the design of RFID module victimization separate elements, but it also will increase the dependability of the system. style of the low price antenna for the projected system is additionally a part of the study. For antenna style, construct of magnetic coupling is used; this °ow within the antenna coil induces a magnetic held within the vary of communication. In each RFID system, there are 2 main components; the RFID reader and the RFID tag. The tag is to blame for sending and modulating (usually either AM, FM or some variant of the two) the first signal from the reader in a very approach in which the information is recoverable. The reader's job is to receive and interpret this information. Our RFID system could be a passive sort, which suggests that the tag itself doesn't have its own power supply. as a result of this, the reader has to perform a second operate, that is to send a carrier signal with enough power to power up the tag. The obvious benefit of a system like this is often that as long because the reader has the facility, tag in shut proximity can respond. In trendy RFID devices the tag is just a little integrated circuit with its information encoded thereon in how and an easy LC antenna to receive and conduct the data. computer interfacing and information work software system was designed to indicate the authentication information and additionally logs it to the information. The main objectives of this study are:
1. to pick the suitable elements as well as RFID reader Module, Micro-controller , RFID tag
such that the price ought to be as low as doable whereas producing a extremely reliable system.
2. style of the low price antenna to for the RFID reader that meets the specifications to
observe the RFID tag at the specified distance.
3 Interface RFID Module and Micro-controller with each other.
4 software system for interface
communication with micro- controller wont to capture the authentication information to be displayed and logged to the information. 5 The system ought to be proof against change of state, in case of change of state the system stops recognizing the RFID tags. The paper is organized as: Section one provides the introduction to the projected approach, Section two presents connected work, Section three presents the look of the projected system, Section four provides the small print of the experiment and shows the results and Section V concludes the paper and give directions for the longer term work.
Design of planned System
As explicit before, the 2 main tasks of our
reader circuit, besides the computer
interfacing and information work, is to create an over sized amplitude carrier signal which can power up the RFID tags gift in proximity of the reader and to receive and interpret the modulated response. We have selected applicable RFID module and micro-controller for accomplishing this task. The planned approach has the subsequent style objectives:
1 Low value antenna style.
2 Low value style of the RFID reader. 3 Interfacing the RFID reader with computer.
4 style of the information work and output show software.
Block diagram of the proposed system
Low value Antenna style
An important hardware part of the planned system is the antenna coil style. The antenna had to be designed to maximize the elicited voltage across coil terminals. For effective radiation of RF signal, the linear dimensions of the antenna ought to be such as the wavelength of the in operation frequency. So, a tiny low dipole loop antenna coil, reverberate at the specified frequency (i.e.,
125 kHz) was used. multilayer coils
square measure a lot of efficient to provide giant inductance coils in an exceedingly restricted area. Therefore, a typical RFID antenna coil in sq. form was fashioned in an exceedingly multi turn structure.
Design of RFID Reader
Design of the RFID reader is that the central a part of this study. Reliability and low value were the most objectives within the design of the RFID reader, so, that it is deployed on large scale. Low value RFID module that prices solely $5 was used rather than creating the RFID module from discrete elements. The RFID module not solely enhances the dependableness however conjointly reduces the price of the planned system. Atmel AT89252 was used as process unit, because it's low value and low power micro-controller. It costs only $1.
RFID Module
The module employed in our project could be a low price Chinese equivalent of ATMEL U2270B. The module was used be- cause the fabrication of the module with separate components isn't solely pricey however it's additionally not reliable. As compared to ATMEL U2270B having most vary of 5cm, we've achieved ten cm vary
victimization the Chinese equivalent
module, with identical configuration. It has the subsequent features:
1 Antenna driving with carrier frequency of a hundred twenty five KHz- 150 KHz, 2 AM reception of antenna signal iatrogenic by the transponder,
3 appropriate for Manchester and Bi-phase Modulation,
4 Power offer from automobile battery or from 5V regulated supply. The module consists of 2 IC's i.e., Philips 74HC393D which could be a twin 4-bit binary ripple counter and Philips HEF4069 that contains six hex Inverters. T °ip-°op divides the signaling frequency by an element of two, 74HC393D; a ripple counter containing T-°ip °ops is employed to decrease the frequency from eight megahertz to a hundred twenty five kilohertz. It uses envelope sight on employing a diode detector to detect incoming signal.
Processing Unit
For process, Atmel AT89S52 micro-controller was used. It is a low-power, superior CMOS 8-bit micro-controller with 8K bytes of in-system programmable Flash memory. The process unit is to blame for 1 Decipherment the Manchester encoded knowledge.
2 Extracting the information.
5 Disabling the reader just in case of change of state try. Operation of process unit. When the micro-controller is powered up it sends a high signal to the buzzer and the red LED showing presence of offer voltage. In order to come up with a one hundred twenty five kilohertz carrier signal through the antenna coil, the CFE pin of RFID module ought to be high. At boot up the micro-controller sends a high signal unendingly on the pin three.6. The tags have a forty eight bit range that is exclusive. The tag is initiated by the transmitted signal through mutual induction.
The same antenna receives the information of the tag. At this time the micro-controller sends a coffee CFE signal and therefore the antenna no a lot of transmits and receives the information through CYOUT. The CFE is unbroken low throughout knowledge transmission because with [*fr1] duplex communication system, enough energy should be keep by the tag once the RFID reader's activating field is supercharged up to allow it to transmit its information once the activating field is turned o®. This is done to form the receiver less complicated because it prevents it from picking the weak signal from the tag within the presence of strong activating field. The tag knowledge is
dropped at micro-controller through
CYOUT. the information from the tag is in following type.
101010100101101010101010101010101001 10010101010
101100101011001011001011010100101101 0101010101010
As we all know that the information is within the kind of Manchester code (as shown in Figure 5), one is painted by a transition from low to high whereas zero is painted by a transition from high to low. Hence, every bit is painted by 2 bits in Manchester code and therefore the decoded response has half the information measure
compared thereto of the transmitted signal and is merely forty eight bits long.
Conclusion and Future Work
The system may be improved by increasing the effective range of scanner during which the tag may be read. additional improvement may be done by employing a technique during which the tag encrypts its ID so sends to the reader, which will eliminate the capturing of the tag IDs and thence biological research the tags.
References
[1] S. I. Ahamed, F. Rahman, and E.
Hoque, \ERAP: ECC based RFID
International Workshop on Future
Trends of Distributed Computing
Systems, pp. 219-225, 2008.
[2] T. Cao and P. Shen, \ Cryptanalysis
of two RFID authentication
protocols," International Journal of
Network Security, vol. 9, no. 1, pp. 95-100, 2009.
[3] C. L. Chen, Y. L. Lai, C. C. Chen, Y.
Y. Deng, and Y. C. Hwang, \RFID
ownership transfer authorization
systems conforming epcglobal
class-1 generation-2 standards,"
International Journal of Network
Security, vol. 13, no. 1, pp. 41-48, 2011.
[4] B. Chowdhury and M. U.
Chowdhury, \RFID- based real-time
smart waste management
system,"Telecommunication
Networks and Applications
Conference, pp. 175-180,
Australasian, Dec. 2-5, 2007
[5] G. H. P. Florentino, C. A. P. de
Araujo, H. U. Bezerra, H. B. de A. Junior, M. A. Xavier, V. S. V.de Souza, R. A. de M. Valentim, A. H. F. Morais, A. M. G. Guerreiro, and G. B. Brandao, \Hospital automation system RFID-based: Technology embed- ded in smart devices (cards,
tags and bracelets)," 30th Annual
International IEEE EMBS
Conference, pp. 1455-1458, pp. 20-25, Aug. 2008.
[6] http://ijns.femto.com.tw/contents/ijns
