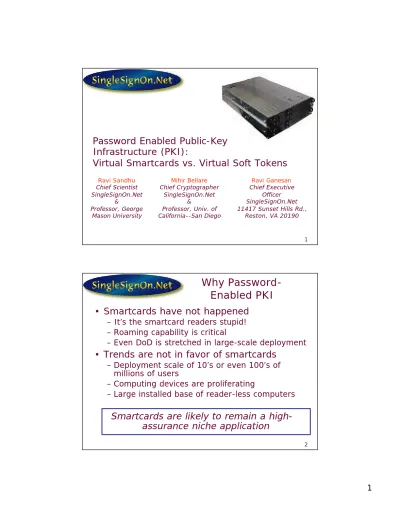

Why Password- Enabled PKI

1 Ravi Sandhu Chief Scientist SingleSignOn.Net & Professor, George Mason University Mihir Bellare Chief Cryptographer SingleSignOn.Net & Professor, Univ. of California--San Diego Ravi Ganesan Chief Executive Officer SingleSignOn.Net 11417 Sunset Hills Rd., Reston, VA 20190

Password Enabled Public-Key Infrastructure (PKI):

Virtual Smartcards vs. Virtual Soft Tokens

Why

Password-Enabled PKI

• Smartcards have not happened

– It’s the smartcard readers stupid! – Roaming capability is critical

– Even DoD is stretched in large-scale deployment

• Trends are not in favor of smartcards

– Deployment scale of 10’s or even 100’s of millions of users

– Computing devices are proliferating

– Large installed base of reader-less computers Smartcards are likely to remain a

3

Solve PKI Gap and Silo

Problem

Weak Password Systems

Strong PKI Systems

PKI Hardened Passwords PKI with Password Convenience Result

• Phased migration path • No “quantum jump” • PKI integral, not silo’d

Password Usability PKI Capability

No change for users No change for issuer Eliminate weaknesses

A Common

Misperception

• Fact: Password based systems are often

vulnerable to attacks

• Myth: Passwords are inherently insecure.

• Fact: It is completely possible to design a sufficiently secure password system.

Designing sufficiently secure password-based systems is non-trivial but it is possible.

5

Another Common

Misperception

• Fact: Users hate current password

systems that require

– too many passwords and – force too many changes

• Myth: Users inherently hate passwords.

• Fact: It is completely possible to design a user friendly password system with PKI-enabled Single Sign On.

Designing user-friendly and sufficiently secure password-enabled PKI systems is non-trivial but

it is possible.

Password Vulnerabilities and Counter-Measures

• Bad password selection – enforce complexity rules • On-line guessing attack

– throttling mechanism

• Off-line guessing (dictionary attacks)

– don’t reveal required information (we know how to design such protocols) • Undetected theft and sharing

– online intrusion detection to discover

– deter sharing, e.g., sharing reveals sensitive user information • Use of same password at strong and weak servers

– user awareness and education • Password reuse

– don’t force unnecessary password changes • Server spoofing

– use secure protocols to prove knowledge of password w/o sending it – limit password exposure to trusted servers

• Server compromise

7

Password Benefits

• Instant roaming capability • Proven user acceptance

– 100’s of millions of passwords usages per day in cyberspace • Cheap • Self-maintained – Password resets – Password change

Traditional Public-Key

Infrastructure (PKI)

• How to distribute public-keys

– Digital Certificates

– Certificate Revocation Lists

• How to distribute private-keys (long-term)

– Smartcards

• The private key never leaves the smartcard • Often called a hard token

• How to distribute private-keys (short-term)

– Password protected on the hard disk

• Not very mobile

– Password protected on a floppy disk

9

“Modern” Public-Key

Infrastructure (PKI)

• How to distribute public-keys

– Digital Certificates

– Certificate Revocation Lists

– On-line servers for certificate validation

• How to distribute private-keys (long-term)

– Smartcards

• The private key never leaves the smartcard • Often called a hard token

• How to distribute private-keys (short-term)

– Password protected on the hard disk

• Not very mobile

– Password protected on a floppy disk

• Often called a soft token

– On-line servers for password-enabled mobility

Approaches

How to marry PKI and Passwords?

• Approach 1: Virtual Soft Token

Use password to encrypt private key and store it on remote server(s).

Need password to RETREIVE private key.

• Approach 2: Virtual Smartcard

The password is part of the composite private key.

11

Trivial Insecure

Virtual Soft Token

• Private key encrypted with user’s

password is stored on an on-line server

E_pwd(private-key)

• Anyone is allowed to retrieve the encrypted private key

• Only the user can decrypt it using the password

• Unacceptable risk due to dictionary attack

Cryptographic Camouflage, Hoover and Kausik

• E

_pwd

(private-key)

• Dictionary attack

– Knowledge of public key allows attacker to obtain known plaintext – So prohibit knowledge of public key

13

EKE Roaming, Bellovin-Merritt et al

• Store E

_pwd

(private-key) on server

• Transmit E

_K

(E

_pwd

(private-key))

where K is a strong symmetric key

• K is established using

password-based authenticated key exchange

protocol (such as EKE or SPEKE)

– Immune to off-line dictionary attack

Hardened Password Roaming, Kaliski-Ford • User’s “hardened password” is retrieved

at any computer from two on-line servers

– Compromise of both servers is required to compromise “hardened password”

– Successful retrieval of “hardened password” requires knowledge of user’s password

• User’s private key is retrieved by means of “hardened password”

• Once retrieved the user’s private key can be freely used on this computer

15 Step 5

: Ask for Credentials

Long term private key is locked with ‘hardened password’ H. Need duplicate credentials server

for redundancy. Credential Servers 1 & 2

Step 6

: Check if Cert

is revoked

OCSP server to check for revocation Revocation Servers 1 & 2

Step 7

: Return Cert and

H(D

)

Step 8: UseHto decrypt private key D

Step 2: Client Computer starts process

Client Computer

Security server with partial knowledge of ‘H’ (H1). Need duplicate server

for redundancy. Security Servers 1 & 2 Step 3

: Get

H1

Security server with remaining knowledge of ‘H’ (H2). Need duplicate server

for redundancy. Security Servers 3 & 4

Step 4

: Get

H2

Step 9: Finally get around to logon or sign operation! Alice knows Password,Pa

Step 1

: Alice sends P_a

Approaches

How to marry PKI and Passwords?

• Approach 1: Virtual Soft Token

Use password to encrypt private key and store it on remote server(s).

Need password to RETREIVE private key.

• Approach 2: Virtual Smartcard

The password is part of the composite private key.

17

Trivial Insecure

Virtual Smart Card

• Keep the private key on an on-line

server

• Use the password as

authentication to enable use of the

private key on the server

• Lose non-repudiation

We want:

2. Alice takes A And creates_{A A} 1. Appliance takes And creates_A 3. But (presto!) A A A A C C C A ID: Castle Corp FN: Castle LN: Corp . .

19

The

Practical PKI

TM

Approach

Password Secure Identity Appliance A A

• A Secure Identity Appliance has

key d2for Alice which ONLY it

knows. CA C C C A ID: Castle Corp FN: Castle LN: Corp . .

• As before, Alice has public

cert, with public key e, signed by a CA.

Process

1. Alice authenticates to appliance, sets up

secure channel and sends M.

2. Appliance performs partial signatureon M

with its key for Alice d2.

3. Alice completes signature with her key d1.

• Alice has password P which ONLY

she knows. Password P expands

to key d1 on computer. A A

Comparison

Traditional PKI Keys: a) Alice Public = e b) Alice Private = d c) Alice Cert = C Signing: a) S = Sign (M,d) Send [S, C] to Bob Bob: Practical PKITM Keys: a) Alice Public = e

b) Alice PKCS5(password, salt,

iteration count) = d1

c) Alice Cert = C

d) Alice appliance key = d2

Signing:

a) Alice logs on to appliance using d1 and creates secure channel a) Spartial = Sign(M,d2) b) S = Sign(Spartial,d1)

Send [S, C] to Bob Bob:

21

Comparison

Traditional PKI Keys: a) Alice Public = e b) Alice Private = d c) Alice Cert = C Signing: a) S = Sign (M,d) Send [S, C] to Bob Bob: Gets e from C Does Verify(S,e) = M? Practical PKITM Keys: a) Alice Public = e

b) Alice PKCS5(password, salt,

iteration count) = d1

c) Alice Cert = C

d) Alice appliance key = d2

Signing:

a) Alice logs on to appliance using d1 and creates secure channel a) Spartial = Sign(M,d2) b) S = Sign(Spartial,d1) Send [S, C] to Bob Bob: Gets e from C Does Verify(S,e) = M? Difference #1: Alice has

short convenient password

Difference #2: Alice has to interact with appliance to

sign.

Comparison

Traditional PKI Keys: a) Alice Public = e b) Alice Private = d c) Alice Cert = C Signing: a) S = Sign (M,d) Send [S, C] to Bob Bob: Gets e from C Does Verify(S,e) = M? Practical PKITM Keys: a) Alice Public = e

b) Alice PKCS5(password, salt,

iteration count) = d1

c) Alice Cert = C

d) Alice appliance key = d2

Signing:

a) Alice logs on to appliance using d1 and creates secure channel a) Spartial = Sign(M,d2) b) S = Sign(Spartial,d1) Send [S, C] to Bob Bob: Gets e from C Does Verify(S,e) = M?

NOTHING ELSE

CHANGES!!!!

23

Strong Fraud

Management

ID stolen Theft detected Theft reported CA revokes ID A C A ID: Alice FN: Alice LN: Smith Email:[email protected] . . C A

Recipient (we hope) stops accepting ID Velocity

Checking

Easy to report

ID CANNOT BE USEDANY FURTHER! INSTANT, COMPLETE, REVOCATION

Strong Fraud

Management

ID Theft Theft CA revokes

A C A ID: Alice FN: Alice LN: Smith Email:[email protected] . . C A

Recipient (we hope) Velocity

Checking

Easy to report

ID CANNOT BE USEDANY FURTHER! INSTANT, COMPLETE, REVOCATION

Consumer or CSR can use password to revoke instantly! Every signature requires

appliance interaction . So appliance logs can

be used for velocity checking.

Every signature requires appliance interaction. Once

revoked key cannot be used further! Instant,

25

SingleSignOn.Net

• Practical PKITM _solution

– Ease of use: password based – Quick to deploy

– Simple to manage with least privilege – Velocity checking and instant revocation – Reusable for multiple applications

• Web, Wireless, VPN, email, etc.

– Use existing standards and widely deployed technologies

Summary

• Password enabled solutions are poised to jump start the stalled PKI car.

• Major vendors jumping into password

enabled solutions using on-line servers is a good sign.

• “Many servers” are not all good, and have quality/security downside.

• Making password a part of the composite private key (virtual smartcards) provides substantial advantages over using password to retrieve private key (virtual soft tokens).
