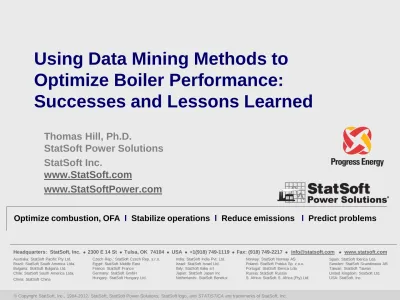

Using Data Mining Methods to Optimize Boiler Performance: Successes and Lessons Learned

(1)

Optimize combustion, OFA l Stabilize operations l Reduce emissions l Predict problems

Using Data Mining Methods to

Optimize Boiler Performance:

Successes and Lessons Learned

Thomas Hill, Ph.D.

StatSoft Power Solutions StatSoft Inc.

www.StatSoft.com

(2)

© Copyright StatSoft, Inc., 1984-2012. StatSoft, StatSoft Power Solutions, StatSoft logo, and STATISTICA are trademarks of StatSoft, Inc. 2

Overview

■

Data mining methods have proven increasingly useful for untangling

complex relationships in high-dimensional process data (with hundreds

or even thousands of parameters)

■

These methods can produce significant performance

improvements from existing equipment and without requiring any

additional hardware or equipment modifications

■

This presentation:

■ Discusses how data mining methods and algorithms are different from

simple trending and/or the application of traditional statistical methods

■ Presents an overview of typical workflows and necessary steps from data

preparation through modeling and optimization

■ Reviews typical examples and case studies where data mining methods

have been applied successfully for combustion optimization

(3)

Data Driven Technologies

■

Historical operational data can be used for process optimization, by

applying methods that:

■ Focus on knowledge discovery, detection of patterns, clusters, etc.

■ Apply advanced knowledge discovery (data mining) algorithms that will

result in valid models for highly complex data

■ E.g.: recursive partitioning, stochastic gradient boosting/bagging of trees,

multivariate adaptive regression splines, support vector machines, ...

■ All of these algorithms are universal approximators, which can model

(approximate) any relationships between parameters (non/linear, interactions, etc.)

■ Use optimization methods with the goal to achieve robust/stable and

optimized performance (e.g., low-variability NOx and CO, in presence of normal variability in fuel quality, load, etc.)

(4)

Data Driven Technologies:

Comparison to Other Methods

■

Unlike CFD (Computational Fluid Dynamics) modeling

■ We analyze the actual data describing actual “observed” performance of

the power plant over the past 1 or 2 years, or more

■

Unlike DOE (Design of Experiments) methods

■ We do not perform “trial-and-error” testing to find simple relationships, but

identify complex relationships through the application of nonlinear general modeling algorithms (“data mining”)

■

To use a metaphor:

■ The power plant or boiler is “talking” to the operators or control

system through the language of numbers, recorded into a data historian such as OSI Pi

■ The data mining methods and algorithms described on the previous

slide “decipher” this language, and leverage the extracted information for process optimization

(5)

Data Mining and Statistical Modeling

Knowledge Discovery vs. Statistical Analysis

■

Statistical Analysis

■ Focuses on “hypothesis testing” and “parameter estimation”

■ Fits “parsimonious statistical models” with the goal to “explain”

■ Examples: Regression, traditional generalized linear models (GLM)

■

Data Mining and General Predictive Analytics

■ The data are your model!

■ Focuses on the detection of repeatable patterns in historical data, with the

goal to make predictions about future events

■ Focuses on knowledge discovery, detection of patterns, clusters, and so

on; we only have data and no (or few) expectations and hypotheses

■ Applies “pattern recognition algorithms” or “general approximators”, with

(6)

Data Driven Technologies:

Summary

■

In short, based on these methods, StatSoft developed and validated a

workflow that:

■ Uses all historical data

that are already routinely collected (and have already been collected for some time)

■ Identifies in those data the

specific operational

parameters that are critical for optimal boiler performance

■ Builds data mining models describing how exactly the important

parameters affect the performance of a furnace

■ Uses those models for robust optimization (optimization for robust,

low-variability operations/performance)

■ Identifies optimized parameter ranges and relationships for critical

operational parameters that can be implemented into the existing control system

(7)

Concrete Examples:

Cyclone Furnaces

■

See also: EPRI/StatSoft Project 44771: Statistical Use of Existing DCS

Data for Process Optimization (2008)

■

Numerous projects have applied data mining technologies to cyclone

furnaces of various designs and sizes

■ Goal typically is to stabilize flame temperatures within a desirable range

(e.g., measured flame intensities, door, slag temperatures..)

(8)

Concrete examples:

Cyclone Furnaces (cont.)

■

Typical results are often immediate

■ Significant sustained improvements to LOI and boiler efficiency

(>20%) without negative side-effects have also been demonstrated

■ Quote: “….. after the data mined settings were put into the control system (unit 3)

with solid success (≈ $1.4M savings in oil), however the results were harder to

quantify in unit 4, as 4 never needed or used as much oil as unit 3. (Oil in unit 3 was more of a crutch than on unit 4.) However, the settings (unit 4) that you folks did

(9)

Concrete Examples:

Cyclone Furnaces (cont.)

■

After implementing results into

the DCS system as new

defaults, flame temperatures are

consistently higher

■

Conclusion: The new settings

• Nox and CO emissions are

significantly lower

(10)

EPRI Perspective

■

See:

http://my.epri.com/portal/server.pt?Abstract_id=000000000001016494

■

Results

■ “The results show that the data analysis and optimization methods

effectively identified specific ranges for a relatively small subset of operational parameters. Significantly improved and stable operations resulted for all cyclones.”

■

Application, Value and Use

■ “These methods provide a way to achieve cost-effective and ‘realistic’

(virtually immediately obtainable) boiler optimization given the existing

data and control systems—without the need for further boiler modifications or hardware and/or software purchases—requiring only modifications to the parameters and “equations” guiding existing control system software.”

(11)

Concrete Examples:

Wall Fired

■

Several projects have focused on lowering NOx and CO emissions

(or SCR inlet NOx) over the entire load range.

■

For example, optimization of a 400 MW Coal-Fired DRB-4Z Burner

for consistent/robust low-NOx operations under low load (50-175 MW)

(12)

Concrete Examples:

Wall Fired (cont.)

■

Typical Results:

■ Lower NOx during testing and more robust performance (lower variability in

NOx measurements, with fewer/no spikes)

(13)

Concrete Examples:

T-Fired

■

To date StatSoft has completed only one project with a twin T-fired

boiler, with a complex (multi-zone) OFA system

■

Goal was to stabilize and reduce CO while maintaining or lowering Nox

■

Simple before-after tests

showed the effectiveness

of specific combinations of

settings for various parameters

(involving Windbox/Furnace

Differential Pressure, and

OFA parameters)

(14)

Lessons Learned (1)

■

The methods described here are generally applicable to any type of

coal furnace

■ And likely other types of furnaces and complex equipment as well

■

Only basic requirement is a process historian (database, such as OSI

Pi) that collects and stores operational parameter data

■

The methods described here can be used to optimize boiler

performance using the existing control systems and methods

■

Lessons learned (organizational):

■ Commitment by operators and performance engineers to project is critical

for success

■ Identify at the start how the results are to be implemented (e.g., into the

control system); this decision will guide the modeling efforts and ensure that results are actionable

■ Determine the dollar value of the performance improvements; this is critical

(15)

Lessons Learned (2)

■

Lessons learned (data and methods):

■ Data quality must be ascertained before performing any analyses; in

particular: Make sure that data gathering devices, sensors, scaling, or computations did not change

■ Establish through testing that the variability of key inputs (e.g., secondary

air flows) are controllable within the required bounds; in particular, if the unit and air flows “swing” (e.g., because of unreliable O2

probes/measurements), then recommended settings may not be achievable!

■ Sometimes, changes to the logic of the control system are necessary

■ Examine causes of variability in inputs (e.g., air flows), to determine that

operators do experiment and “drive the unit”; sometimes, all variability is produced through default operation of the control system

(16)

References

■

Nisbet, R., Elder, J., & Miner, G. (2009). Handbook of Statistical

Analysis and Data Mining Applications. Academic Press

■

StatSoft Electronic Text Book:

■ www.statsoft.com/textbook/stathome.html

■ Also available from Amazon: Hill, T. & Lewicki, P. (2005). Statistics:

Methods and Applications.

■

EPRI/StatSoft Project 44771. Statistical Use of Existing DCS Data for

http://my.epri.com/portal/server.pt?Abstract_id=000000000001016494

www.statsoft.com/textbook/stathome.html
