Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

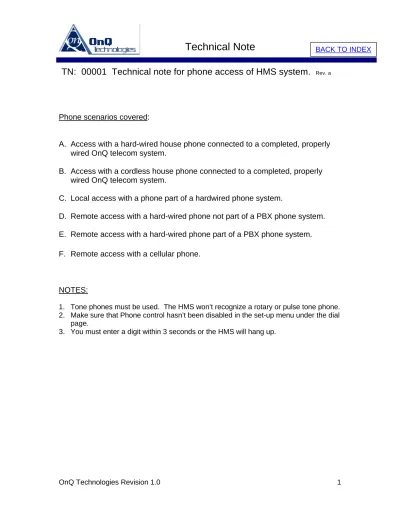

Phone scenarios covered:

A. Access with a hard-wired house phone connected to a completed, properly wired OnQ telecom system.

B. Access with a cordless house phone connected to a completed, properly wired OnQ telecom system.

C. Local access with a phone part of a hardwired phone system.

D. Remote access with a hard-wired phone not part of a PBX phone system.

E. Remote access with a hard-wired phone part of a PBX phone system.

F. Remote access with a cellular phone.

NOTES:

1. Tone phones must be used. The HMS won’t recognize a rotary or pulse tone phone. 2. Make sure that Phone control hasn’t been disabled in the set-up menu under the dial

page.

(2)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

(A) Accessing with a house phone:

1. When lifting the hand set you should hear a dial tone followed by a clicking sound. This should take about 1 second.

2. Press the (#) pound key.

3. A digitally recorded voice will prompt you, ”Welcome to OnQ, area 1, please choose”.

4. Select the desired option and follow the voice prompt.

(B) Accessing with a cordless phone:

1. Pick up the cordless phone and wait for a dial tone or select the function that yields a dial tone. Wait about 1 second, you might hear a clicking noise.

(C) Local access with PBX phone system.

1. Pick up the handset and obtain an outside dial tone. Wait about 1 second, a clicking noise might be heard.

(3)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

(D) Remote access with a hard-wired phone not part of a PBX phone system

1. Dial the phone number that the HMS system is connected to

2. Let the phone complete one full ring, half of the second ring and hang up.

3. When you hear the tone enter the “master code”. Code 1 defaults to the master code.

(E) Remote access with a hard-wired phone part of a PBX phone system.

1. Lift the hand set and press the appropriate keys to obtain an outside dial tone.

3. Let the phone complete one full ring, half of the second ring, then hang up.

(4)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

5. Re-dial the last phone number.

6. When a “beep” tone is heard enter the “master code”. Code 1 defaults to the master code.

(F) Remote access with a cellular phone.

2. Let the phone complete one full ring. As soon as the second ring starts hang

up the phone or end the call.

3. Wait 10 to 15 seconds

4. Re-dial the last phone number.

5. When the access tone is heard enter the “master code”. Code 1 defaults to the master code.

(5)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

Troubleshooting:

NOTE 1: Please read the notes covered on the scenario page before reading these notes.

NOTE 2: There will be one question followed by four answers (A,B,C & D) these will correspond with the above mentioned phone control methods. If any of the letters are absent they do not apply to the question.

Q. When trying to access the HMS from inside the house you hear a busy signal or a message stating, “If you would like to make a call please hang up and try again later”.

A. The phone is connected “ahead of” ” ( see Fig. 1 ) the HMS causing the (#) signal to go to the outside phone company and not the HMS. This could also be caused by not having the HMS plugged into the RJ-31 jack at the telecom module or having the HMS RJ-31x cable assembly plugged into the “Line In” jack of the telecom module.

(6)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

B. The phone is connected “Ahead of” ” ( see Fig. 1 ) the HMS causing the (#) signal to go to the outside phone company and not the HMS. This could also be caused by not having the HMS plugged into the RJ-31 jack at the telecom module or having the HMS RJ-31x cable assembly plugged into the “Line In” jack of the telecom module.

Q. When I pick up a hard wired house phone to access the HMS I hear the click, push the # sign and the system hangs up.

A. Check the polarity of the house return line located at the HMS ( brown & gray wires ) and switch them if necessary. The brown wire should be “Tip +” and the Gray wire should be “Ring - ”. This is assumes the house phone jacks are wired 568A standard and have been tested.

B. Check the polarity of the house return line located at the HMS ( brown & gray wires ) and switch them if necessary. The brown wire should be “Tip +” and the Gray wire should be “Ring - ”. This is assumes the house phone jacks are wired 568A standard and have been tested.

Q. When I use a cordless house phone the HMS doesn’t answer when I press the # sign.

A. Some cordless phones and phone systems transmit to short of a “tone burst” when pressing a key. If the tone burst can’t be adjusted a different phone will have to be used.

B. Check polarity of the house return line located at the HMS ( brown & gray wires ) and switch them if necessary. The brown wire should be “Tip +” and the Gray wire should be “Ring - ”. This is assuming that the house phone jacks are properly wired.

(7)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

Q. When I use a house phone that is connected to the PBX phone system I don’t hear the “voice menu” when I press the # key.

B. Make sure you have a local dial tone and not a system dial tone.

C. When you have a local dial tone and the # key doesn’t activate the voice Menu the tone burst from the phone system might be too short or the phone System might not be hooked up to the HMS.

Q. When I try to access the HMS via a remote hard wired phone not part of a PBX another device answers. This assumes that you can locally access The system.

D. Make sure all other devices connected to the same phone line as the HMS is Set to answer at 3 rings or more.

D. Try the remote access procedure (E) “Remote access with a cellular phone”.

Q. When I try to access the HMS via a remote phone connected to a PBX phone System the HMS doesn’t respond.

D. Assuming the system can be accessed locally and that you have a outside dial tone on the phone system the problem could be that the Tone bursts of the PBX are too short.

E. Make sure all other devices are connected to the same phone line as the HMS are set to answer at 3 rings or more.

Q. I can’t access the HMS via cell phone.

F. Make sure all other devices connected to the same phone line as the HMS are Set to answer at 3 rings or more.

(8)

BACK TO INDEX

Technical Note

TN: 00001 Technical note for phone access of HMS system.

Rev. a

F. You might have greater than a 1 ring delay between the cell phone network and the land line network. Therefore you might have to end the 1st cellular call after 1 Ring.

Figure 1. Network Interface Device Phone 1x11 Telecom Module 363-484-01 Phone Line In RJ-31x Jack Return to the 1x11 to power house phones Gray & Brown

From 1x11 RJ-31x Incoming Phone

Red & Green Terminals Figure 1
