**CURRENT FLOW PATTERNS GENERATED BY COCHLEAR **

**IMPLANTS **

Punita Christopher

A dissertation submitted to the faculty of the University of North Carolina at Chapel Hill in partial fulfillment of the requirements for the degree of Doctor of Philosophy in the

Department of Biomedical Engineering, School of Medicine.

Chapel Hill 2007

Approved by:

Dr. Charles Finley

Dr. John Grose

**ABSTRACT **

Punita Christopher: Current Flow Patterns Generated by Cochlear Implants (Under the direction of Dr. Charles Finley)

iv

**ACKNOWLEDGEMENTS **

I wish to acknowledge several people that helped me start, survive, and complete this dissertation….

I would like to express my deepest gratitude to my advisor, Charlie Finley, for the many years of patience, guidance, and support. Charlie was extremely helpful, and always genuinely excited about what we were doing. I would not have finished without his encouragement and gentle prodding, especially when I was struggling with my writing. I am thankful to him for the resources and opportunities that he provided me with during my time in his laboratory. It has been a privilege and pleasure to work with someone who is as dedicated to his work as he is, and I will forever be grateful for this opportunity.

I wish to thank my committee members John Grose, Henry Hsiao, David Lalush, and Mark Tommerdahl for providing me with valuable insights. I am grateful to them for all their efforts in evaluating my progress through the course of my research and for helping me achieve my goals.

I very much appreciate the assistance provided by Marcia Clark, Emily Buss, and Holly Teagle in recruiting subjects for my study. This work would not have been possible without the subjects that participated in this study, and I would like to thank them for their time and cooperation.

vi

research software. I would also like to acknowledge the financial support from the NIH-NIDCD through which this work was made possible.

My thanks go out to the faculty, staff, and students of the BME department, as well as to my laboratory colleagues who have helped me in various capacities over the years.

I am deeply indebted to my friends here in Chapel Hill. They were my support system and I would not have survived graduate school in a foreign land without their help. I am especially thankful to my thesis support group for patiently listening to me and giving me valuable advice.

**TABLE OF CONTENTS **

LIST OF TABLES... xi

LIST OF FIGURES ... xii

LIST OF ABBREVIATIONS... xvi

LIST OF SYMBOLS ... xviii

Chapter 1. INTRODUCTION ... 1

1.1 Research Question ... 2

1.2 Specific Aims... 5

1.3 General Overview and Organization ... 7

2. BACKGROUND ... 10

2.1 The Peripheral Auditory System... 10

2.1.1 The Inner Ear ... 11

2.1.2 Sensory Transduction... 13

2.2 Cochlear Implant Basics ... 14

2.3 Current Flow in the Cochlea... 17

2.3.1 Intracochlear Potentials - Animal Studies... 17

2.3.2 Surface Potentials... 19

2.3.3 Intracochlear Electrical Field Measures... 24

viii

3. METHODOLOGY - DIPOLE SOURCE LOCALIZATION... 29

3.1 The Dipole Source ... 30

3.2 The Forward Problem ... 32

3.2.1 The Single Sphere Homogeneous Head Model ... 33

3.2.2 The Multiple Shell Heterogeneous Head Model ... 36

3.3 The Inverse Solution... 40

3.4 Model Implementation... 44

3.4.1 The Forward Model ... 44

3.4.1.1 Inputs to the Model ... 45

3.4.1.2 Cochlea Model ... 49

3.4.1.3 Model Assumptions ... 51

3.4.2 The Inverse Problem ... 53

3.4.2.1 Defining the Search Region... 53

3.4.2.2 Estimating the Optimal Dipoles... 54

3.4.2.3 Least Squares Fitting... 54

4. METHODOLOGY – DATA COLLECTION ... 59

4.1 Subjects... 59

4.2 Experimental Procedures ... 60

4.2.1 Surface Potential Measures... 61

4.2.2 Intracochlear Electrical Field Measures... 67

4.2.3 Impedance Measures due to Scalp Stimulation ... 68

4.2.3 Measures to Determine Subjects’ Head Shape ... 69

4.3.1 Recording Electrode Probe ... 70

4.3.2 3-D Digitizer ... 72

4.3.3 Amplifier System ... 74

4.3.4 Current Source ... 76

4.4 Data Analyses Methods ... 76

4.4.1 Global Dissimilarities ... 77

4.4.2 Clustering Methods... 77

5. RESULTS ... 80

5.1 Relationship between Scalp Surface Potentials and Stimulus Current Injected into the Cochlea ... 80

5.2 Impedance Characteristics of the Bulk Head Tissue ... 88

5.3 Differences in Current Flow Patterns across Electrodes ... 93

5.3.1 Field Distributions ... 98

5.3.2 Global Dissimilarities - Monopolar Data... 108

5.3.3 Global Dissimilarities - Bipolar Data ... 122

5.3.4 Cluster Analysis ... 124

5.4 Alternate Current Pathways ... 129

5.4.1 Dipole Source Localization... 129

5.4.2 Intracochlear Electrical Field Measures... 140

6. DISCUSSION AND CONCLUSIONS ... 143

6.1 Significance of Results ... 143

x

6.1.2 Impedance Characteristics of the Bulk Head Tissue ... 144

6.1.3 Differences in Current Flow Patterns across Electrodes... 144

6.1.4 Alternate Current Pathways ... 147

6.2 Problems Encountered ... 150

6.3 General Limitations of the Study... 151

6.4 Future Work and Applications... 153

6.5 Conclusions... 154

APPENDIX... 155

**LIST OF TABLES**

Table 3.1: Head tissue conductivity values... 44

Table 4.1: Subjects... 60

Table 5.1: Input and output... 81

xii

**LIST OF FIGURES **

Figure 2.1: Diagram of the human ear ... 11

Figure 2.2: Cross-sectional view of the cochlea ... 12

Figure 2.3: Functional components of a cochlear implant... 15

Figure 2.4: Monopolar and bipolar mode of stimulation... 16

Figure 2.5: Cochlea and EAM model . ... 22

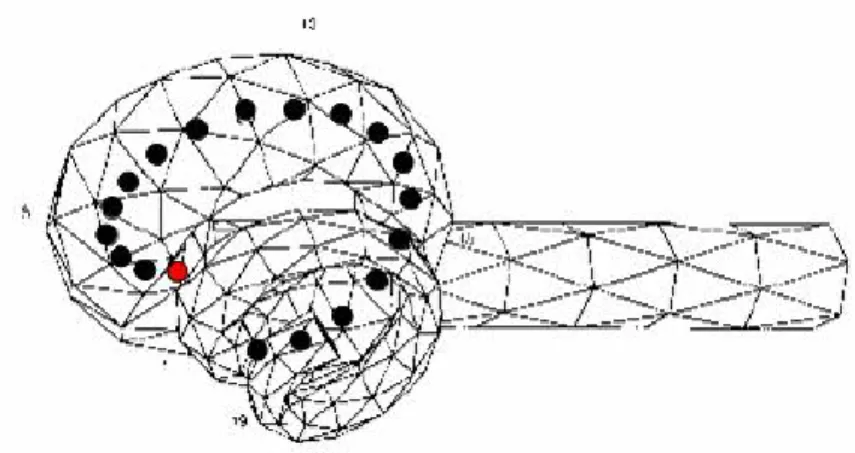

Figure 2.6: Mens’ volume conduction models – A: thick skull, B: IAM, and C: petrous bone……….………. .. 23

Figure 2.7: EFI Impedance Model... 25

Figure 3.1: A - Dipole source and sink, B – Dipole vector in a 3-D space ... 30

Figure 3.2: Dipole in an infinite space... 31

Figure 3.3: Homogeneous head model . ... 34

Figure 3.4: Multiple shell model ... 36

Figure 3.5: Berg and Scherg’s approximation ... 38

Figure 3.6: Flowchart for inverse problem ... 41

Figure 3.7: Head coordinate system... 46

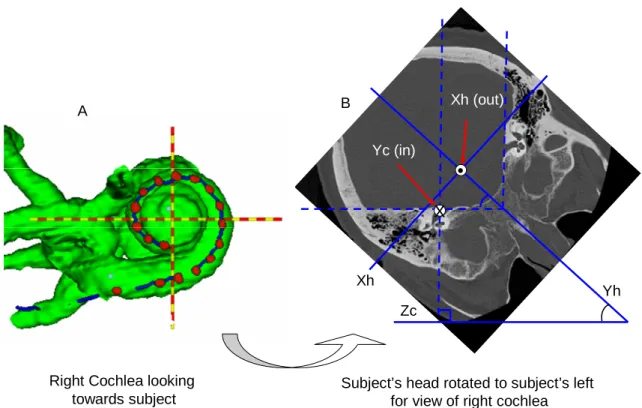

Figure 3.8: Geometry of right cochlea... 50

Figure 3.9: Least Squares fitting process – error vs. dipole X location... 55

Figure 3.10: Least Squares fitting process – error vs. dipole’s Y location... 56

Figure 3.11: Least Squares fitting process – error vs. dipole’s Z location ... 56

Figure 3.12: Least Square Fitting Process with a termination tolerance value = 0.6e-6 ... 57

Figure 3.13: Least Square Fitting Process with termination tolerance value = 1e-9 ... 58

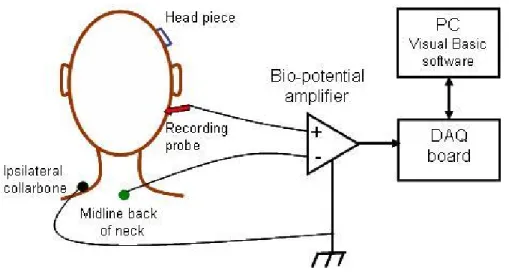

Figure 4.2: Recording set-up... 63
