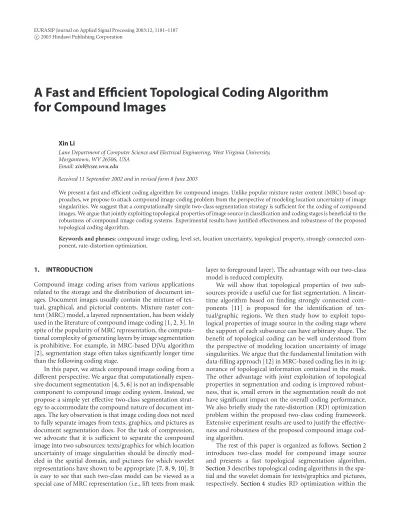

A Fast and Efficient Topological Coding Algorithm

for Compound Images

Xin Li

Lane Department of Computer Science and Electrical Engineering, West Virginia University, Morgantown, WV 26506, USA

Received 11 September 2002 and in revised form 8 June 2003

We present a fast and efficient coding algorithm for compound images. Unlike popular mixture raster content (MRC) based ap-proaches, we propose to attack compound image coding problem from the perspective of modeling location uncertainty of image singularities. We suggest that a computationally simple two-class segmentation strategy is sufficient for the coding of compound images. We argue that jointly exploiting topological properties of image source in classification and coding stages is beneficial to the robustness of compound image coding systems. Experimental results have justified effectiveness and robustness of the proposed topological coding algorithm.

Keywords and phrases:compound image coding, level set, location uncertainty, topological property, strongly connected com-ponent, rate-distortion optimization.

1. INTRODUCTION

Compound image coding arises from various applications related to the storage and the distribution of document im-ages. Document images usually contain the mixture of tex-tual, graphical, and pictorial contents. Mixture raster con-tent (MRC) model, a layered representation, has been widely used in the literature of compound image coding [1,2,3]. In spite of the popularity of MRC representation, the computa-tional complexity of generating layers by image segmentation is prohibitive. For example, in MRC-based DjVu algorithm [2], segmentation stage often takes significantly longer time than the following coding stage.

In this paper, we attack compound image coding from a different perspective. We argue that computationally expen-sive document segmentation [4,5,6] is not an indispensable component to compound image coding system. Instead, we propose a simple yet effective two-class segmentation strat-egy to accommodate the compound nature of document im-ages. The key observation is that image coding does not need to fully separate images from texts, graphics, and pictures as document segmentation does. For the task of compression, we advocate that it is sufficient to separate the compound image into two subsources: texts/graphics for which location uncertainty of image singularities should be directly mod-eled in the spatial domain, and pictures for which wavelet representations have shown to be appropriate [7,8,9,10]. It is easy to see that such two-class model can be viewed as a special case of MRC representation (i.e., lift texts from mask

layer to foreground layer). The advantage with our two-class model is reduced complexity.

We will show that topological properties of two sub-sources provide a useful cue for fast segmentation. A linear-time algorithm based on finding strongly connected com-ponents [11] is proposed for the identification of tex-tual/graphic regions. We then study how to exploit topo-logical properties of image source in the coding stage where the support of each subsource can have arbitrary shape. The benefit of topological coding can be well understood from the perspective of modeling location uncertainty of image singularities. We argue that the fundamental limitation with data-filling approach [12] in MRC-based coding lies in its ig-norance of topological information contained in the mask. The other advantage with joint exploitation of topological properties in segmentation and coding is improved robust-ness, that is, small errors in the segmentation result do not have significant impact on the overall coding performance. We also briefly study the rate-distortion (RD) optimization problem within the proposed two-class coding framework. Extensive experiment results are used to justify the eﬀ ective-ness and robustective-ness of the proposed compound image cod-ing algorithm.

(2)

1182 EURASIP Journal on Applied Signal Processing

framework of two-class coding. We report our simulation re-sults inSection 5.

2. TWO-CLASS MODEL FOR COMPOUND

IMAGE SOURCE

There are many diﬀerent ways to model a compound im-age source. For example, MRC representation structures a compound image into three layers: mask (texts), foreground (graphics), and background (pictures). Extensive studies have been done on the problem of document segmentation [4,5,6], that is, separate texts, graphics, and pictures apart. We note that although document segmentation is a trivial task for human eyes, it has been one of the long open prob-lems in computer vision research. Especially from the com-putational point of view, there is little evidence to believe that cumbersome document segmentation is an indispens-able component to compound image coding systems.

We propose a comprised two-class segmentation strategy, that is, to view a document image as the mixture of two sub-sources: texts/graphics and pictures. Such two-class model can be viewed as a special case of three-layer MRC repre-sentation; but we argue that our model dramatically allevi-ates the computational burden on segmentation. The basic motivation behind our fast segmentation strategy is that the two subsources have diﬀerent topological properties. That is, if we consider the level-set representation [13] for each subsource, textual/graphical regions typically have a support with regular shape and large size, while the level set in pic-torial areas has irregular shape and small size (due to noise interference). Such distinction of the characteristics of level-set shape and size leads to a fast segmentation algorithm in the topological space.

Fast segmentation algorithm in the topological space

(1) Initialization:C(i, j)=0 (class 0), for alli, j. (2) Loop over level-set valuek=0–255.

(i) Generate level setΩk= {(i, j)|X(i, j)=k}and its

(ii) Identify each strongly connected component and calculate its topological parameters (size A and contour smoothnessα).

(iii) IfA < th1orα < th2, setC(i, j)=1 (class 1).

In the above algorithm, strong connectivity refers to the connection through the eight nearest neighbors. The size of a set is defined by the number of pixels in the set and the contour smoothness is measured by the average of absolute diﬀerential tangent vector along the contour. It is well known that there exists a linear-time algorithm for finding strongly connected component in an undirected graph [11].

We note that the segmentation results generated by the above algorithm are mostly satisfactory but seldom perfect. A tantalizing question arises: how should we handle an

imper-fect segmentation result? Such issue is fundamentally impor-tant to the optimization of compound image coding systems but been has largely overlooked by the existing MRC-based approaches. We suggest that the robustness of compound im-age coding systems can be improved by jointly exploiting the topological properties of image subsource (connectivity and shape constraints) in both segmentation and coding stages. The above claim can be intuitively justified by thinking of compound image coding as a problem of resolving location uncertainty of image singularities. Segmentation errors are typically associated with ambiguity regions, that is, the set of pixels whose characteristics lie between texts/graphics and pictures (Figure 1). However, if the coding algorithms de-signed for each subsource, indeed, exploit the topological properties, the overall coding performance will be insensi-tive to the choice of coding algorithm, which compensates the wrong decision made by two-class segmentation.

3. TOPOLOGICAL CODING OF SUBSOURCES

In this section, we study the coding of two subsources with the segmentation result (binary classification map) available. We first introduce some notations. The compound image is decomposed into two subsources:Ω=Ωtg∪Ωpi, whereΩtg andΩpidenote the support region of texts/graphics and pic-tures, respectively. For Ωtg, which consists of a small num-ber of level sets, spatial domain is the appropriate space for modeling location uncertainty of image singularities (note that wavelet transform is not level-set preserving). ForΩpi, it is well known that wavelet space is suitable due to good en-ergy compaction property of wavelet transform in both spa-tial and frequency domains. The challenge here is that both ΩtgandΩpihave the support of arbitrary shape, which calls for coding algorithms capable of exploiting topological prop-erties. It should be noted that a straightforward approach to handle arbitrary-shape support is by data filling [12] as used in most MRC-based coding systems. However, from the viewpoint of resolving location uncertainty of image singu-larities, data filling is unlikely to be optimal because it ignores useful topological information contained in the classification map. Instead, we propose to study topological coding for tex-tual/graphical and pictorial subsources, respectively.

3.1. Textual/graphical subsource

The coding of textual/graphical images has been studied in the literature as palette-based image coding problem [14, 15,16]. The main motivation behind palette-based coding is based on the following observations with texts/graphics:

(1) there are typically far fewer colors than the number of pixels;

(2) pixels of the same color tend to be contiguous.

(3)

Figure1: Left: original cmpnd1 image; right: classification map.

We label all colors in the subsource by 1,2, . . . , Nc. Since Nc is usually a small number, the overhead of coding a palette of N_c colors is negligible. To code the index map index[X(i, j)], we define the set of pixels having colorkby

Rk=(i, j)|indexX(i, j)=k, c(i, j)=0, (2)

and the union set of pixels whose color index is not less than kis thus given by

Uk= ∪Nl=ckRl. (3)

It is easy to see thatR_kis related toU_kby

Rk=Uk−Uk+1, (4)

where “the minus sign” denotes set subtraction operation andU1 ⊃ U2 ⊃ · · · ⊃ UNc. Equation (4) decomposes the original index map intoNc−1 binary maps (layers), which can be coded inN_c−1 passes. Each coding pass only needs to resolve the uncertainty ofU_k+1fromUk, and therefore deals with a binary map with monotonically decreasing support. The existing context-based adaptive binary arithmetic cod-ing (e.g., JBIG) can be easily modified to handle a binary map with arbitrary-shape support. For example, we can as-sign zero values to all the causal neighbors outside of the support. In fact, the binary classification map can also be incorporated into the above topological coding as an initial layer.

To exploit topological properties (observation 2), we note that bothR_k(level sets) andU_k(union of level sets) are usu-ally decomposed of strongly connected components with ar-bitrary shapes. Since the pixels with the same color tend to be

contiguous, the topological structure ofU_k, which is already available at the decoder after the previousk−1 coding passes, carries useful information. That is, we can label each strongly connected set ofU_kby 0 if all its pixels belong toR_k, by 1 if its pixels are all inUk+1, and by 2 if it contains the mixture ofRkandUk+1. It is easy to see that only the sets labeled by 2 need to be coded in thekth coding pass.

3.2. Pictorial subsource

It has been widely recognized that the success of wavelet coders for pictorial images is attributed to the effectiveness of modeling location uncertainty of image singularities in the wavelet space [17]. Our coding scheme consists of two stages (similar to LZC [8]): position coding (resolve location uncer-tainty of significant coefficients), and sign/magnitude coding for those coefficients which have been identified to be signifi-cant in the first stage. Most wavelet coders [7,8,9,10] assume that images have regular support with a rectangular shape. However, the subsource of pictures is a partially masked image whose support Ωpi could have arbitrary shape. Re-cently, several works have appeared on the implementation of arbitrary-shape wavelet transform (ASWT) [18,19,20]. We employ the implementation based on lifting construction [20,21].

(4)

wavelet transform. In other words, there exists a one-to-one mapping between the mask in the spatial domain and its counterpart in the wavelet domain. Therefore, we can sim-ply skip the masked coefficients when coding the high-band coefficients. Secondly, due to the good localization property of wavelet transform in both spatial and frequency domain, we could further exploit the topological property during the process of coding the position of significant coefficients. For example, for an isolated high-band coefficient (i.e., its pre-diction neighbors are all masked coefficients), we know deter-ministicallythat it would remain significant after ASWT be-cause no prediction is available. Empirical study shows that such observation leads to noticeable bit savings in the stage of position coding.

4. RATE-DISTORTION OPTIMIZATION FOR COMPOUND IMAGE SOURCE

Previous works such as optimizing block-thresholding seg-mentation [1] and RD optimized segmentation [3] empha-size on the study of RD optimization techniques during im-age segmentation for MRC-based coding. However, rate and distortion in the segmentation stage can only be an estimate because the actual RD characteristics depend on the segmen-tation result (like a chicken and egg problem). The other advantage oﬀered by our two-class modeling paradigm is that it facilitates the RD optimization for compound image source.

We formulate RD optimization for a two-class source by minimizing the distortionD=D0+D1under the constraint R0 +R1 ≤ R, whereR0 andR1 refer to the bit rate allo-cated to the two subsources, respectively. A commonly used technique for such constrained optimization problem is to use Lagrange multiplier. The Lagrange multiplier-based op-timization technique [22] is to transform the original con-strained problem into an unconcon-strained problem (minimize D+λR, whereλis the Lagrange multiplier).

For two-class source model, we propose to decompose the original problem

minD0+D1 +λ

R0+R1 (5)

into the following two independent problems:

minD0+λR0, minD1+λR1. (6)

For a single-class source, the optimal rate allocation is often achieved by iterative search along the operational RD curve [10]. Here, we solve the optimal rate allocation for two-class source in a similar fashion. Suppose for subsource 0 (texts/graphics), N_c points along the operational RD curve (Ri0, Di0),i=0,1, . . . , Nc−1, have been found, each of which corresponds to one coding pass; for subsource 1 (pictures), we can apply an embedding coding strategy similar to the existing wavelet coding schemes and obtain a collection of points (R1j, D1j), j =0,1, . . ., that are densely sampled along the operational RD curve. The following iterative RD opti-mization techniques are proposed for the two-class source.

6

Figure 2: Operational rate-distortion curve comparison between

subsource 0 (solid) and subsource 1 (dotted).

(1) Initialization:iopt = 0, jopt = 0, obtain (R00, D00) and

Due to the distinct characteristics of two subsources, their operational RD curves diﬀer dramatically. Figure 2 shows an example of the operational RD curves for a por-tion of cmpnd2 image. It can be seen that the slope of sub-source 0 is dramatically larger than that of subsub-source 1. Therefore, the subsource 0 has higher priority than the sub-source 1 when the Lagrange multiplier is large (at very low bit rates). This matches our intuition because the distortion in texts/graphics is often more visible than that in pictures.

5. SIMULATION RESULTS

In this section, we report our experiment results with two compound images in the JPEG2000 test set: cmpnd1 (512× 768) and cmpnd2 (5120 ×6624). The cmpnd2 image is composed of 8 concatenated small subimages. Since the size of cmpnd2 is huge, we choose to cut out one subimage (sized 1568×1568) from cmpnd2 and use it as the test im-age. It should be noted that both cmpnd1 and cmpnd2 are computer-generated images containing no noise. Coding of noisy compound images (e.g., scanned documents) is be-yond the scope of this paper.

(5)

50 48 46 44 42 40 38 36 34 32 30

PSNR

(dB)

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 Rate (bpp)

Our coder OBTS coder

Figure3: Rate-distortion performance comparison for cmpnd1

be-tween our two-class coder and OBTS coder [1].

from the existing JBIG standard. The topological coding in the wavelet space is based on an implementation of masked Daubechies’ 9-7 transform [23]. A simplified two-stage cod-ing algorithm similar to LZC is used to code the unmasked wavelet coeﬃcients. It should be noted that both JBIG and simplified LZC do not represent state-of-the-art coders. More sophisticated coders such as JBIG2 and JPEG2000 could lead to even better coding performance. The coding results reported here are mainly for the purpose of justify-ing the eﬃciency of the proposed two-class source modeling and topological coding techniques. Decoder executable and encoded bit streams in our experiments can be downloaded fromhttp://www.ee.princeton.edu/∼lixin/cmpnd.htm.

We first compare our two-class image coder and the OBTS coder for cmpnd1 image. It appears that the im-age quality oﬀered by our coder at 0.285 bpp is visu-ally lossless compared to the original. As an example, the bits spent on textual/graphical and pictorial subsources are 20 480 and 91 144, respectively at the rate of 0.285 bpp. The coding results of OBTS are cited from [1, Figure 9]. The RD performance comparison is shown in Figure 3. Large PSNR improvements (greater than 6 dB) can be ob-served. We note that such significant coding gain should be interpreted properly. Wavelet coding techniques (LZC, JPEG2000) typically could achieve at least 3 dB gain over DCT-based coding techniques (e.g., JPEG employed in OBTS coder). Therefore, partial credits of 6 dB gain go to wavelet coding techniques. Nonetheless, topological coding algo-rithms described inSection 3do achieve impressive coding performance.

Figure 1shows the segmentation result for cmpnd1 im-age. The segmentation result of texts/graphics from pictures is mostly satisfactory despite a few wrongly classified regions

45

40

35

30

25

PSNR

(dB)

0.1 0.12 0.14 0.16 0.18 0.2 0.22 0.24 0.26 0.28 Rate (bpp)

Our coder DjVu coder

Figure4: Rate-distortion performance comparison for cmpnd2

be-tween our two-class coder and DjVu coder.

scattered in the pictorial content. Indeed, those segmentation errors are due to the fact that some areas in the pictorial con-tent are locally constant, causing the ambiguity. To testify the robustness of our coder, we have generated an optimal mask manually for cmpnd1 image to see how it could further en-hance the coding performance. It appears that the PSNR loss brought by segmentation errors is quite modest (less than 0.3 dB). We conclude that the ambiguity regions in the picto-rial content can be eﬃciently handled by topological coding in either spatial or wavelet domain.

(6)

Figure5: Comparison of portions of decoded cmpnd2 images by our two-class coder at 0.133 bpp, PSNR=37.45 dB (left) and by DjVu

(7)

Figure6: Comparison of the classification map generated by our algorithm (left) and the mask layer generated by DjVu algorithm (right) for cmpnd2.

REFERENCES

[1] R. L. de Queiroz, Z. Fan, and T. D. Tran, “Optimizing block-thresholding segmentation for multilayer compression of compound images,” IEEE Trans. Image Process., vol. 9, no. 9, pp. 1461–1471, 2000.

[2] L. Bottou, P. Haﬀner, P. G. Howard, P. Simard, Y. Bengio, and Y. Le Cun, “High quality document image compression with DjVu,” Journal of Electronic Imaging, vol. 7, no. 3, pp. 410– 425, 1998.

[3] H. Cheng and C. Bouman, “Document compression using rate-distortion optimized segmentation,”Journal of Electronic Imaging, vol. 10, no. 2, pp. 460–474, 2001.

[4] H. Cheng, C. A. Bouman, and J. P. Allebach, “Multiscale doc-ument segmentation,” inIS&T 50th Annual Conference, pp. 417–425, Cambridge, Mass, USA, May 1997.

[5] A. A. Zlatopolsky, “Automated document segmentation,” Pat-tern Recognition Letters, vol. 15, no. 7, pp. 699–704, 1994. [6] M. Nadler, “A survey of document segmentation and coding

techniques,”Computer Vision, Graphics, and Image Processing, vol. 28, pp. 240–262, 1984.

[7] J. M. Shapiro, “Embedded image coding using zerotrees of wavelet coeﬃcients,” IEEE Trans. Signal Processing, vol. 41, no. 12, pp. 3445–3462, 1993.

[8] D. Taubman and A. Zakhor, “Multirate 3-d subband coding of video,”IEEE Trans. Image Processing, vol. 3, no. 5, pp. 572– 588, 1994.

[9] Z. Xiong, K. Ramchandran, and M. Orchard, “Space-frequency quantization for wavelet image coding,” IEEE Trans. Image Processing, vol. 6, no. 1, pp. 677–693, 1997. [10] D. Taubman, “High-performance scalable image compression

with EBCOT,”IEEE Trans. Image Processing, vol. 9, no. 7, pp. 1158–1170, 2000.

[11] T. H. Cormen, C. E. Leiserson, and R. L. Rivest, Introduction to Algorithms, MIT Press, Cambridge, Mass, USA, 1990. [12] R. L. de Queiroz, “On data filling algorithms for MRC layers,”

in Proc. IEEE International Conference on Image Processing (ICIP ’00), vol. 2, pp. 586–589, Vancouver, British Columbia, Canada, September 2000.

[13] S. Osher and R. Fedkiw, Level Set Methods and Dynamic Im-plicit Surfaces, Springer-Verlag, NY, USA, 2002.

[14] P. Ausbeck, “The piecewise-constant image model,” Proceed-ings of the IEEE, vol. 88, no. 11, pp. 1779–1789, 2000. [15] X. Li, “Embedded coding of palette images in the topological

space,” inData Compression Conference (DCC ’02), p. 462, Snowbird, Utah, USA, April 2002.

[16] S. Forchhammer and O. R. Jensen, “Content layer prohres-sive coding of digital maps,” inData Compression Conference (DCC ’00), pp. 233–242, Snowbird, Utah, USA, March 2000. [17] R. DeVore, B. Jawerth, and B. J. Lucier, “Image compression

through wavelet transform coding,”IEEE Trans. Inform. The-ory, vol. 38, no. 2, pp. 719–746, 1992.

[18] J. Li and S. Lei, “Arbitrary shape wavelet transform with phase alignment,” inProc. IEEE International Conference on Image Processing (ICIP ’98), pp. 683–687, Chicago, Ill, USA, October 1998.

[19] S. Li and W. Li, “Shape-adaptive discrete wavelet transforms for arbitrarily shaped visual object coding,” IEEE Trans. Cir-cuits and Systems for Video Technology, vol. 10, no. 5, pp. 725– 743, 2000.

[20] P. Y. Simard and H. S. Malvar, “A wavelet coder for masked images,” inData Compression Conference (DCC ’01), pp. 93– 102, Snowbird, Utah, USA, March 2001.

[21] W. Sweldens, “The lifting scheme: A construction of second generation wavelets,” SIAM J. Math. Anal., vol. 29, no. 2, pp. 511–546, 1997.

[22] Y. Shoham and A. Gersho, “Eﬃcient bit allocation for an ar-bitrary set of quantizers,” IEEE Trans. Acoustics, Speech, and Signal Processing, vol. 36, no. 9, pp. 1445–1453, 1988. [23] M. Antonini, M. Barlaud, P. Mathieu, and I. Daubechies,

“Im-age coding using wavelet transform,” IEEE Trans. Image Pro-cessing, vol. 1, no. 2, pp. 205–220, 1992.

Xin Lireceived the B.S. degree with highest honors in electronic engineering and infor-mation science from University of Science and Technology of China, Hefei, in 1996, and the Ph.D. degree in electrical engineer-ing from Princeton University, Princeton, NJ, in 2000. He was a member of techni-cal staﬀwith Sharp Laboratories of Amer-ica, Camas, Wash, from August 2000 to De-cember 2002. Since January 2003, he has
