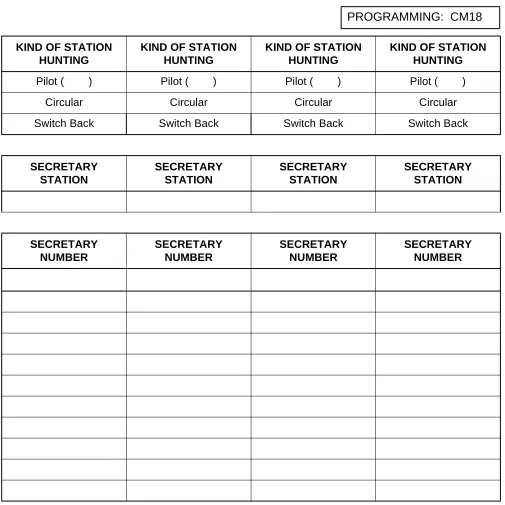

Station Hunting Group Data . . . 8

Call Pickup Group Data . . . 9

Speed Calling-System Data . . . 9

Port Assignment . . . 9

CUSTOMER SPECIFICATIONS SHEET . . . 10

CHAPTER 2 DATA PROGRAMMING SHEET . . . 21

HOW TO READ THIS CHAPTER. . . 22

CM04,05 . . . . 23

CM06 . . . . . . 24

CM07 . . . . . . 28

CM08 . . . . . . 32

CM09 . . . . . . 33

CM10, 12, 13 . . . 34

CM11, 12, 13 . . . 226

CM15 . . . . . . 258

CM16 . . . . . . 263

CM17 . . . . . . 265

CM18 . . . . . . 266

CM19 . . . . . . 267

CM1B . . . . . . 268

CM1C, 1D . . . 270

CM20 . . . . . . 271

CM21 . . . . . . 272

CM22 . . . . . . 273

CM23 . . . . . . 274

CM25 . . . . . . 275

CM29 . . . . . . 276

CM2A . . . . . . 277

CM30 . . . . . . 280

CM31 . . . . . . 295

CM35 . . . . . . 296

(11)

CM38 . . . . . . 314

CM40 . . . . . . 315

CM41 . . . . . . 316

CM42 . . . . . . 317

CM43 . . . . . . 320

CM44 . . . . . . 321

CM45 . . . . . . 324

CM46, 47 . . . 325

CM48 . . . . . . 326

CM49 . . . . . . 327

CM50 . . . . . . 335

CM51 . . . . . . 339

CM52 . . . . . . 341

CM53 . . . . . . 343

CM56 . . . . . . 344

CM58 . . . . . . 351

CM59 . . . . . . 352

CM5A . . . . . . 353

CM60 . . . . . . 354

CM61 . . . . . . 355

CM62 . . . . . . 356

CM63 . . . . . . 357

CM64 . . . . . . 361

CM65 . . . . . . 362

CM71 . . . . . . 364

CM72 . . . . . . 365

CM73 . . . . . . 371

CM74 . . . . . . 372

CM76 . . . . . . 375

CM77 . . . . . . 378

CM78 . . . . . . 379

CM81 . . . . . . 380

CM85 . . . . . . 381

CM8A . . . . . . 382

CM90 . . . . . . 383

CM93 . . . . . . 395

CM94 . . . . . . 396

CM96 . . . . . . 397

CM97 . . . . . . 398

(12)

INTRODUCTION

PURPOSE

This manual is used for programming office data and for designing the system layout required

for customizing the NEAX2000 IVS

2

.

Before starting installation work, the installer must fill in the office data sheet and draw the system

layout and floor layout in this manual according to customer’s requirements. In the course of this

work, the installer should use the Office Data Programming Manual, Command Manual and

Installation Procedure Manual.

OUTLINE OF THIS MANUAL

This manual consists of the following chapters:

CHAPTER 1 CUSTOMIZING OFFICE DATA

This chapter explains how to customize the office data and contains the customer specifications

sheets for numbering plan, station data and trunk data, port assignment table, etc.

CHAPTER 2 DATA PROGRAMMING SHEET

(15)

REFERENCE MANUAL

For additional information on office data programming, refer to the following manuals:

Installation Procedure Manual

Describes the installation procedure of the PBX system.

Command

Manual

Describes Customer Administration Terminal (CAT)

(16)

INTRODUCTION

Data Programming Procedure

DATA PROGRAMMING PROCEDURE

The following table shows the procedure and the outline of the office data programming for the

system.

The office data specified in this manual are entered to the system through the Customer

Administration Terminal (CAT) or Maintenance Administration Terminal (MAT).

STEP

WORK

REMARKS

1. Obtain the customer’s requirements, and

fill in the customer specifications sheets

in

CHAPTER 1 .

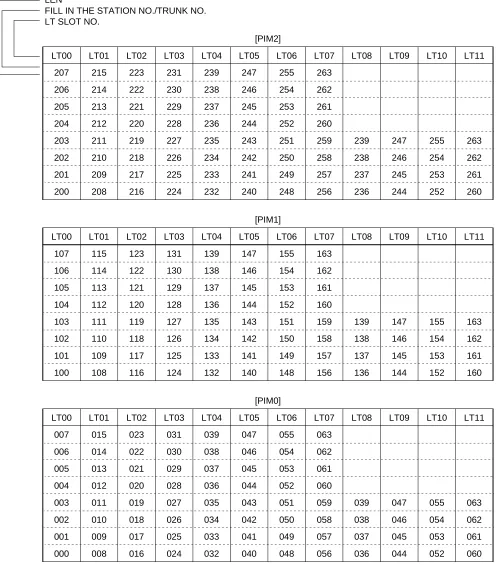

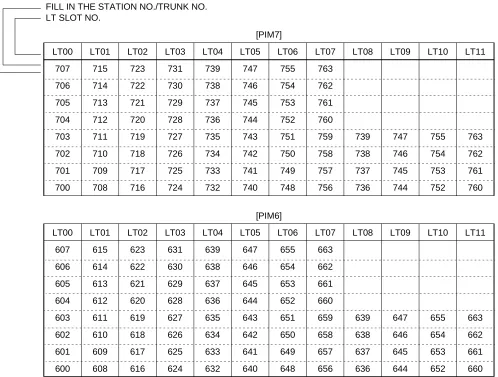

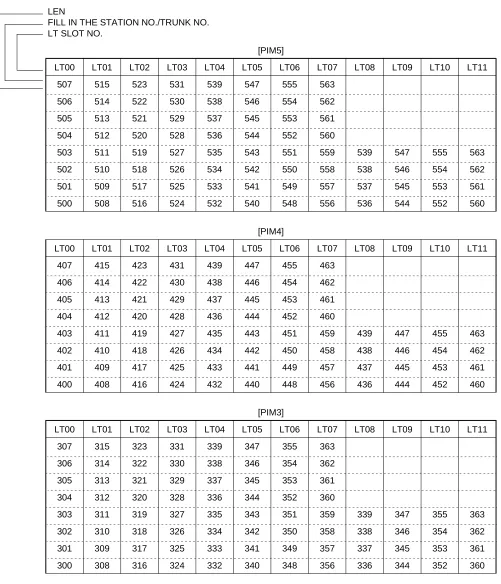

2. Allocate the LC, TRUNK and other

interface cards to the Port Assignment

Table in

CHAPTER 1 .

For mounting conditions of each card,

refer to the Installation Procedure

Manual.

For port assignment conditions of each

card, refer to the Command Manual

(CM10).

3. Fill in the data programming sheets in

CHAPTER 2 with the Customer

Specifications Sheet and Port

Assignment Table.

For the detailed information on each

Command, refer to the Command

Manual.

4. Check if data on all the programming

sheets are correct and consistent with

the customer specifications.

5. Specify the switch setting on the boards

with Switch Setting Table in the

Installation Procedure Manual.

(17)

(18)

CHAPTER 1 CUSTOMIZING OFFICE

DATA

(19)

HOW TO CUSTOMIZE OFFICE DATA

This section explains how to customize the office data.

The “

Customer Specifications Sheet

” section provides the data tables for the following items:

Numbering Plan

The Numbering Plan Data Table (

Table 1-1

) specifies the service feature access codes, trunk

access code, station numbers and other special access codes.

Service feature access codes and trunk access codes are given to each service feature and each

trunk route respectively with a maximum of four digits code. The station numbers are specified

by a maximum of eight digits.

For the numbering plan of the system, consider the following conditions:

(1)

The same first digit code cannot be assigned to the other features within the programmed

Numbering Plan Group. (This condition is not applicable to the system providing the Single

Digit Timing Start Access.)

(2)

The feature access codes should be three or four digits, because plural access codes for

each feature are required.

(3)

There are eight types of station numbering (1 digit - 8 digits). Any combination of these

types is available in one system.

(4)

The same station number cannot be assigned, even if the tenant service is applied.

Station Data

In Station Data Table (

Table 1-2

), the following data is required:

• Station Number

(20)

CHAPTER 1 CUSTOMIZING OFFICE DATA

How to Customize Office Data

• Type of Telephone

The type of station telephone set is specified as follows:

TYPE OF TEL

DESCRIPTION

DP . . .

Dial Pulse Telephone set

PB . . .

DTMF Telephone set

D

term

. . .

D

term

set

• SERVICE CLASS-A/B/C

Specify the service class (1-15) programmed in the Service Restriction Data Table.

• RESTRICTION CLASS-DAY/NIGHT

Specify the Trunk Restriction Class as follows:

1: Unrestricted

2: Non-Restricted-1

3: Non-Restricted-2

4: Semi-Restricted 1

5: Semi-Restricted 2

6: Restricted 1

7: Restricted 2

8: Fully-Restricted

• DIT TRUNK NUMBER

In the case of the Direct-In Termination (DIT) station, specify the trunk number connected.

Trunk Data

In

Trunk Data Table

(

Table 1-3

), the following data is required:

• ACCESS NUMBER

Specify the access code for the trunks.

• DESTINATION

(21)

• NUMBER OF LINE

Specify the number of trunks to be provided with each route Incoming (IC), Outgoing (OG),

Bothway (BW)

• DP/PB

Specify the type of address signal from/to distant office, as follows:

TYPE OF TEL

DESCRIPTION

DP . . .

Dial Pulse

PB . . .

DTMF Signal

• KIND OF SIGNAL

Specify the kind of signaling system such as Ring Down, Loop, E & M, etc. at the line.

Station Hunting Group Data

In

Station Hunting Group Data Table

(

Table 1-4

), the following data is required:

• KIND OF STATION HUNTING

Specify the kind of the Station Hunting System (Pilot/Circular/Switch Back).

For the Pilot System, specify the Pilot Station number.

• SECRETARY STATION

Specify the Secretary Station number, if provided.

• STATION NUMBER

Specify the station numbers to be assigned to the Station Hunting Group with the following

conditions.

(1)

Up to 60 stations can be assigned per Station Hunting Group.

(2)

There is no limitation to the number of Station Hunting Group.

(22)

How to Customize Office Data

Call Pickup Group Data

Assign station number to the Call Pickup Group with the following conditions (

Table 1-5

):

(1)

Up to 60 stations can be assigned per Call Pickup Group.

(2)

There are no limitations to the number of Call Pickup Groups.

(3)

The same one station cannot be assigned to plural Call Pickup Groups.

Speed Calling-System Data

This data table (

Table 1-6

) requires the abbreviated code and the stored number to be sent out.

A maximum of 32 digits stored number can be assigned.

Port Assignment

(23)

CUSTOMER SPECIFICATIONS SHEET

This section provides the following sheets for designing the customer specifications of the PBX.

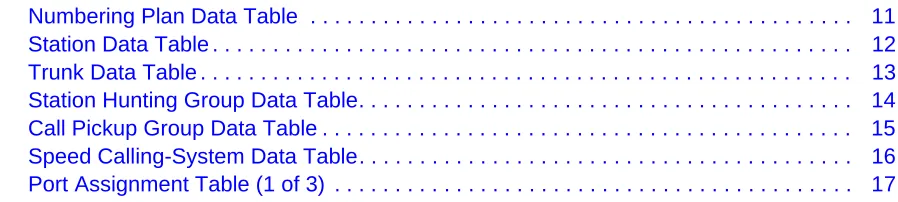

• Numbering Plan Data Table

• Station Data Table

• Trunk Data Table

• Station Hunting Group Data Table

• Call Pickup Group Data Table

• Speed Calling-System Data Table

• Port Assignment Table

(24)

Customer Specifications Sheet

ND-70931 (E), Issue 2.0 Page 11

NOTE: If space is insufficient, use copies.

Table 1-1 Numbering Plan Data Table

ACCESS CODE

FUNCTIONS

REMARKS

(25)

Table 1-2 Station Data Table

STATION NUMBER

TYPE OF TEL.

SERVICE CLASS RESTRICTION CLASS DIT TRUNK NUMBER

REMARKS

A B C DAY NIGHT

Department or Section Tenant PROGRAMMING:

(26)

ND-70931 (E), Issue 2.0 Page 13

NOTE: If space is insufficient, use copies.

Table 1-3 Trunk Data Table

ACCESS

NUMBER DESTINATION

KIND OF TRUNK

TYPE OF TRUNK

NUMBER

OF LINE DP/PB

KIND OF

SIGNAL REMARKS

IC

OG

BW

IC

OG

BW

IC

OG

BW

IC

OG

BW

IC

OG

BW

IC

OG

BW

IC

OG

BW

(27)

NOTE: If space is insufficient, use copies.

Table 1-4 Station Hunting Group Data Table

KIND OF STATION HUNTING

Pilot ( ) Pilot ( ) Pilot ( ) Pilot ( )

Circular Circular Circular Circular

Switch Back Switch Back Switch Back Switch Back

SECRETARY STATION

SECRETARY NUMBER

(28)

ND-70931 (E), Issue 2.0 Page 15

NOTE: If space is insufficient, use copies.

Table 1-5 Call Pickup Group Data Table

STATION NUMBER

(29)

Table 1-6 Speed Calling-System Data Table

ABBREVIATED

CODE SENDING NUMBER REMARKS

(30)

ND-70931 (E), Issue 2.0 Page 17

Table 1-7 Port Assignment Table (1 of 3)

LEN

FILL IN THE STATION NO./TRUNK NO. LT SLOT NO.

[PIM2]

LT00 LT01 LT02 LT03 LT04 LT05 LT06 LT07 LT08 LT09 LT10 LT11 207 215 223 231 239 247 255 263

206 214 222 230 238 246 254 262 205 213 221 229 237 245 253 261 204 212 220 228 236 244 252 260

203 211 219 227 235 243 251 259 239 247 255 263 202 210 218 226 234 242 250 258 238 246 254 262 201 209 217 225 233 241 249 257 237 245 253 261 200 208 216 224 232 240 248 256 236 244 252 260

[PIM1]

106 114 122 130 138 146 154 162 105 113 121 129 137 145 153 161 104 112 120 128 136 144 152 160

103 111 119 127 135 143 151 159 139 147 155 163 102 110 118 126 134 142 150 158 138 146 154 162 101 109 117 125 133 141 149 157 137 145 153 161 100 108 116 124 132 140 148 156 136 144 152 160

[PIM0]

006 014 022 030 038 046 054 062 005 013 021 029 037 045 053 061 004 012 020 028 036 044 052 060

(31)

[PIM5]

506 514 522 530 538 546 554 562 505 513 521 529 537 545 553 561 504 512 520 528 536 544 552 560

503 511 519 527 535 543 551 559 539 547 555 563 502 510 518 526 534 542 550 558 538 546 554 562 501 509 517 525 533 541 549 557 537 545 553 561 500 508 516 524 532 540 548 556 536 544 552 560

[PIM4]

406 414 422 430 438 446 454 462 405 413 421 429 437 445 453 461 404 412 420 428 436 444 452 460

403 411 419 427 435 443 451 459 439 447 455 463 402 410 418 426 434 442 450 458 438 446 454 462 401 409 417 425 433 441 449 457 437 445 453 461 400 408 416 424 432 440 448 456 436 444 452 460

[PIM3]

306 314 322 330 338 346 354 362 305 313 321 329 337 345 353 361 304 312 320 328 336 344 352 360

303 311 319 327 335 343 351 359 339 347 355 363

Table 1-7 Port Assignment Table (2 of 3)

LEN

(32)

ND-70931 (E), Issue 2.0 Page 19

[PIM7]

706 714 722 730 738 746 754 762 705 713 721 729 737 745 753 761 704 712 720 728 736 744 752 760

703 711 719 727 735 743 751 759 739 747 755 763 702 710 718 726 734 742 750 758 738 746 754 762 701 709 717 725 733 741 749 757 737 745 753 761 700 708 716 724 732 740 748 756 736 744 752 760

[PIM6]

606 614 622 630 638 646 654 662 605 613 621 629 637 645 653 661 604 612 620 628 636 644 652 660

603 611 619 627 635 643 651 659 639 647 655 663 602 610 618 626 634 642 650 658 638 646 654 662 601 609 617 625 633 641 649 657 637 645 653 661 600 608 616 624 632 640 648 656 636 644 652 660

Table 1-7 Port Assignment Table (3 of 3)

LEN

(33)

(34)

ND-70931 (E), Issue 2.0 Page 21

CHAPTER 2 DATA PROGRAMMING

SHEET

(35)

HOW TO READ THIS CHAPTER

The data programming sheets are given in numerical and alphabetical order of the command

code.

For programming procedure, see the CAT mode operation procedure below each data sheet.

In each sheet, the following symbols are used.

: Initial data which is automatically loaded into the memory, after system

initialization by setting position “B” on SW3 of the MP, followed by a reset.

: Commands that require a reset of the MP card after data setting.

: Commands that require a reset of the AP00 card after data setting.

: Commands that require a reset of the AP01 card after data setting.

: Commands that require a reset of the DCH card after data setting.

: Commands that require a reset of the DTI card after data setting.

: Commands that require a reset of the DBM card after data setting.

INITIAL

AP00 INITIAL

AP01 INITIAL

DCH INITIAL

DTI INITIAL

(36)

ND-70931 (E), Issue 2.0 Page 23

: Initial Data

CM04

YY 1ST DATA 2ND DATA

00 00 7

00 00

: Initial Data

CM05 CM05

AP NUMBER

Y

AP NUMBER

Y

0 1 0 1

AP CARD TYPE

AP HIGHWAY EXPANDED :0

BASIC :1

AP CARD TYPE

AP HIGHWAY EXPANDED :0

BASIC :1

NONE 1 NONE 1

04 20

05 21

06 22

07 23

08 24

09 25

10 26

11 27

12 28

13 29

14 30

15 31

INITIAL

ST + 0400+ DE + 1ST DATA._{(2 digits)} + DE + 2ND DATA_{(1 digit)} + EXE

COMMAND 04:

INITIAL INITIAL

ST + 05Y + DE + _{(2 digits)}AP No. + DE + SETTING DATA_{(2 digits)} + EXE

COMMAND 05:

(37)

• YY=01

CM06 YY=01

ATT No. AP No. CIRCUIT No.

0 1 2 3 4 5 6 7

CM06 YY = 04 MF/MFC/

CIR TRK No. AP No. CIRCUIT No. 00

01 02 03 04 05 06 07 08 09 10 11 12 13 14

INITIAL

ST + 0601 + DE + ATTCON No._{(1 digit)} + DE + AP No. + CIRCUIT No._{(3 digits)} + EXE

COMMAND 06:

(38)

ND-70931 (E), Issue 2.0 Page 25

• YY=07

• YY=08

CM06 YY=07 CM06 YY=07

CCH No. AP No. IPT No. AP No.

0 0

1 1

2 2

3 3

4 4

5 5

6 6

7 7

CM06 YY=08

DCH No. AP No.

0 1 2 3 4 5 6 7

ST + 0607 + DE + CCH/IPT No._{(1 digit)} + DE + _{(2 digits)}AP No. + EXE

COMMAND 06:

INITIAL

ST + 0608 + DE + DCH No._{(1 digit)} + DE + _{(2 digits)}AP No. + EXE

COMMAND 06:

(39)

• YY=09

CM06 YY=09

ICH No. AP No.

00

01

02

03

04

05

06

07

08

09

10

11

12

13

14

15

INITIAL

ST + 0609 + DE + ICH No. + DE + + EXE

COMMAND 06: AP No.

(40)

ND-70931 (E), Issue 2.0 Page 27

• YY=10

CM06 YY=10 CM06 YY=10

AP No. D-CHANNEL

BLOCK No. LEN OF CSI AP No.

D-CHANNEL

BLOCK No. LEN OF CSI

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

INITIAL

ST + 0610 + DE + + DE + + EXE

COMMAND 06:

LEN AP No. OF CSI

D-CHANNEL (4 digits) + BLOCK No.

(3 digits)

(41)

NOTE: If space is insufficient, use copies.

• YY=01

CM07 YY=01 CM07 YY=01

AP No. CH No. TRK No. AP No. CH No. TRK No.

00 00

01 01

02 02

03 03

04 04

05 05

06 06

07 07

08 08

09 09

10 10

11 11

12 12

13 13

14 14

15 15

16 16

17 17

18 18

19 19

20 20

21 21

22 22

23 23

ST + 0701 + AP No. TRUNK No.+ EXE (4 digits)

+ DE +

COMMAND 07: + CH No. +

(42)

ND-70931 (E), Issue 2.0 Page 29

• For 30DTI

NOTE: If space is insufficient, use copies.

• YY=01

CM07 YY=01 CM07 YY=01

00 00

01 01

02 02

03 03

04 04

05 05

06 06

07 07

08 08

09 09

10 10

11 11

12 12

13 13

14 14

15 15

16 16

17 17

18 18

19 19

20 20

21 21

22 22

23 23

24 24

25 25

26 26

27 27

28 28

29 29

30 30

31 31

+ DE +

(4 digits) DE

(43)

• YY=02

CM07 YY=02 CM07 YY=02

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

00 00

01 01

02 02

03 03

INITIAL

+ DE +

(44)

ND-70931 (E), Issue 2.0 Page 31

• YY=05

CM07 YY=05 Home-Side TRK

Virtual CH No. TRK No.

Mate-Side TRK

Virtual CH No. TRK No.

32

00

32

01

02 03

04 05

06 07

08 09

10 11

12 13

14 15

16 17

18 19

20 21

22 23

24 25

26 27

28 29

30 31

INITIAL

EXE DE

ST

COMMAND 07: + 0705 + + 32 + CH No._{(4 digits)} + DE + TRUNK No._{(4 digits)} +

(45)

CM08 FEATURE No. DATA 0/1 FEATURE No. DATA 0/1 FEATURE No. DATA 0/1 FEATURE No. DATA 0/1 FEATURE No. DATA 0/1 FEATURE No. DATA 0/1

010 102 172 253 372 461

011 103 176 254 373 462

012 104 177 255 376 463

014 109 178 258 377 464

018 110 179 259 378 465

020 111 180 262 379 470

021 112 181 265 380 471

025 113 183 267 381 472

026 114 185 268 382 473

027 115 187 269 386 474

028 116 193 270 387 475

029 117 194 271 388 477

032 119 199 274 390 478

035 120 200 279 391 479

036 121 201 280 392 487

037 123 204 281 396 503

040 124 205 282 398 504

043 125 206 283 400 701

044 130 207 284 401 702

045 133 208 286 402 703

046 135 212 287 403 704

048 136 213 289 404 706

050 137 214 293 405 713

051 138 215 294 407 800

055 140 216 301 420 801

056 141 217 311 421 900

057 142 220 319 422

062 143 221 322 424

063 144 222 324 425

064 145 227 331 426

067 146 228 333 427

068 147 229 334 428

069 148 232 335 429

070 149 233 352 430

073 150 234 353 431

074 151 235 357 432

075 153 236 359 434

076 155 237 361 441

077 156 238 362 442

078 157 239 363 443

085 158 240 365 444

088 161 241 366 445

090 162 244 367 448

(46)

ND-70931 (E), Issue 2.0 Page 33

: Initial Data

CM09

FEATURE No. DATA 0/1

52 0

INITIAL

ADDITIONAL SERVICE

ST + 09 + DE + + DE + SETTING DATA_{(0/1) (1 digit)} + EXE

COMMAND 09: FEATURE No.

(2 digits)

(47)

: Initial Data LEN CM10 CM12 STATION No. TRUNK No. CARD No. (1-10 DIGITS) YY

00 01 02 03 04 05 07 11 12 13 16

DAY NIGHT A B ₀₀

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

SETTING DATA (1-10 digits) LEN (3 digits)

ST + 10 + DE + + DE + + EXE

COMMAND 10:

STATION No.

ST + 12YY + DE + + DE + SETTING DATA + EXE

(48)

ND-70931 (E), Issue 2.0 Page 35

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

XXXXXXXX 0/1

0

3

0/7

3 NONE 0 3 7

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

INITIAL

~

(49)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

STATION No. (1-8 digits)

ST + 13YY + DE + + DE + SETTING DATA_{(1 digit)} + EXE

(50)

ND-70931 (E), Issue 2.0 Page 37

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

000 001 002 003 004 005 006 007 008 009 010 011 012 013 014 015

(51)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

ST + 12YY + DE + + DE + SETTING DATA_{(1-4 digits)} + EXE

(52)

ND-70931 (E), Issue 2.0 Page 39

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

INITIAL

~

(53)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

(54)

ND-70931 (E), Issue 2.0 Page 41

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

016 017 018 019 020 021 022 023 024 025 026 027 028 029 030 031

(55)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(56)

ND-70931 (E), Issue 2.0 Page 43

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047

INITIAL

~

(57)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047

(58)

ND-70931 (E), Issue 2.0 Page 45

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

032 033 034 035 036 037 038 039 040 041 042 043 044 045 046 047

(59)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(60)

ND-70931 (E), Issue 2.0 Page 47

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063

INITIAL

~

(61)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063

(62)

ND-70931 (E), Issue 2.0 Page 49

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

048 049 050 051 052 053 054 055 056 057 058 059 060 061 062 063

(63)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(64)

ND-70931 (E), Issue 2.0 Page 51

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079

INITIAL

~

(65)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079

(66)

ND-70931 (E), Issue 2.0 Page 53

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

064 065 066 067 068 069 070 071 072 073 074 075 076 077 078 079

(67)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

080 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(68)

ND-70931 (E), Issue 2.0 Page 55

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

080 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095

INITIAL

~

(69)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

080 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095

(70)

ND-70931 (E), Issue 2.0 Page 57

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

080 081 082 083 084 085 086 087 088 089 090 091 092 093 094 095

(71)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

096 097 098 099 100 101 102 103 104 105 106 107 108 109 110 111 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(72)

ND-70931 (E), Issue 2.0 Page 59

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

096 097 098 099 100 101 102 103 104 105 106 107 108 109 110 111

INITIAL

~

(73)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

096 097 098 099 100 101 102 103 104 105 106 107 108 109 110 111

(74)

ND-70931 (E), Issue 2.0 Page 61

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

096 097 098 099 100 101 102 103 104 105 106 107 108 109 110 111

(75)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(76)

ND-70931 (E), Issue 2.0 Page 63

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

INITIAL

~

(77)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

(78)

ND-70931 (E), Issue 2.0 Page 65

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127

(79)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(80)

ND-70931 (E), Issue 2.0 Page 67

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143

INITIAL

~

(81)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143

(82)

ND-70931 (E), Issue 2.0 Page 69

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143

(83)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(84)

ND-70931 (E), Issue 2.0 Page 71

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159

INITIAL

~

(85)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159

(86)

ND-70931 (E), Issue 2.0 Page 73

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159

(87)

00 01 02 03 04 05 07 11 12 13 16

15 00 63 0/1 00 15 0 3 x xxxx 00 15 D000 D255

3 1 1 15 15 15 01 1 15 3 NONE 15 NONE

160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 1 3

~

1

~

8

~

1 8

~

00 15

~

00 15

~

ST + 10 + DE + + DE + + EXE

COMMAND 10:

(88)

ND-70931 (E), Issue 2.0 Page 75

: Initial Data

LEN

CM12 YY

17 19 22 23 24

0, 1, 3

X

0

3

0/7

3 NONE 0 3 7

160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175

INITIAL

~

(89)

: Initial Data

LEN

CM13 YY

00 01 02 03 04 05 06 07 08 09 10 12 13 14 15 18 21 22

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175

(90)

ND-70931 (E), Issue 2.0 Page 77

: Initial Data

LEN

CM13 YY

23 24 25 28 29 32 33 34 35 36 37 39

0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1 0/1

1 1 1 1 1 1 1 1 1 1 1 1

160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175

ND-70931 (E) ISSUE 2 STOCK # 152001 Office Data Programming Manual

NEAX2000 IVS

Office Data Programming Manual

ND-70931 (E)

NEAX2000 IVS

Office Data Programming Manual

ND-70931 (E)

NEAX2000 IVS

Office Data Programming Manual

ND-70931 (E)

NEAX2000 IVS

2

Office Data Programming Manual

TABLE OF CONTENTS

INTRODUCTION . . .

1

CHAPTER 1

CUSTOMIZING OFFICE DATA . . .

5

CHAPTER 2

DATA PROGRAMMING SHEET . . . 21

TABLE OF CONTENTS

INTRODUCTION

PURPOSE

This manual is used for programming office data and for designing the system layout required

for customizing the NEAX2000 IVS

.

Before starting installation work, the installer must fill in the office data sheet and draw the system

layout and floor layout in this manual according to customer’s requirements. In the course of this

work, the installer should use the Office Data Programming Manual, Command Manual and

Installation Procedure Manual.

OUTLINE OF THIS MANUAL

This manual consists of the following chapters:

CHAPTER 1

CUSTOMIZING OFFICE DATA

This chapter explains how to customize the office data and contains the customer specifications

sheets for numbering plan, station data and trunk data, port assignment table, etc.

CHAPTER 2

DATA PROGRAMMING SHEET

REFERENCE MANUAL

For additional information on office data programming, refer to the following manuals:

Installation Procedure Manual

Describes the installation procedure of the PBX system.

Command

Manual

Describes Customer Administration Terminal (CAT)

DATA PROGRAMMING PROCEDURE

The following table shows the procedure and the outline of the office data programming for the

system.

The office data specified in this manual are entered to the system through the Customer

Administration Terminal (CAT) or Maintenance Administration Terminal (MAT).

STEP

WORK

REMARKS

1.

Obtain the customer’s requirements, and

fill in the customer specifications sheets

in

CHAPTER 1

.

2.

Allocate the LC, TRUNK and other

interface cards to the Port Assignment

Table in

CHAPTER 1

.

For mounting conditions of each card,

refer to the Installation Procedure

Manual.

For port assignment conditions of each

card, refer to the Command Manual

(CM10).

3.

Fill in the data programming sheets in

CHAPTER 2

with the Customer

Specifications Sheet and Port

Assignment Table.

For the detailed information on each

Command, refer to the Command
